Uniview EASY Series 8-channel NVR with 2 HDD Slot NVR302-08B-P8-IQ

Uniview EASY Series 8-channel NVR with 2 HDD Slot NVR302-08B-P8-IQ

2 HDDs 8-ch 8 PoE 1U Network Video Recorder

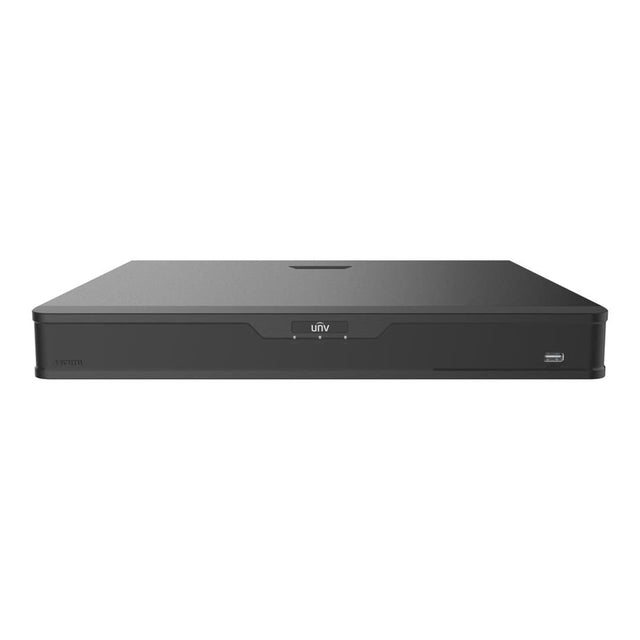

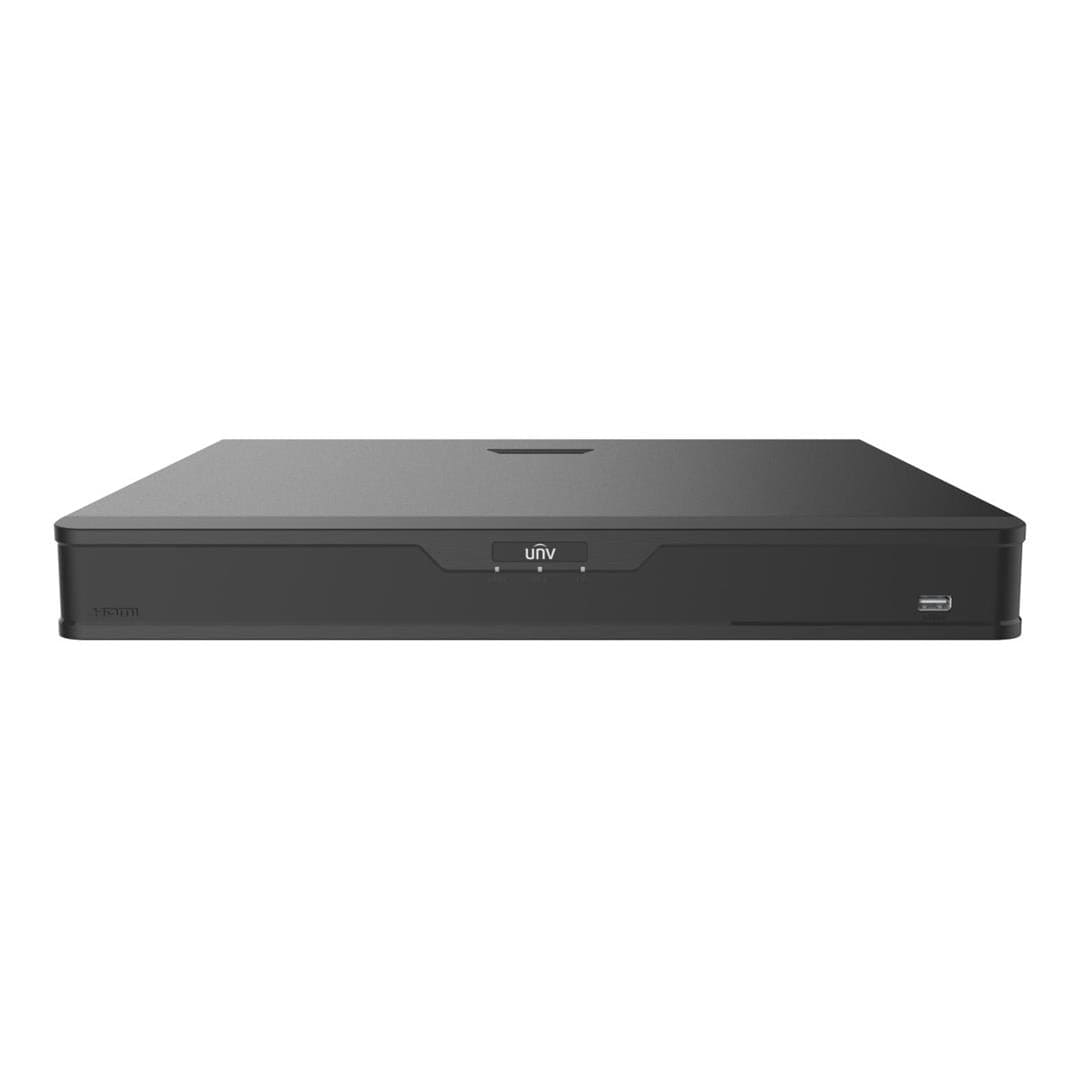

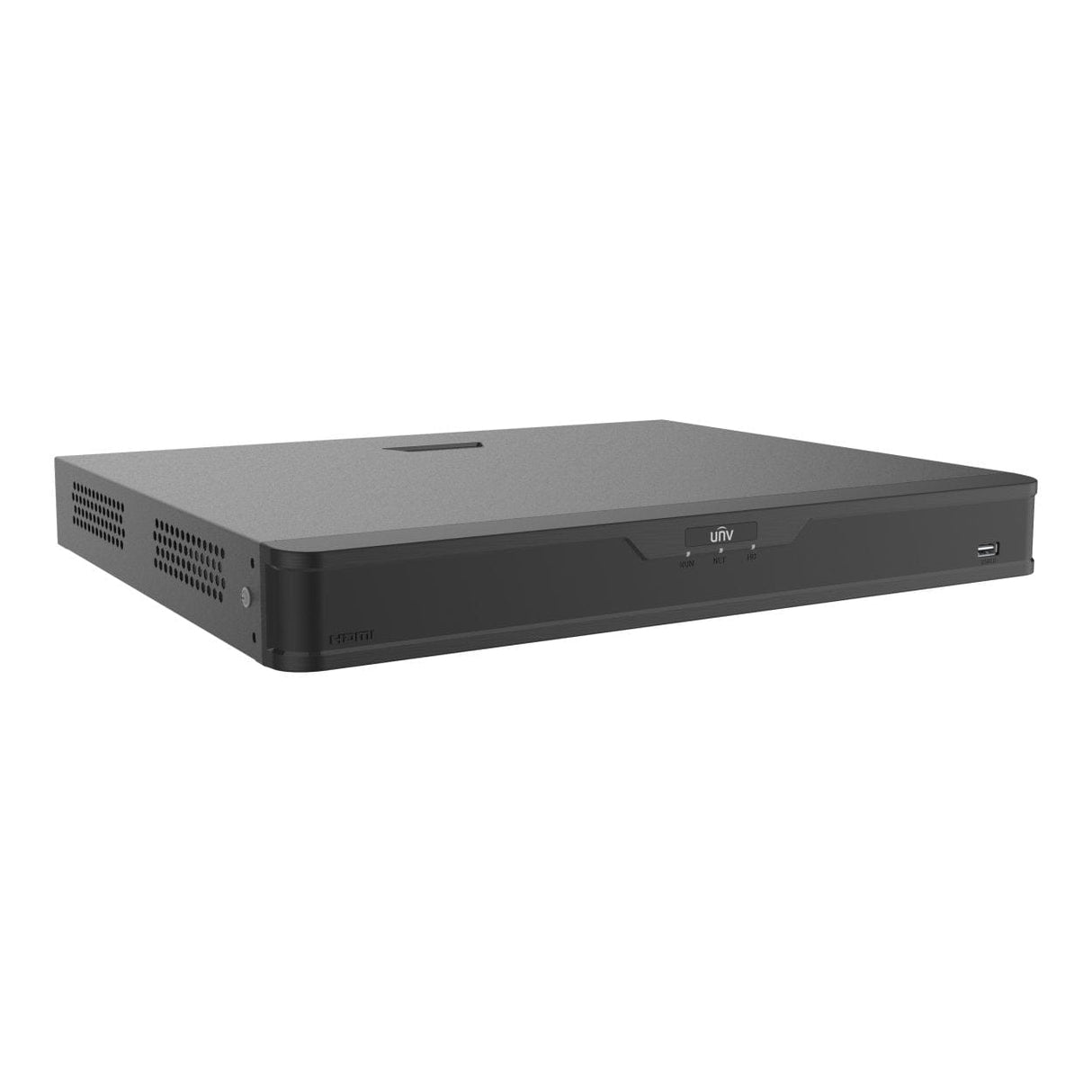

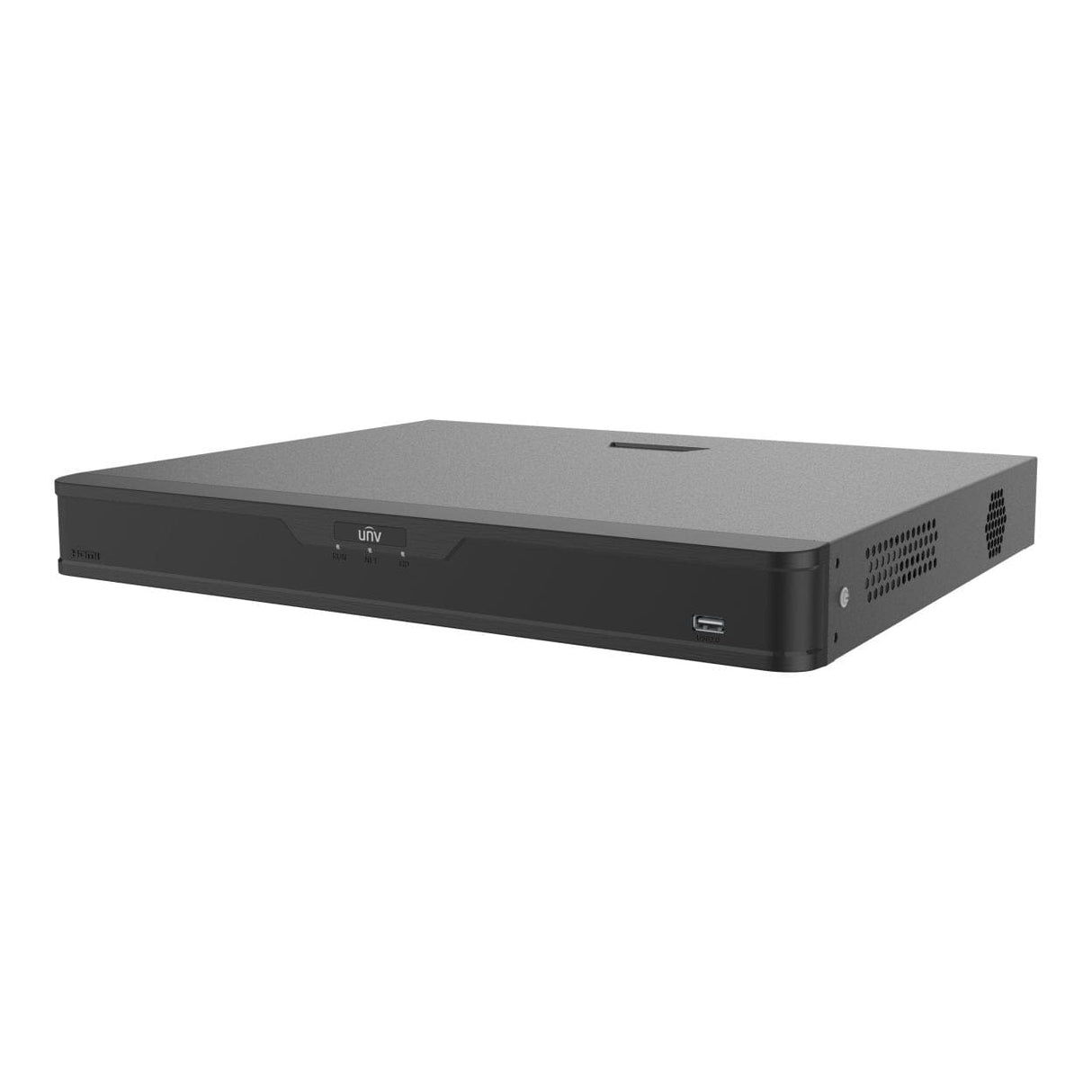

The Uniview NVR302-08B-P8-IQ is an 8-channel network video recorder (NVR) from the EASY Series, designed to provide efficient and reliable video surveillance management.

Channel Support

Accommodates up to 8 IP cameras, facilitating comprehensive surveillance coverage.

PoE Integration

Features 8 PoE ports compliant with IEEE 802.3af/at standards, delivering up to 30W per port with a total PoE budget of 130W, simplifying the connection and powering of compatible cameras.

Storage Capacity

Supports two SATA hard drives, each up to 10TB (hard drives not included), providing ample storage for recorded footage.

Video Resolution

Supports recording at resolutions up to 12 megapixels, ensuring high-quality video capture.

Bandwidth Handling

Manages incoming bandwidth up to 160 Mbps and outgoing bandwidth up to 128 Mbps, ensuring smooth data transmission.

Video Compression

Utilises Ultra 265, H.265, and H.264 compression formats, optimising storage efficiency without compromising image quality.

Display Outputs

Provides HDMI (up to 4K resolution) and VGA outputs, supporting simultaneous video outputs for flexible monitoring setups.

Audio Support

Equipped with one audio input and one audio output, allowing for integrated audio recording and playback.

USB Interfaces

Includes one USB 3.0 port and one USB 2.0 port for peripheral connections such as a mouse or external storage devices.

Network Connectivity

Features one 10/100 Mbps LAN port for network integration.

Intelligent Features

Supports basic artificial intelligence functionalities, including smart intrusion prevention on up to 2 channels, enhancing security measures.

ONVIF Compatibility

Compatible with IP cameras from various manufacturers supporting ONVIF profiles S, G, and T, offering flexibility in device integration.

ANR Technology

Incorporates Automatic Network Replenishment (ANR) technology, enabling cameras to record to a microSD card during network interruptions and synchronise the footage to the NVR once the connection is restored.

Features

• Support Ultra 265/H.265/H.264 video formats
• 8 channel input
• Plug & Play with 8 independent PoE network interfaces
• Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
• VGA and HDMI simultaneous output
• Up to 12 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Specifications

Network

Video/Audio Input

Video/Audio Output

Smart
