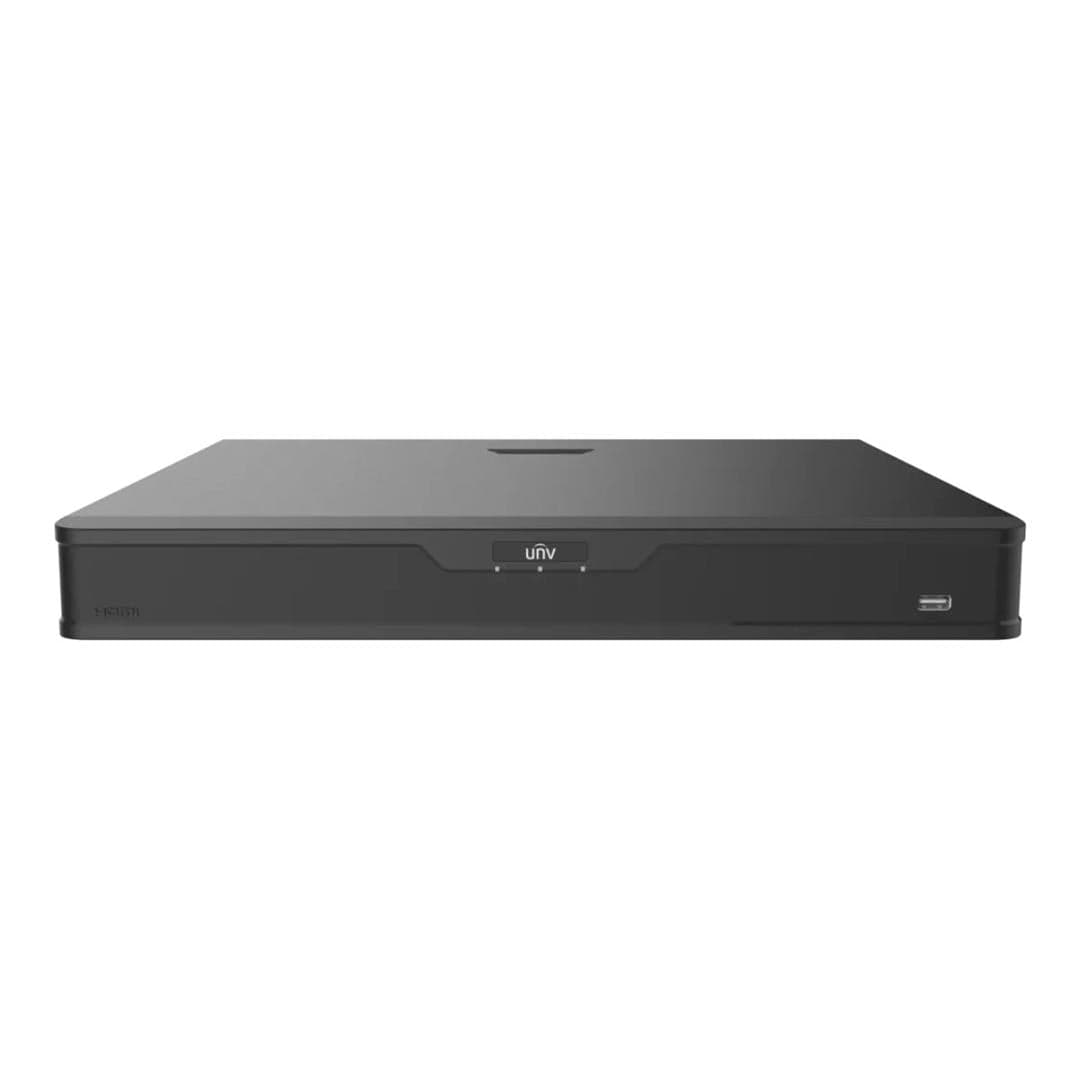

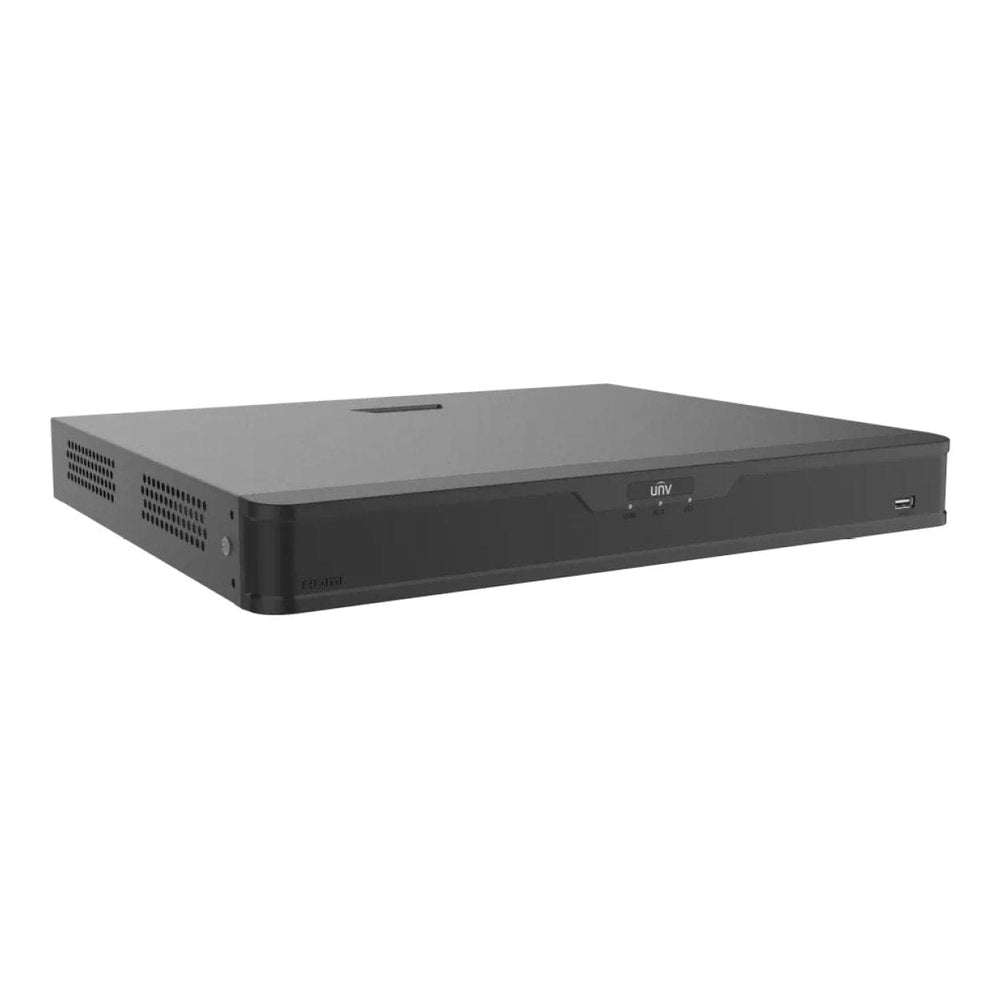

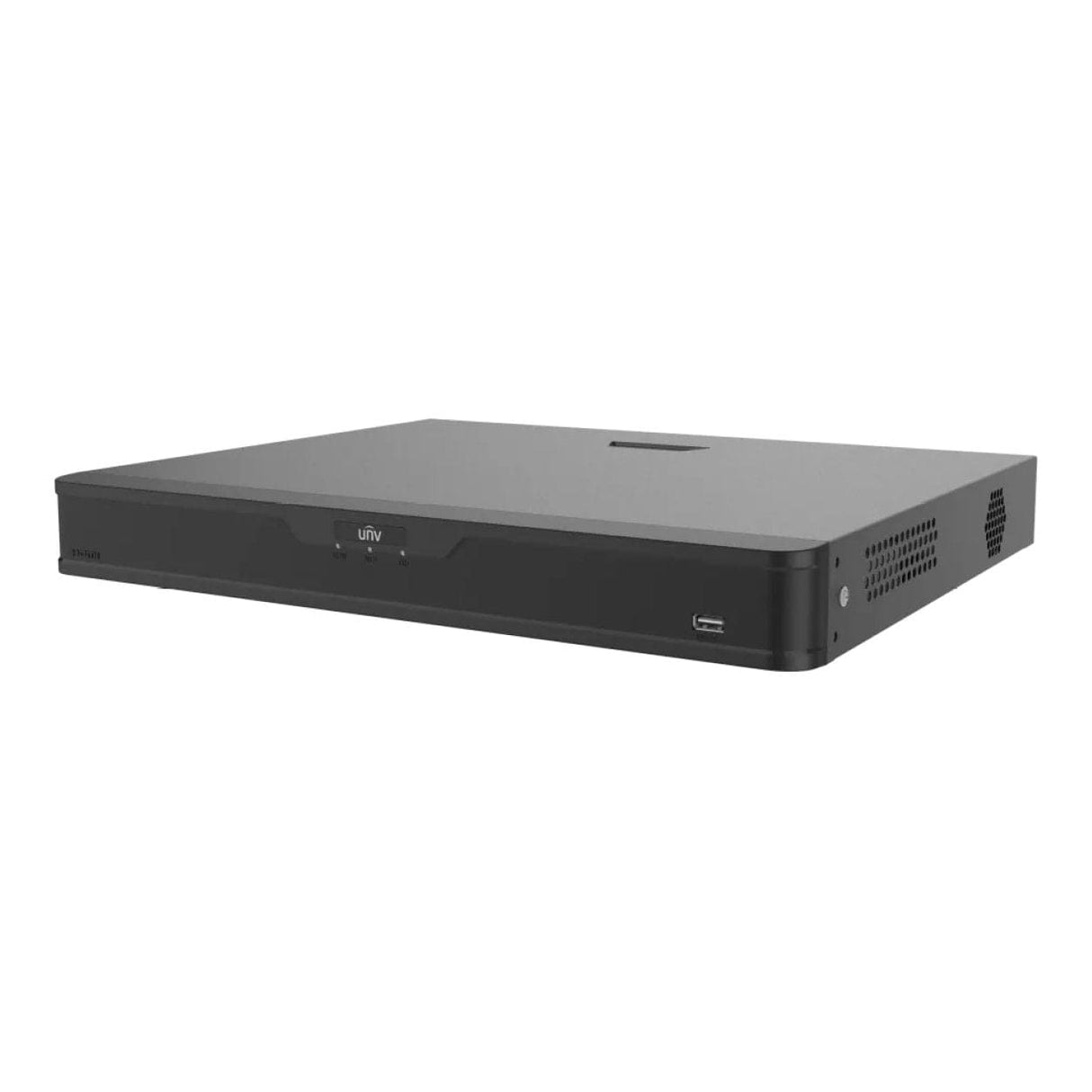

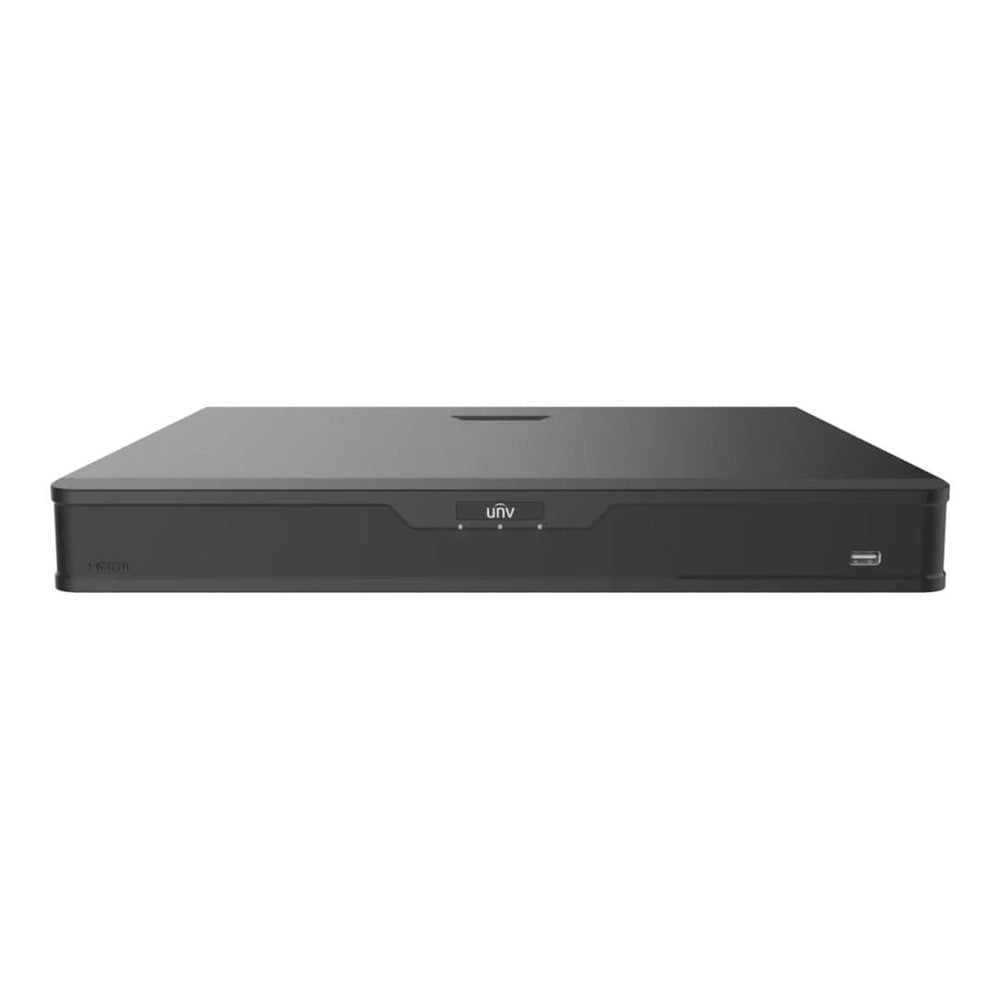

Uniview Easy Series 32-ch 1U Network Video Recorder with 16x PoE ports NVR304-32B-P16-IQ

Uniview Easy Series 32-ch 1U Network Video Recorder with 16x PoE ports NVR304-32B-P16-IQ

Features

• Support Ultra H.265/H.265/H.264 video formats
• 32 channel
• Plug & Play with 16 independent PoE network interfaces
• Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
• Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
• Support HDMI and VGA simultaneous output
• Up to 12 Megapixels resolution recording
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Technical Specification

IP Video: 32-ch (Note: Additional 16-port switch required to connect camera's)

RCA Audio Input: 1-ch

RCA Audio Output: 1-ch

Incoming Bandwidth: 160 Mbps

Outgoing Bandwidth: 128 Mbps

Decoding Format: Ultra 265,H.265,H.264

Recording Resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF

Two-way Audio: 1-ch, RCA (Using the audio input and output)

SATA: 4x SATA Interfaces, up to 10TB for each HDD

Front panel: 1x USB2.0

Rear panel: 1x USB3.0

RS485: 1

Alarm In: 16-ch

Alarm Out: 4-ch

Network Interfaces: 1x RJ45 10M/100M/1000M self-adaptive Ethernet Interface

PoE Interface: 16x RJ45 10M/100M self-adaptive Ethernet Interface

Max Power: Max 30W for single port, Max 150W in total

Supported Standard: IEEE 802.3at, IEEE 802.3af

Weight: Starting at 4.00 kg
