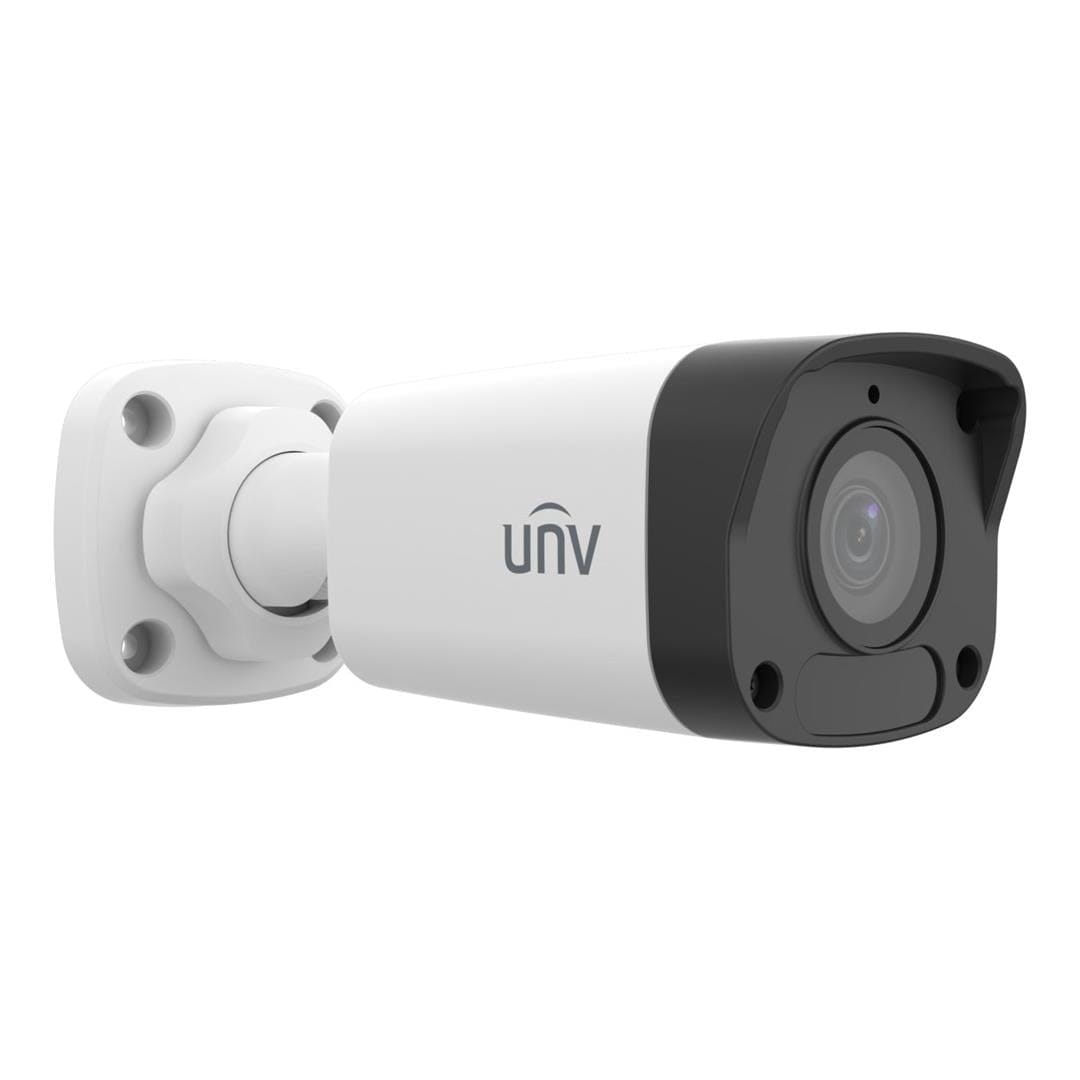

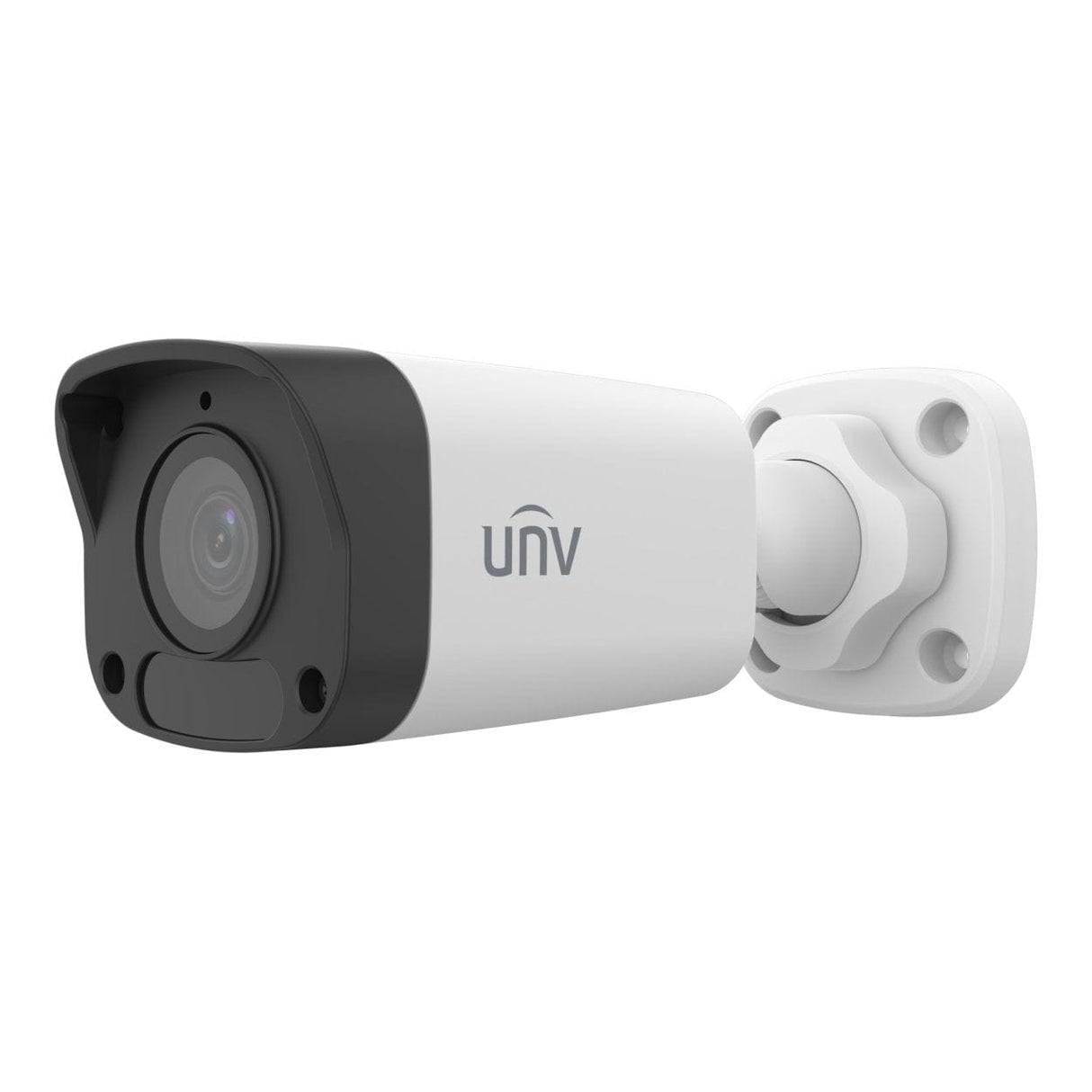

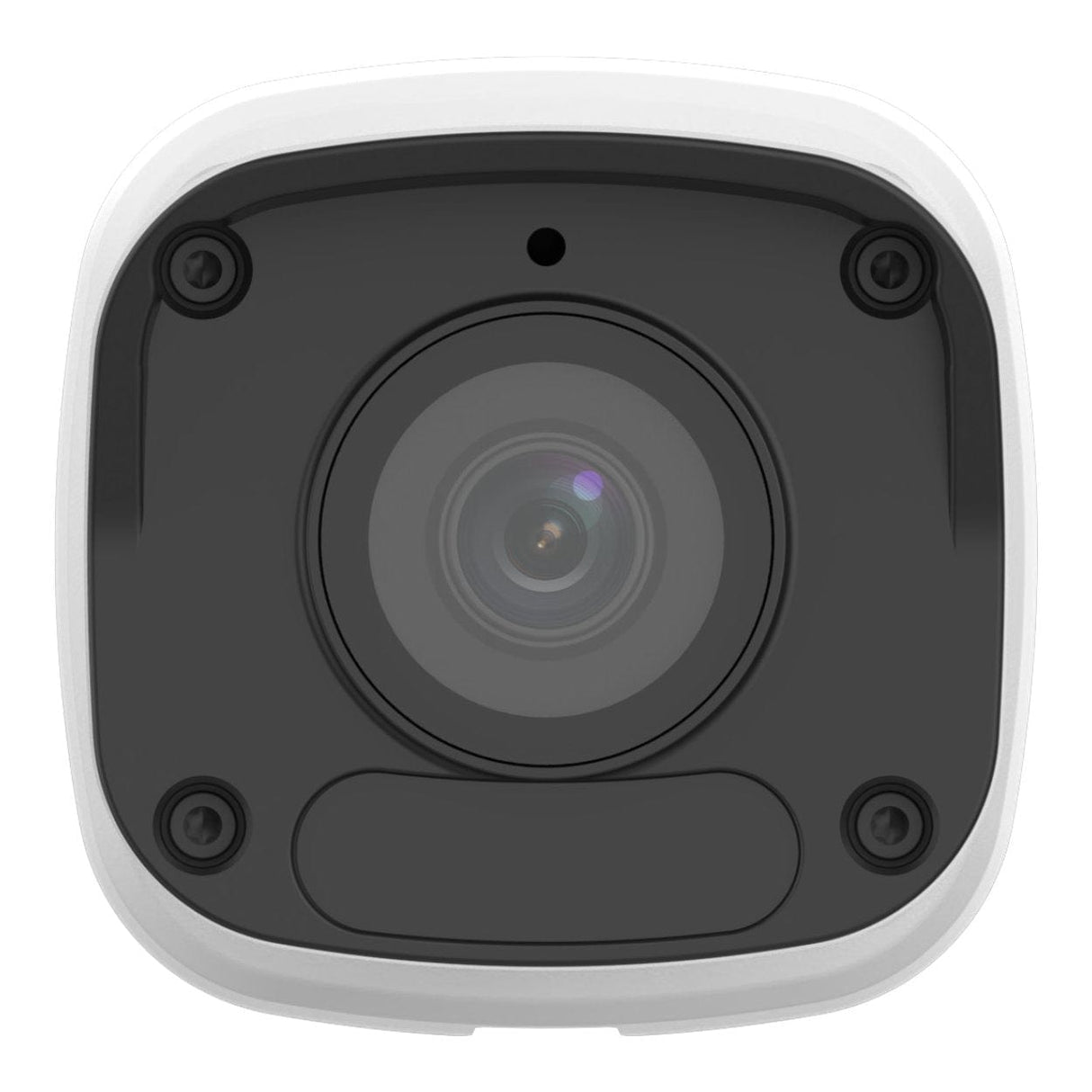

Uniview 4MP Fixed IR Bullet Network Camera IPC2124LB-AF28-A2

Uniview 4MP Fixed IR Bullet Network Camera IPC2124LB-AF28-A2

The Uniview IPC2124LB-AF28-A2 is a 4MP mini bullet camera designed for reliable indoor and outdoor surveillance. It delivers high-quality 4-megapixel video at 30 frames per second through a 2.8mm fixed lens, providing a wide field of view for versatile monitoring. Ultra H.265 compression reduces bandwidth and storage requirements without sacrificing image detail. Its compact, discreet plastic housing makes it an economical solution for security installations in a range of environments.

Features:

• High quality image with 4 MP, 1/3.0" CMOS sensor
• 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Supports accurate human body detection 2.0
• Ultra 265, H.265, H.264
• Built-in mic
• Smart IR, up to 30 m (98.4 ft) IR distance
• Day/night functionality
• 2D/3D DNR (digital noise reduction)
• DC 12 V, PoE (IEEE 802.3af) power supply
• IP67 protection
• 3-axis

Technical Specifications:

Camera

Max. Resolution: 4 MP

Sensor: 1/3.0" CMOS

Minimum Illumination: Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 to 1/100000 s

Adjustment Angle: Pan 0°–360°, Tilt 0°–90°, Rotate 0°–360°

S/N Ratio: > 52 dB

WDR: DWDR

Lens

Focal Length: 2.8 mm / 4.0 mm

Iris Type: Fixed

Iris: F2.0

Field of View (H): 94.3° (2.8 mm), 73.4° (4 mm)

Field of View (V): 52.2° (2.8 mm), 40.4° (4 mm)

Field of View (D): 99.6° (2.8 mm), 79.5° (4 mm)

Lens Type: Fixed

DORI Distance

2.8 mm Lens: Detect 63.0 m, Observe 25.2 m, Recognize 12.6 m, Identify 6.3 m

4.0 mm Lens: Detect 90.0 m, Observe 36.0 m, Recognize 18.0 m, Identify 9.0 m

Illuminator

Supplemental Light: IR

Illumination Distance: 30 m (98.4 ft)

Wavelength: 850 nm

IR On/Off Control: Auto/Manual

Video

Compression: Ultra 265, H.265, H.264

H.264 Profiles: Baseline, Main, High

Frame Rate:

• Main Stream: 4 MP (2560×1440) max. 25 fps; 3 MP (2304×1296) max. 30 fps; 1080P (1920×1080) max. 30 fps
• Sub Stream: 640×360 max. 30 fps; 2CIF (704×288) max. 30 fps; CIF (352×288) max. 30 fps
• Bit Rate: 128 Kbps–6144 Kbps
• U-code: Supported
• OSD: Up to 4 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Supported
• Streams: Dual streams


White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2, Area WB

DNR: 2D/3D

Smart IR: Supported

Flip: Normal, Vertical, Horizontal, 180°

HLC: Supported

BLC: Supported

Defog: Digital Defog

Image Stabilization: N/A

Events

Basic Detection: Human Body Detection 2.0, Motion Detection, Audio Detection

General Functions: Watermark, IP Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio

Compression: G.711U, G.711A

Bitrate: 64 Kbps

Two-way Audio: N/A

Suppression: Supported

Sampling Rate: 8 kHz

Storage

Edge Storage: N/A

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS

Integration: ONVIF (Profile S/T), API, SDK

Users/Hosts: Up to 32 users; 3 levels: Administrator, User, Operator

Security: Password Protection, Strong Passwords, HTTPS Encryption, Operation Logs, Digest Authentication (RTSP/HTTP/ONVIF), TLS 1.2, WSSE

Client: UNV-Link, UNV-Link Pro, EZStation

Web Browser: Chrome 57+, Firefox 58+, Edge 16+ (plug-in free); IE 10+, Chrome 45+, Firefox 52+, Edge 79+ (plug-in required)

Interfaces

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Supported

Built-in Speaker: N/A

Wi-Fi: N/A

Network Port: 1 × RJ45 10/100M Ethernet

Video Output: N/A

Certification

EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC Part 15B

Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)

Protection: IP67 (IEC 60529)
