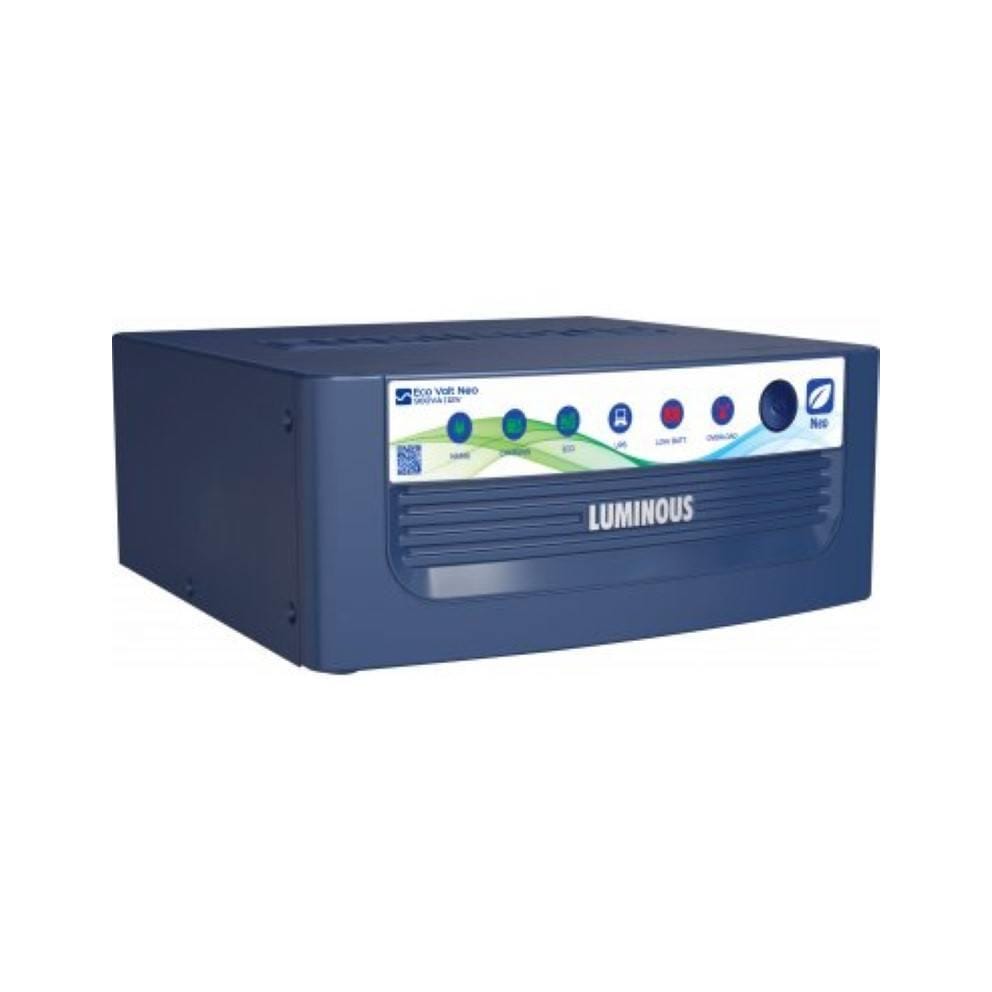

Luminous EcoVolt NEO 924W 1100VA 12V Pure Sinewave Inverter IEN12V-1100

Luminous EcoVolt NEO 924W 1100VA 12V Pure Sinewave Inverter

The Luminous EvoVolt Neo 1100VA, 12V inverter offers a max load of 924W and a charging current of 17A. When purchasing this unit, a 1 x 12V Inverlast Tall Tubular battery, either a 150Ah, 200Ah or 220Ah is required for operation. This is a DIY unit as it has a standard connection for AC in and AC out.

THE GENX HOME UPS WITH UNPRECEDENTED PERFORMANCE!

EcoVolt is a pure sine wave UPS with features such as Intelligent Water Level Indication which helps consumer to track battery water level hassle-free, low harmonic distortion makes inverter practically noiseless. Pure sine wave output makes it highly efficient and saves electrically bills.

Features:

• Pure sine wave technology
• Rugged technology design for high performance and longer back-up time
• Turbo mode increases voltage across the load and enables them to run faster
• Auto holiday mode preserves battery charge and safeguards battery life
• Supports wide range of batteries with 3-step charging current and 4-step battery type selection
• Adaptive battery charging control technology (ABCC) ensures faster battery charging and enhances battery life up to 70%

Specifications:

Capacity: 924W, 1100VA, 12V

UPS Mode

• Rated voltage: 230V
• Undervoltage Cut Off: 180 ± 5V
• Undervoltage Restoration: 285 ± 10V
• Overvoltage Cut Off: 265 ± 5V
• Overvoltage Restoration: 255 ± 5V

ECO mode

• Undervoltage Cut Off: 85±10V
• Undervoltage Restoration: 105±10V
• Overvoltage Cut Off: 285±10V

Output

• Rated voltage (Normal Mode): (200 - 220)V AC ± 5%
• Rated voltage (Turbo Mode): (200 - 240)V AC ± 5%
• Voltage (Mains Mode): Same as input
• Frequency (UPS / ECO Mode): 50 ± 0.5Hz
• Load Performance Factor: 0.6 to 0.8#
• Frequency (Mains Mode): Same as input (45-55 Hz)
• Overload: > 105%
• Transfer Time(UPS Mode): < 20 ms

Battery

Battery Not Included

• Type/Voltage: 80Ah-200Ah - Tubular, Flat, SMF or Local Battery / 12V
• Number: 1
• Typical Recharge Time: 10-12 Hrs.
• Protection: Low Battery, Reverse Polarity
