Ubiquiti GigaBeam Plus airMAX 35dBi 60GHz PtP GBE-PLUS
Ubiquiti GigaBeam Plus airMAX 35dBi 60GHz PtP GBE-PLUS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
* Next Business Day Shipping Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description

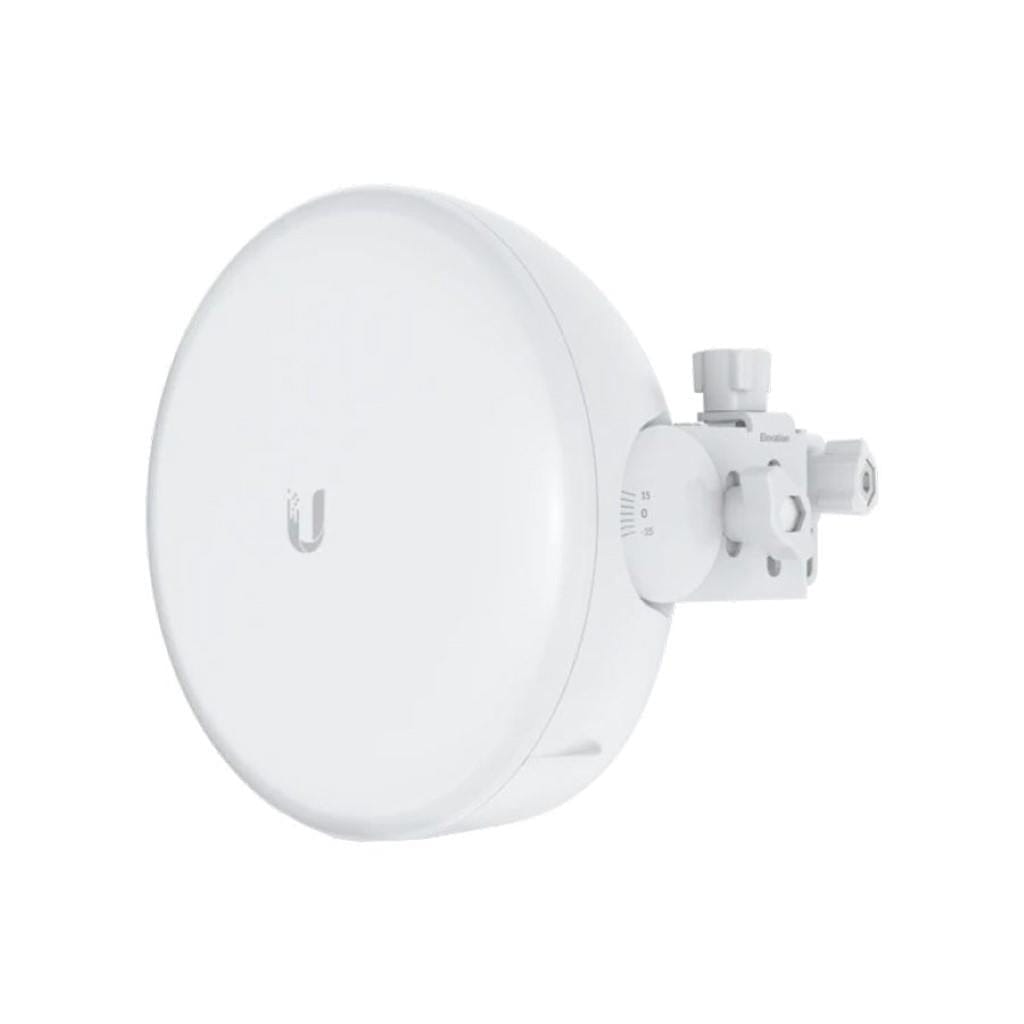

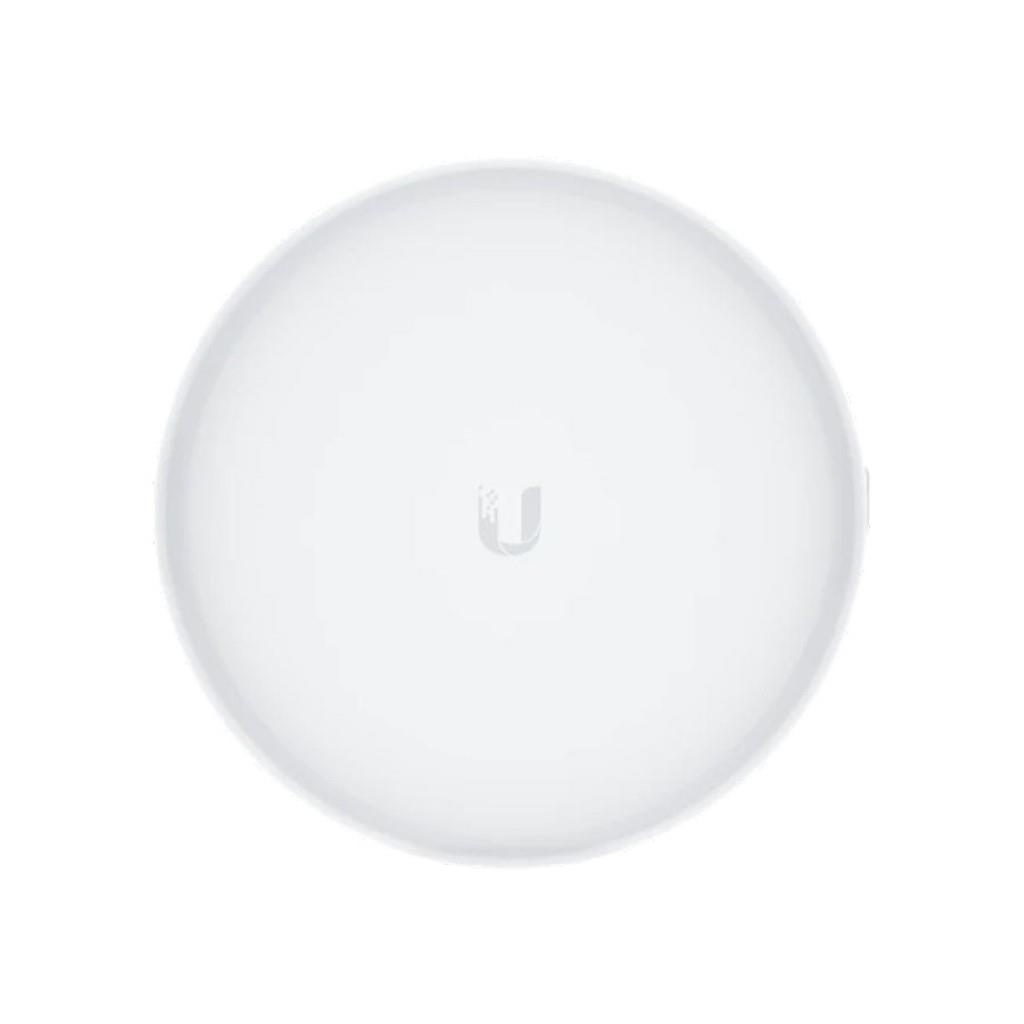

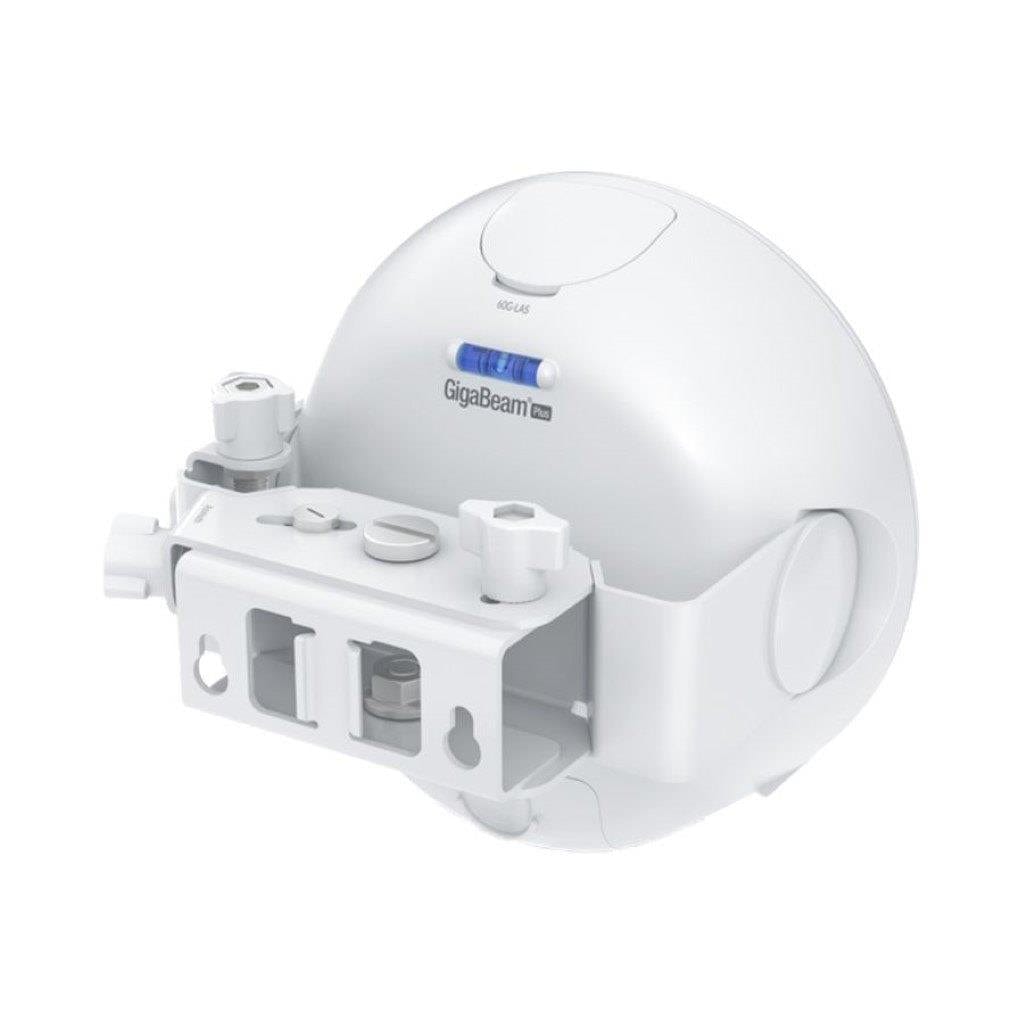

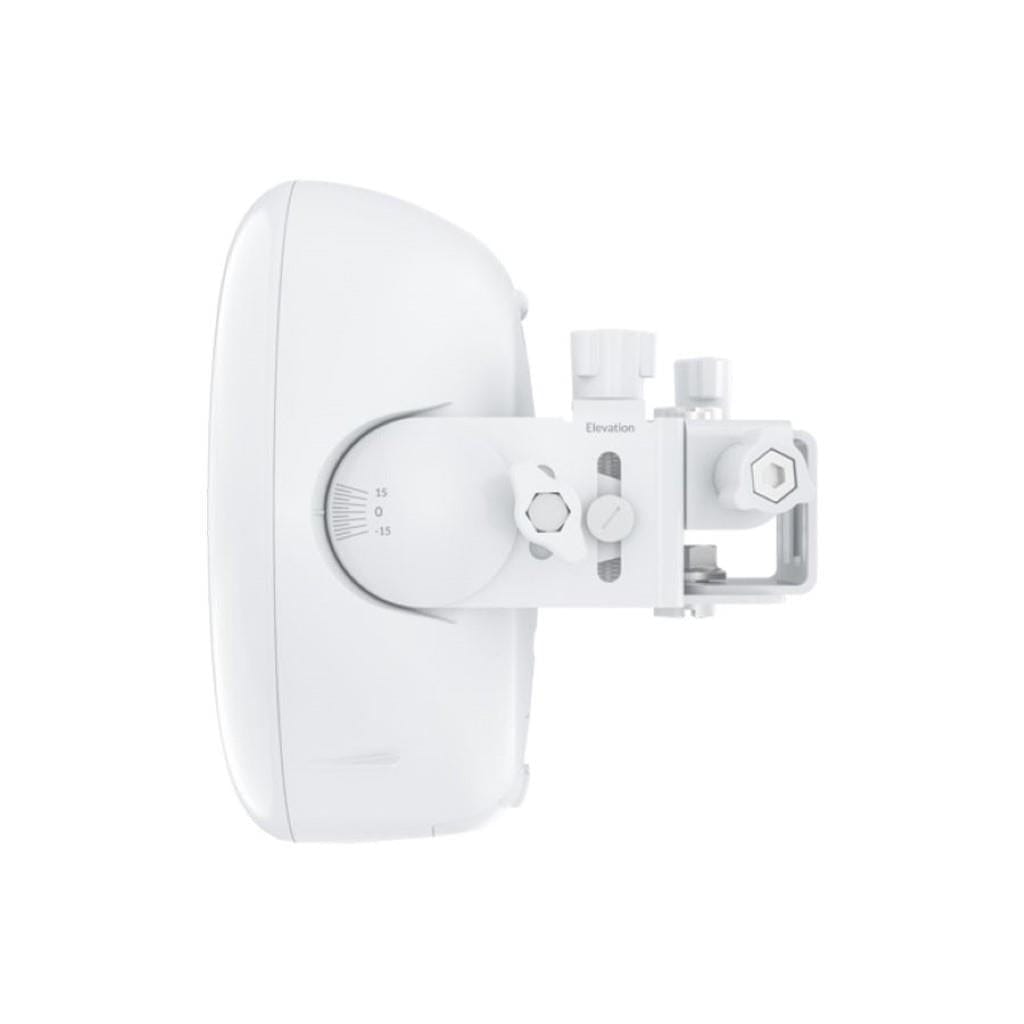

Ubiquiti GigaBeam Plus airMAX 35dBi 60GHz PtP
The GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. The GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in an outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easy to set-up, configure and manage through the UISP dashboard and UISP™ï¸ Mobile app via Bluetooth.
-
Low-interference 60 GHz spectrum
-
35 dBi antenna gain with integrated reflector
-
1.5+ Gbps bidirectional throughput with low latency
-
Long range, up to 1.5 km
-
link.ui.com Planning Support
-
Quick setup using the UISP™ï¸ app via Bluetooth
Key Features
airMAX AC 60 GHz Radio with 1.5 + Gbps Throughput, 35dBi Antenna for PtP links
Technical Specification
Memory: 256 MB DDR3
Networking interface: 10/100/1,000 Mbps RJ45 port
Management interfaces: Ethernet, Bluetooth
RF connections: Internal
Max. power consumption: 11W
Power method: Passive PoE (Pairs 4, 5+; 7, 8-)

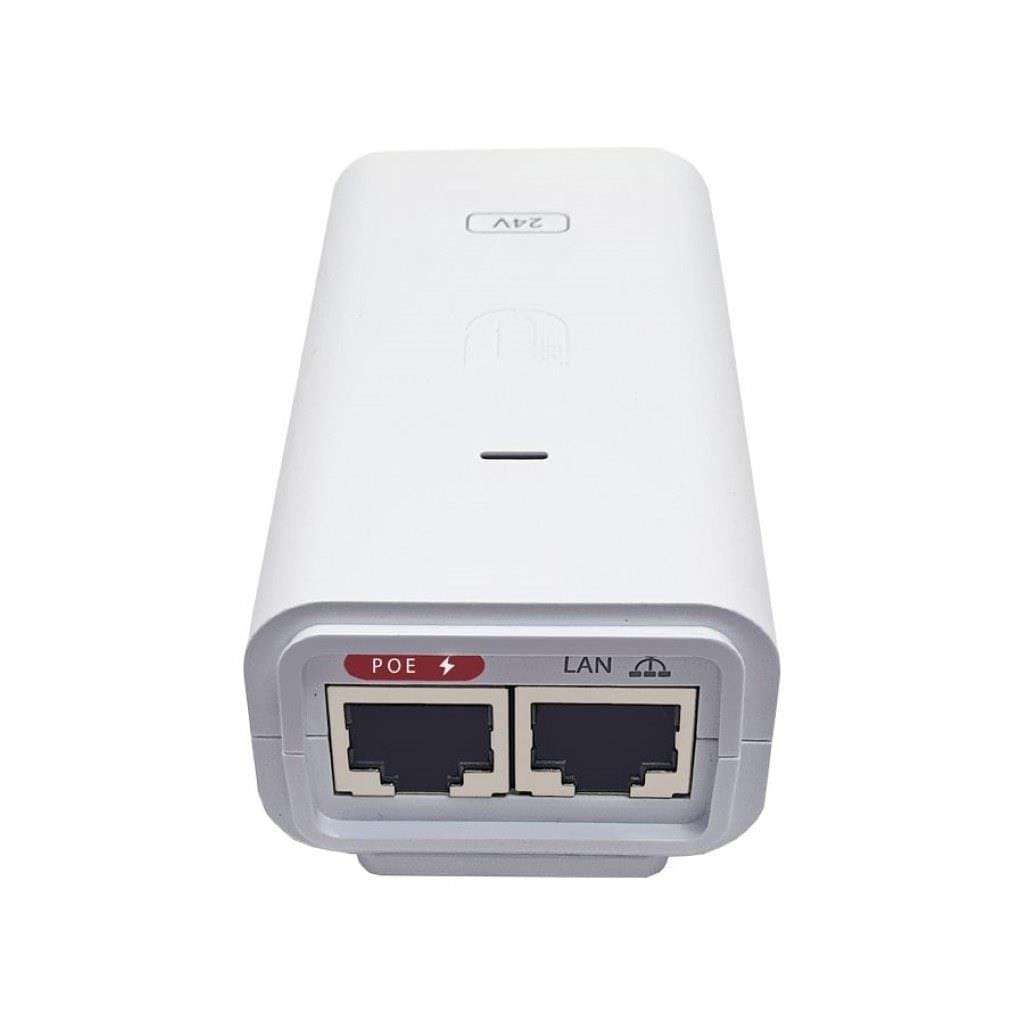

Power supply: 24VDC, 0.5A Gigabit PoE adapter
Supported voltage range: 22 to 26VDC
ESD/EMP protection: Air/Contact: ± 24kV
-
Flashing white: Booting up
-
White: Not connected to UISP
-
Blue: Connected to UISP
60GHz: Blue: Connected
Operating modes: PtP master or station
Ubiquiti specific features: Integrated 60 GHz radio, discovery protocol
Security: WPA2 AES only
