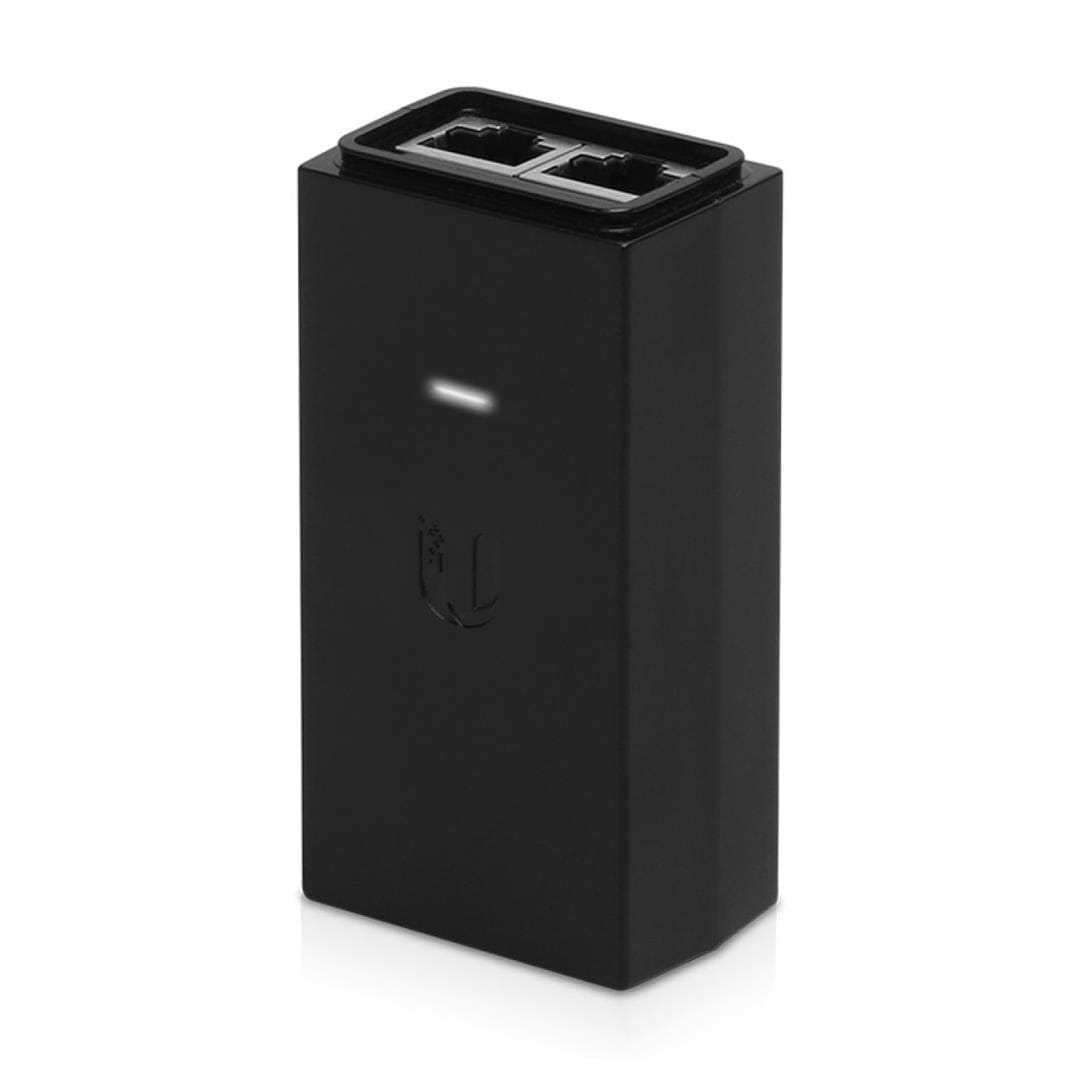

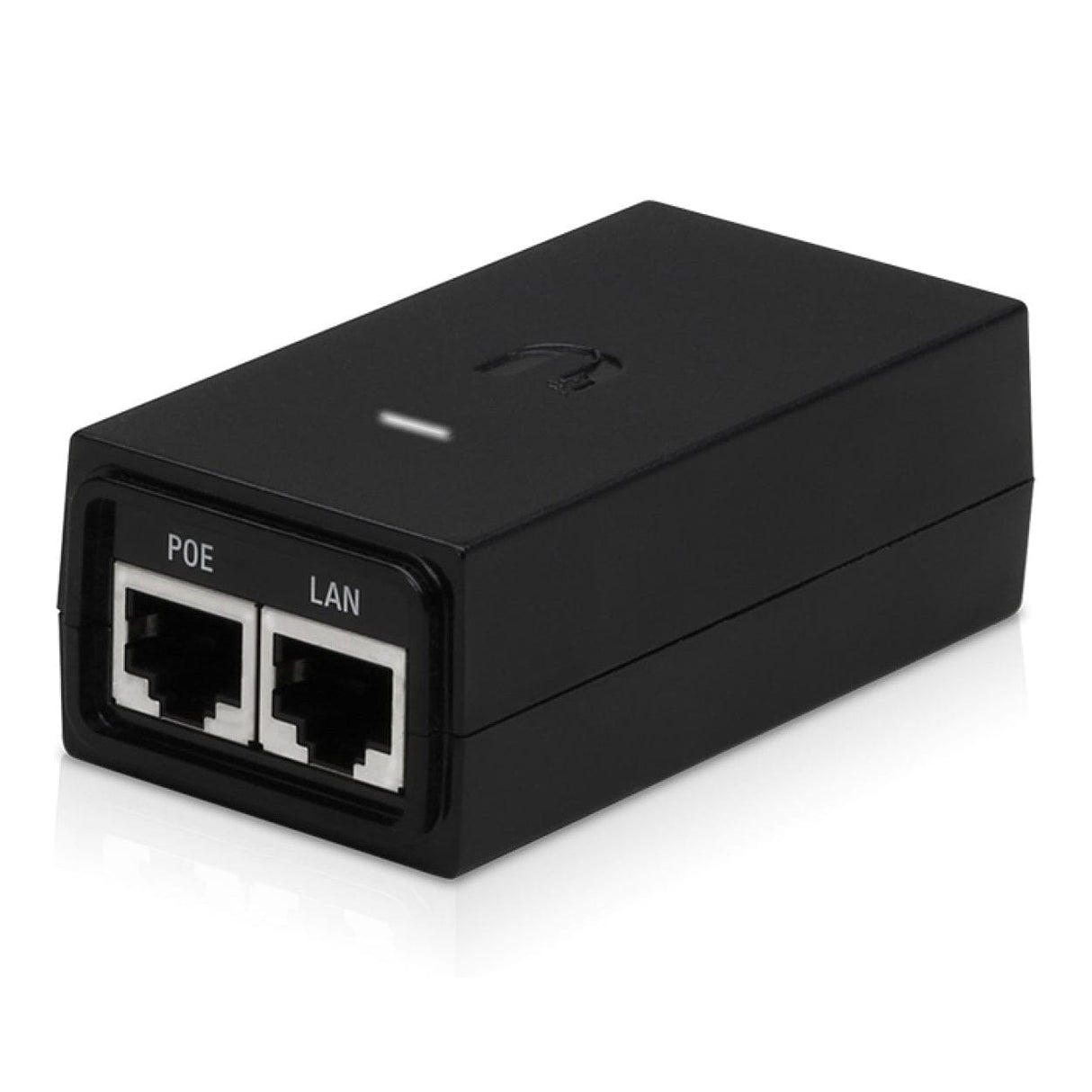

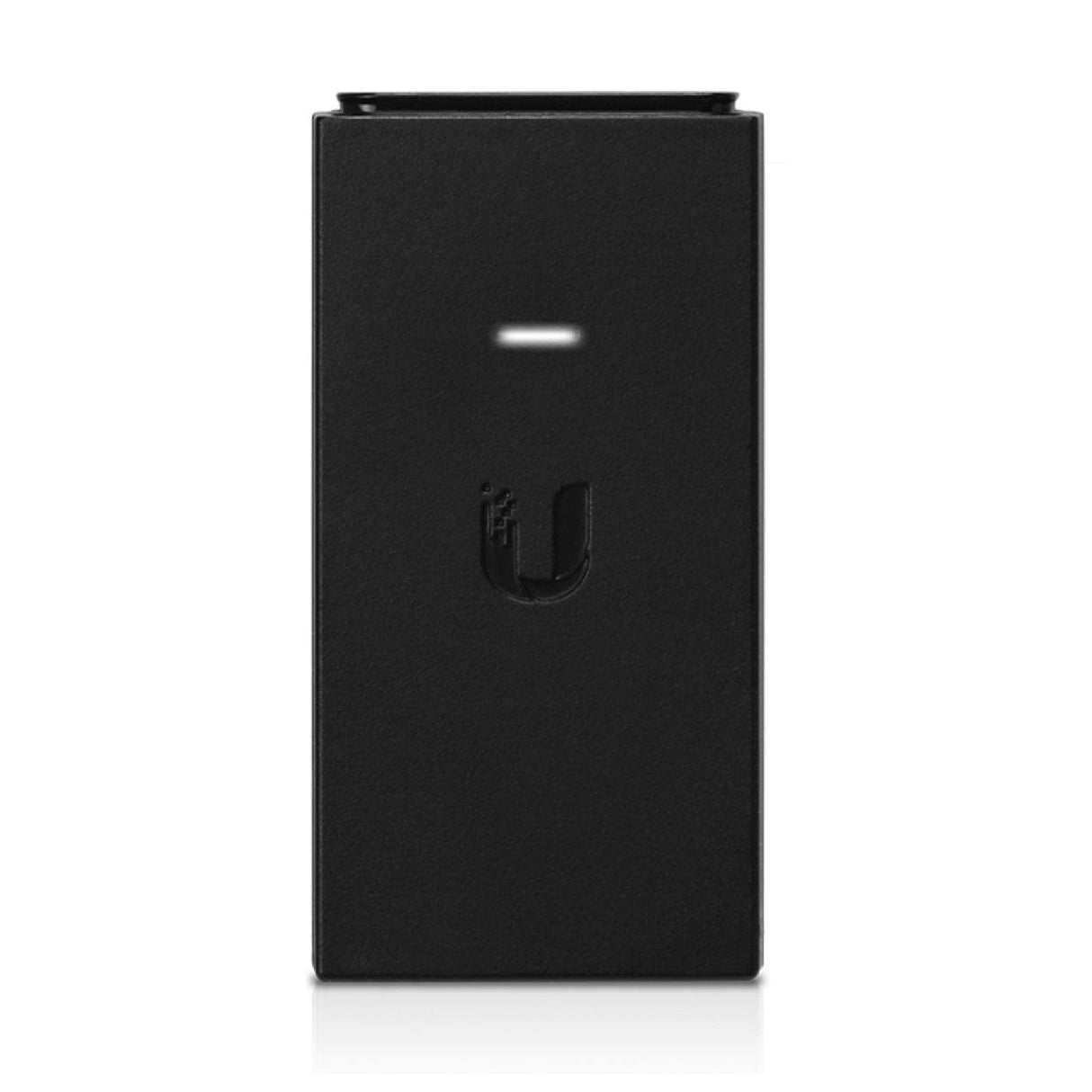

Ubiquiti 24V 0.5A Gigabit PoE Adapter POE-24-12W-G-A

Ubiquiti 24V 0.5A Gigabit PoE Adapter POE-24-12W-G-A

Device Protection

PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Seamless airGateway Compatibility

The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway to bridge airMAX connections to Wi-Fi at customer locations.

Technical Specification

Dimensions: 87 x 44 x 29 mm

Weight: 99 g

Output voltage: 24V DC @ 0.5A

LAN activity indicator: No

Gigabit LAN port: Yes

Remote reset capability: Yes

Reset button: Yes

Rated voltage: 100-240V AC @ 50/60Hz

Input current: 0.3A @ 120V AC, 0.2A @ 240V AC

Inrush current: <30A peak @ 120V AC, <60A peak @ 230V AC

Efficiency: 75+%

Output ripple: 1% Max.

Switching frequency: 50 kHz

Line regulation: ≤ 3%

Load regulation: ≤ 5%

2-pair powering: Pins 4, 5 (+) and pins 7, 8 (-)

AC connector: IEC-320 C6 (Power cable included)

Data IN / PoE: RJ45 shielded socket

Surge protection: Difference and common mode

Clamping protection: 11V data, 60V power

Max. surge discharge: 1500A (8/20 μs) power

Peak pulse current: 36A (10/1000 μs) data

Shunt capacitance: <5 pF data

Response time: <1 ns
