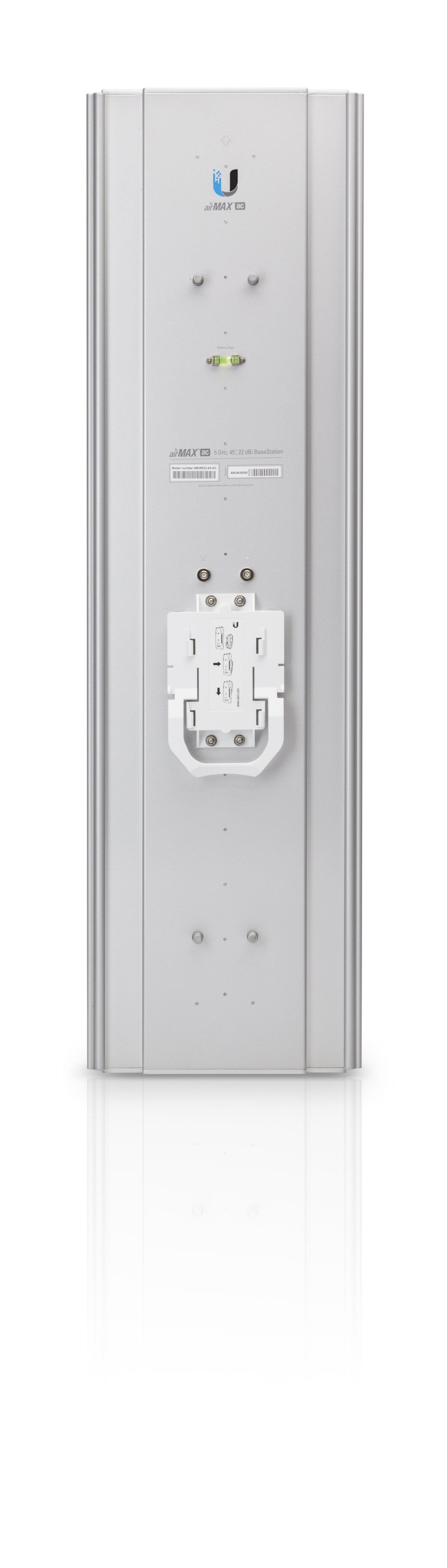

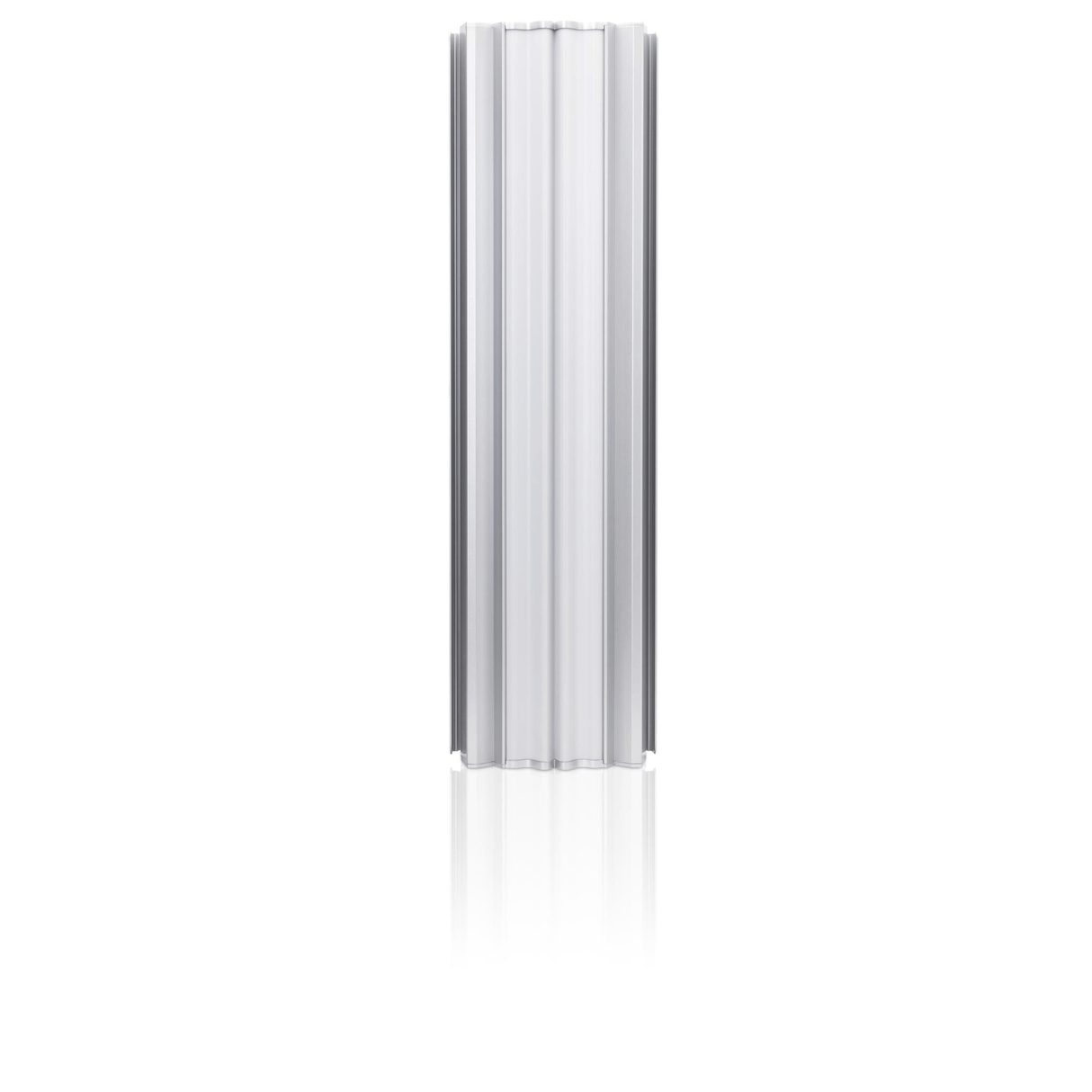

Ubiquiti 22 DBi AirMAX Ac 2x2 Network Antenna AM-5AC22-45

Ubiquiti 22 DBi AirMAX Ac 2x2 Network Antenna

The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket 5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Breakthrough Design and Performance

The airMAX ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

Superior Noise Immunity

Featuring reduced sidelobes and backlobes, the airMAX ac Sector Antennas are engineered to reject noise interference in co‑location deployments.

Market-Leading Beam Performance

Compare the diagram of the airMAX ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.

Industrial-Strength Construction

airMAX ac Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

Every airMAX ac Antenna has a built-in Rocket mount, so no tools are needed to install the Rocket BaseStation.

Specifications:

• Ubiquiti Networks airMAX ac 2x2
• Antenna gain level (max): 22 dBi
• Frequency band: 5.1 - 5.8 GHz
• Horizontal beam width: 45°
• Polarization: Dual polarization
• Voltage Standing Wave Ratio (VSWR): 1.5:1
• Mounting: Wall
• Width: 173 mm
• Depth: 78 mm
• Height: 750 mm
