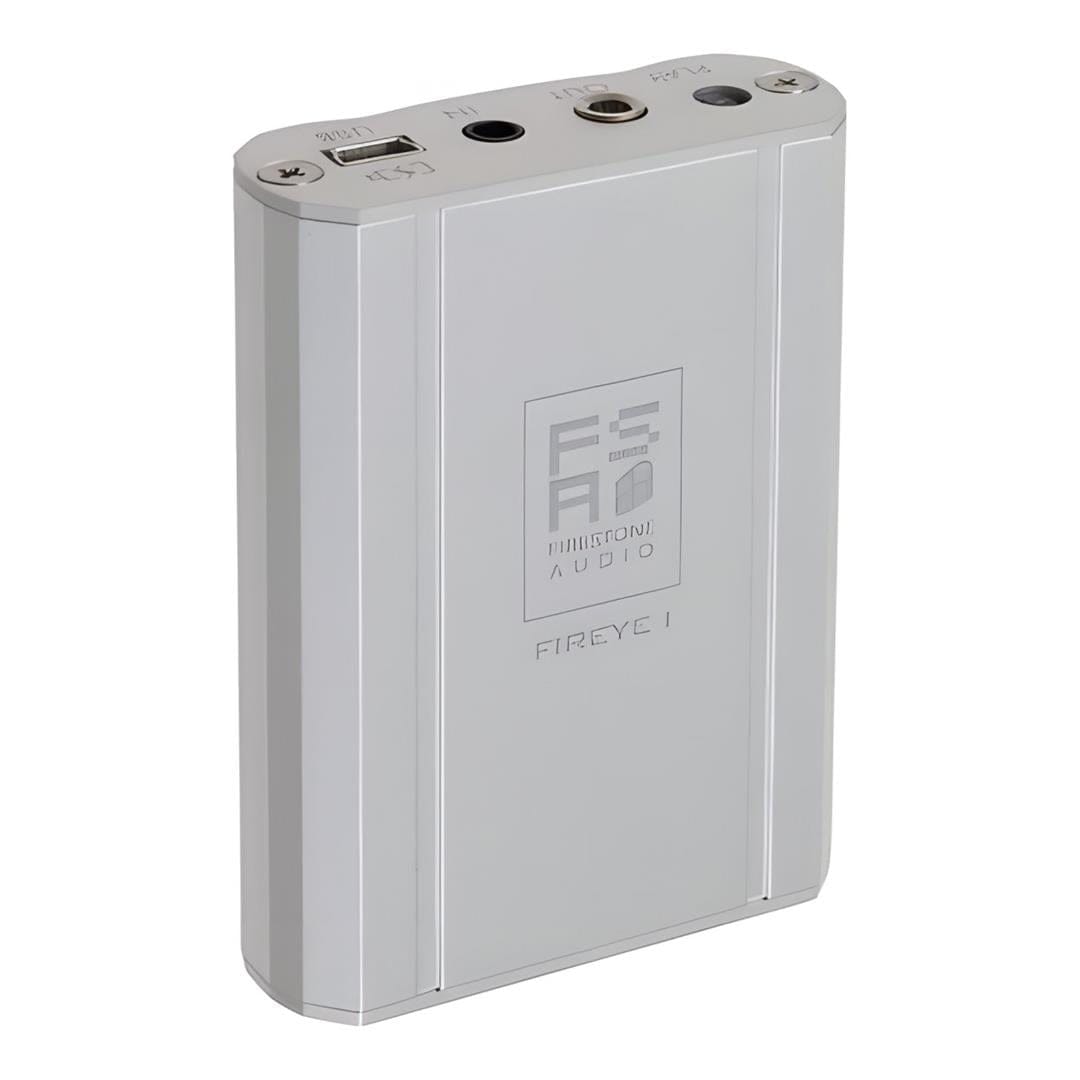

FSA FIREYE1 Micro Headphone Amplifier

FSA FIREYE1 Micro Headphone Amplifier

Fireye1 is a Micro Headphone Amplifier with high portable function.

Adopting inside batter can make consumers use Fireye1 everywhere. Fireye1 is light and handy so it is convenient to put everywhere to use. The shell of Fireye II is made of aluminum looks very high-quality. Only three steps of use can enrich the music and enhance the quality of sound.

Specifications:

Amplifier Structure: Class-A / B amplifier

Power Structure: Bulit in battery power supply

Headphone Impedence: 32 ohm to 600 ohm

Equalization: Bulit in +1.5dB / +2.5dB bass boost function

Circuit Protect: Output short / temperature protect

Usage Time: Battery can be continully used arround 24hrs

Charging Method: Using PC or USB adapter to charge

Charging Time: Fully charging (3hrs), fast charging (1.5hrs)

Main OPAmp: TI - DRV601

Audio Performance: (1kHz sine wave, 2Vrms output)

Frequency response (From 40Hz to 15kHz): 40Hz +0.03dB, 15kHz -0.62dB

Noise level (1kHz, A-Weighted): -100.5dB

Dynamic range (1kHz, A-Weighted): 99.5dB

THD%: 0.0021%

Stereo crosstalk: -99.4dB

Connectivity:

• Line Input: 1 of 3.5mm phone jack
• Line Output: 1 of 3.5mm phone jack
• Charge Input: 1 of mini USB jack

System Requirements: Using in any MP3-Player or any equipment with Line-out or Pre-out function

In the Box:

• Fireye I
• USB wire
• 3.5mm phone wire
