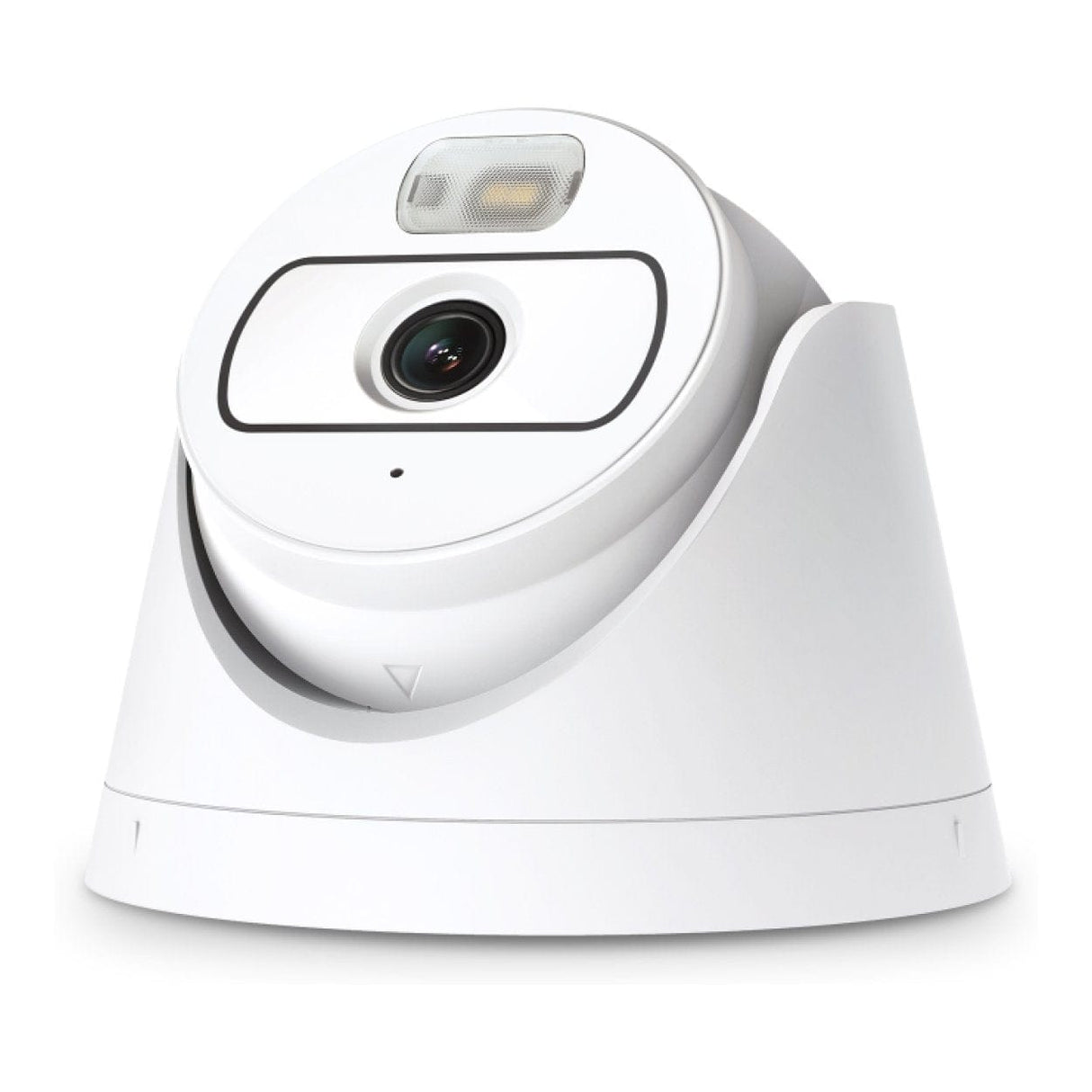

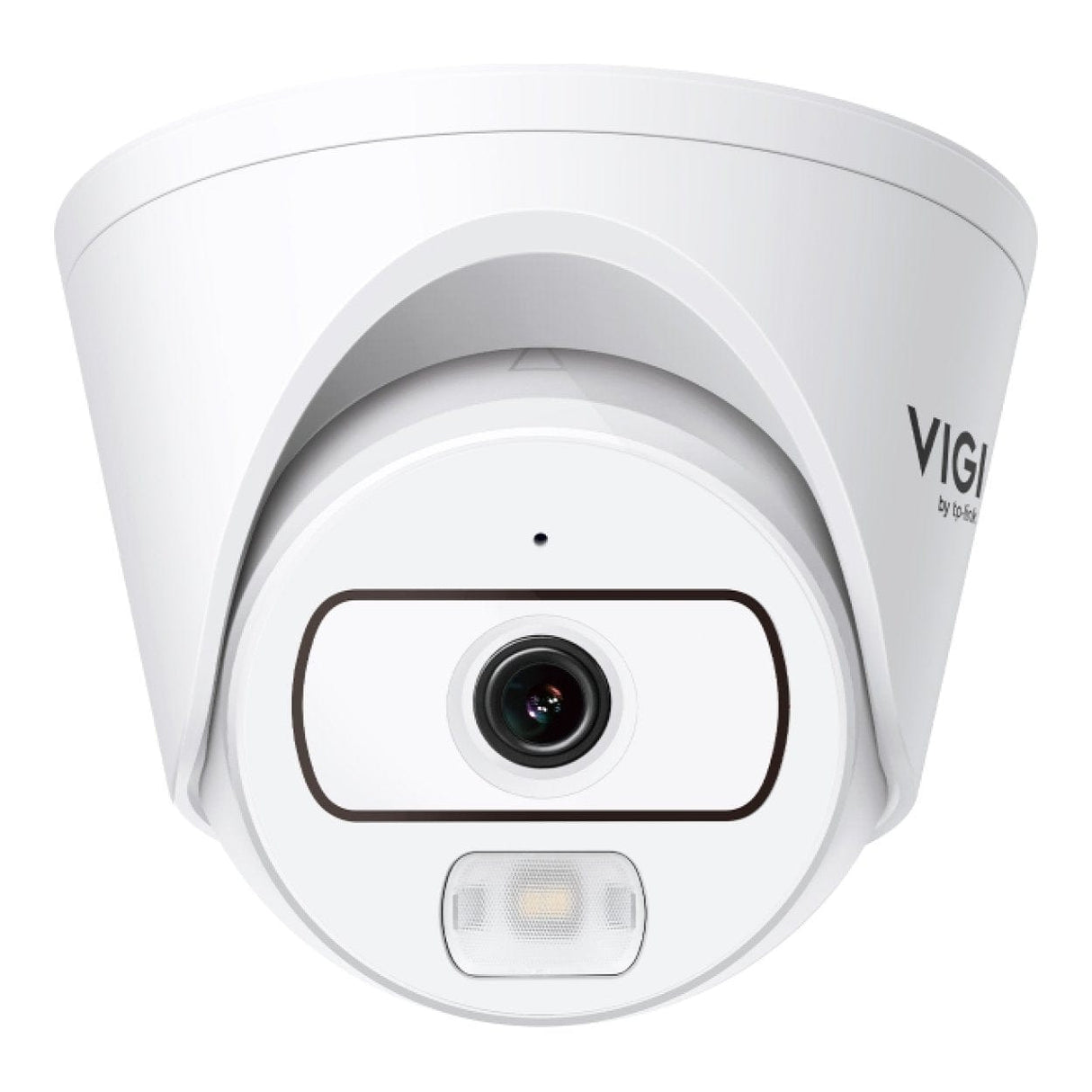

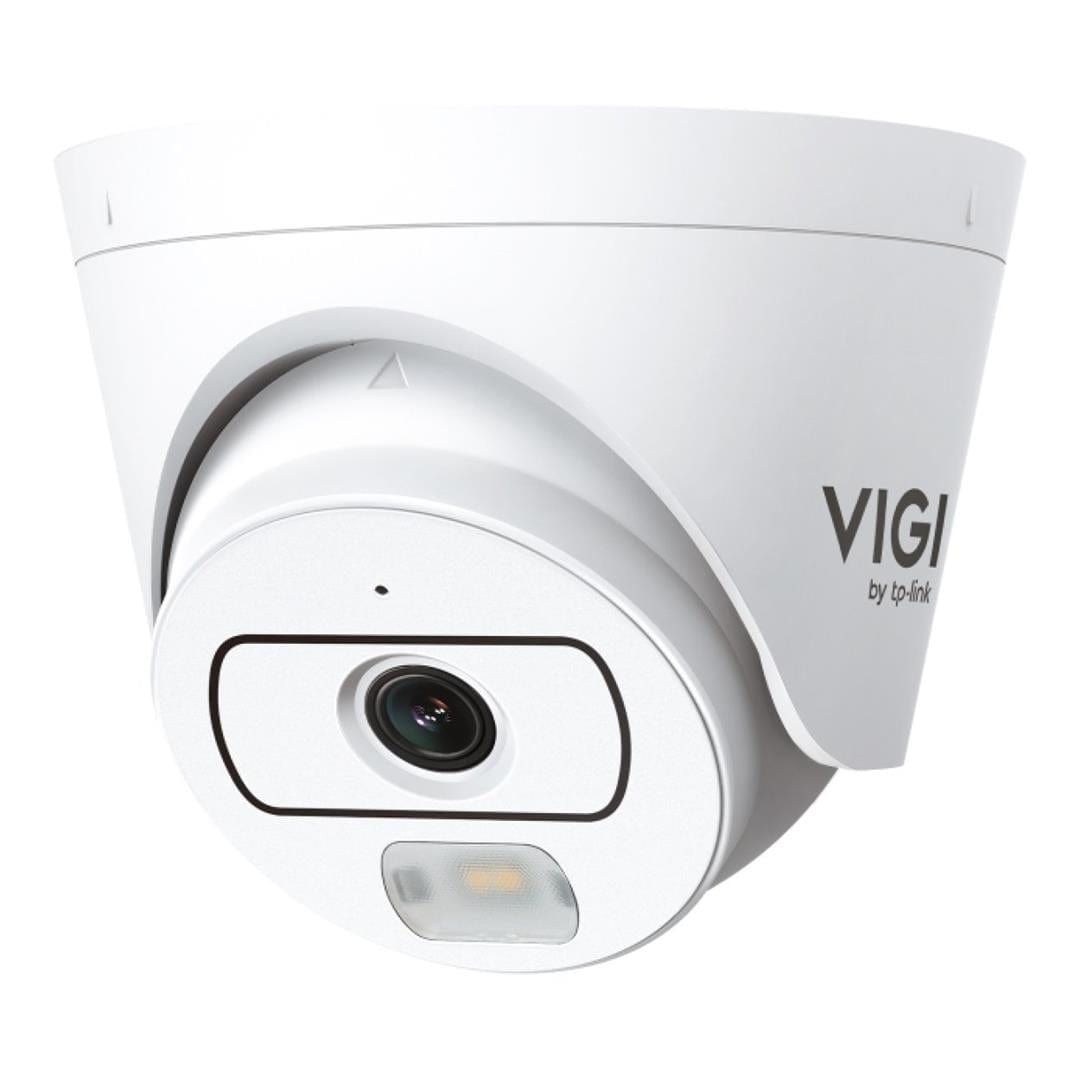

TP-Link VIGI EasyCam C420 2MP Full-Color Turret Network Camera

TP-Link VIGI EasyCam C420 2MP Full-Color Turret Network Camera

All The Colors, All The Time

Features:

• 2MP High Definition and 24h Full-Color
• Human & Vehicle Classification
• Smart Detection
• LightPro Night Vision
• Built-In Microphone
• Smart Video Enhancement Technology
• H.265+ Compression Technology

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

LightPro Night Vision Technology

The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.

Smart Video Enhancement Technology

• Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
• 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
• White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Technical Specifications:

Camera

Image Sensor: 1/3” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.01 Lux; 0 Lux with IR/White light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified / Scheduled / Auto

Lens

Type: Fixed focal lens
Focal Length: 2.8 / 4 mm
Aperture: F2.0
Field of View (FOV):

• 2.8 mm: Horizontal 98.8°, Vertical 53.5°, Diagonal 117°
• 4 mm: Horizontal 75.2°, Vertical 40.8°, Diagonal 88.3°
• Lens Mount: M12
• DORI Distance:
• 2.8 mm: Detect 47 m, Observe 19 m, Recognize 9 m, Identify 5 m
• 4 mm: Detect 59 m, Observe 25 m, Recognize 12 m, Identify 6 m
• Angle Adjustment (Manual): Pan 0°–360°, Tilt 0°–75°, Rotate 0°–360°

Illuminator

Control: Auto / Scheduled / Always on / Always off
Integrated Infrared-White LED: 2 LEDs
IR Range: 30 m
White LED Range: 30 m
IR Wavelength: 850 nm

Video

Max Resolution: 1920x1080
Main Stream Frame Rate: 1–30fps (60Hz) / 1–25fps (50Hz)
Main Stream Resolutions: 1920x1080, 1280x960, 1280x720
Sub-Stream Frame Rate: 1–30fps (60Hz) / 1–25fps (50Hz)
Sub-Stream Resolutions: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
Bit Rate Control: CBR / VBR
Video Compression: Main – H.265+/H.265/H.264+/H.264; Sub – H.265/H.264
H.264 Type: High Profile
H.265 Type: Main Profile
Video Bit Rate: Main 256 Kbps–4 Mbps; Sub 64 Kbps–512 Kbps


Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, IR Overexposure Prevention, HLC (via client software)
Enhancements: BLC / 3D DNR / HLC / SmartIR
Wide Dynamic Range: DWDR
SNR: ≥52 dB
Image Parameter Switch: Yes
Privacy Mask: Up to 4
ROI: 1 Region
OSD Setting: Yes

Audio

Audio Input: Built-in Microphone
Audio Output: N/A
Audio Compression: Yes
Sampling Rate: 8 KHz
Bit Rate: 64 Kbps (G.711 alaw)
Noise Filtering: Yes

Network

Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARP, SMTP, SNMP
ONVIF: Yes (Profile S/T)
Simultaneous Live View: 3 Main Streams + 3 Sub-Streams
Clients: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browsers: Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+
Cloud Support: Yes
Security: Password Protection, HTTPS Encryption, IP Filter, Digest Authentication

Alarm and Event Management

Smart Events: Intrusion, Line-Crossing, Region Entering/Exiting, People, Vehicle Detection
Basic Events: Motion Detection (with Human & Vehicle Classification), Camera Tampering, Illegal Login
Alarm Linkage: Upload to FTP, Push Notification, Send to Alarm Server, Email Alarm

Interfaces

Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet (PoE)
Power: PoE Power Port
Built-in Microphone: Yes (range up to 5 m)
Other Interfaces: N/A

General

Operating Temperature: -30°C to 60°C
Storage Temperature: -40°C to 60°C
Operating Humidity: ≤95% (non-condensing)
Storage Humidity: ≤95% (non-condensing)
Material: Plastic
Net Weight: 0.165 kg
Power Supply: PoE 802.3af, Class 0, Max 7.1 W
Product Dimensions (LxWxH): Ø107.9 x 79.8 mm
Certifications: CE, KC, VCCI, BSMI, ONVIF

What's in the Box:

• 1 x VIGI Network Camera
• 1 x Quick Start Guide
• 1 x Mounting Accessories
