Description

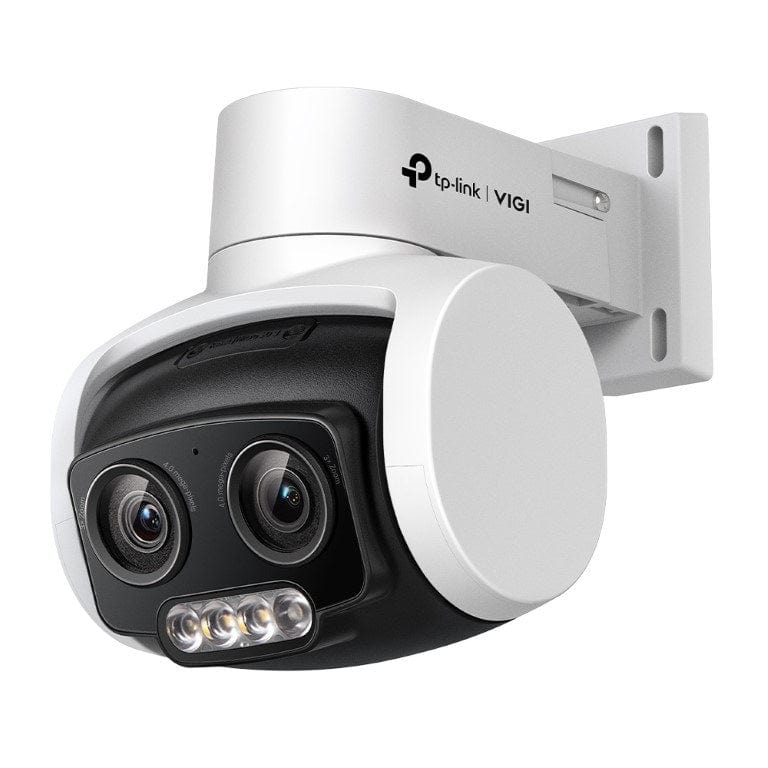

TP-Link Vigi C540V 4MP 4-12mm Varifocal Outdoor Full-Colour Dual-Lens Pan/Tilt Network Camera
Features
4MP Super-High Definition
- 4MP offers more than enough pixels to pick up some of the more discreet details.
24h Full-Colour
- Captures 24 hours of full-colour details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4x attached supplemental lights.
3x Zoom
- Allows for closer viewing of objects in expansive areas.
Instant Zoom
- Zooming is instant without suffering from delays and image dragging.
Human & Vehicle Classification
- Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection
- Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
Powerful Pan Tilt
- Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
Active Defense
- Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio
- With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+
- Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof
- Reliable IP66 for stable outdoor performance.
Flexible Management and Storage
- Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
Technical Specification
Camera
Image Sensor: 1/3” Progressive Scan CMOS
Day/Night Switch: Day/Night/Auto/Schedule-Switch
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism: IR Cut Filter
Zoom: 3x Mixed Zoom
Interfaces
Network Interface: 1x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Audio: N/A
Lens
Focal Length: 4-12 mm (Mixed Zoom)
Aperture: F1.6
Diagonal FOV: 100°
Image Sensor: 1/3” Progressive Scan CMOS
Day/Night Switch: Day/Night/Auto/Schedule-Switch
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism: IR Cut Filter
Zoom: 3x Mixed Zoom
Interfaces
Network Interface: 1x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Audio: N/A
Lens
Focal Length: 4-12 mm (Mixed Zoom)
Aperture: F1.6
Diagonal FOV: 100°
Horizontal FOV: 84°
Vertical FOV: 46°
Lens Mount: M12* P 0.5
PTZ
Range Pan: 0° to 332°
Range Tilt: 0° to 120°
Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s
Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed: Configurable from 8° to 35°/s
Patrol Scan: 8 patrols, up to 8 presets for each patrol
Power-off Memory: Yes; Auto restore to previous PTZ and lens status after power failure
Park Action: Yes; Preset; Patrol Scan
3D Positioning: Yes
Angle Adjustment (Manual)
Range Pan: 0° to 332°
Range Tilt: 0° to 120°
Audio
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Illuminator
IR LED
Lens Mount: M12* P 0.5
PTZ
Range Pan: 0° to 332°
Range Tilt: 0° to 120°
Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s
Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed: Configurable from 8° to 35°/s
Patrol Scan: 8 patrols, up to 8 presets for each patrol
Power-off Memory: Yes; Auto restore to previous PTZ and lens status after power failure
Park Action: Yes; Preset; Patrol Scan
3D Positioning: Yes
Angle Adjustment (Manual)
Range Pan: 0° to 332°
Range Tilt: 0° to 120°
Audio
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Illuminator
IR LED
- Quantity: 1
- Range: 30m
- Wavelength: 850nm
White LED
- Quantity: 3
- Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
General
Material: Plastic
Power Supply
- 12V DC ± 5%, 5.5mm Coaxial Power Plug
- PoE (802.3at, class 4)
Protection: IP66
Package Contents
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
