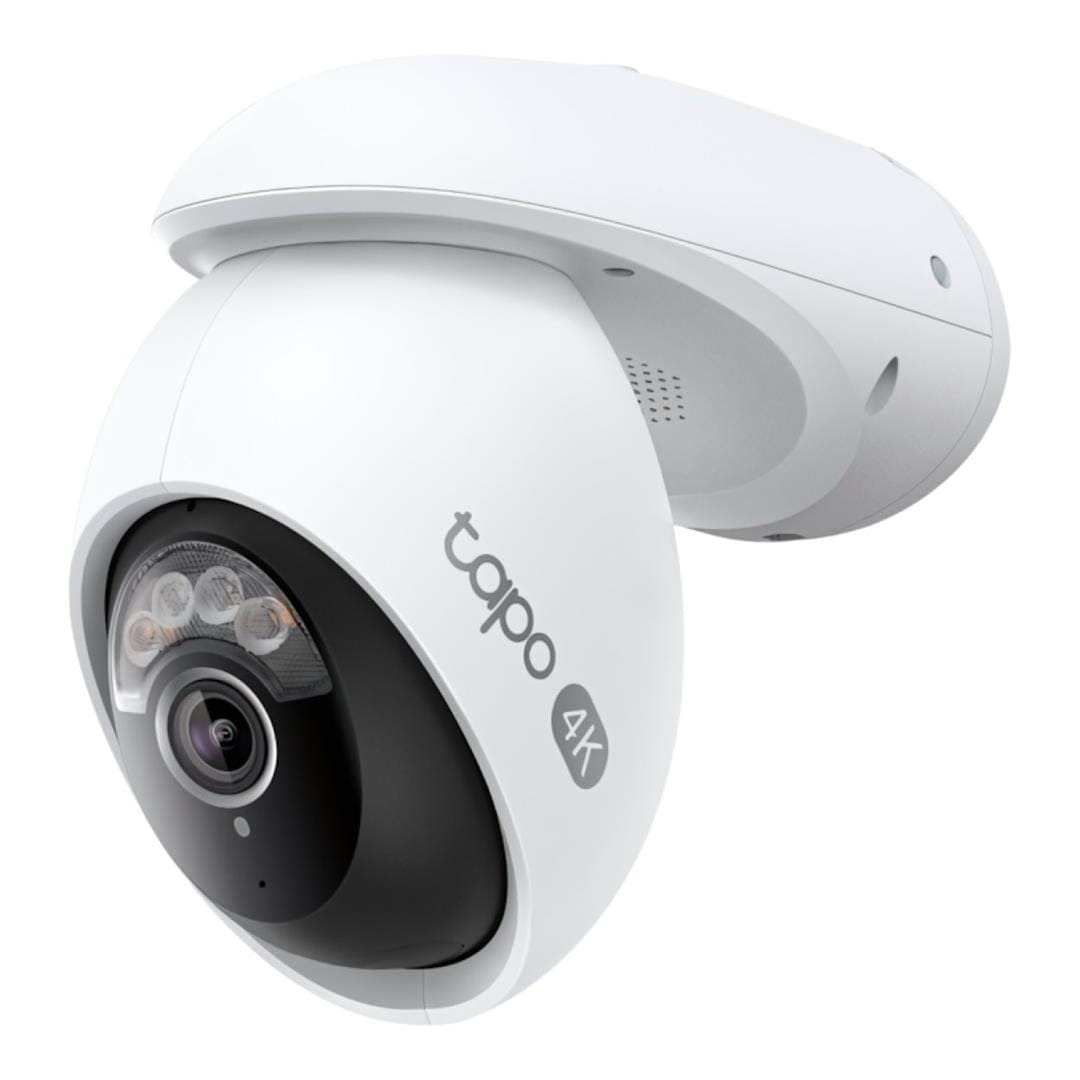

TP-Link Outdoor Pan/Tilt Security Wi-Fi Camera

TP-Link Outdoor Pan/Tilt Security Wi-Fi Camera

Smarter, Safer 4K Security: Powered by On-Device AI.

Outdoor Pan/Tilt Security Wi-Fi Camera

Features:

• 4K Ultimate Clarity: The camera features 4K 8MP resolution for superior clarity with upgraded image sensor, processor and lens.
• Local Facial Recognition: The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification.
• Wi-Fi 6 Dual-Band Connection: Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability.
• Starlight Color Night Vision: Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights.

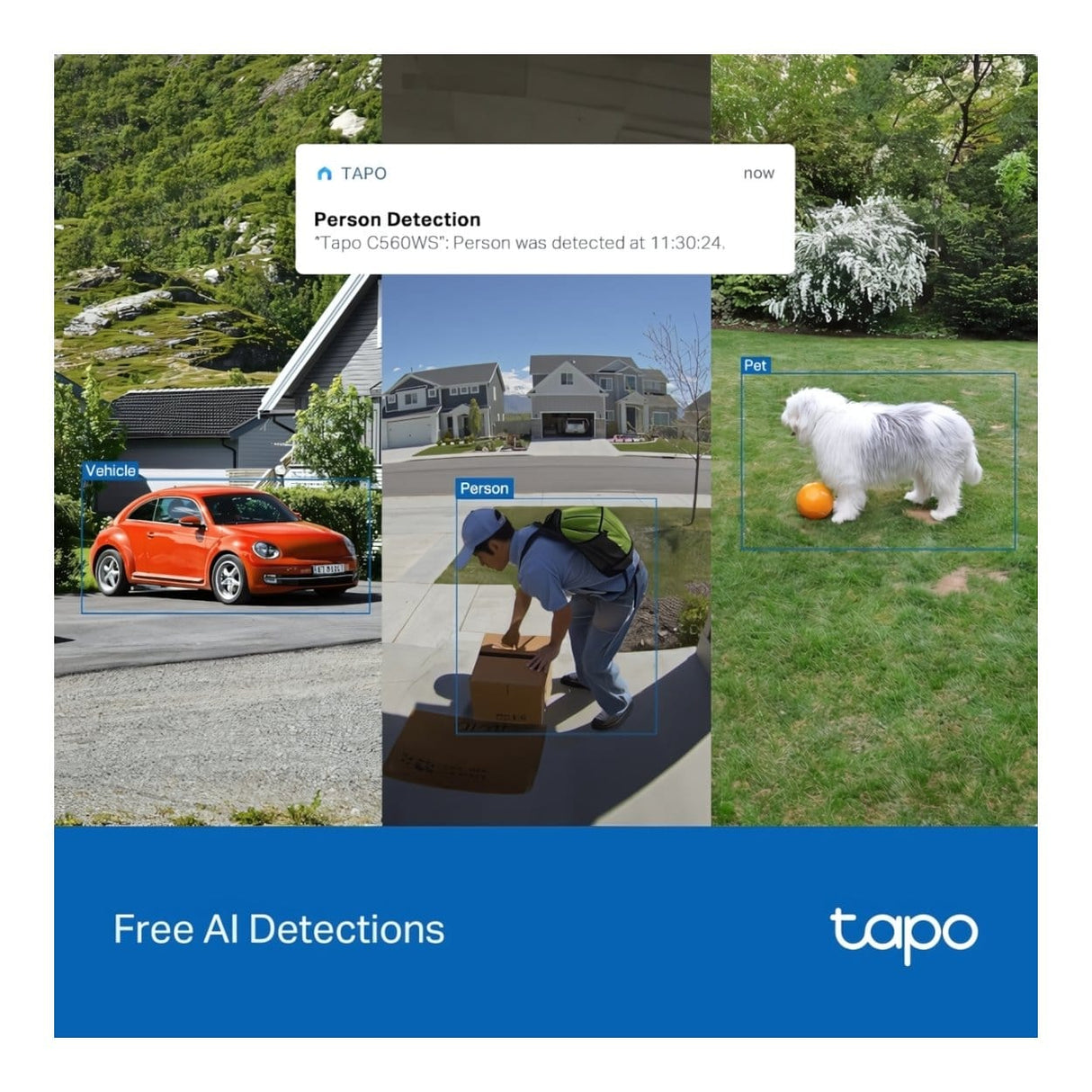

• Free Person/Pet/Vehicle Detection: Using Al technology, the camera provides alerts as it identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.

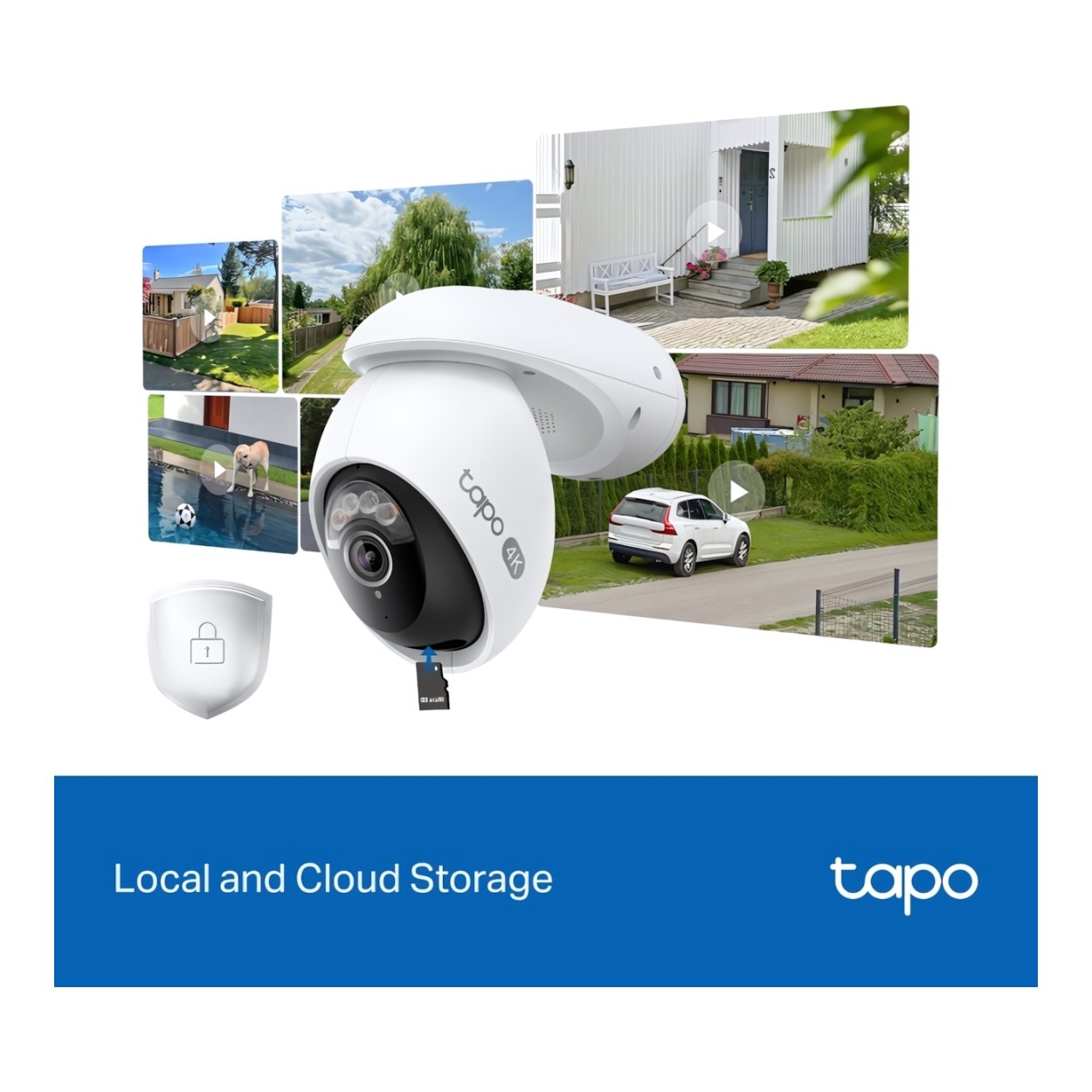

• Flexible Storage Options: Choose from local microSD^† storage up to 512GB or the secure Tapo Care^‡ cloud service for additional peace of mind.
• IP66 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios.

4K: Unmatched Clarity, Extended Range

Tapo 4K cameras deliver sharper, more detailed live views, making them perfect for capturing finer details like license plates, human faces and moving objects.

Zoom In, See More

Equipped with 18x digital zoom and an F1.6 aperture, Tapo C560WS captures sharper details and high-quality recordings to enable precise detection with the ability to magnify images for remarkable clarity.

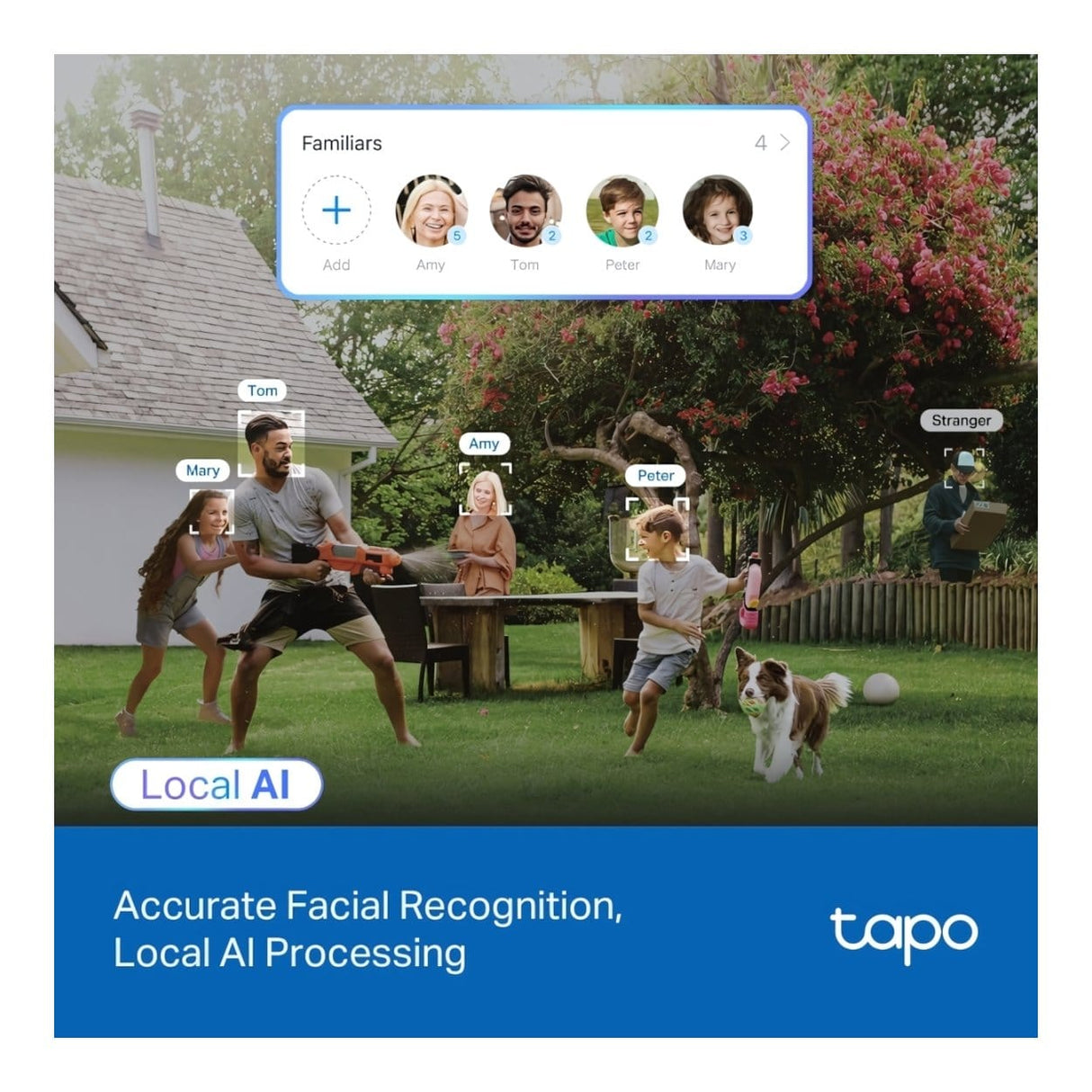

Accurate Facial Recognition, Easy Identification, Local AI Processing

The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification, reducing overall notifications to the ones that matter. All facial data is processed locally without cloud uploads, ensuring privacy and security.

Upgraded Panoramic Patrol Mode

Set a custom schedule for the camera to automatically scan a full 360° and record or define specific viewpoints that it will visit at designated times.

Vibrant & Detailed Night Vision

Capture colorful details even in darkness with spotlights and a starlight sensor. Tapo C560WS also offers a stealthy IR black and white mode and a smart mode that automatically switches to color when a person is detected.

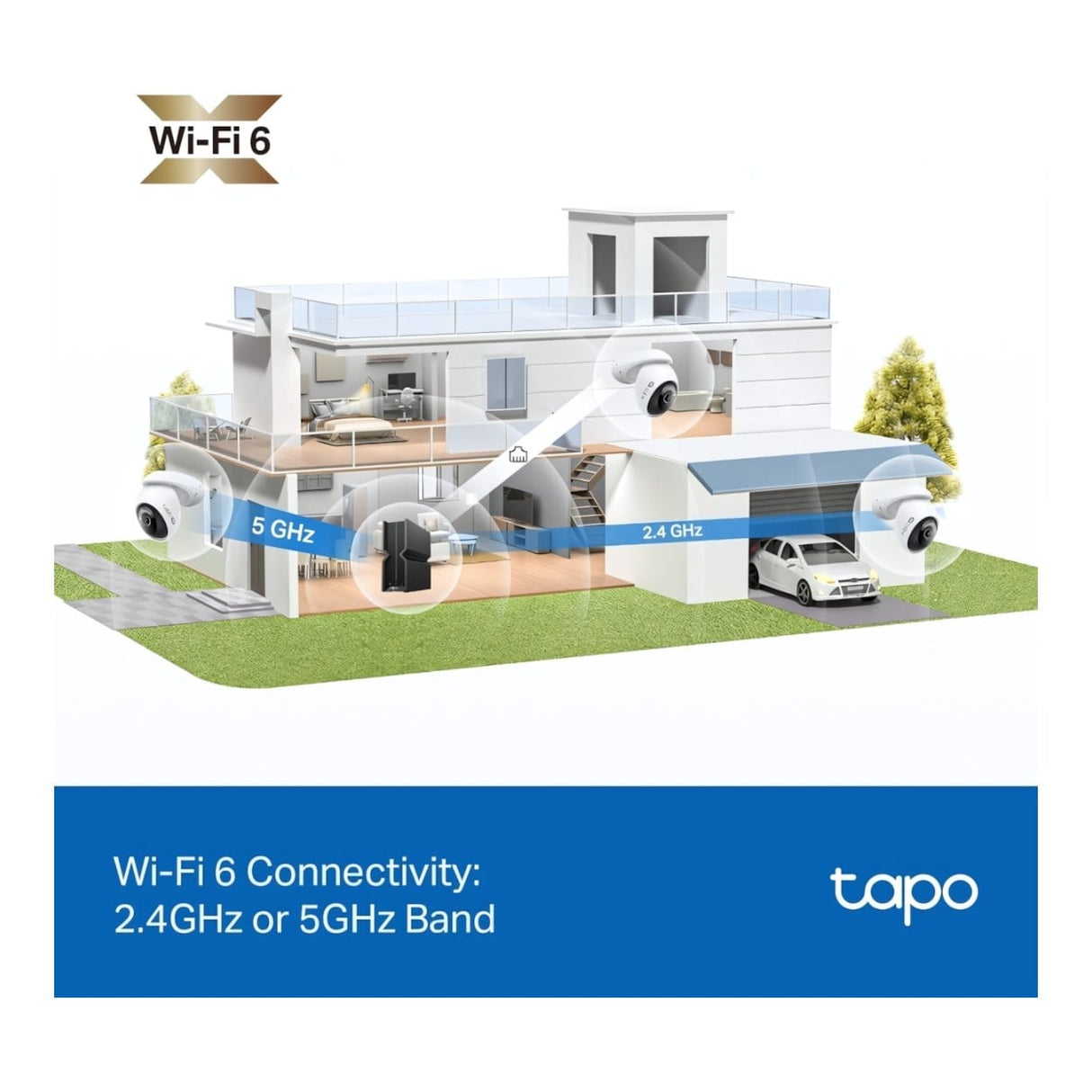

Wi-Fi 6 Dual-Band Connectivity: Faster & More Flexible

Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability, and reduced congestion in heavy bandwidth scenarios.The 5 GHz connection^â–³ offers faster speed, while 2.4 GHz provides longer distance. Ethernet networking is also supported.

Solid Defense System with Custom Alarms

Ward off intruders with sound and light alarms you can personalize: record custom audio and set your preferred spotlight brightness.Enhanced Security with User-Friendly Features

Engineered for Weather Resistance

The IP66-rated Tapo C560WS is always ready to protect, come rain, snow or shine.

Two-Way Talk

Engage in real-time conversations with the two-way audio feature, designed for exceptional sound clarity.

Pair with Smart Assistants

Use voice commands with Amazon Alexa and Google Assistant for hands-free control.

Technical Specifications:

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS Starlight Sensor
Lens: Focal Length: 4 mm ± 5%
Aperture: F1.6 ± 5%
Field of View: 105° (Diagonal), 88° (Horizontal), 45° (Vertical)

Night Vision: 850 nm IR LED, Starlight Color Night Vision

Lighting: 2× Built-in Spotlights

Interface & Button:

• 1× Ethernet Port
• 1× Reset Button
• 1× MicroSD Card Slot (Up to 512 GB)

Pan/Tilt Range:

• Pan Mechanical Range: 326° (360° Pan Coverage)
• Tilt Mechanical Range: 53° (98° Tilt Coverage)

Video & Audio
Maximum Resolution: 4K 8MP (3840 × 2160 px)
Frame Rate: 25 fps
Digital Zoom: 18x
Video Compression: H.264
Live View: Yes
Image Enhancement: 3DNR, WDR

Audio Input & Output: Built-in Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume: 99 dB (Level measured at 4-inch / 10-cm distance)

Storage
Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)
Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)

Detection and Notifications
AI Detection: Human Face Detection, Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line-Crossing Detection, Camera Tampering
Activity Zones: Yes
Output Notification: System Notification, System Notification with Snapshot (Tapo Care Services)

Network
Network Connectivity: Connect via Wi-Fi or Ethernet
Wireless Connectivity: IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz / 5 GHz
Ethernet Port: Yes
RTSP: Yes
ONVIF: Yes

Security
Security: SSL/TLS, AES

Power
Power Source: 12V DC Power Adapter
Input Voltage: 100-240 V, 50/60 Hz
Output Voltage: 12 V, 1 A (DC Power)

General
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP66
System Requirements: Tapo App: iOS 12.0+ and Android 5.0+
Mounting Options: Ceiling-Mounted, Wall-Mounted, Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature: -30℃ ~ 60℃ (-22°F ~ 140°F)
Storage Temperature: -40℃ ~ 60℃ (-40°F ~ 140°F)
Operating Humidity: 10% ~ 90% RH, Non-condensing
Storage Humidity: 0 ~ 90% RH, Non-condensing
Dimensions (W x D x H): 147.4 × 74.7 × 165.4 mm (Mounting Bracket Included), 147.4 × 74.7 × 157.4 mm (Mounting Bracket Excluded)

What's in the Box:

• Tapo C560WS Camera ×1
• DC Power Adapter ×1
• Mounting Template Sticker ×1
• Mounting Bracket ×1
• Mounting Anchors and Screws
• Bracket Screws ×2
• Waterproof Seal ×1
• Waterproof Cable Attachments ×1
• Quick Start Guide

Certifications
FCC, RoHS, RCM
