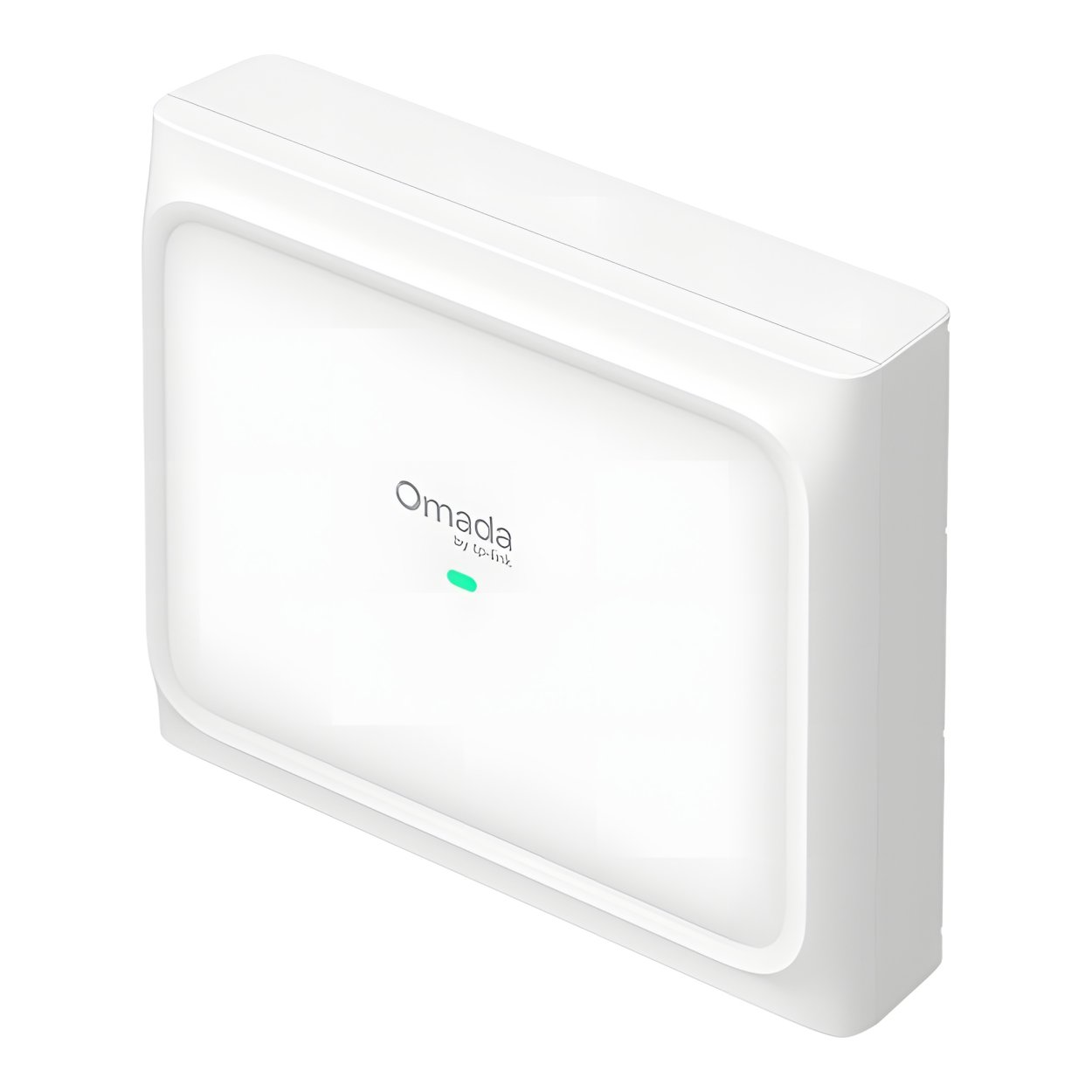

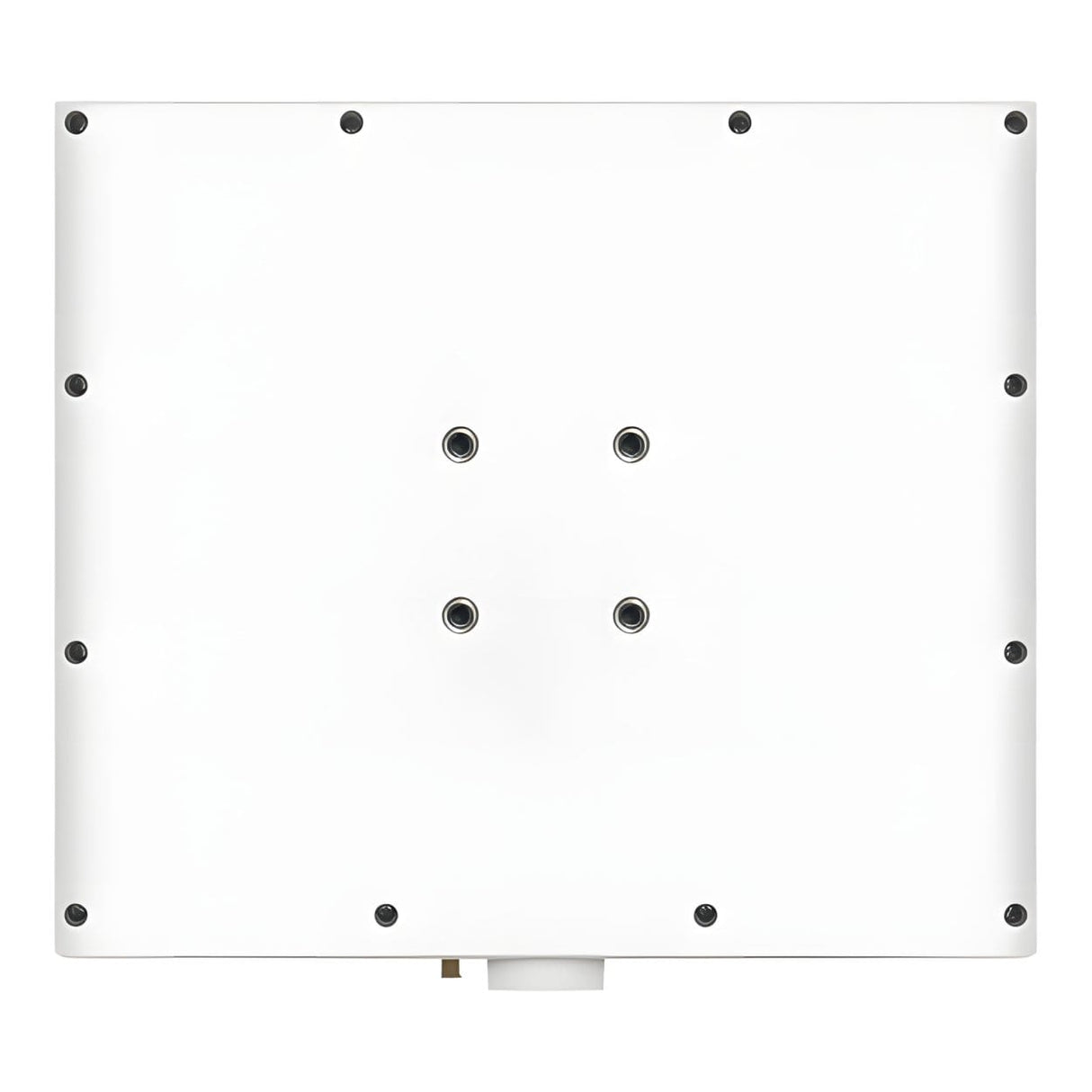

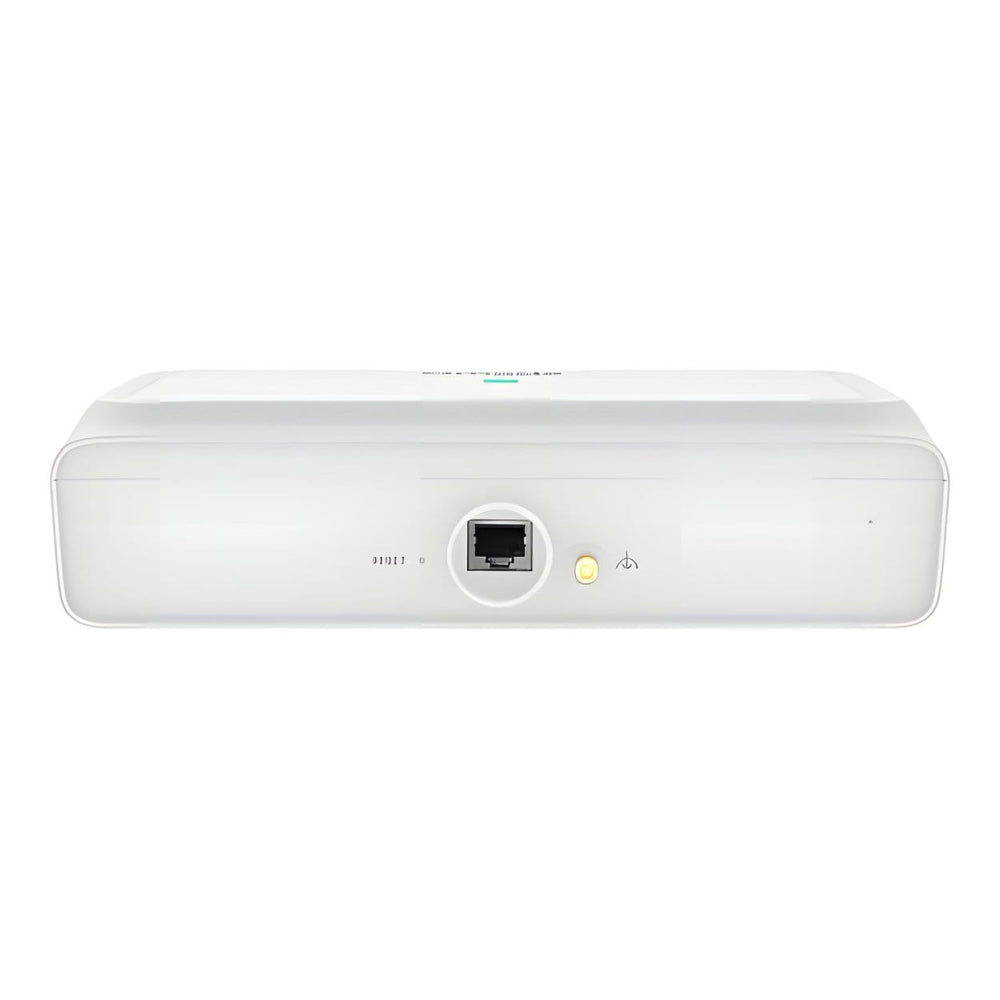

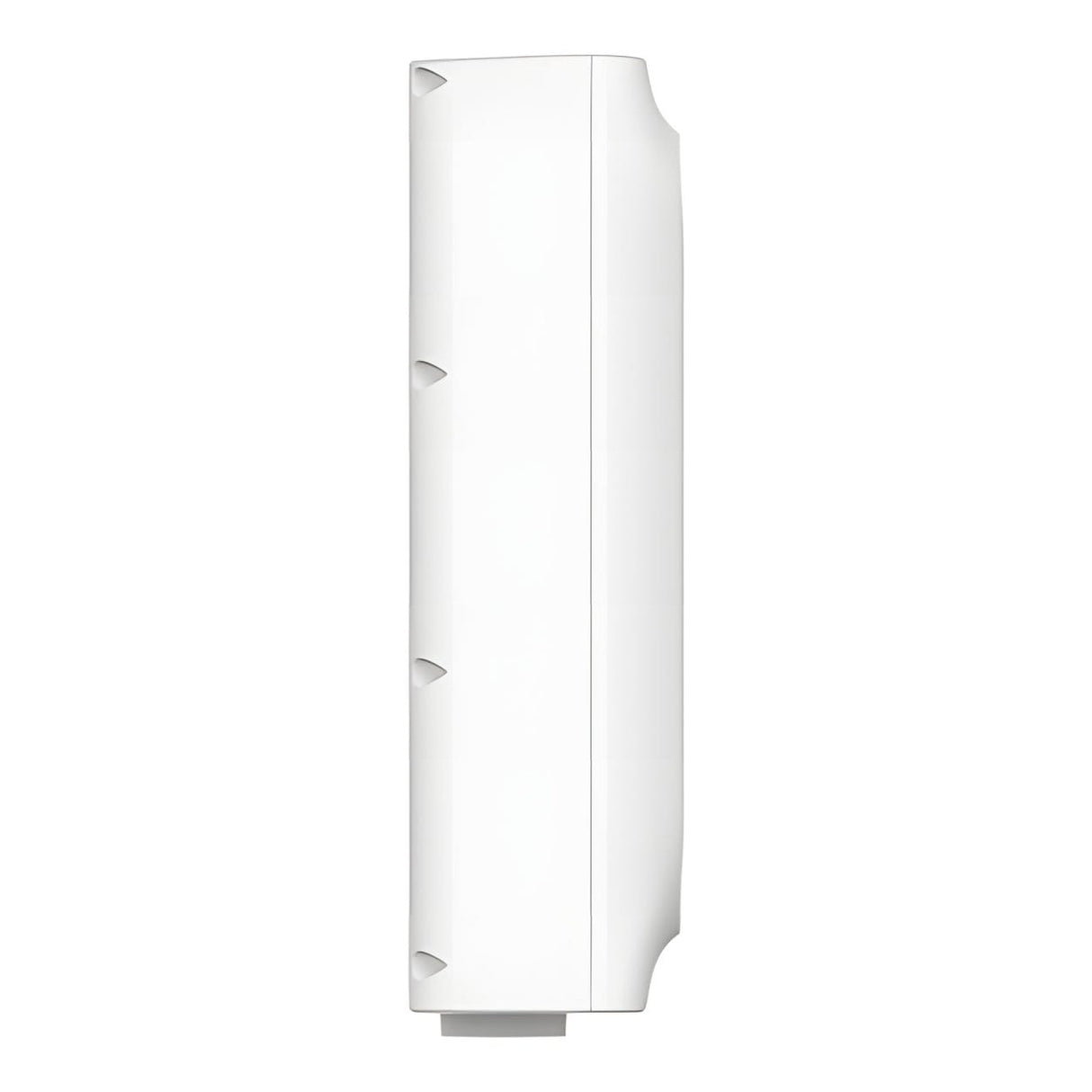

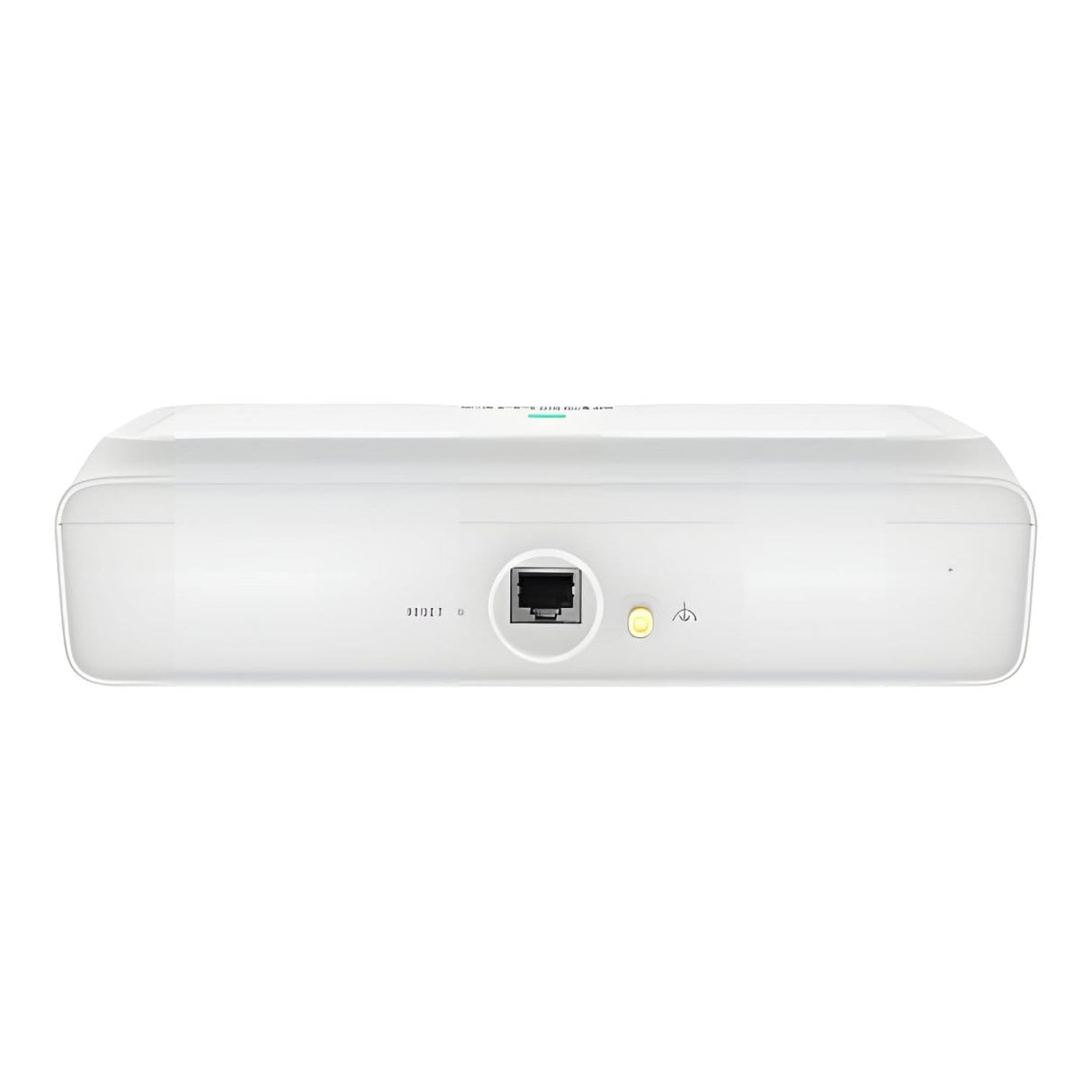

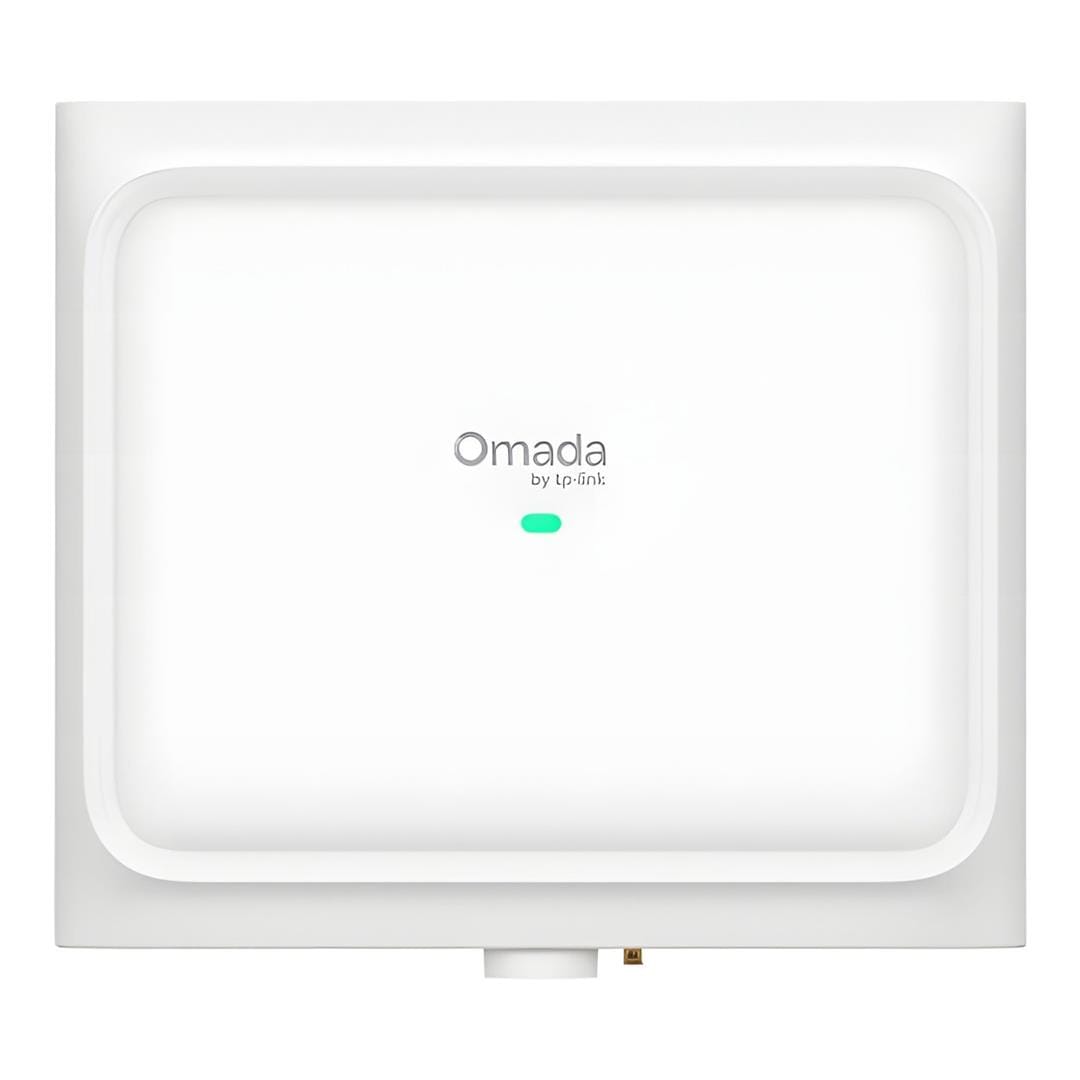

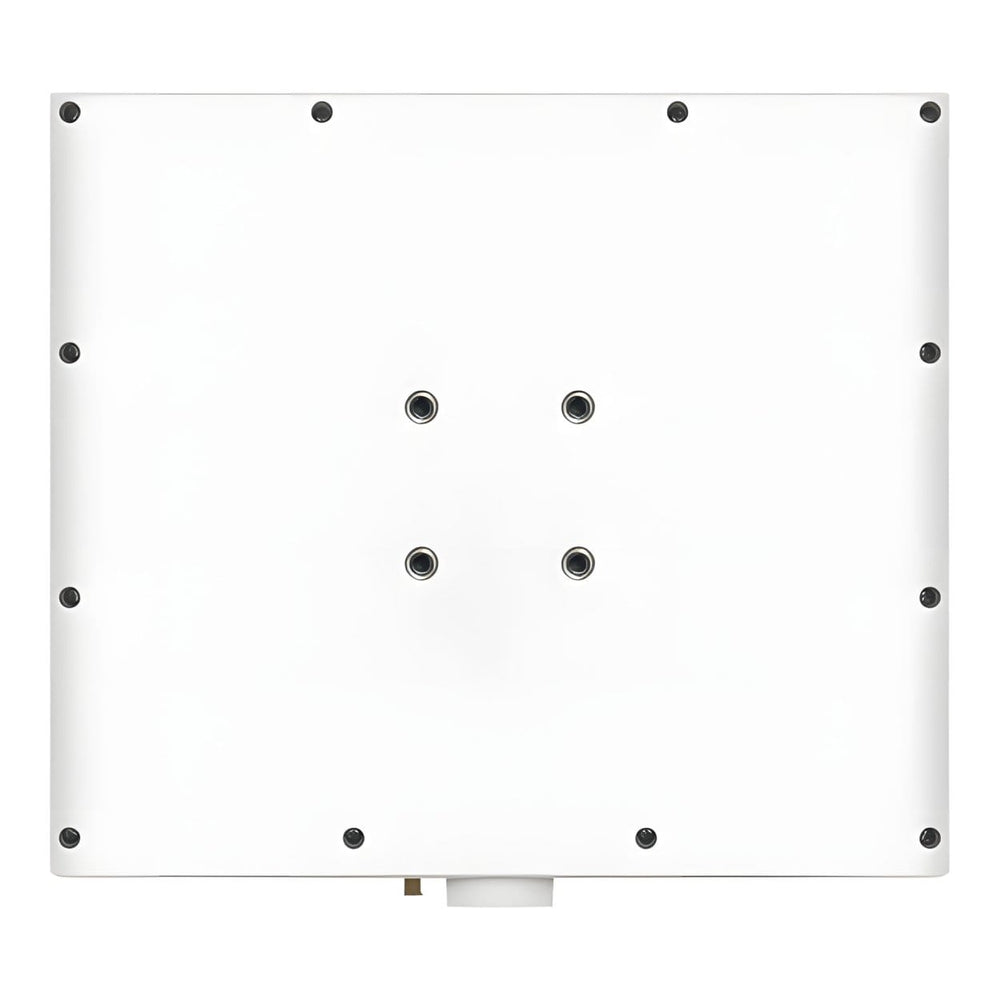

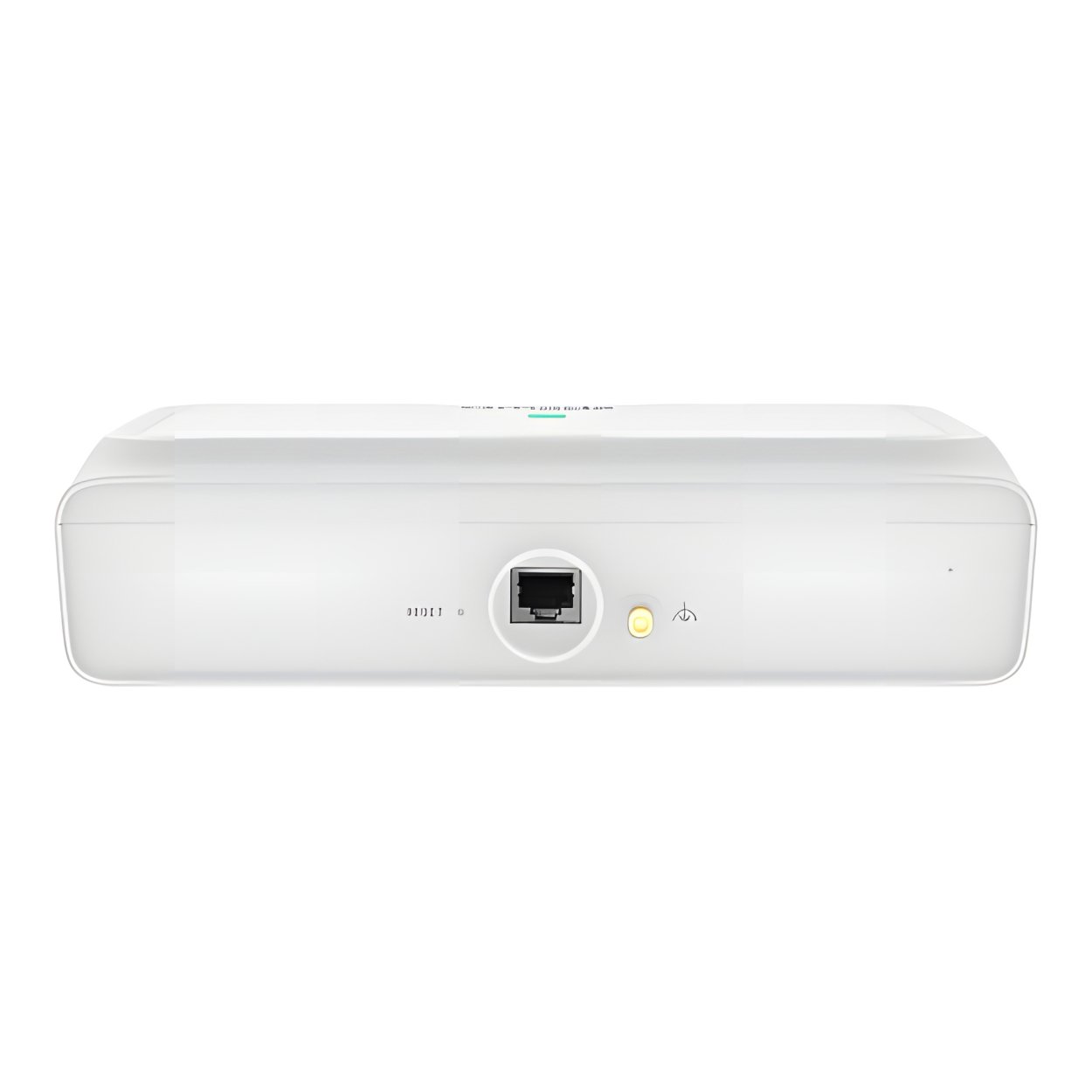

TP-Link Omada EAP650 D30 Directional AX3000 Indoor Outdoor Wi-Fi 6 Access Point

TP-Link Omada EAP650 D30 Directional AX3000 Indoor Outdoor Wi-Fi 6 Access Point

Features:

• Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Directional Ultra-Range Coverage: Equipped with built-in 30° high-gain directional antennas to deliver precise and extended coverage.*
• Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
• 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
• Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
• Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.

Designed for Warehouses

The EAP650 D30-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable

of withstanding submersion in water. It is ideal for warehouse environments.

Elevate WiFi Experience for Shelf Areas with Directional Antennas

Equipped with 4× built-in dual-band (2×2.4GHz + 2× 5GHz) directional antennas with high gain to ensure the optimal WiFi

experience ideal for precise and extended coverage.*

Stay Smooth with Sealess Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points
with the optimal signals.

Technical Specifications:

Hardware Features

Interface
1 × Gigabit Ethernet Port (Supports 802.3at PoE Or 48 V Passive PoE)

Button
Reset

Power Supply

• 802.3at PoE
• 48 V Passive PoE

Maximum Power Consumption

• EU: 12.5 W (802.3at PoE Or Passive PoE)
• US: 14.7 W (802.3at PoE Or Passive PoE)

Antenna
Built-In Directional Antennas:

• 2.4 GHz: 2 × 12 dBi
• 5 GHz: 2 × 15 dBi

Beamwidth:

• 30° Horizontal
• 30° Vertical

Bluetooth
Yes

Weatherproof Enclosure
IP68

Mounting Options
Wall
Pole
Ceiling

Dimensions (W × D × H)
207.5 × 58 × 230 mm

Wireless Features

Concurrent Clients
250+

Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax

Frequency
2.4 GHz
5 GHz

Signal Rate
574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)

Wireless Functions

• 1024-QAM
• DL/UL OFDMA
• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Assignment
• Transmit Power Control (Adjustable In dBm)
• QoS (WMM)
• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
• Omada Mesh
• Seamless Roaming (802.11k/v/r)
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics
• Static IP / Dynamic IP

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID To VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise
• WPA2-Personal/Enterprise
• WPA3-Personal/Enterprise

Transmission Power

• EU: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz Band 1 & Band 2, EIRP); < 30 dBm (5 GHz Band 3, EIRP)
• US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)

Management Features

Omada App Support
Yes

Restore & Backup
Yes

NTP Support
Yes

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• Omada App

Cloud Access
Yes (Requires Omada Controller)

Email Alerts
Yes

LED On/Off Control
Yes

Management MAC Access Control
Yes

SNMP Support
v1
v2c
v3

System Logging
Local / Remote Syslog

SSH Support
Yes

Web-Based Management
Yes

Multi-Site Management
Yes

Zero-Touch Provisioning
Yes (Requires Omada Cloud-Based Controller)

System Requirements

Microsoft Windows XP
Microsoft Windows Vista
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Microsoft Windows 11
Linux

Environmental

Operating Temperature
-30°C To 70°C

Storage Temperature
-40°C To 70°C

Operating Humidity
10% To 90% RH, Non-Condensing

Storage Humidity
5% To 90% RH, Non-Condensing

Certifications

Compliance Certifications
CE
FCC
RoHS

What's in the Box:

• Access Point EAP650 D30-Outdoor
• Mounting Kits
• Installation Guide
• Waterproof Kit
