TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point EAP673

TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point EAP673

High-End Business WiFi 6 to Power Up Your Business

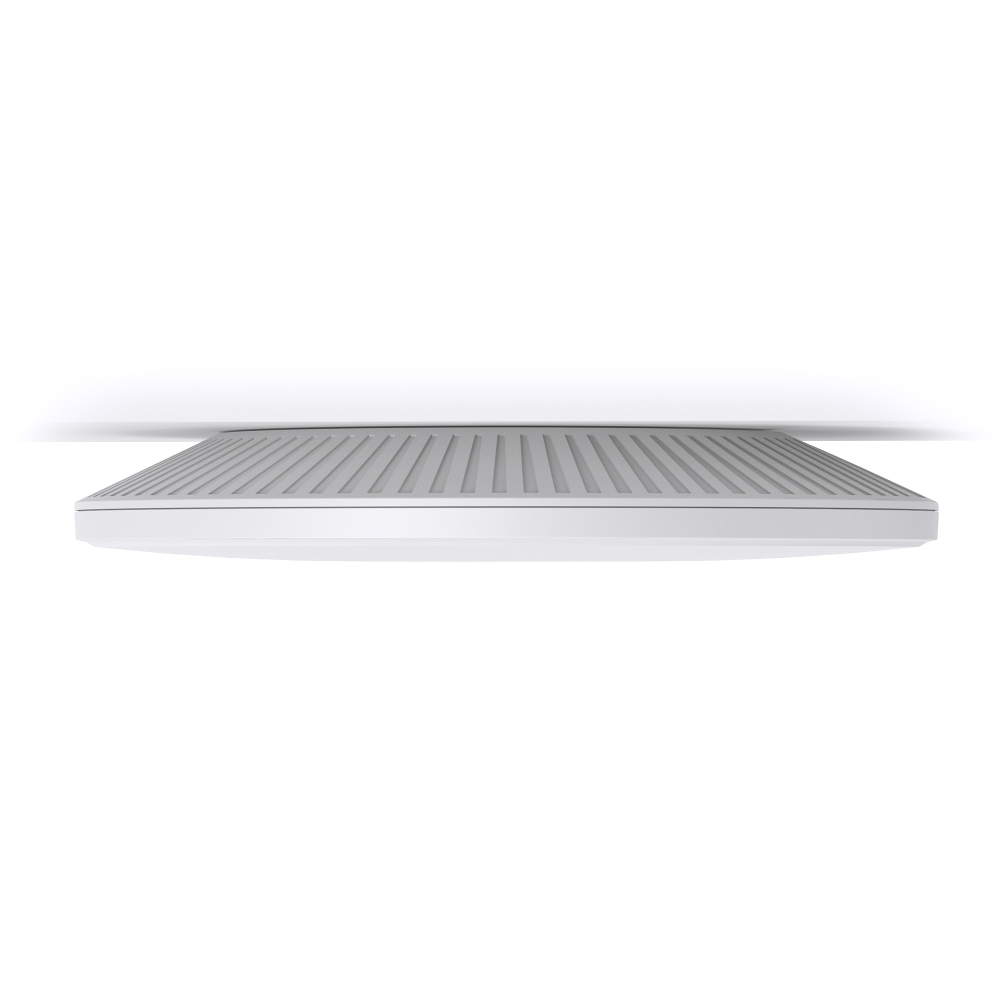

AX5400 Ceiling Mount Wi-Fi 6 Access Point

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz; 574 Mbps on 2.4 GHz

Features:

• Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).
• Integrated into Omada SDN, supporting centralized cloud Management, ZTP^*, and more.
• 160 MHz Channel double the data at peak transmission times on a single stream.
• Advanced features: Supports seamless roaming^§,Omada Mesh^§, and more.
• Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160

Auto Channel Selection and Power Adjustment
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment§

Seamless Roaming
Uninterrupted streaming when moving between APs§

PoE+ Powered
Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations

Designed for Business Environments
Requiring High-Performance WiFi

Hospitality
High-quality and full coverage Guest WiFi

Education
High-security WiFi to connect more devices

Shopping Mall
Seamless marketing WiFi coverage to boost business

Office
Stable, seamless, and high-security WiFi coverage

Meeting Room
Faster streaming, downloading, video conferencing, and more

High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Blazing-Fast AX5400 Wi-Fi 6 Speeds
High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Easy Deployment & Higher Performance by Omada Mesh

Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Boosted Network Security and Efficiency

Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Boost Business with SMS Login
Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness
Increases average network throughput in heavily congested environments

Technical Specifications:

Hardware Features

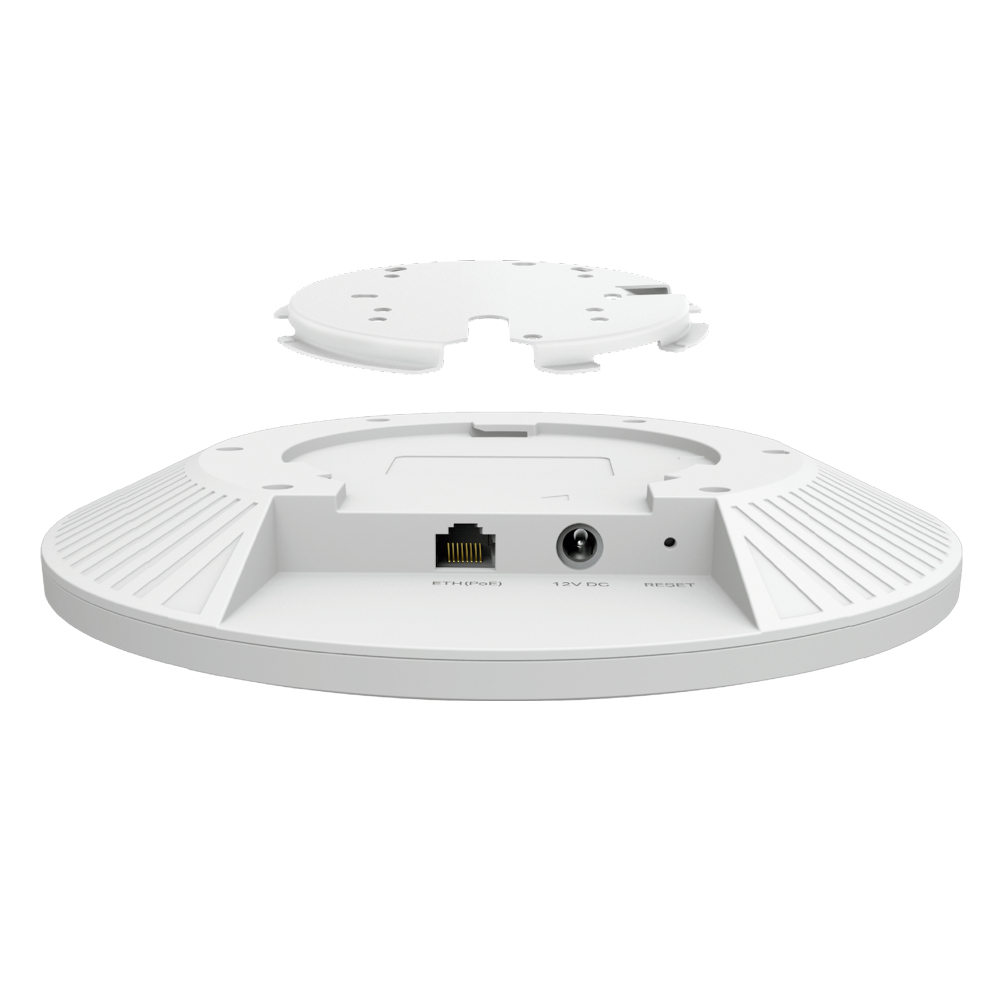

Interface
1 × 2.5 Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3at PoE)

Button
Reset

Power Supply

• 802.3at PoE
• 12 V / 2 A DC (Power Adapter Not Included)

Maximum Power Consumption

• EU: 20.8 W
• US: 22.3 W

Antenna
Internal Omni Antennas:

• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 4 × 5 dBi

Bluetooth
Yes

Mounting Options
Ceiling Mount
Wall Mount (Kits Included)

Dimensions (W × D × H)
220 × 220 × 32.5 mm

Wireless Features

Coverage Area
Up To 140 m² (1500 ft²)

Concurrent Clients
250+

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz
5 GHz

Signal Rate

• 5 GHz: Up To 4804 Mbps
• 2.4 GHz: Up To 574 Mbps

Wireless Functions

• 1024-QAM
• 4 × Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjustable In dBm)
• QoS (WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics Based On SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID To VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise
• WPA2-Personal/Enterprise
• WPA3-Personal/Enterprise

Transmission Power

• CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz Band 1 & Band 2, EIRP); < 30 dBm (5 GHz Band 3, EIRP)
• FCC: < 25 dBm (2.4 GHz); < 28 dBm (5 GHz)

Management Features

Omada App Support
Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access
Yes (Requires OC300, OC200, Omada Cloud-Based Controller, Or Omada Software Controller)

Email Alerts
Yes

LED On/Off Control
Yes

Management MAC Access Control
Yes

SNMP Support
v1
v2c
v3

System Logging
Local / Remote Syslog

SSH Support
Yes

Web-Based Management
HTTP / HTTPS

L3 Management
Yes

Multi-Site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes (Requires Omada Cloud-Based Controller)

System Requirements

Microsoft Windows XP
Microsoft Windows Vista
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Microsoft Windows 11
Linux

Environmental

Operating Temperature
0°C To 40°C

Storage Temperature
-40°C To 70°C

Operating Humidity
10% To 90% RH, Non-Condensing

Storage Humidity
5% To 90% RH, Non-Condensing

Certifications

Compliance Certifications
CE
FCC
RoHS

What's in the Box:

• EAP673
• Ceiling / Wall Mounting Kits
• Installation Guide
