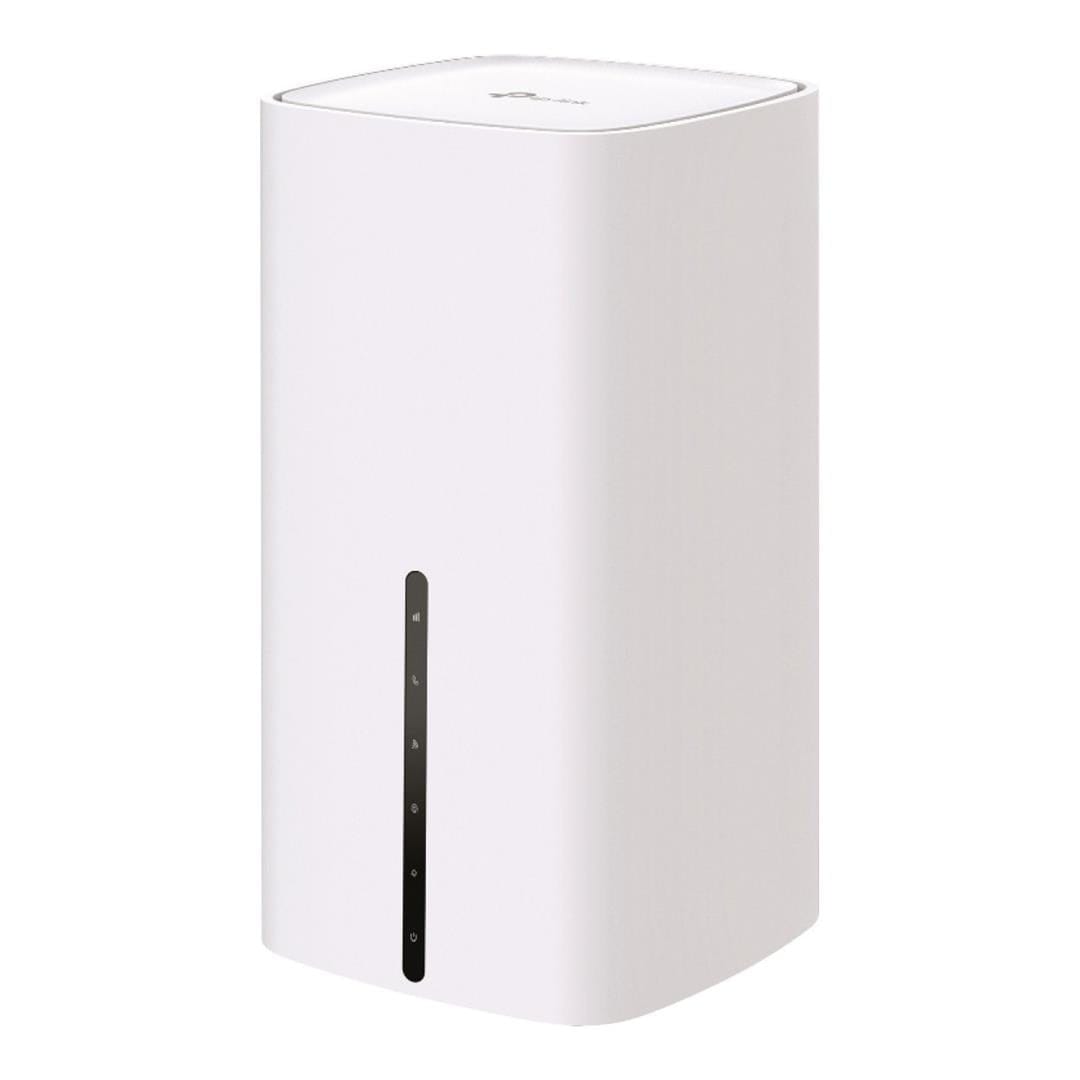

TP-Link NX220V AX1800 5G Wi-Fi 6 Telephony Router

TP-Link NX220V AX1800 5G Wi-Fi 6 Telephony Router

5G AX1800 Wi-Fi6 Telephony Router

• Boost Your 5G Speed: Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
• AX1800 Wi-Fi 6 Speed: 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
• VoLTE/CSFB Telephony: With 1 Voice port, users can make or receive phone calls over the internet simply by connecting the device to their existing telephone set.
• Plug & Play: Enjoy 5G network right after inserting a SIM card.
• Support EasyMesh: Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
• Fully Gigabit Ports for Consummate Connectivity: Fully gigabit Ethernet ports provide warp speeds and reliable connections for high-intensive wired devices such as your smart TV, game console, NAS, and more.
• Easy Remote Management: TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud) are supported.

Enjoy WiFi and Phone Calls All in One 5G Router

5G AX1800 Wi-Fi 6 Telephony Router

Unrivaled Speed with 5G, Revolutionary Experience

5G greatly boosts the download speed up to 4.67 Gbps–31x faster than 4G LTE. It brings fast responsive network connections to tomorrow’s mobile devices, with only 1 ms latency

Simple, just one SIM card

Plug and Play, Enjoy 5G Network Everywhere

Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. NX220v ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

AX1800 – Powerful Wi-Fi 6

Armed with WiFi 6 technology, NX220v is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

Enjoy WiFi and Phone Calls Simultaneously

NX220v is not only a WiFi router and modem combo, but also a phone. It has a phone port to connect your existing landline phone so that you can make phone calls and surf the internet at the same time. Moreover, various voice functions are supported including VoLTE and CSFB. Simply enjoy a professional and high-quality voice call as you like.

Create Smart Mesh WiFi with Great Flexibility

Working with other EasyMesh-compatible devices, NX220v creates a unified mesh WiFi network for seamless whole home coverage. No more searching for a stable connection.

Available WAN Connection

The WAN/LAN port enables NX220v to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 4G/3G connection works as a backup to provide a sustained and reliable internet connection for you.

Easy Setup and Use

You can set up your device and network in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.

Supports TR-069/TR-369 Remote Management

ISPs can remotely configure and manage devices via their ACS (Auto-Configuration Server) system or the Aginet ACS. High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

Specifications:

CPU: 2.0GHz Quad-Core CPU

Interface: 3× 10/100/1000 Mbps RJ45 LAN Ports (1 port for WAN/LAN auto-sensing)

Button: 1 RESET/WIFI multiplex button & 1 WPS button

External Power Supply:

• Output: 12V/2A
• Input: 100-240V~50-60Hz 0.8A

Dimensions (W x D x H): 99 × 99 × 190 mm

Antenna: Internal WIFI antennas; optional Internal/external LTE/5G antennas

Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz,IEEE 802.11b/g/n/ax 2.4GHz

Frequency: 2.4 GHz and 5 GHz

Signal Rate: 5G: 4.67 Gbps(downstream) / 1.25 Gbps(upstream)

LTE: 1.6 Gbps(downstream) / 200 Mbps(upstreamWireless SecurityWPA/WPA2-PSK/WPA3 encryption

Transmission Power

• CE: ≤20dbm(2.4GHz);≤23dbm(5G band1/band2);≤30dbm(5G band3)
• RCM: ≤30dbm(2.4GHz);≤23dbm(5G band1/band2);≤30dbm(5G band3/band4)Network Type
• 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
• 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B23/B28
• TDD-LTE: B38/B40/B41/B42/B43
• 3G: DC-HSDPA, HSPA+, HSDPA, HSUPA,WCDMA B1/B5/B8Mesh Technology802.11k/v/r, support EasyMesh

Working Mode: 5G/4G/3G, Wi-Fi Router

Multi SSID: 3 more 2.4GHz/5GHz Network

Features: Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Dynamic DDNS, SIM Management,SMS, Cloud Upgrade, EasyMesh , VoLTE, IPTV, IPv6, NAT Forwarding, Firewall, LED Control, Network Diagnosic, CWMP, SNMP, Traffic Statistic, WPS,1024-QAM, OFDMA, IPSEC VPN, WEB Remote Control

WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Protocols: Supports IPv4 and IPv6
