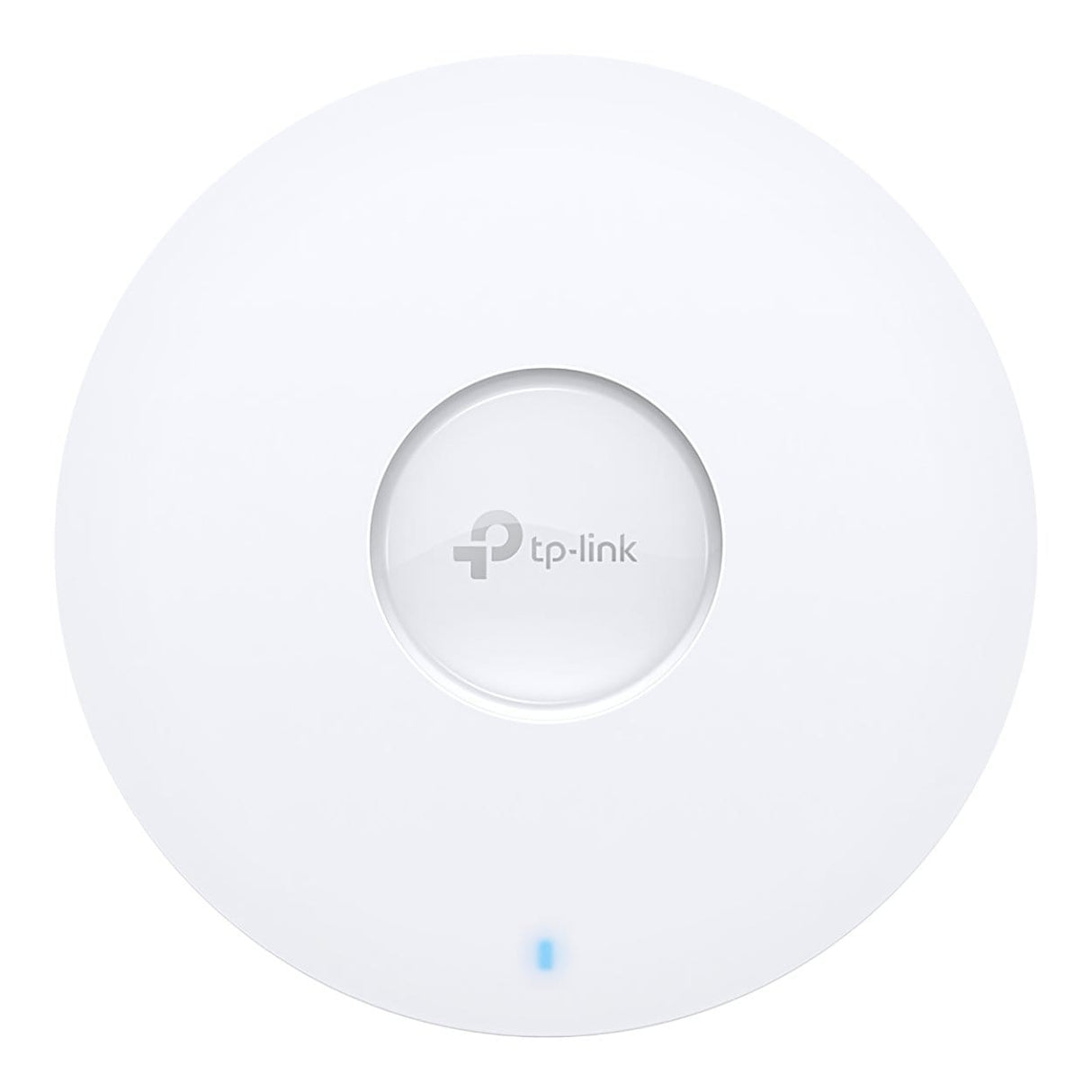

TP-Link EAP673 Promotion: Buy 10 X EAP673 And Get 1 Free OC200 TP-PROMO4

TP-Link EAP673 Promotion: Buy 10 X EAP673 And Get 1 Free OC200 TP-PROMO4

This promotional offer includes ten TP-Link EAP673 Wi-Fi 6 access points. The bundle provides one free TP-Link OC200 Omada Controller. The EAP673 delivers high-density wireless coverage with dual-band performance. The OC200 manages network configuration and monitoring for the access points. This package is suitable for deploying scalable wireless networks in commercial environments.

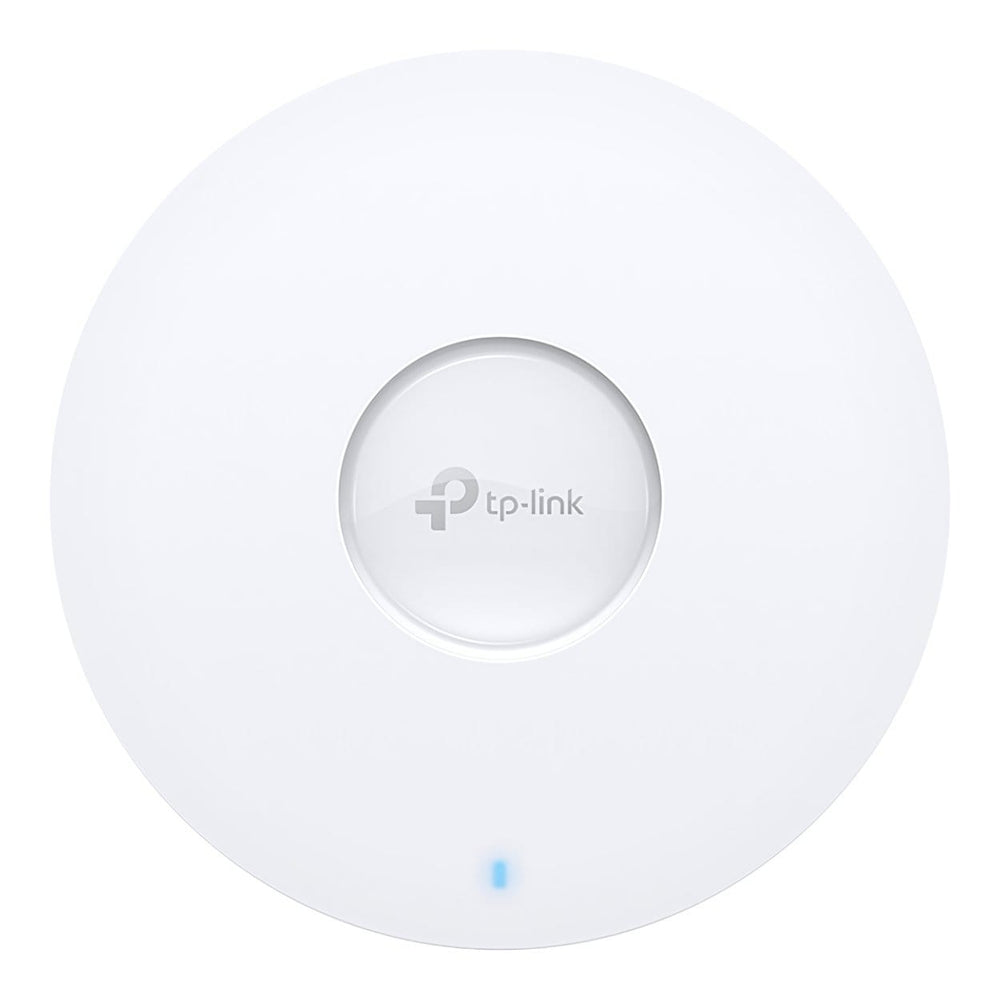

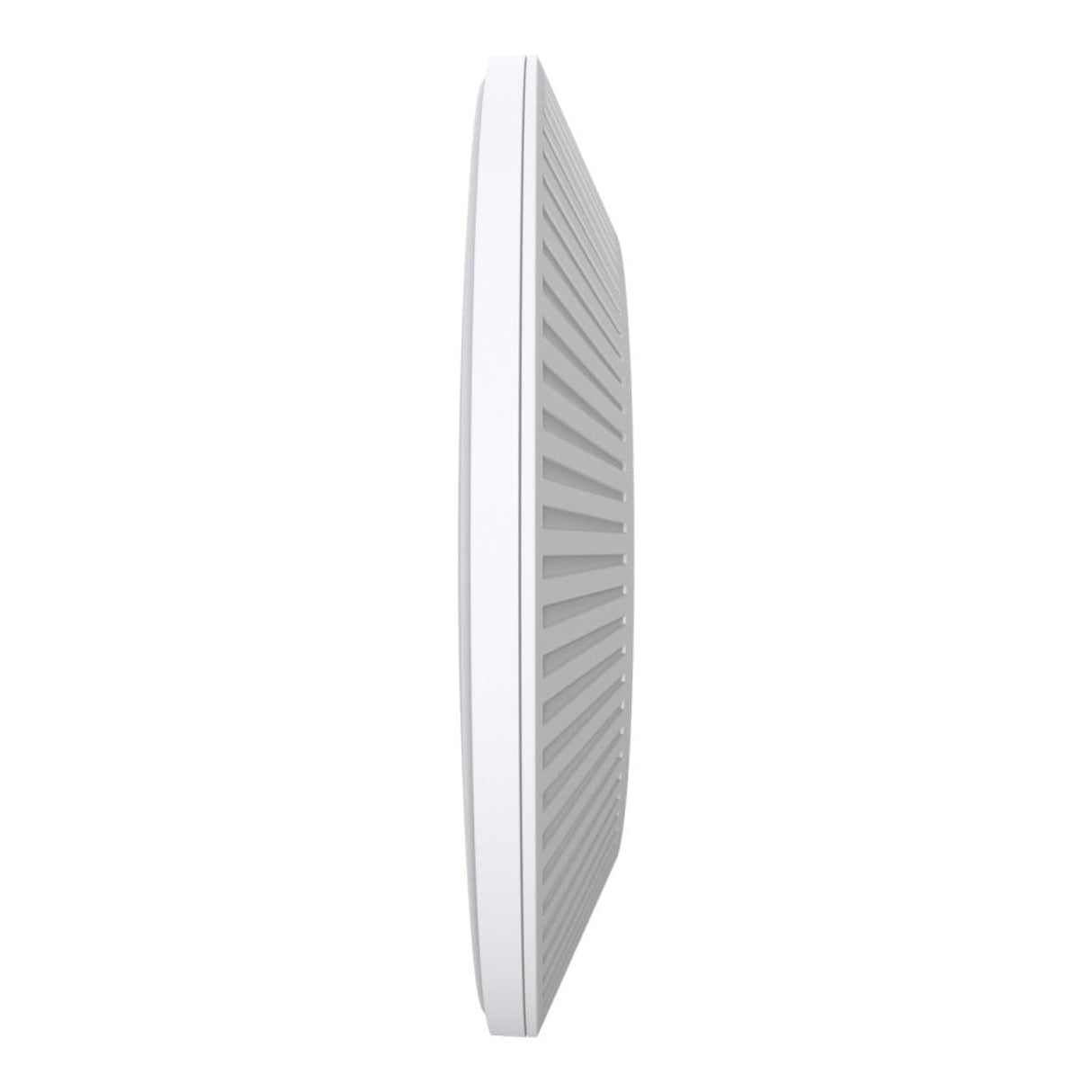

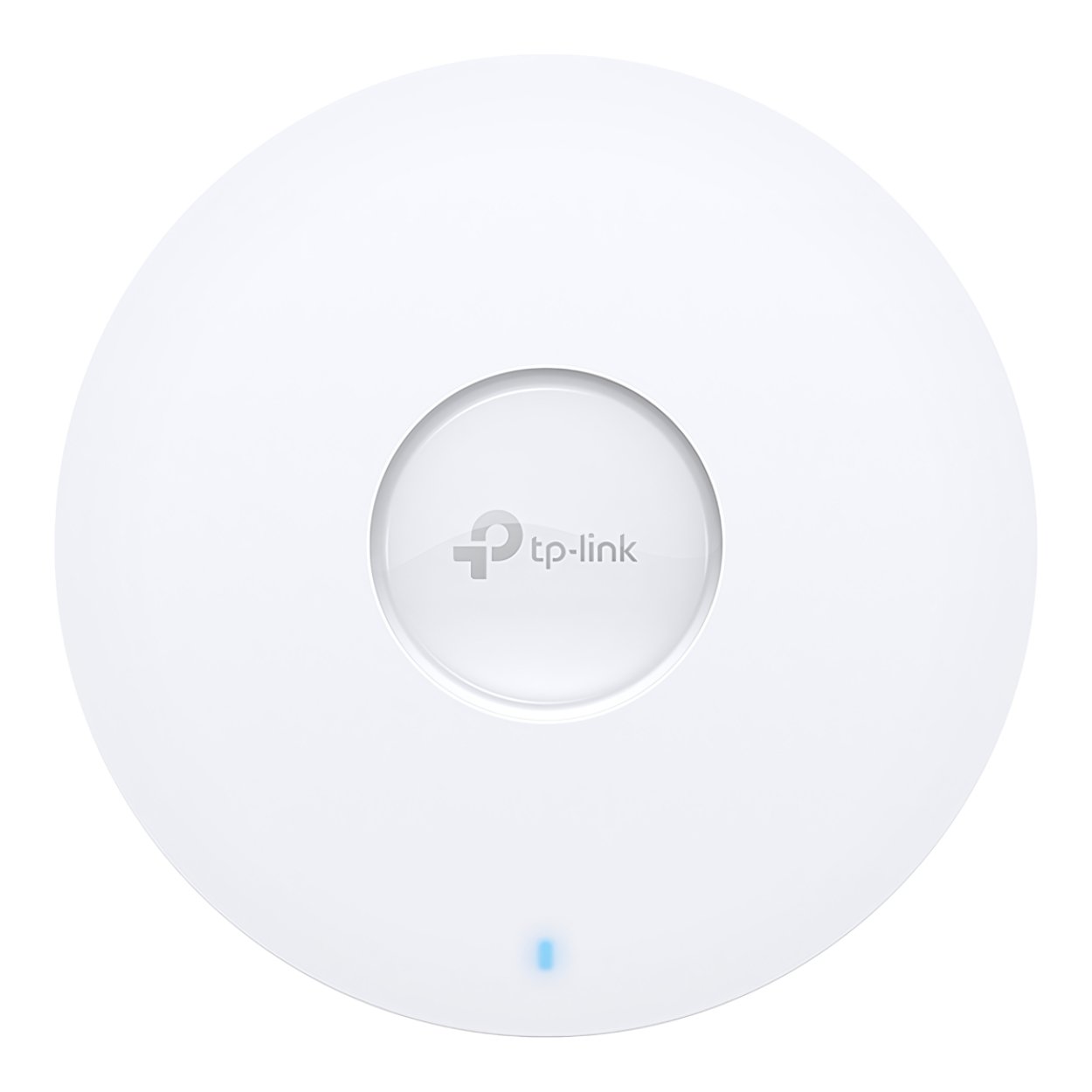

EAP673

Technical Specifications:

Hardware Features

Interface
1 × 2.5 Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3at PoE)

Button
Reset

Power Supply

• 802.3at PoE
• 12 V / 2 A DC (Power Adapter Not Included)

Maximum Power Consumption

• EU: 20.8 W
• US: 22.3 W

Antenna
Internal Omni Antennas:

• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 4 × 5 dBi

Bluetooth
Yes

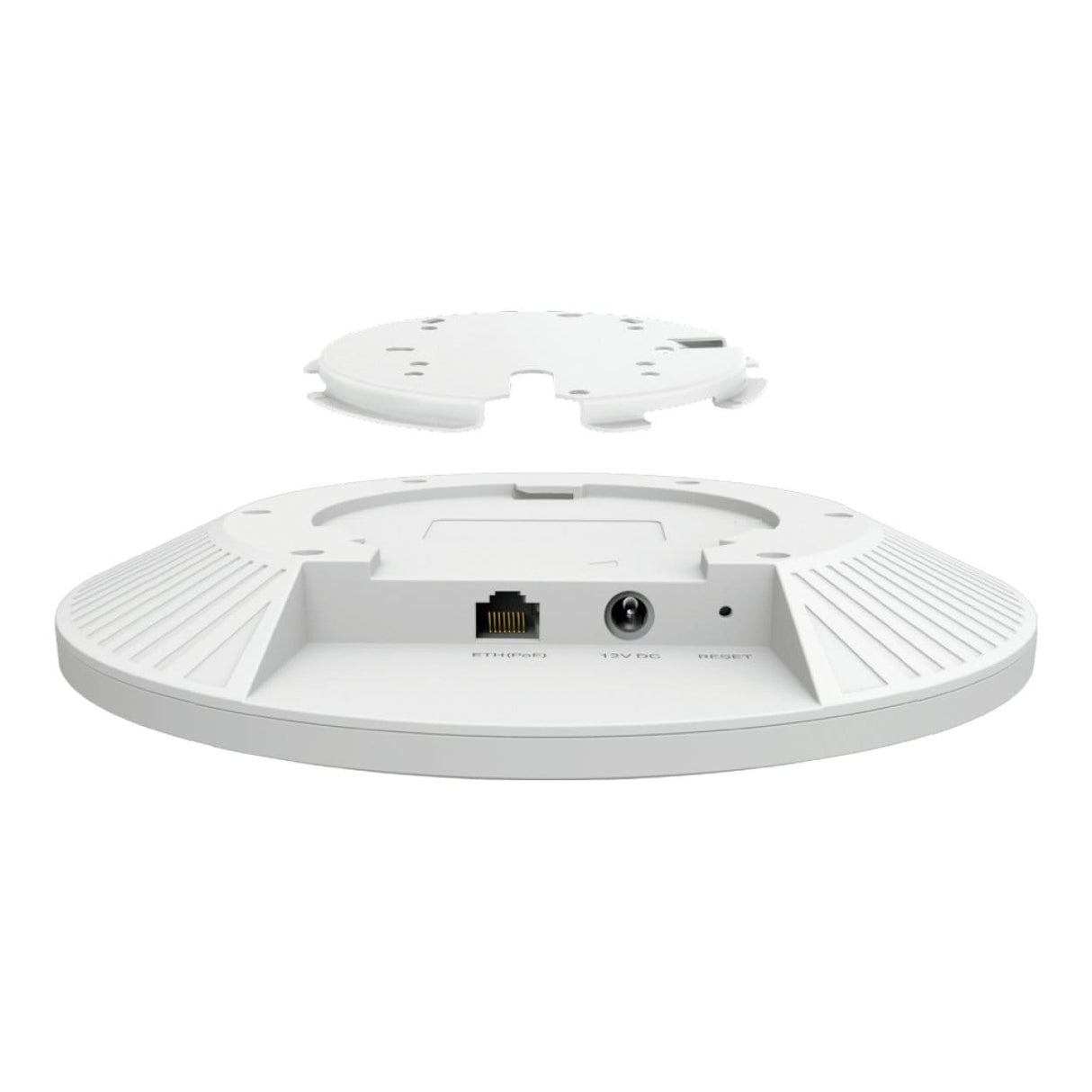

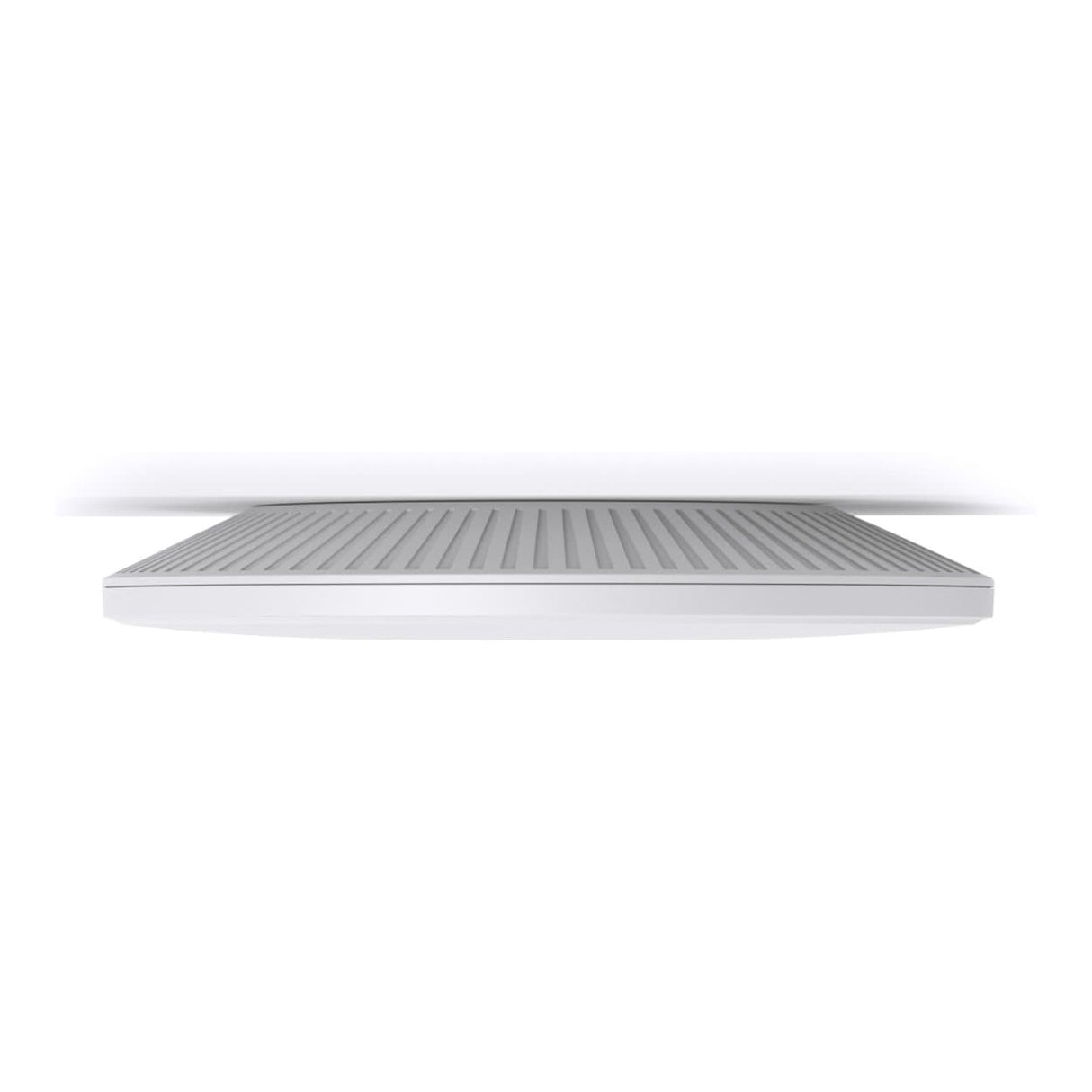

Mounting Options
Ceiling Mount
Wall Mount (Kits Included)

Dimensions (W × D × H)
220 × 220 × 32.5 mm

Wireless Features

Coverage Area
Up To 140 m² (1500 ft²)

Concurrent Clients
250+

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz
5 GHz

Signal Rate

• 5 GHz: Up To 4804 Mbps
• 2.4 GHz: Up To 574 Mbps

Wireless Functions

• 1024-QAM
• 4 × Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjustable In dBm)
• QoS (WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics Based On SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID To VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise
• WPA2-Personal/Enterprise
• WPA3-Personal/Enterprise

Transmission Power

• CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz Band 1 & Band 2, EIRP); < 30 dBm (5 GHz Band 3, EIRP)
• FCC: < 25 dBm (2.4 GHz); < 28 dBm (5 GHz)

Management Features

Omada App Support
Yes

Centralized Management

• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access
Yes (Requires OC300, OC200, Omada Cloud-Based Controller, Or Omada Software Controller)

Email Alerts
Yes

LED On/Off Control
Yes

Management MAC Access Control
Yes

SNMP Support
v1
v2c
v3

System Logging
Local / Remote Syslog

SSH Support
Yes

Web-Based Management
HTTP / HTTPS

L3 Management
Yes

Multi-Site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes (Requires Omada Cloud-Based Controller)

System Requirements

Microsoft Windows XP
Microsoft Windows Vista
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Microsoft Windows 11
Linux

Environmental

Operating Temperature
0°C To 40°C

Storage Temperature
-40°C To 70°C

Operating Humidity
10% To 90% RH, Non-Condensing

Storage Humidity
5% To 90% RH, Non-Condensing

Certifications

Compliance Certifications
CE
FCC
RoHS

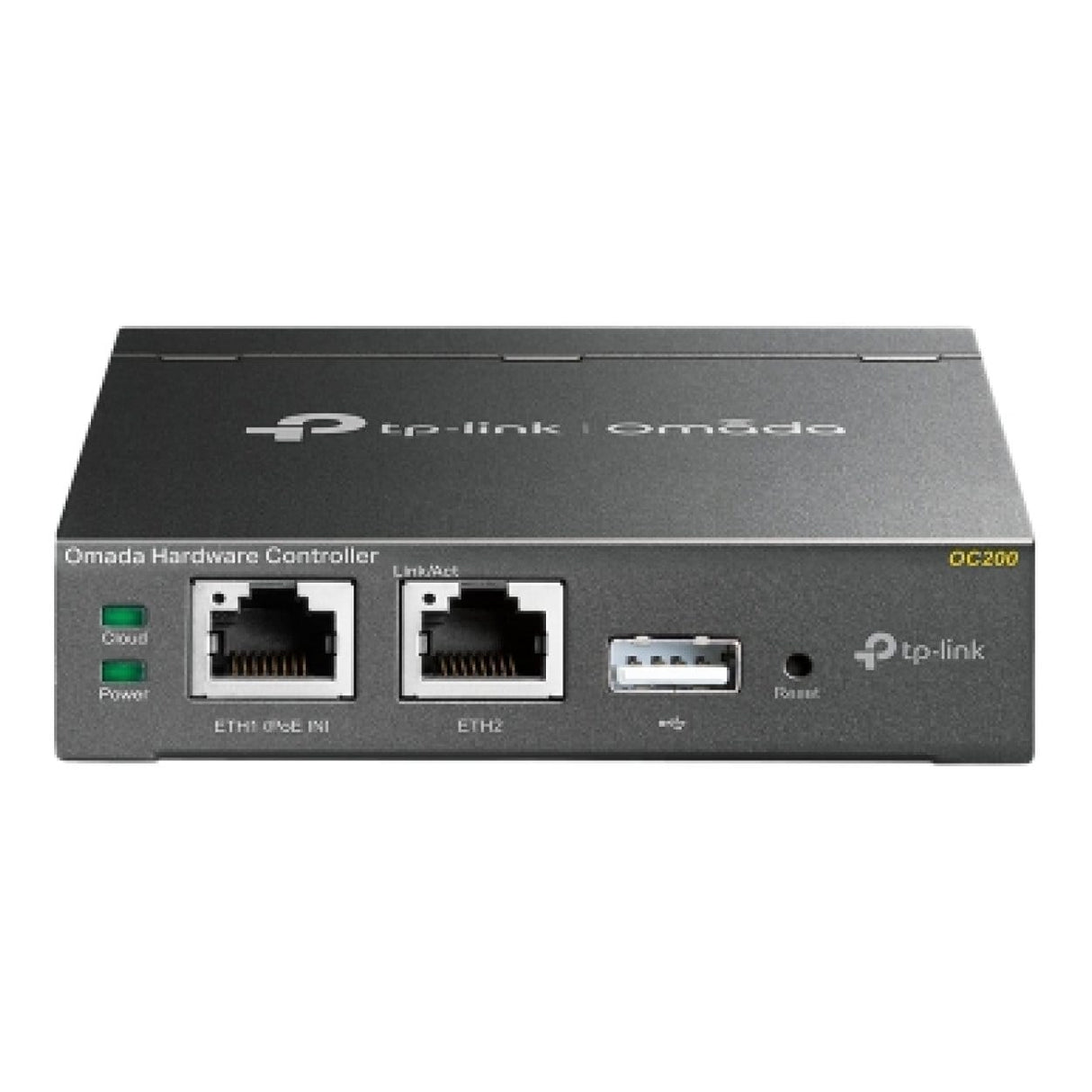

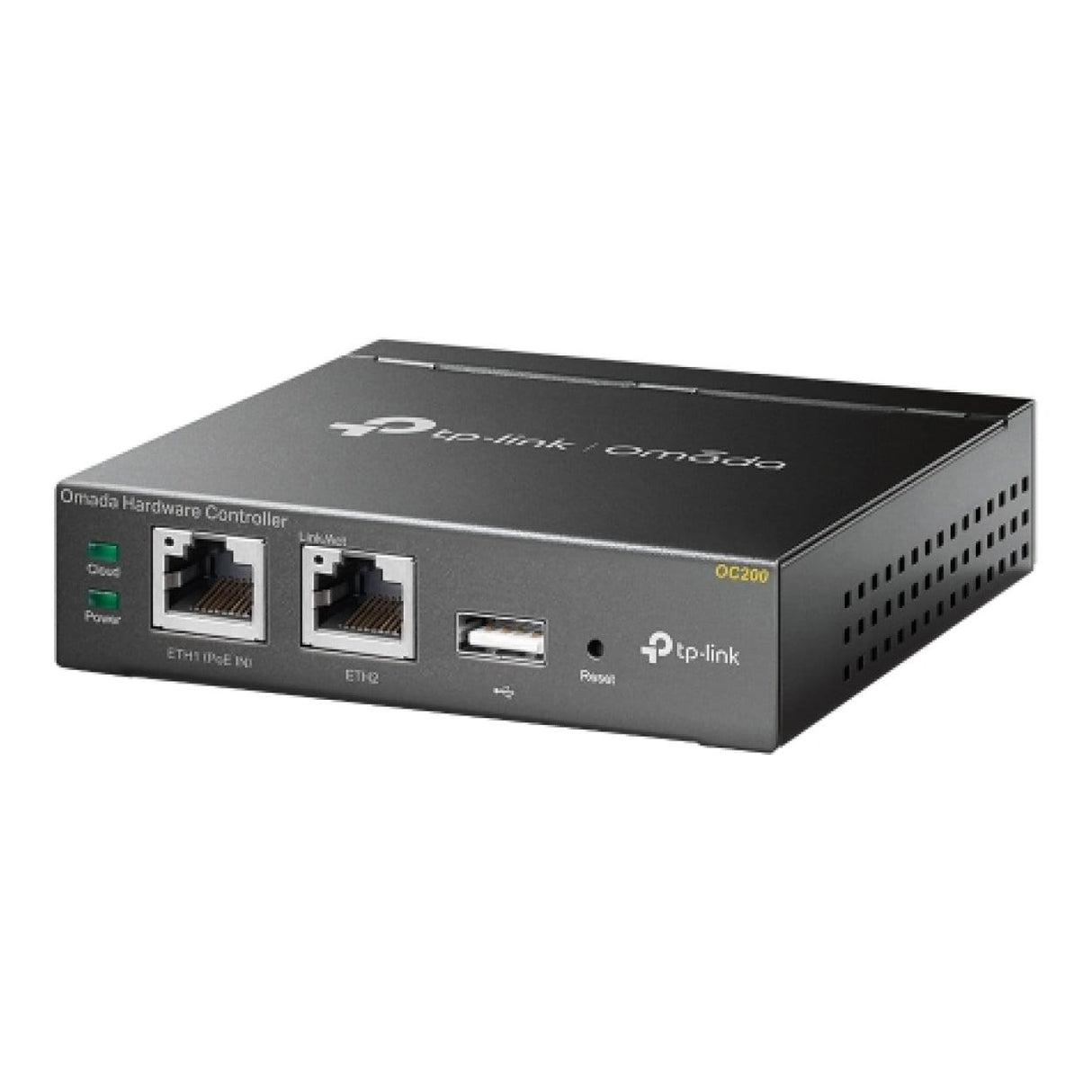

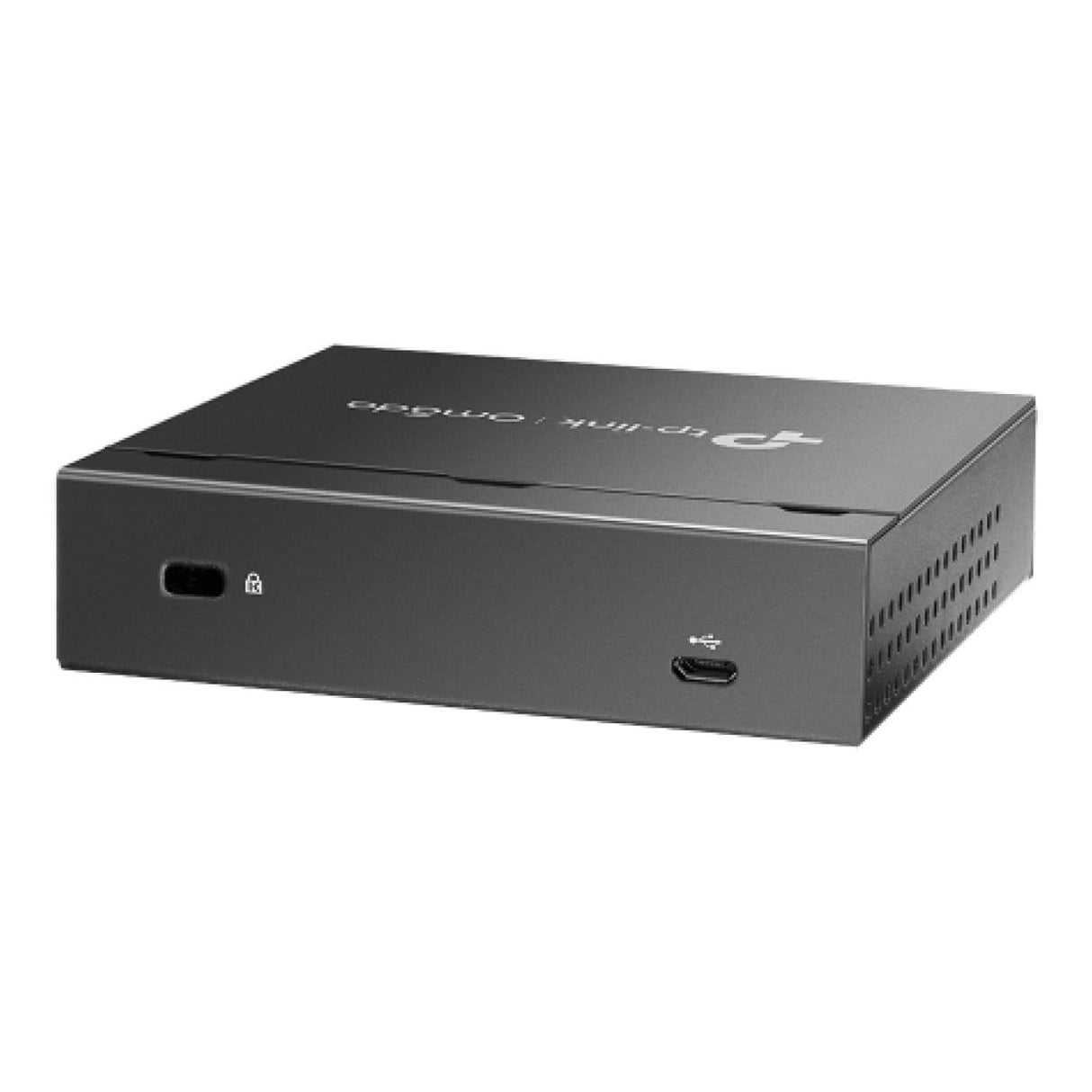

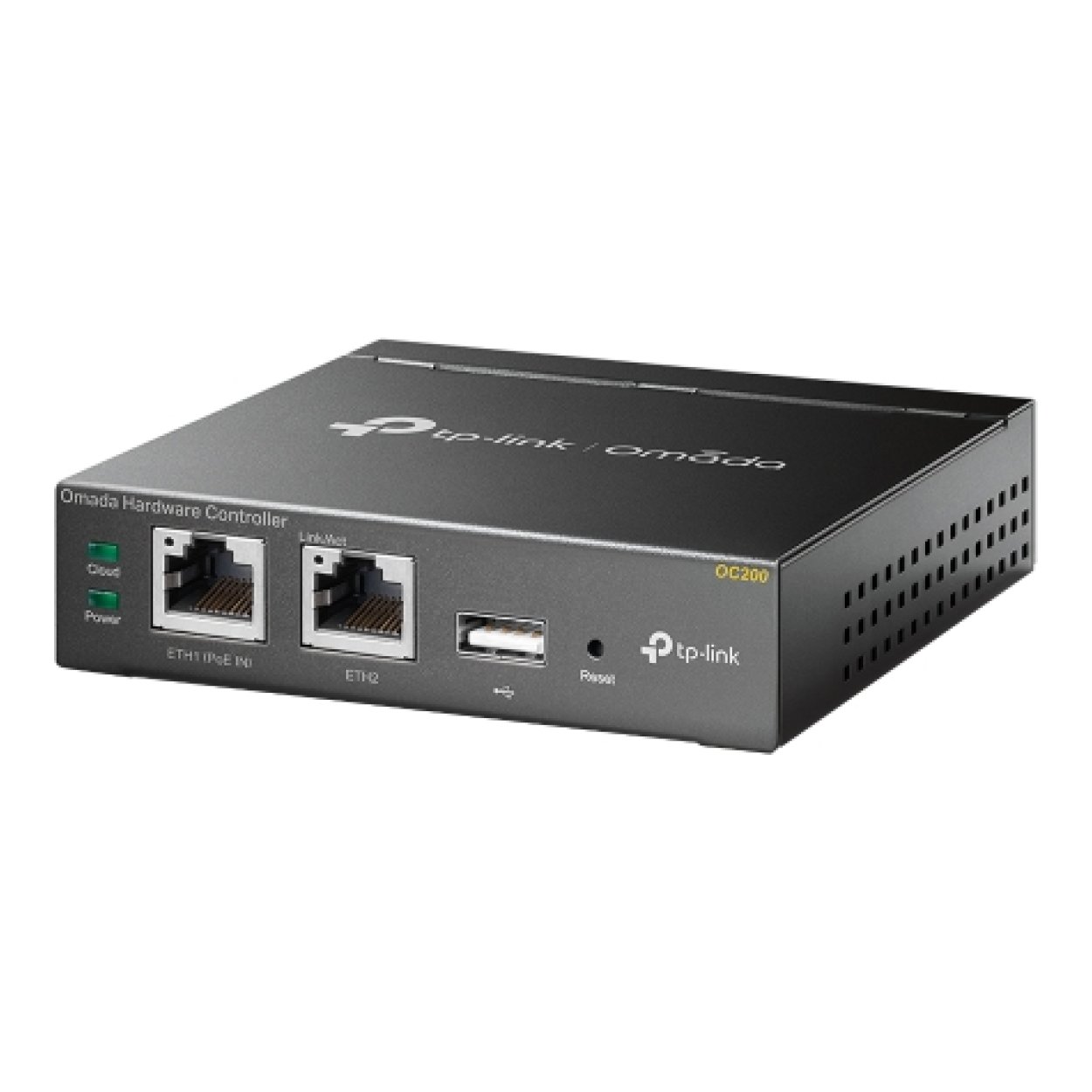

OC200

Hardware Features

Interface
10/100Mbps Ethernet Port × 2
USB 2.0 Port × 1
Micro USB Port × 1

Power Supply
802.3af/at PoE or Micro USB (DC 5V, Minimum 1A)

Dimensions (W x D x H)
3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Features

Wireless Function
L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS

Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection

AP Management
Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF

Authentication
Captive Portal

Management Features

Omada App
Yes

Centralized Management
Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
Up to 1,000 Clients

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes

Additional Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Others

Certification
CE, FCC, RoHS

System Requirements
Microsoft Windows 10, 8, 7, Vista, XP, or MAC OS, NetWare, UNIX, or Linux

Environment
Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–70℃ (-40℉–158℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

What's in the Box:

• 10 x EAP673
• 1 x OC200
• Quick Installation Guide
