TP-Link EAP650 Promotion: Buy 10 X EAP650 And Get 1 Free OC200 TP-PROMO7

TP-Link EAP650 Promotion: Buy 10 X EAP650 And Get 1 Free OC200 TP-PROMO7

This promotional offer includes ten TP-Link EAP650 Wi-Fi 6 access points. The bundle provides one free OC200 optical modem. The EAP650 supports high-density environments with MU-MIMO and OFDMA technology. It delivers reliable wireless coverage for large offices and public spaces. The OC200 modem connects to fibre optic networks for stable internet access. This package is suitable for businesses requiring scalable network infrastructure.

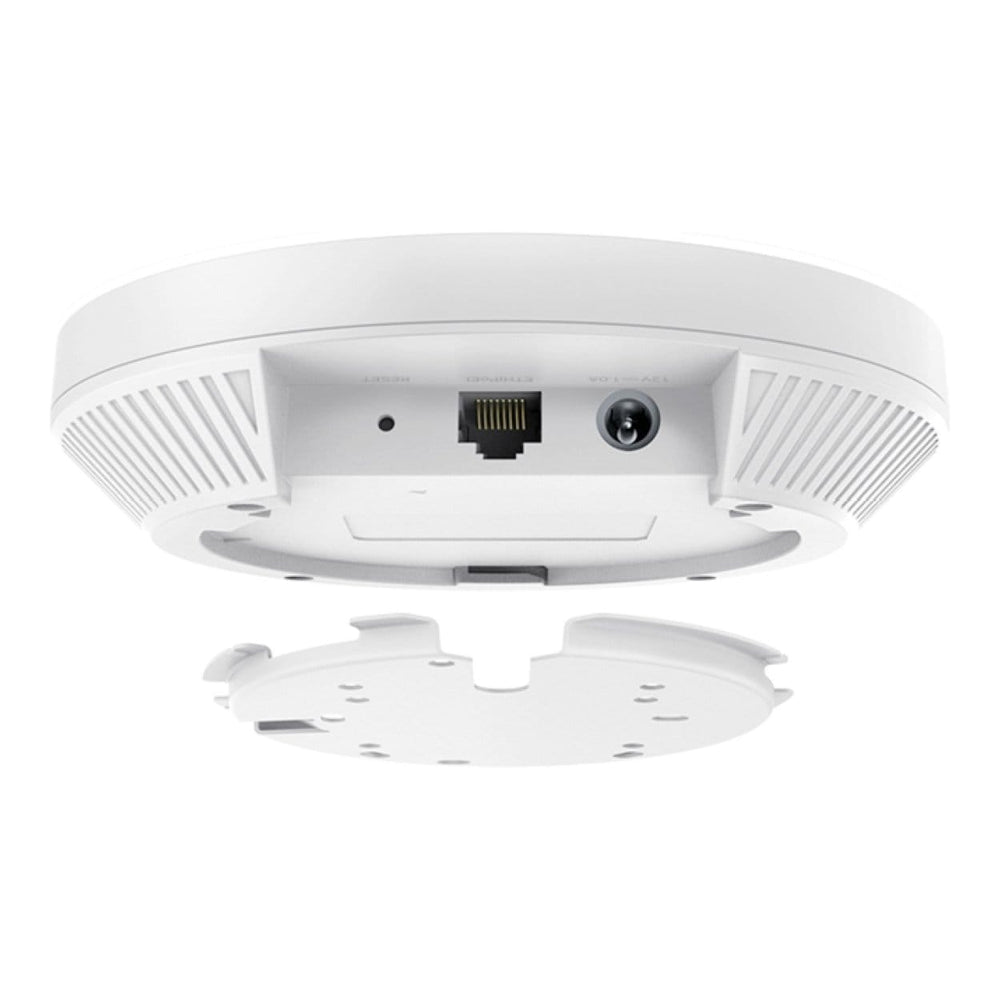

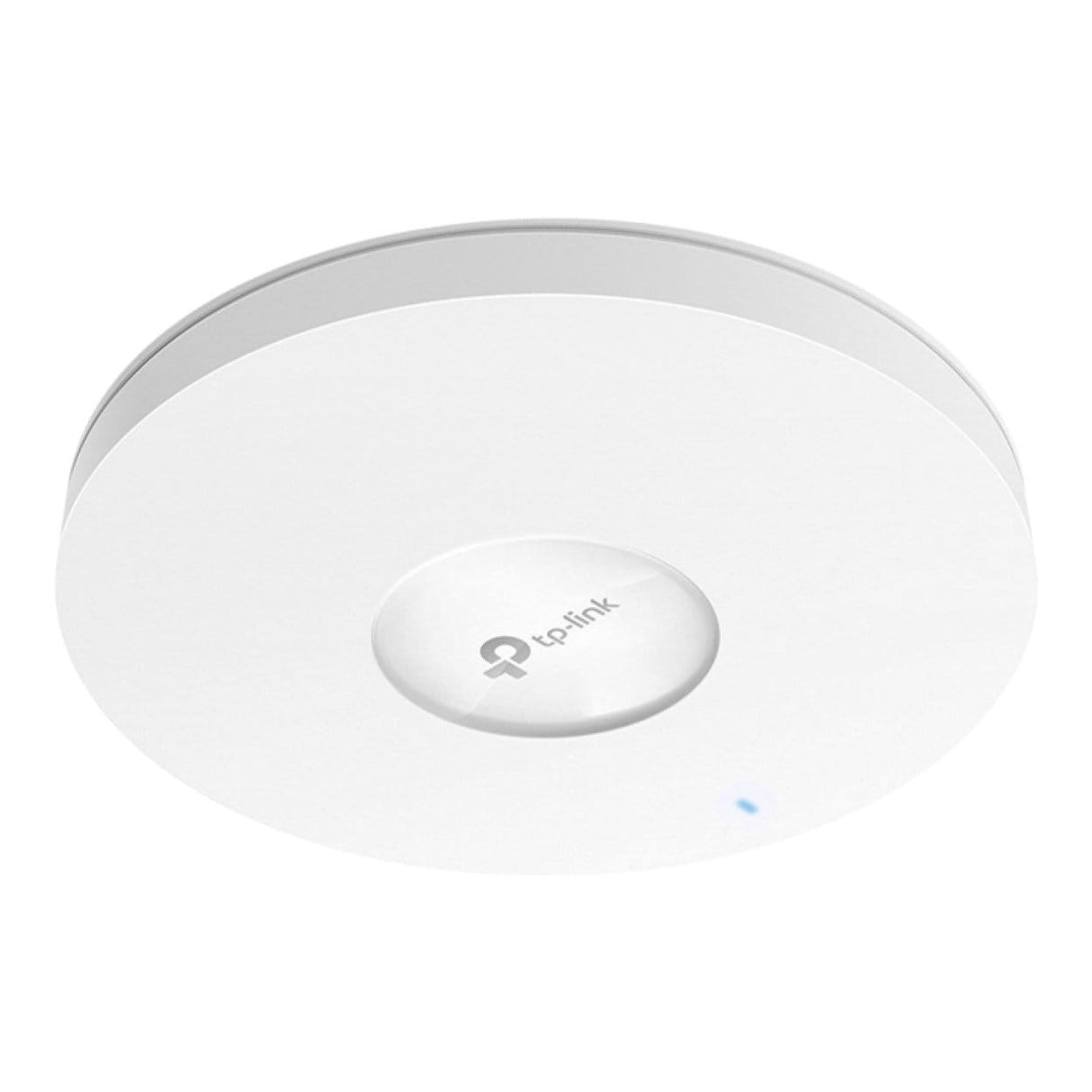

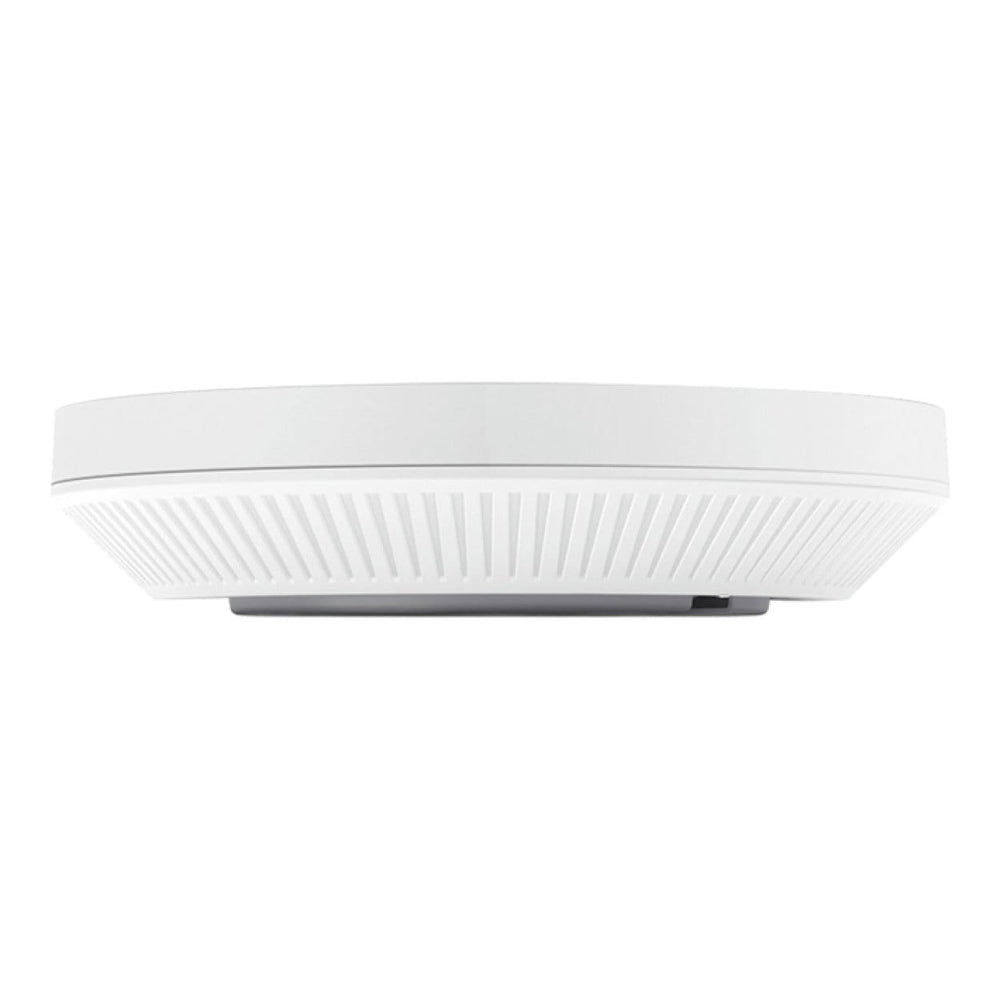

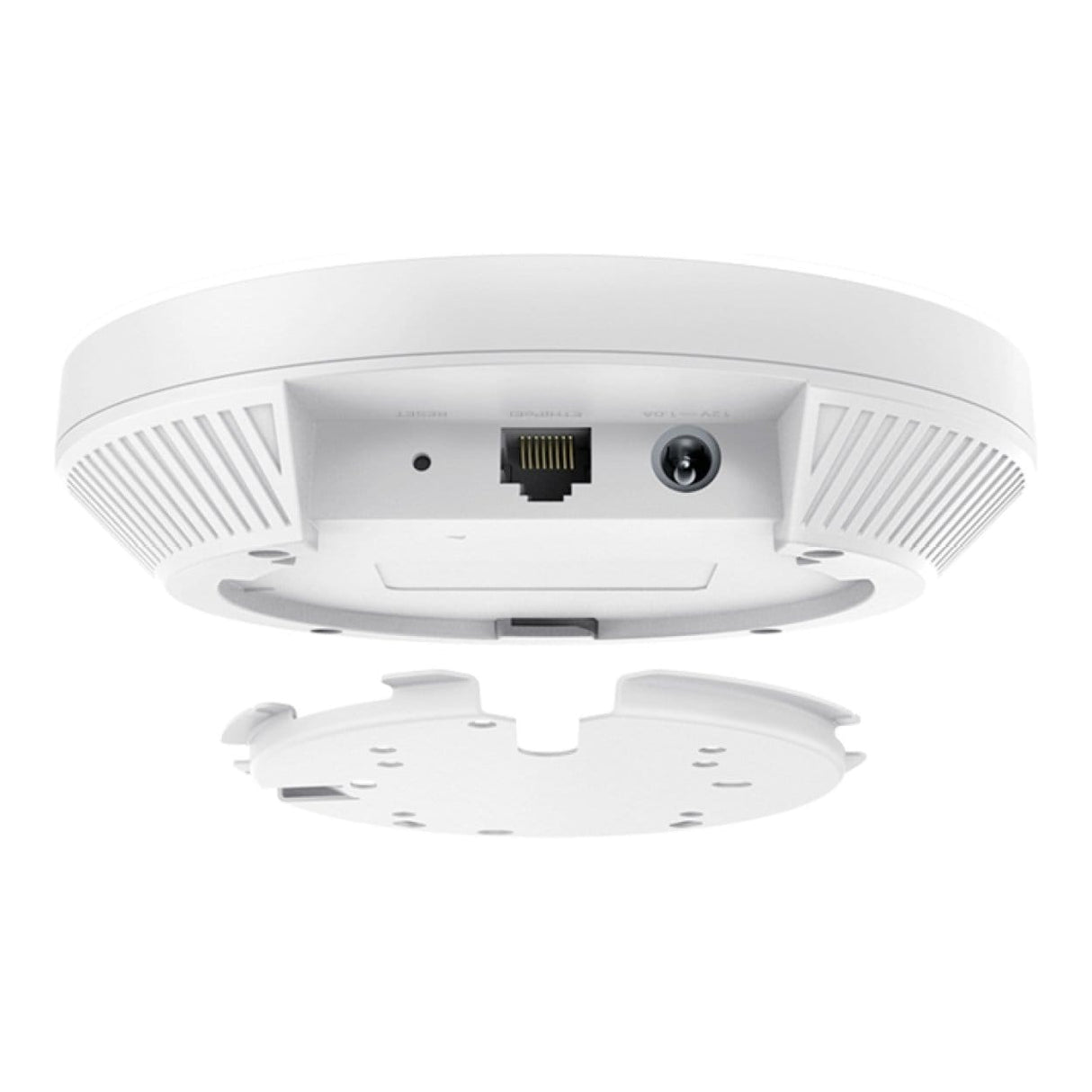

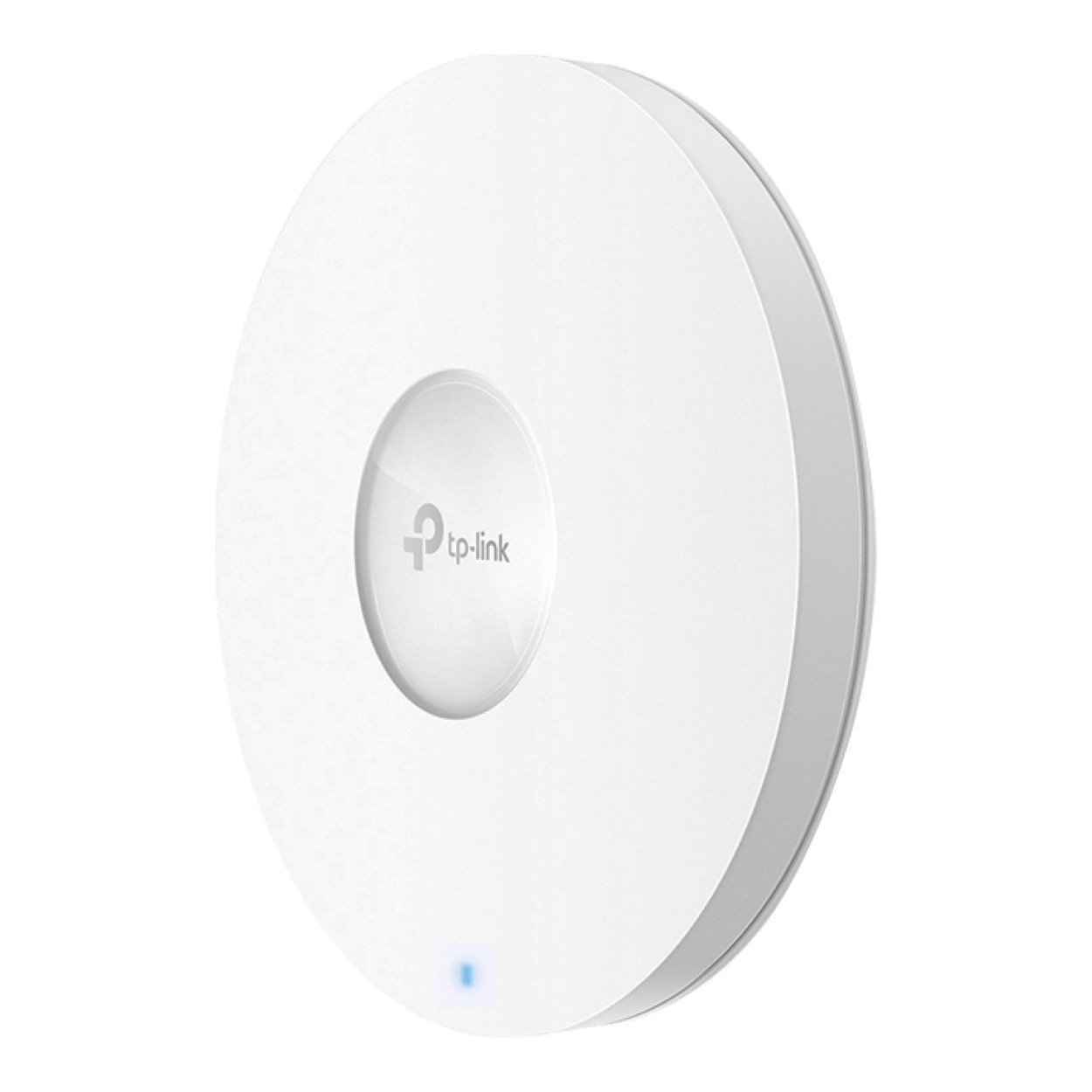

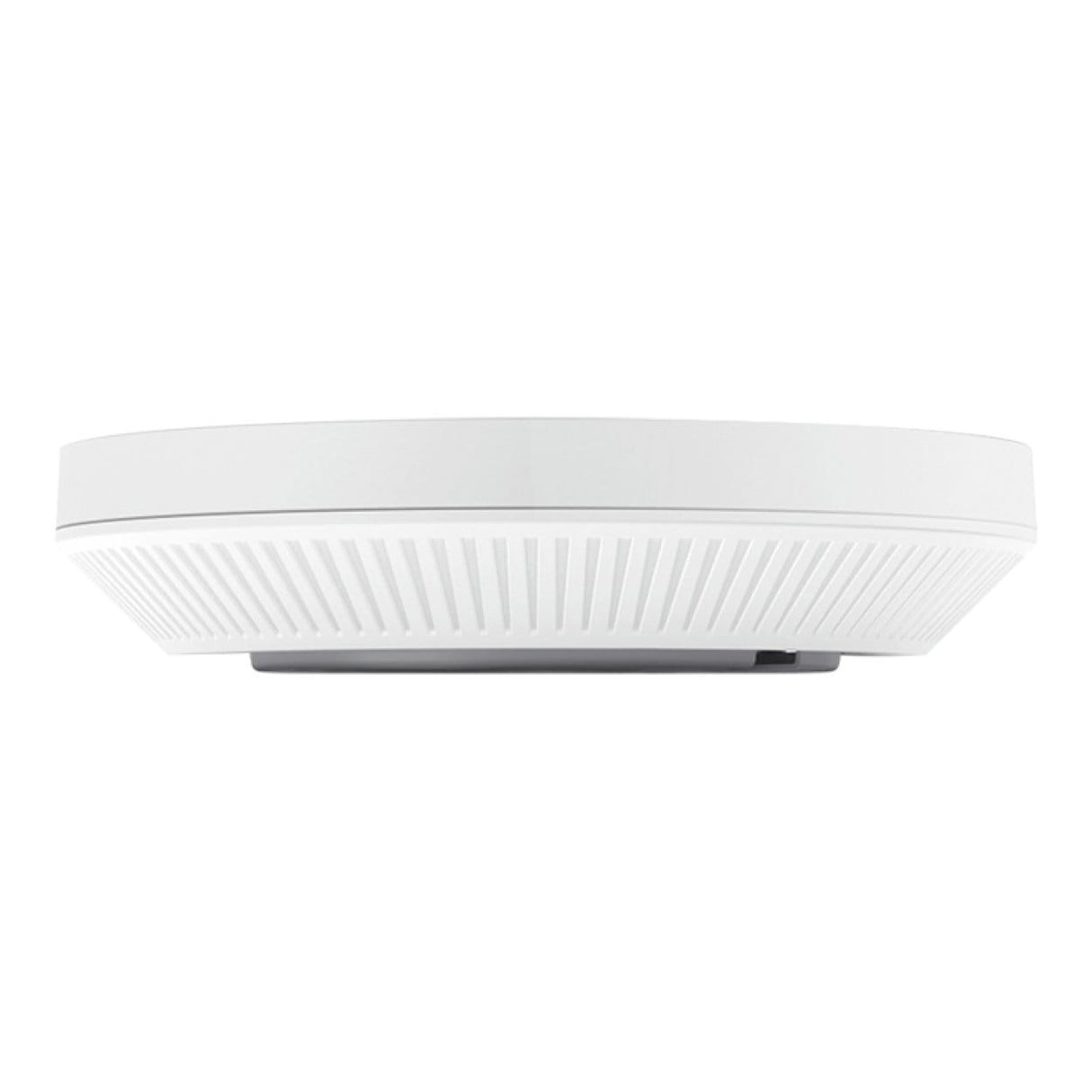

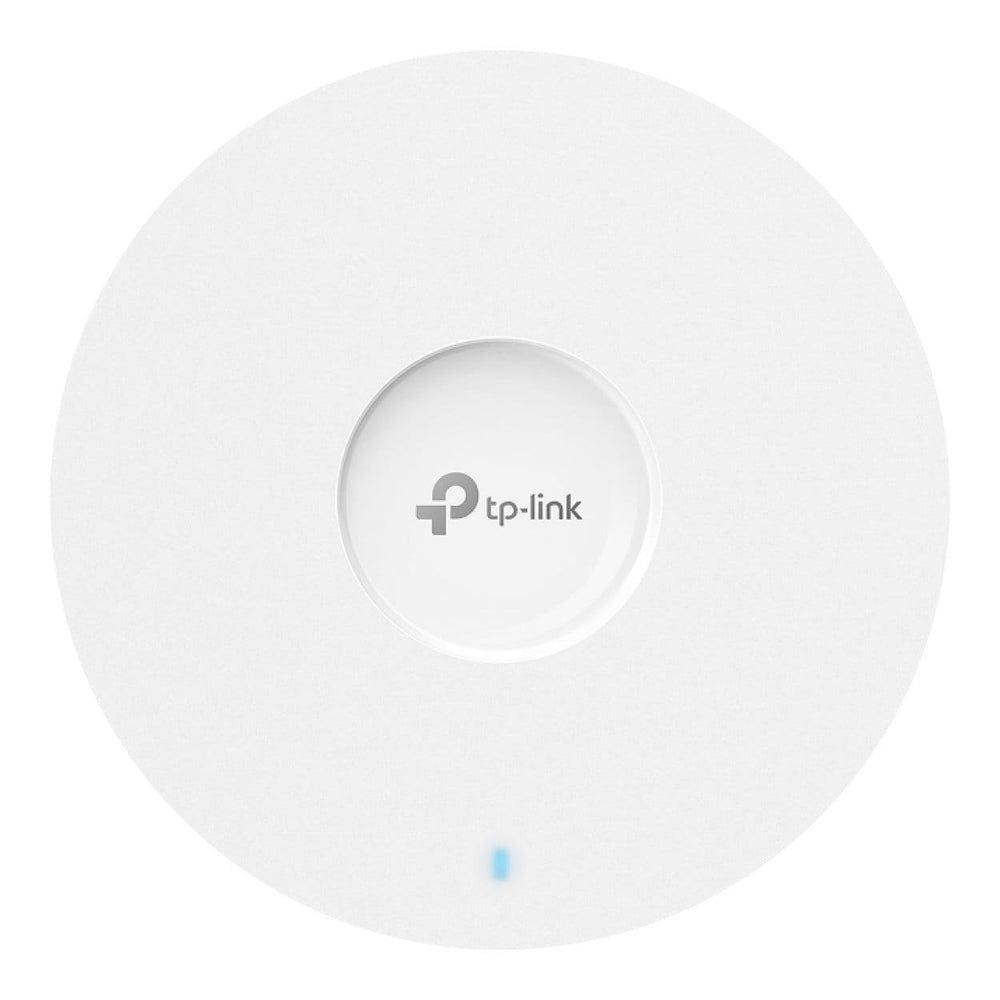

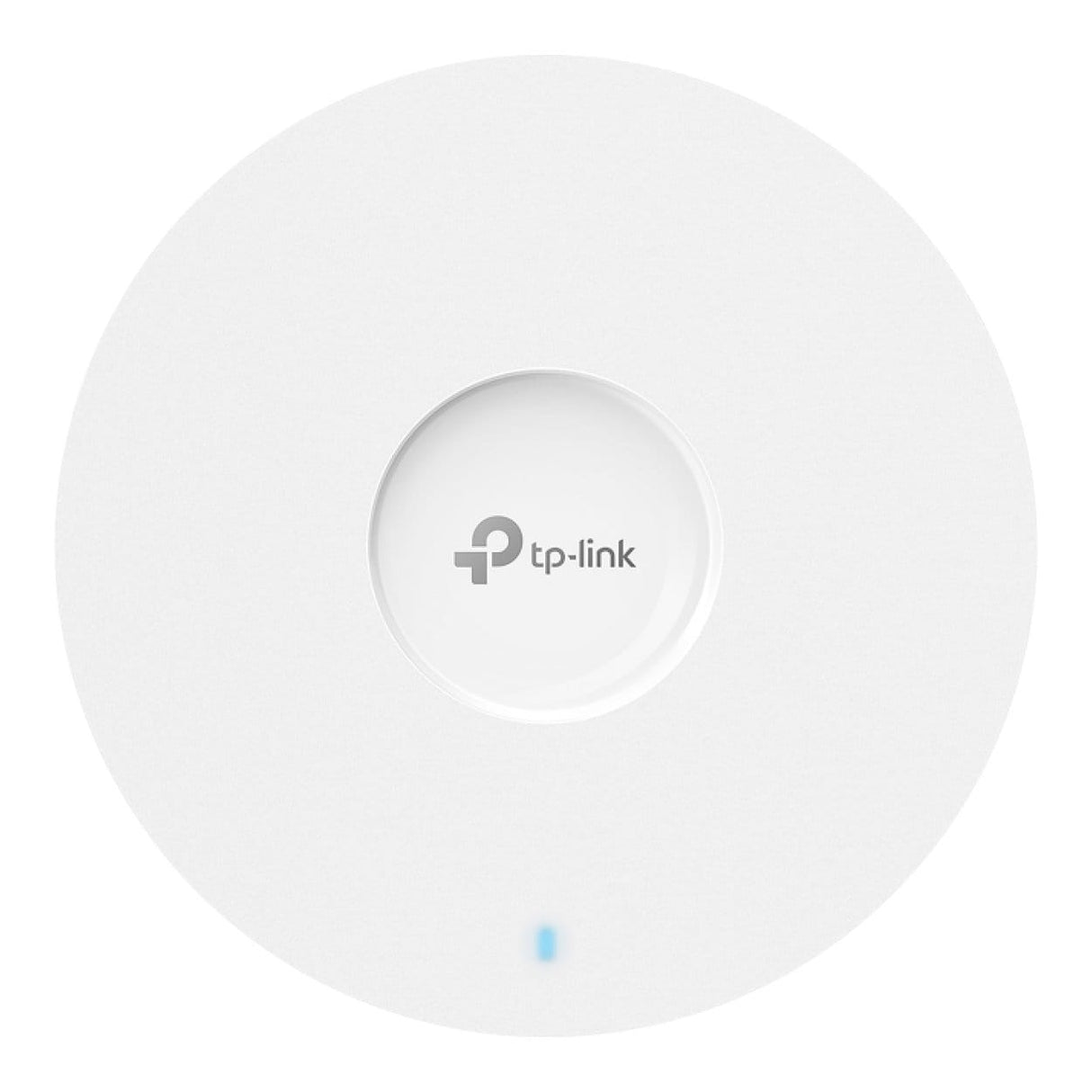

EAP650

Technical Specifications:

Hardware Features

Interface
1 × Gigabit Ethernet (RJ-45) Port (Supports 802.3at PoE And Passive PoE)

Button
Reset

Power Supply

• 802.3at PoE
• 48 V Passive PoE (PoE Adapter Included)

Maximum Power Consumption

• EU: 12.5 W (802.3at PoE Or Passive PoE)
• US: 14.7 W (802.3at PoE Or Passive PoE)

Antenna

• 2.4 GHz: 2 × 4 dBi
• 5 GHz: 2 × 5 dBi

Weatherproof Enclosure
IP67

Mounting Options
Pole Mount
Wall Mount (Kits Included)

Dimensions (W × D × H)
280.4 × 106.5 × 56.8 mm (Without Antenna And Mounting Kit)

Wireless Features

Concurrent Clients
250+

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz
5 GHz

Signal Rate

• 802.11ax: 8 Mbps To 1201 Mbps (MCS0–MCS11, NSS = 1 To 2, HE20/40/80)
• 802.11ac: 6.5 Mbps To 1083.3 Mbps (MCS0–MCS9, NSS = 1 To 2, VHT20/40/80)
• 802.11n: 6.5 Mbps To 300 Mbps (MCS0–MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions

• 1024-QAM
• 4 × Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjustable In dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics Based On SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless MAC Address Filtering
• Wireless Isolation Between Clients
• SSID To VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP
• WPA-Personal/Enterprise
• WPA2-Personal/Enterprise
• WPA3-Personal/Enterprise

Transmission Power

• CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP)
• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

Management Features

Omada App Support
Yes

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Cloud Access
Yes (Through Omada Cloud-Based Controller, OC300, OC200, Or Omada Software Controller)

Email Alerts
Yes

Management MAC Access Control
Yes

SNMP Support
v1
v2c

System Logging
Local / Remote Syslog

SSH Support
Yes

Web-Based Management
Yes

L3 Management
Yes

Multi-Site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes (Requires Omada Cloud-Based Controller)

System Requirements

Microsoft Windows XP
Microsoft Windows Vista
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Microsoft Windows 11
Linux

Environmental

Operating Temperature
-30°C To 70°C

Storage Temperature
-40°C To 70°C

Operating Humidity
10% To 90% RH, Non-Condensing

Storage Humidity
5% To 90% RH, Non-Condensing

Certifications

Compliance Certifications
CE
FCC
RoHS

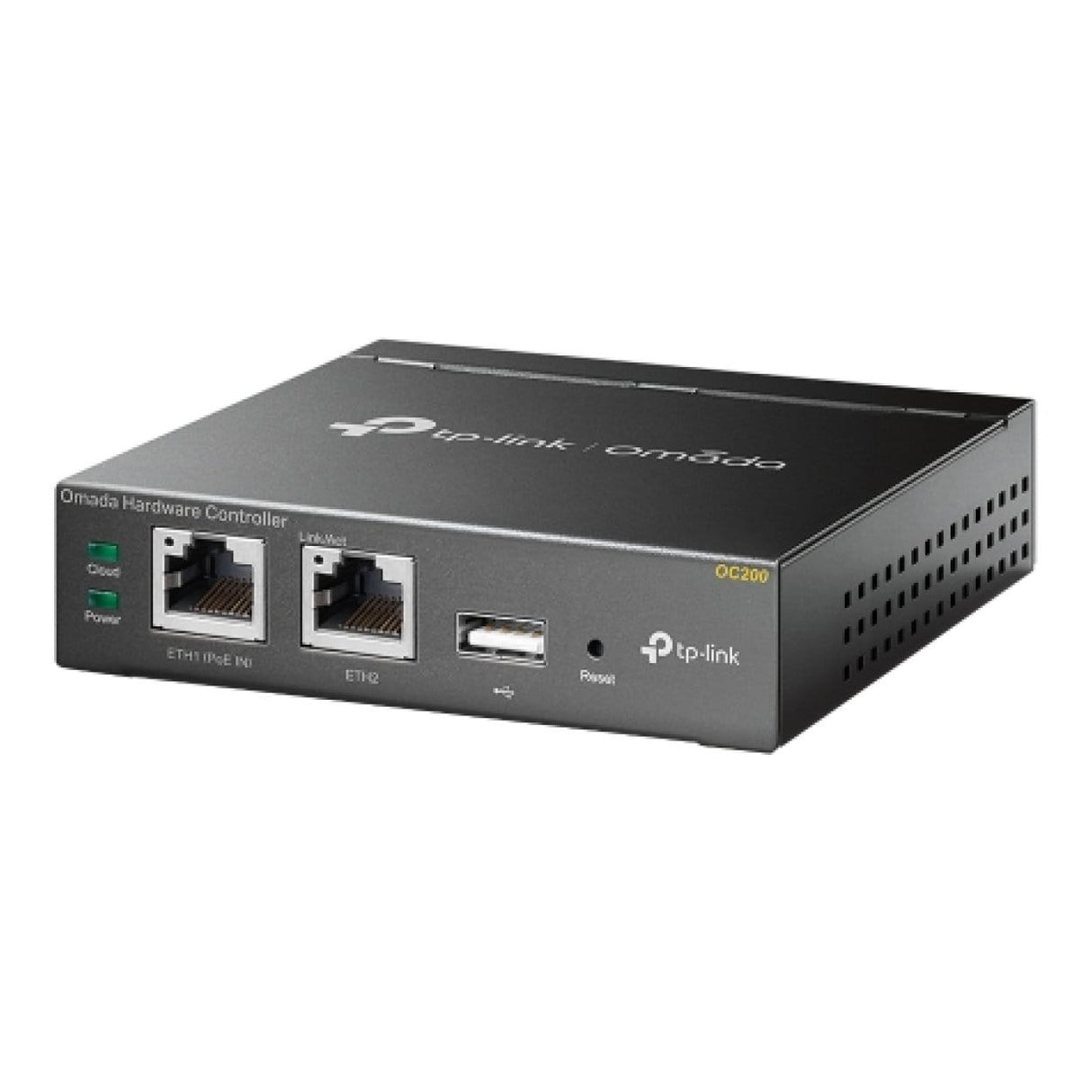

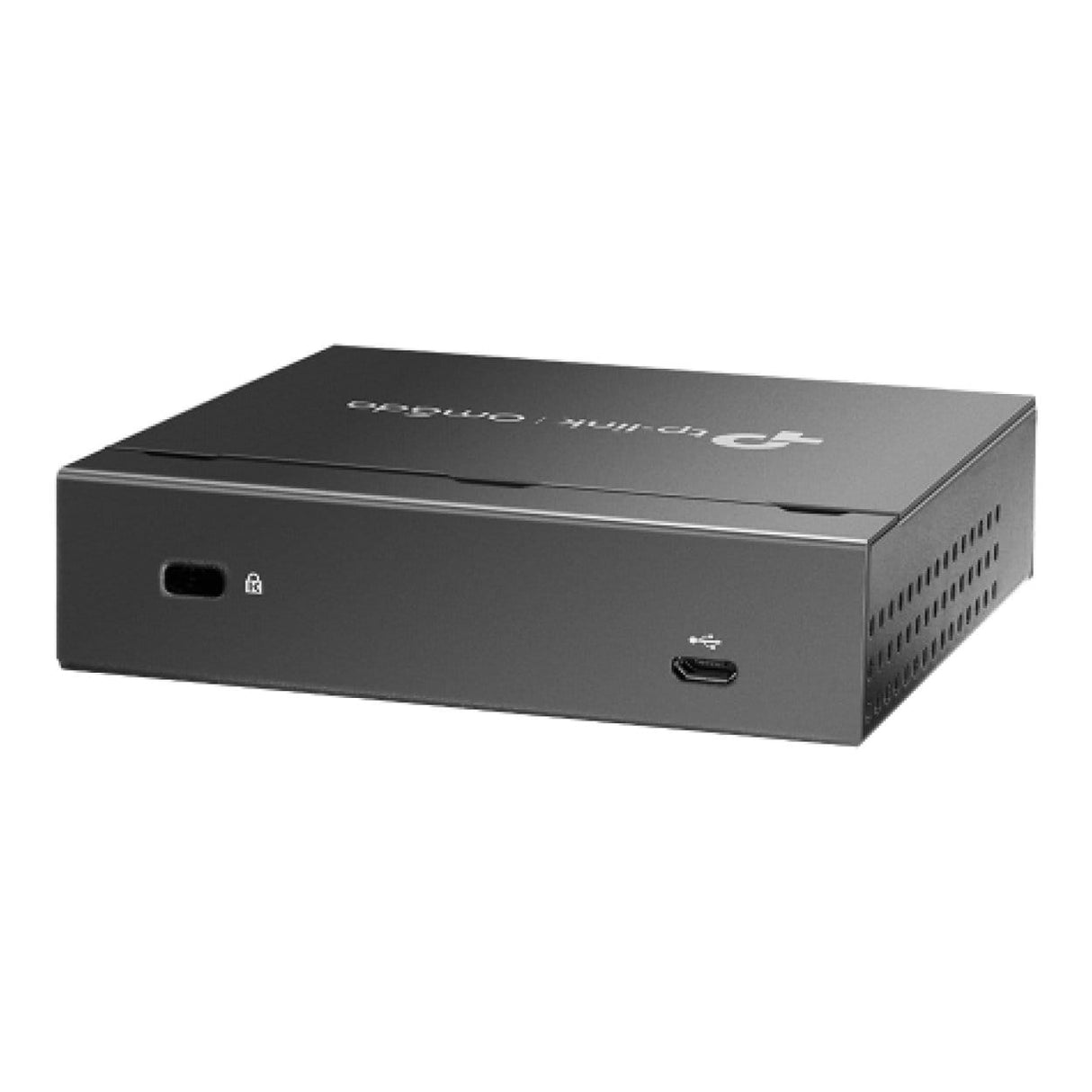

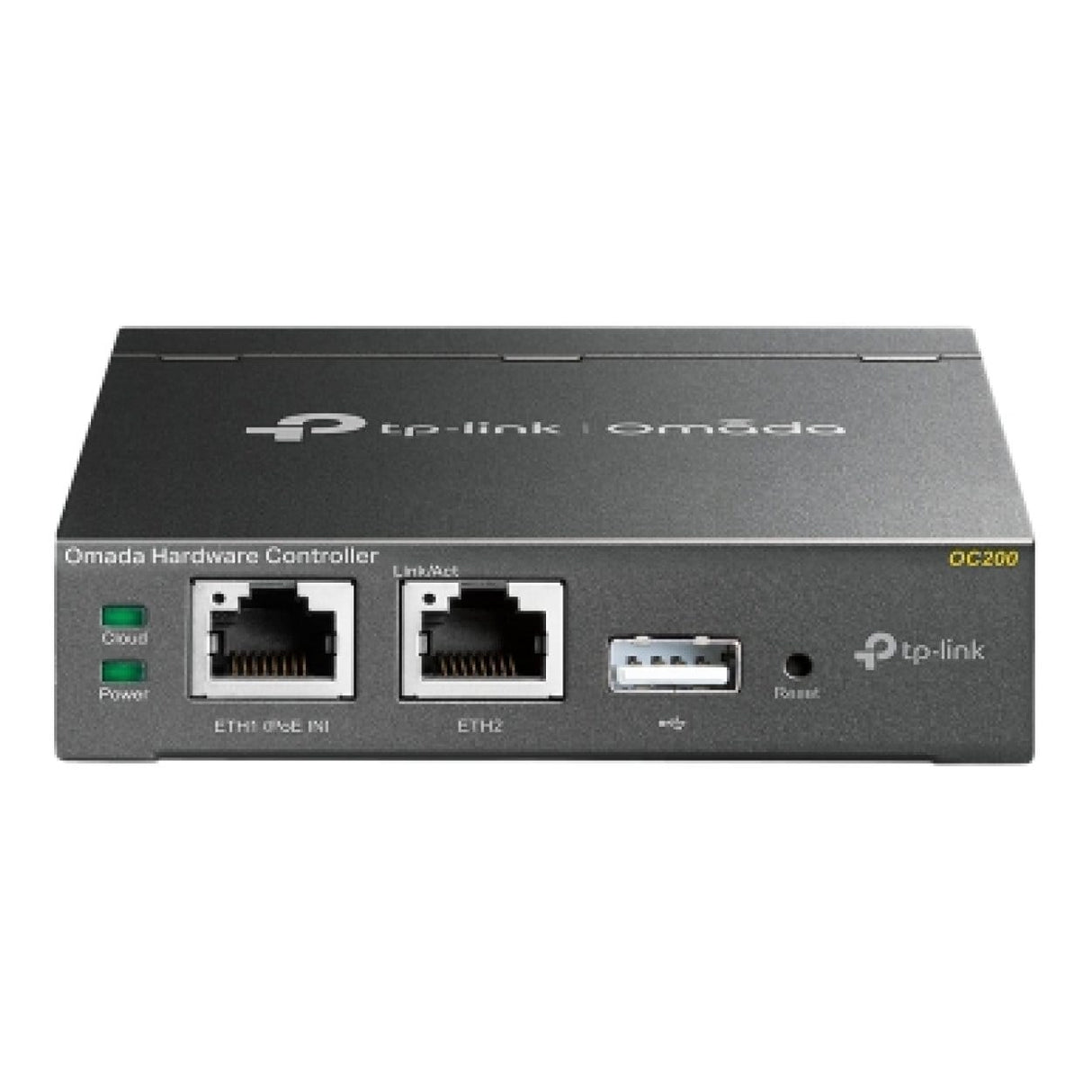

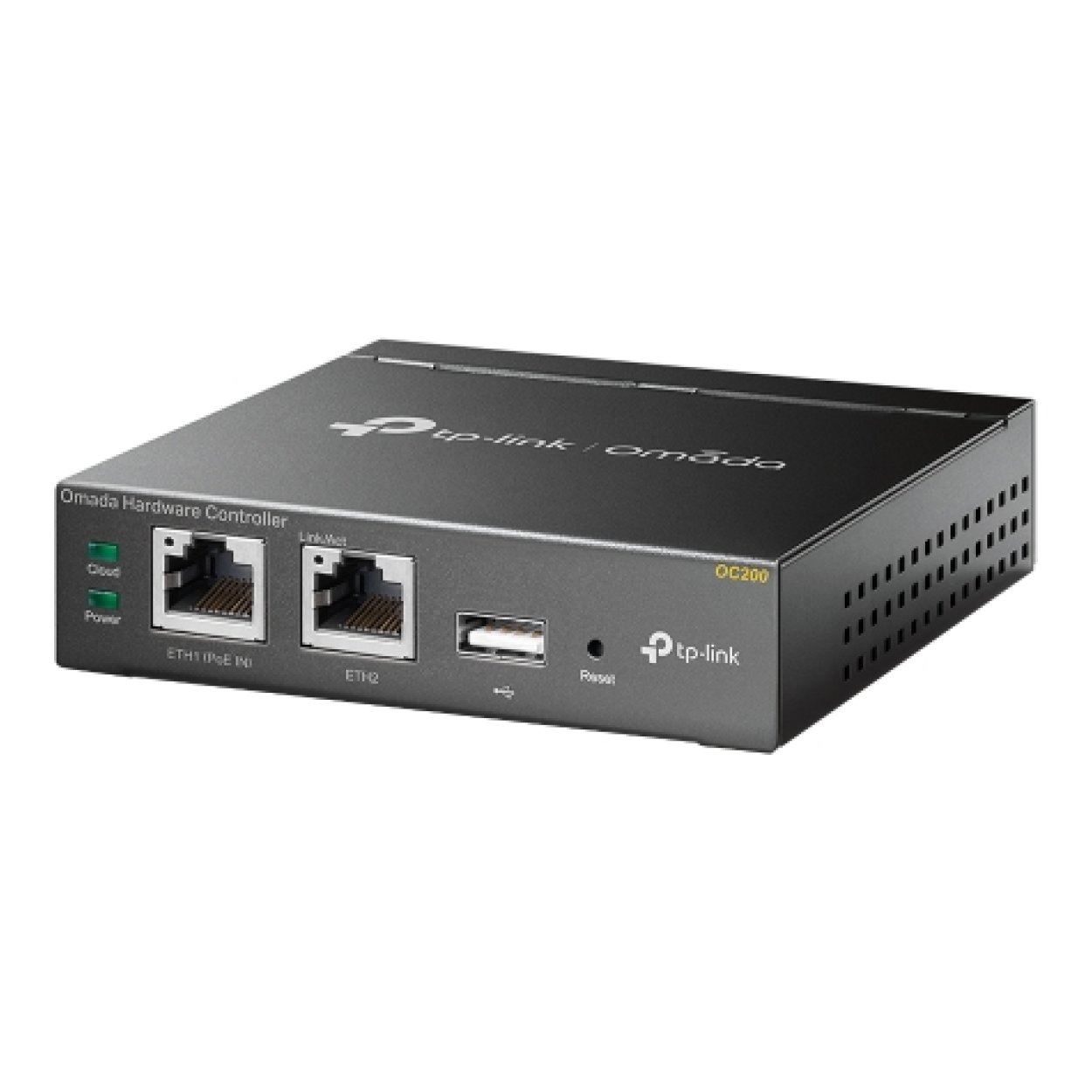

OC200

Hardware Features

Interface
10/100Mbps Ethernet Port × 2
USB 2.0 Port × 1
Micro USB Port × 1

Power Supply
802.3af/at PoE or Micro USB (DC 5V, Minimum 1A)

Dimensions (W x D x H)
3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Features

Wireless Function
L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS

Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection

AP Management
Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF

Authentication
Captive Portal

Management Features

Omada App
Yes

Centralized Management
Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
Up to 1,000 Clients

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes

Additional Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Others

Certification
CE, FCC, RoHS

System Requirements
Microsoft Windows 10, 8, 7, Vista, XP, or MAC OS, NetWare, UNIX, or Linux

Environment
Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–70℃ (-40℉–158℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

What's in the Box:

• 10 x EAP650
• 1 x OC200
• Quick Installation Guide
