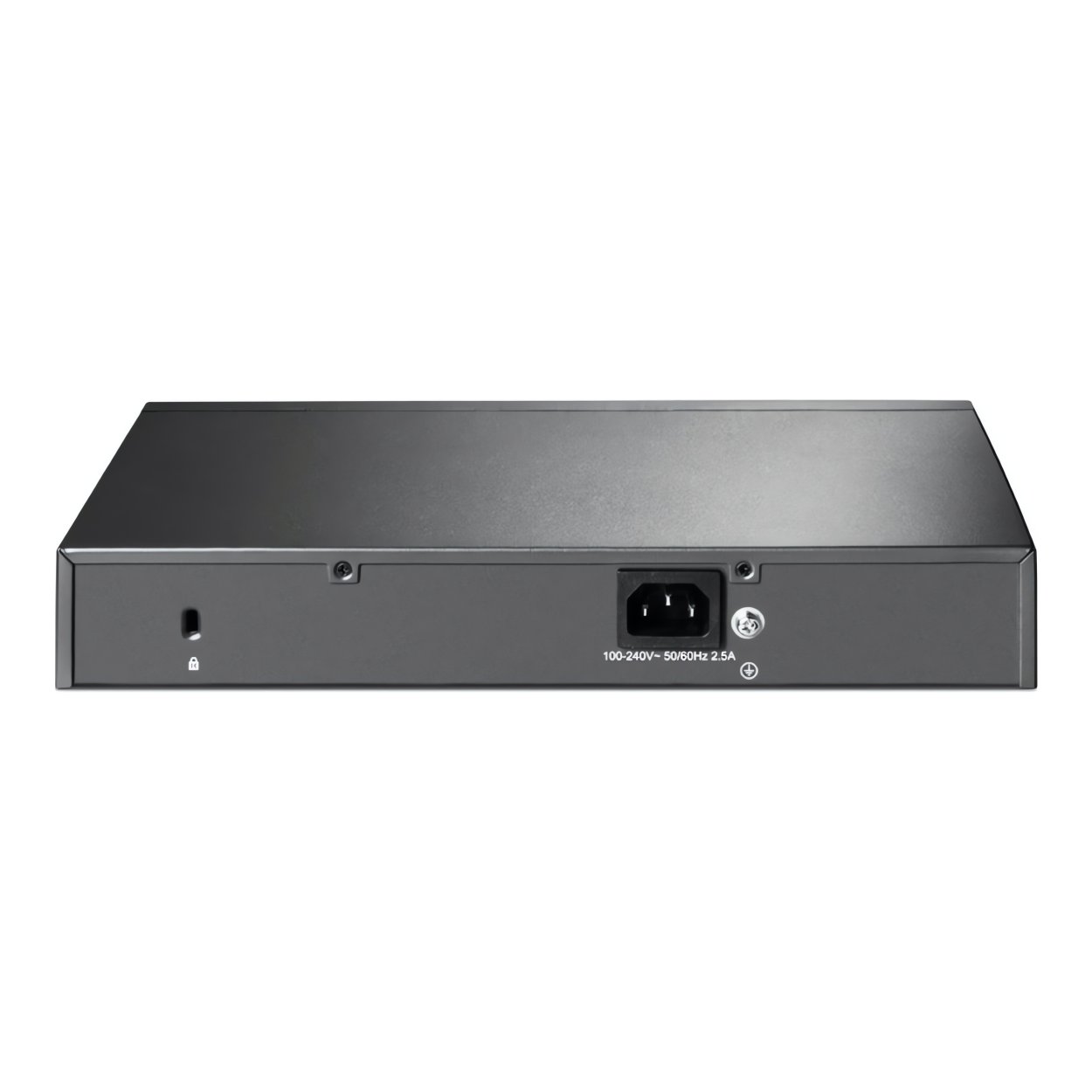

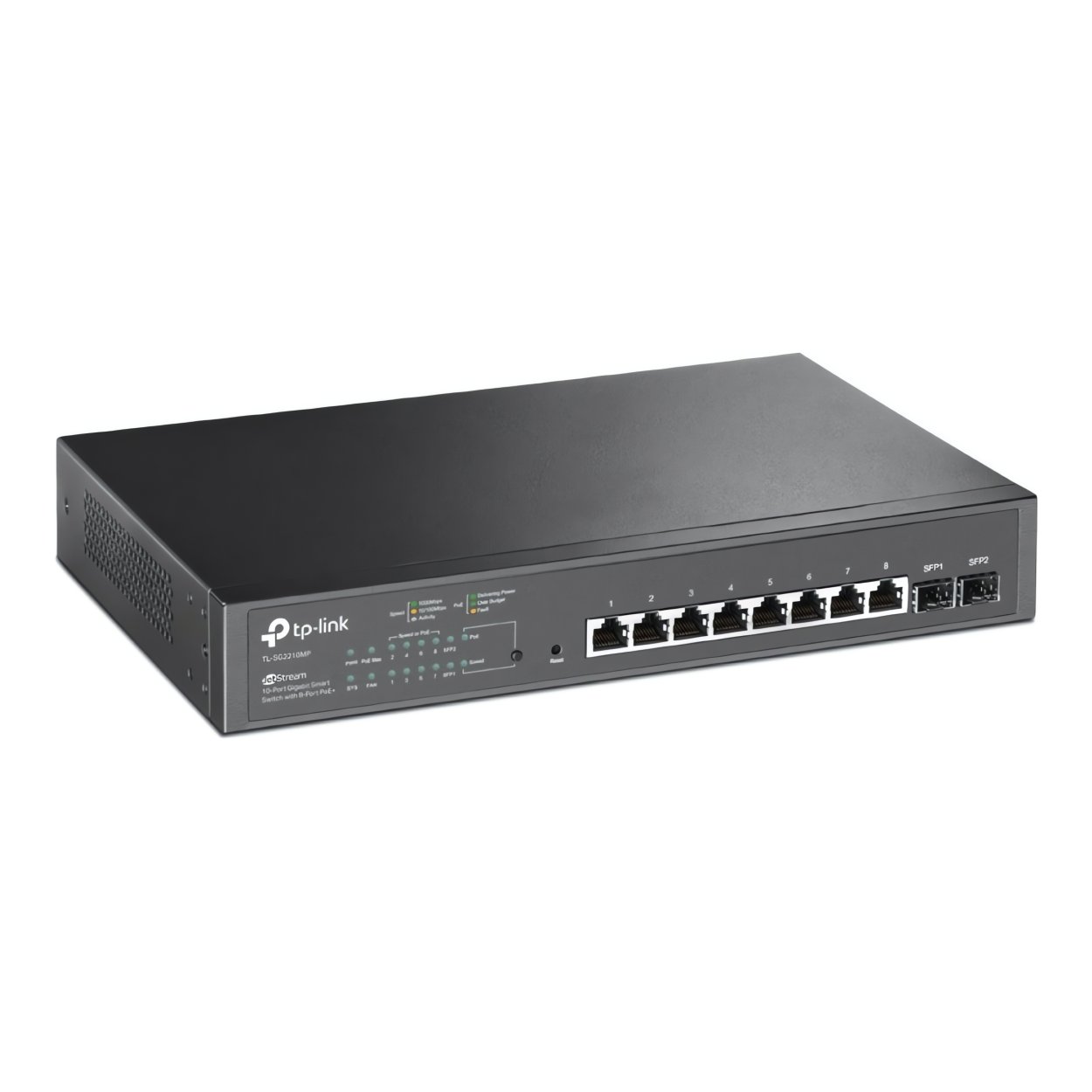

TP-Link TL-SG2210MP JetStream 10-port Gigabit Smart Switch with 8-port PoE+

TP-Link JetStream 10-port Gigabit Smart Switch with 8-port PoE+ TL-SG2210MP

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Features:

• 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.
• Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

150 W PoE Budget

8x 802.3at/af-compliant PoE+ ports with a total power supply of 150 W^*.

Full Gigabit Ports

8x gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN

Zero-Touch Provisioning (ZTP)^**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management

Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies

IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications

L2/L3/L4 QoS and IGMP snooping.

Technical Specifications:

Hardware Features

Interface
8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation / Auto MDI/MDIX)
2× 100/1000 Mbps SFP Slots

Fan Quantity
1

Physical Security Lock
Yes

Power Supply
100-240V AC, 50/60Hz

PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
PoE Power Budget: 150 W

Dimensions (W x D x H)
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)

Mounting
Rackmount / Desktop

Max Power Consumption
V1: 173.9 W (110 V/60 Hz) with 150 W PD connected; 12.2 W (no PD connected)
V2: 169.5 W (220 V/50 Hz) with 150 W PD connected
V3: 175.3 W (110 V/60 Hz) with 150 W PD connected
V4: 174.2 W (110 V/60 Hz) with 150 W PD connected

Max Heat Dissipation
V1: 41.63 BTU/h (no PD connected); 539.35 BTU/h (with 150 W PD connected)
V2: 578.42 BTU/h (220 V/50 Hz, with 150 W PD connected)
V3: 597.8 BTU/h (110 V/60 Hz, with 150 W PD connected)
V4: 594.46 BTU/h (110 V/60 Hz, with 150 W PD connected)

Performance

Switching Capacity
20 Gbps

Packet Forwarding Rate
14.9 Mpps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
9 KB

Software Features

Quality of Service
802.1p CoS / DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port / Flow based Rating Limit
Smoother Performance
Storm Control: Multiple control modes (kbps / ratio), Broadcast / Multicast / Unknown-Unicast control

L2 and L2+ Features
16 IP Interfaces supporting IPv4 / IPv6
Static Routing: 32 IPv4 / IPv6 Static Routes
DHCP Server, DHCP Relay (Interface / VLAN), DHCP L2 Relay
Static ARP, Proxy ARP, Gratuitous ARP
Link Aggregation, Spanning Tree Protocol, Loopback Detection
802.3x Flow Control, Mirroring, Device Link Detect Protocol (DLDP)
802.1ab LLDP / LLDP-MED

L2 Multicast
511 IPv4 / IPv6 shared multicast groups
IGMP Snooping, Multicast VLAN Registration (MVR), Multicast Filtering
Limited IP Multicast: 256 profiles, 16 entries per profile

Advanced Features
Automatic Device Discovery
Batch Configuration and Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration, Reboot Schedule

VLAN
Max. 4K VLAN Groups
802.1Q tag VLAN, MAC VLAN: 12 Entries, Protocol VLAN, GVRP, Voice VLAN

Access Control List (ACL)
Supports up to 230 entries
Time-based ACL, MAC ACL, IP ACL, IPv6 ACL, Combined ACL
Rule Operation: Permit / Deny
Policy Action: Mirroring, Redirect, Rate Limit, QoS Remark
ACL Rules Binding: Port Binding, VLAN Binding

Security
AAA, 802.1X Port / MAC based authentication
Authentication Methods: PAP / EAP-MD5, MAB, Guest VLAN
Radius authentication support
IP / IPv6-MAC Binding: 512 entries
DHCP / DHCPv6 Snooping, ARP Inspection, ND Detection
IP Source Guard: 253 entries
IPv6 Source Guard: 183 entries
DoS Defend, Static / Dynamic / Permanent Port Security: up to 64 MAC addresses per port
Broadcast / Multicast / Unicast Storm Control
Port Isolation
Secure web management (HTTPS SSLv3 / TLS 1.2)
Secure CLI management (SSHv1 / SSHv2)
IP / Port / MAC based access control

IPv6 Features
IPv6 Static Routing and ACL
IPv6 Dual IPv4 / IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 Neighbor Discovery (ND)
Path MTU discovery
ICMPv6, TCPv6 / UDPv6
IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP

MIBs
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674)
Radius Accounting / Authentication Client MIB (RFC2620 / RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
TP-Link private MIBs, RMON MIB (RFC1757, rmon 1,2,3,9)

Management

Omada App
Supported through Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller

Cloud Access
Supported through Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller

Zero-Touch Provisioning
Requires Omada Cloud-Based Controller

Management Features
Web-based GUI
CLI through Telnet
SNMPv1 / v2c / v3, SNMP Trap / Inform
RMON (1,2,3,9 groups), SDM Template
DHCP / BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log

Others

Certification
CE, FCC, RoHS

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista, 7/8/10/11, MAC OS, NetWare, UNIX, Linux

Environment
Operating Temperature: 0–50 ℃ (32–122 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

What's in the Box:

• TL-SG2210MP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
