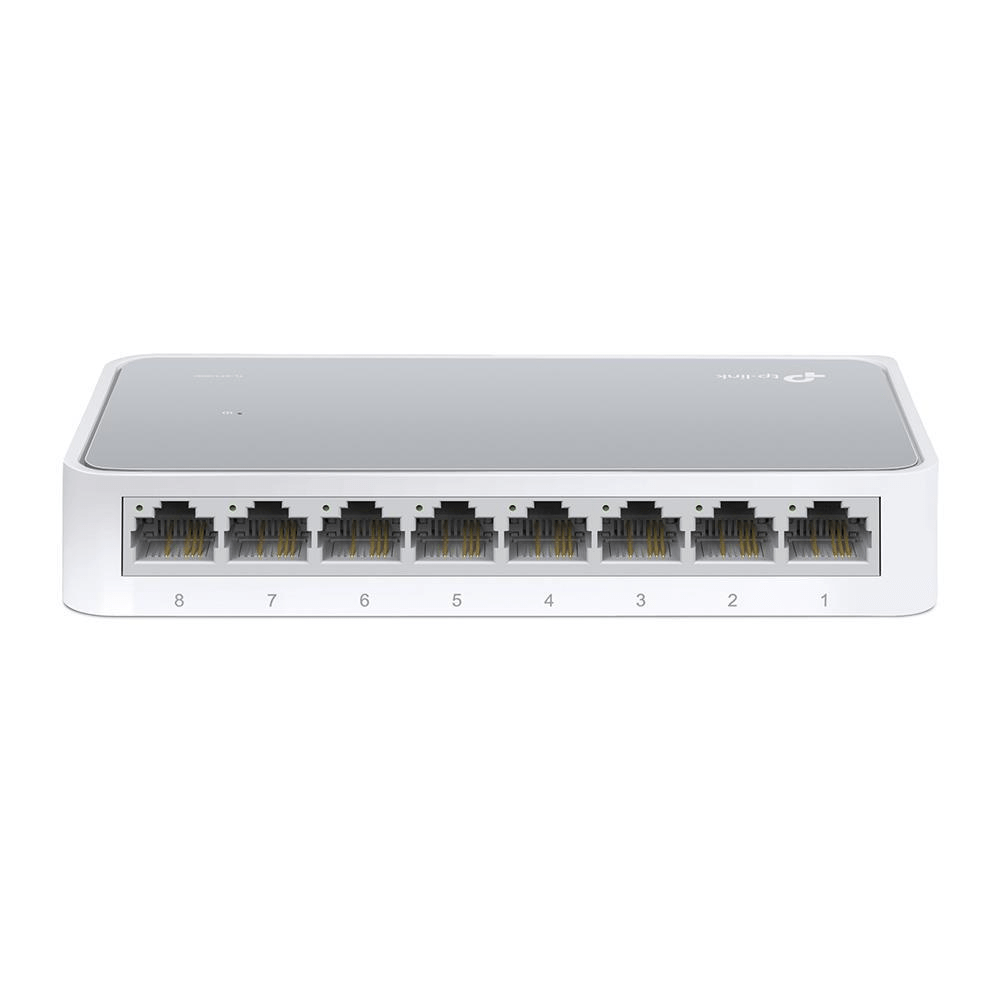

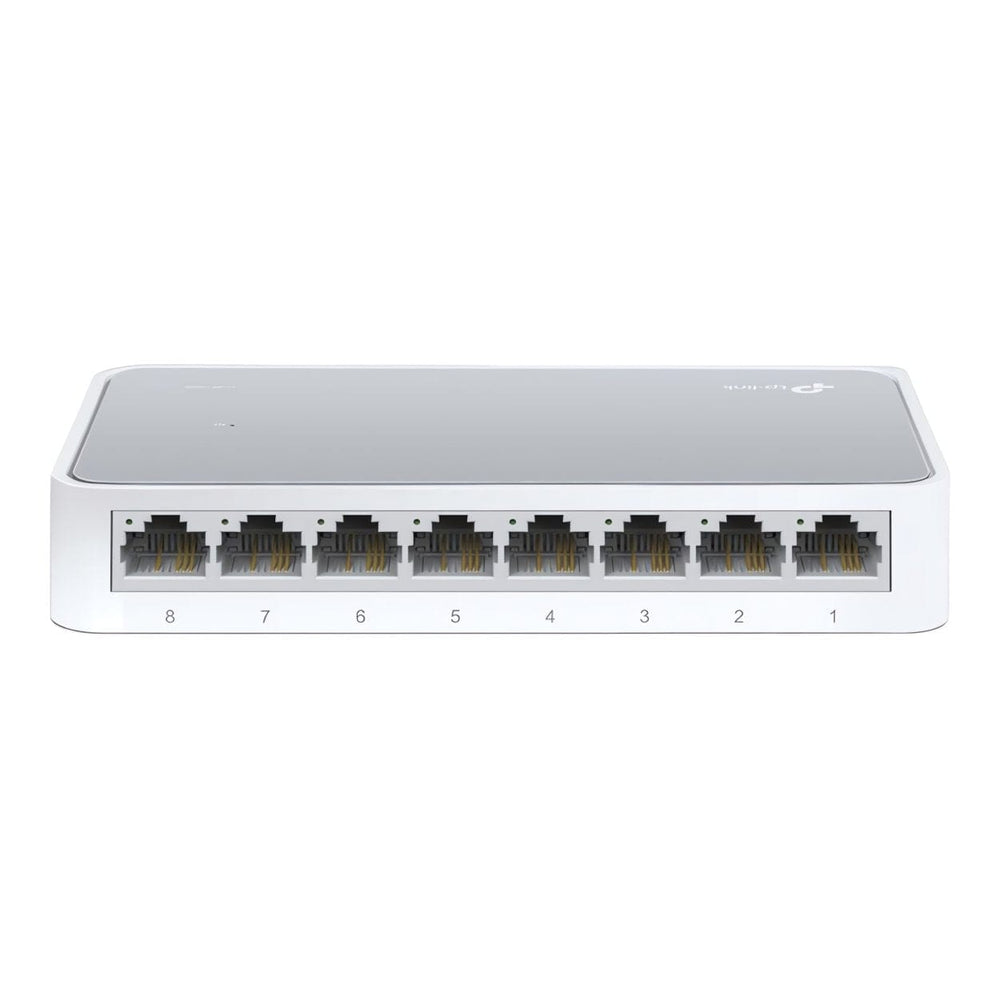

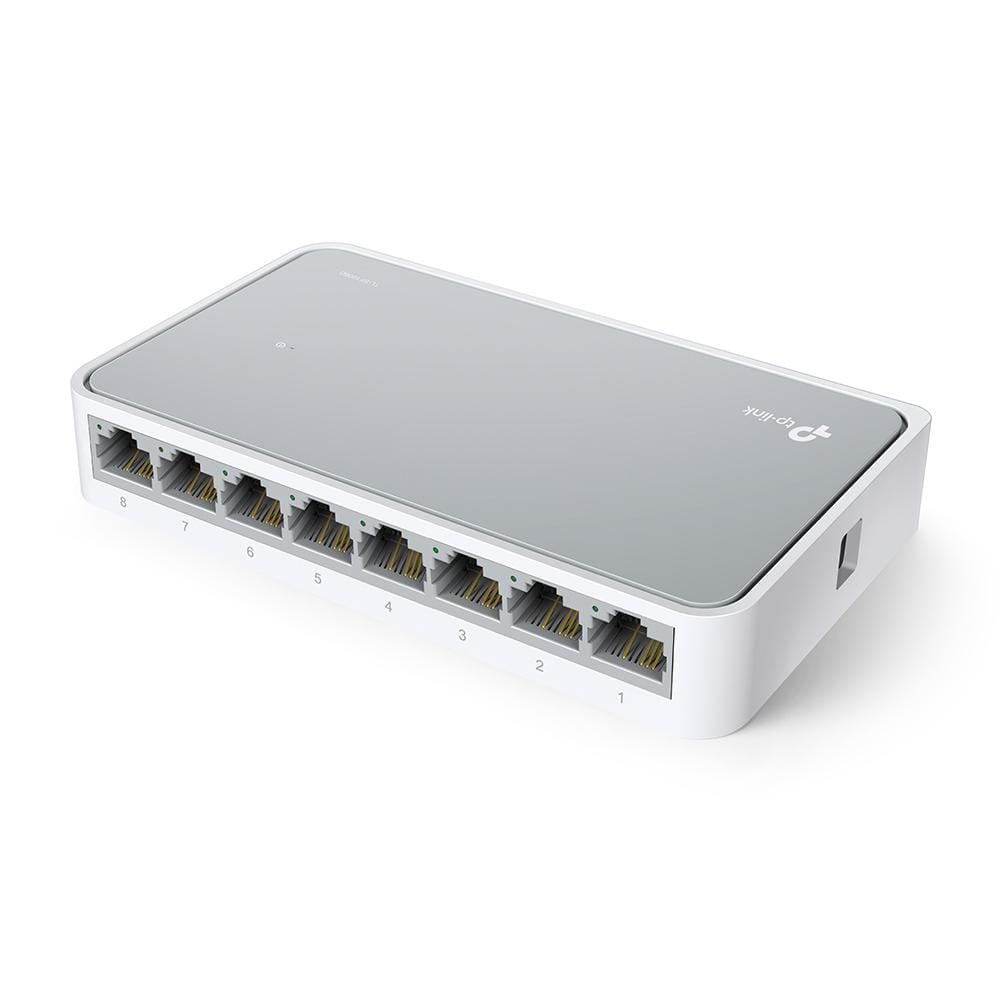

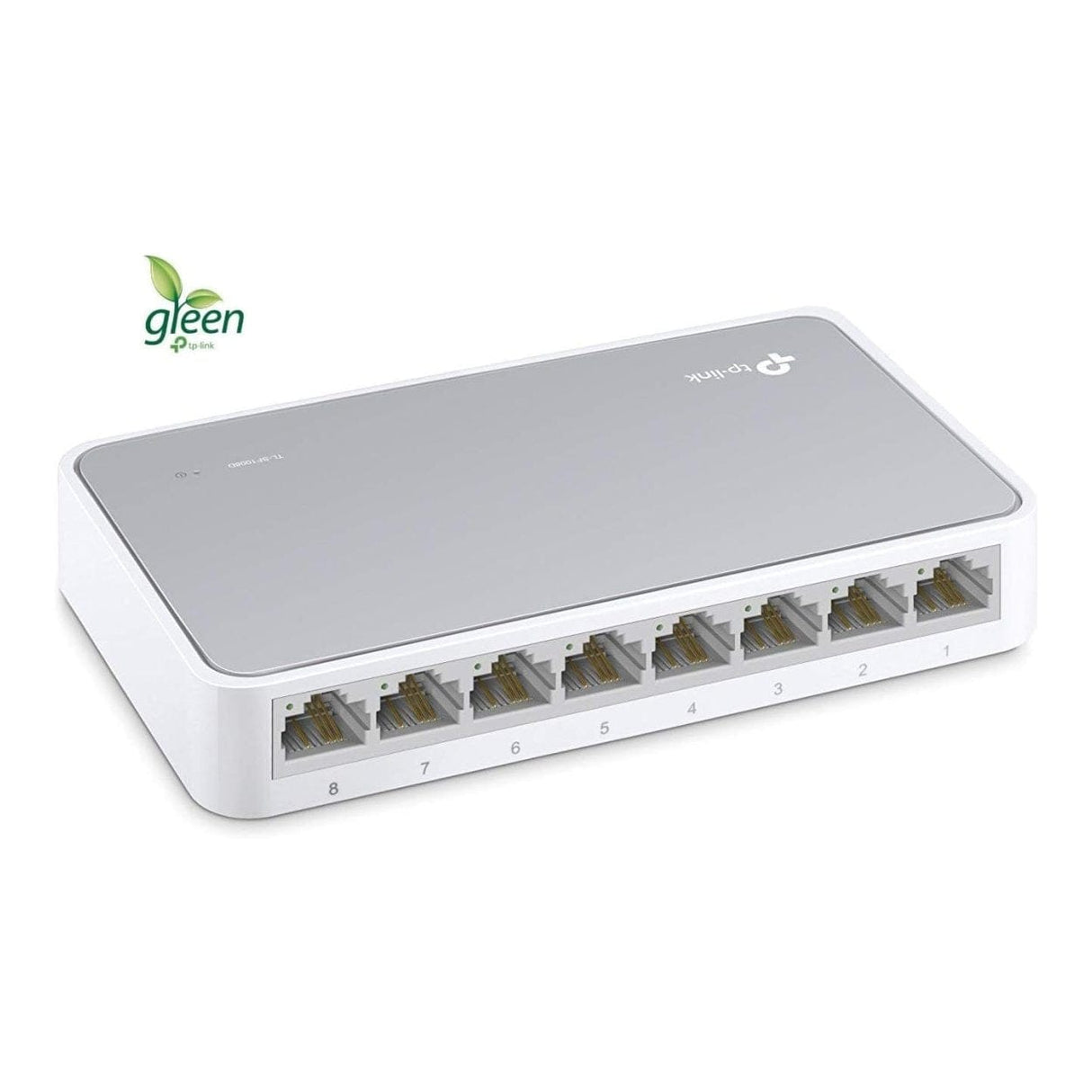

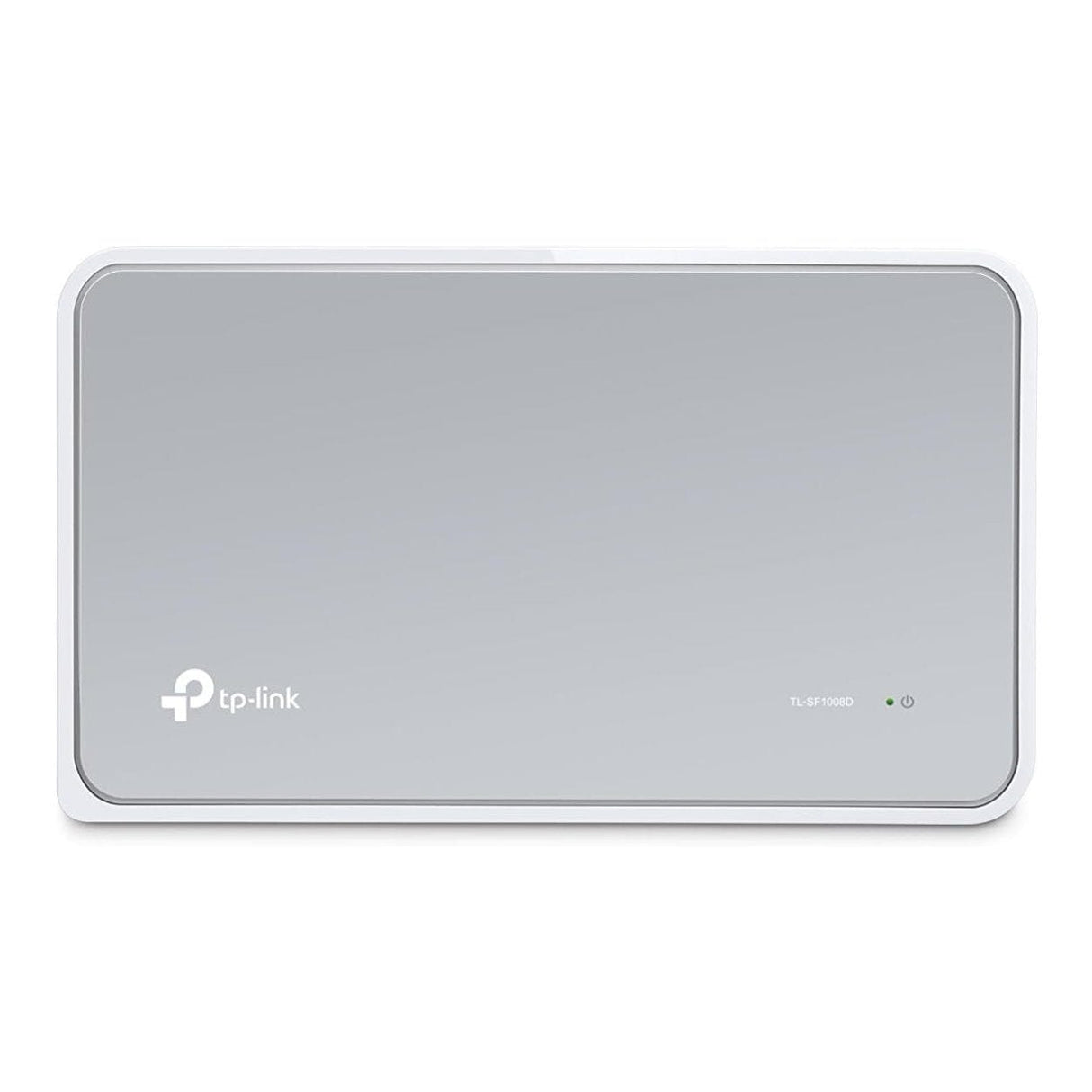

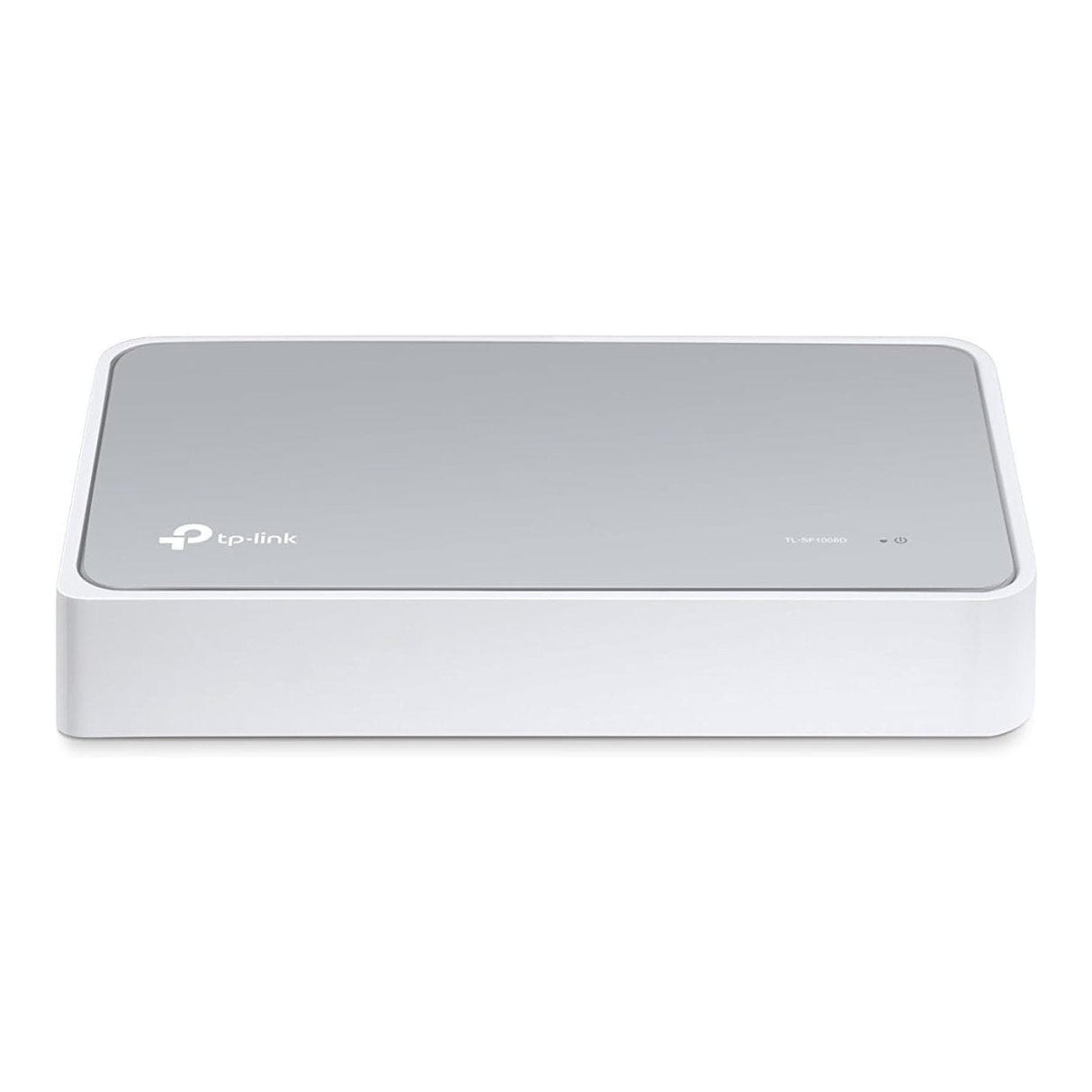

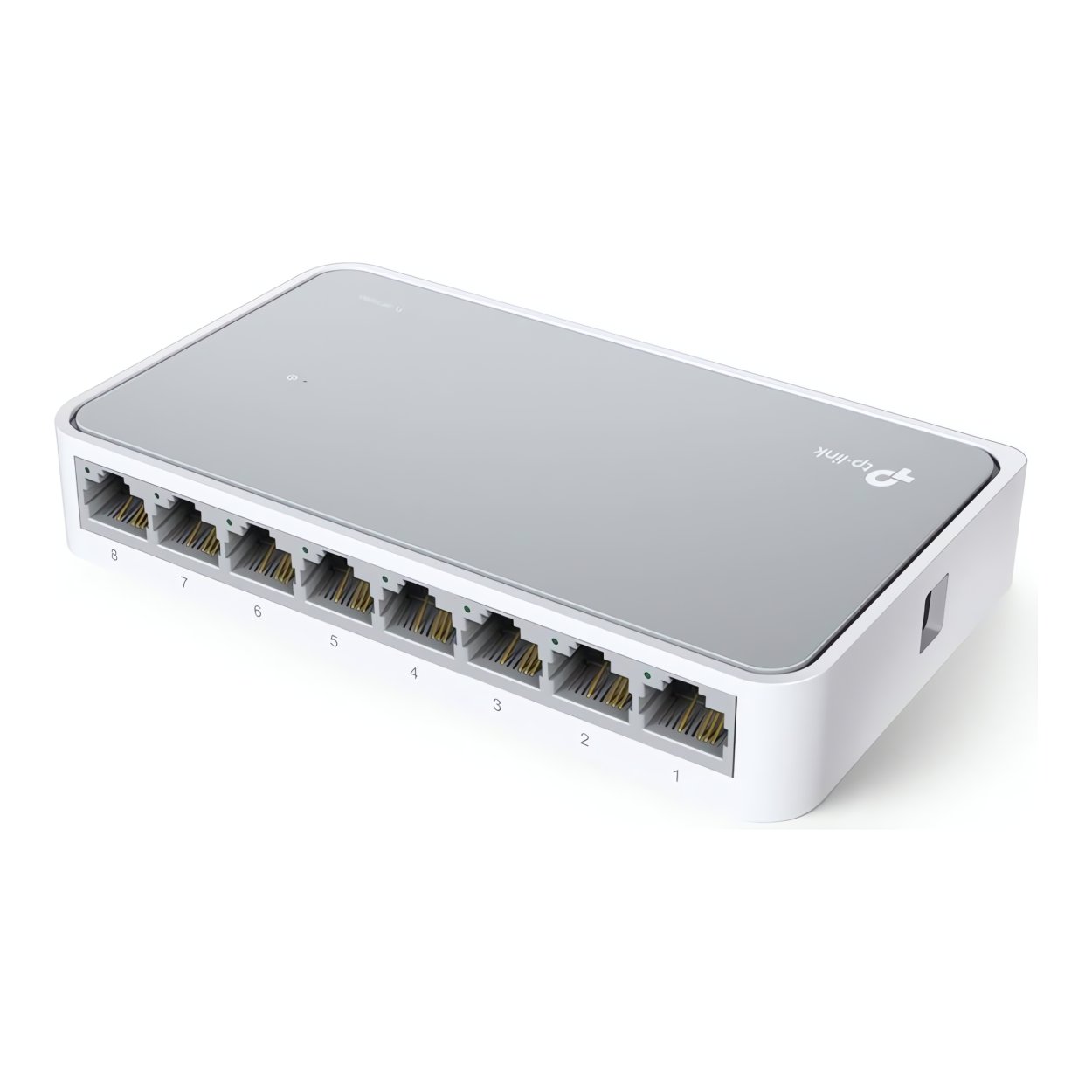

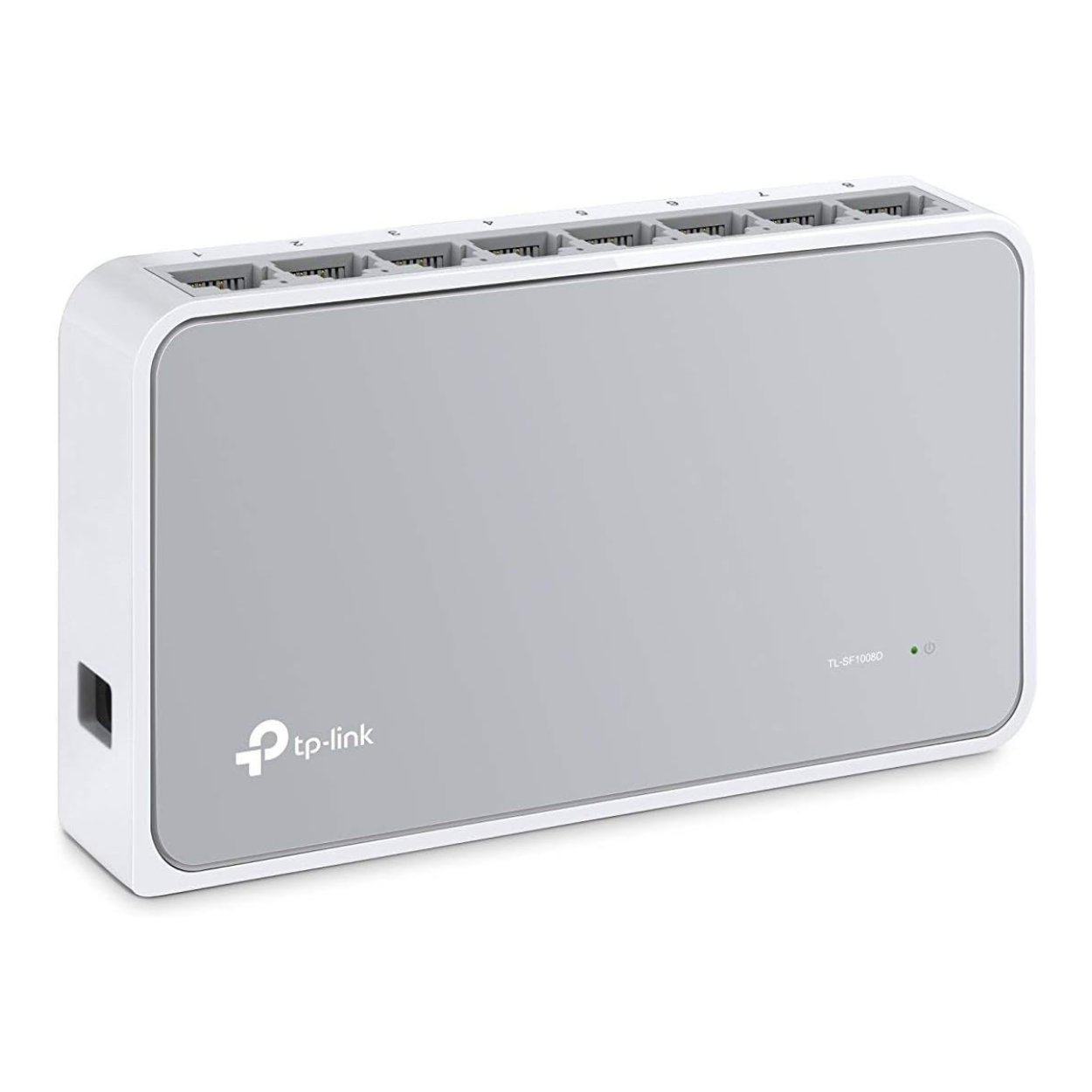

TP-Link TL-SF1008D 8-Port 10/100 Mbits Desktop Switch Unmanaged Ethernet White

TP-Link TL-SF1008D 8-Port 10/100 Mbits Desktop Switch Unmanaged Ethernet White

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

Features:

• 8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
• Green Ethernet technology saves power consumption
• IEEE 802.3x flow control provides reliable data transfer
• Plastic case, desktop design
• Plug and play, no configuration required

High Performance

TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-LINK Green Technology

This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use

The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Technical Specifications:

Hardware Features

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, CSMA/CD

Interface
8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity
Fanless

Power Supply
External Power Adapter (Output: 5.0VDC / 0.6A)
100-240VAC, 50/60Hz

LED Indicators
Power, Ports 1–8

Buffer Size
768 Kb

Data Rates
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Dimensions (W x D x H)
5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5 mm)

Max Power Consumption
2.05 W (220V / 50Hz)

Max Heat Dissipation
6.99 BTU/h

Software Features

Advanced Features
Green Technology
802.3X Flow Control, Back Pressure

Transmission Method
Store and Forward

Others

Certification
FCC, CE, RoHS

Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the Box:

• 8-Port 10/100Mbps Desktop Switch
• Power Adapter
• Installation Guide
