Thermaltake TH420 V2 ARGB AIO 140mm Liquid Cooler Black CL-W376-PL14SW-A

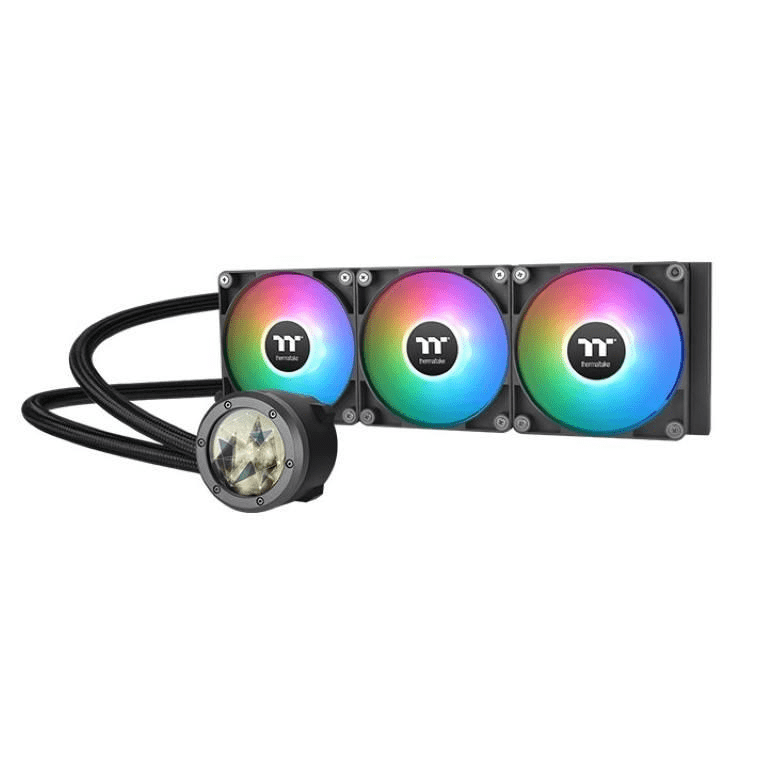

Thermaltake TH420 V2 ARGB AIO 140mm Liquid Cooler Black

TH420 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Equipped with three enhanced fan speed CT140 ARGB fans, the TH420 V2 ARGB is suitable for a large chassis that fit 420mm AIOs, and for those who seek to control lighting effects through 5V motherboard-controlled software.

New Version, New Design

TH V2 ARGB was given an industrial look to freshen up the 360-degree rotational cap. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks.

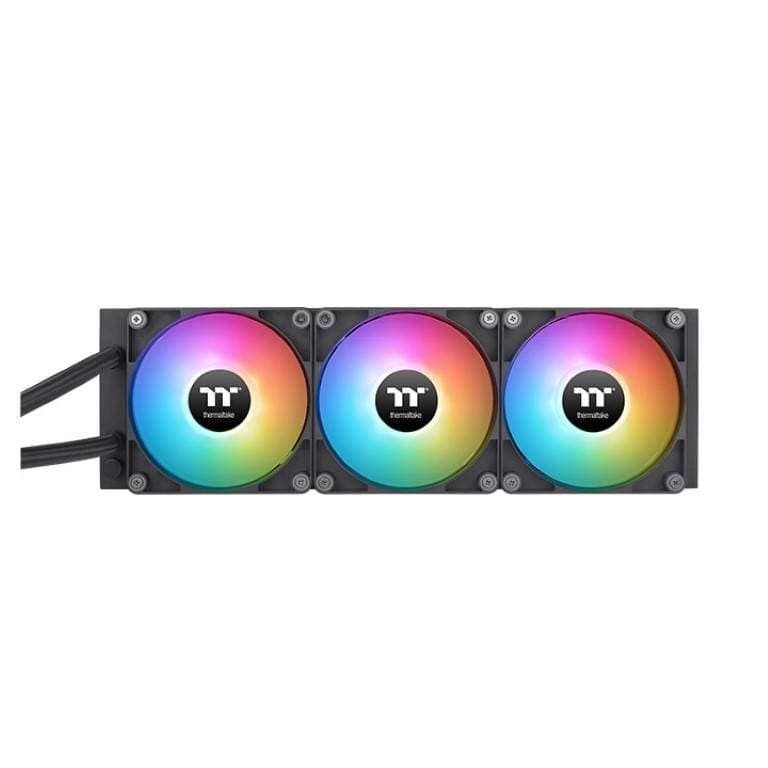

Sync with CT140 ARGB Fans

Developed from the CT fan series, this model uses three CT140 ARGB fans with enhanced fan speed, and you can also match with some of our chassis’ pre-installed fans to unify your fans in your build! These fans have 1800 RPM and provide an 84.32 CFM airflow with 3.02 mm-H2O static pressure while maintaining 34.7 dB-A noise levels.

Enhanced Cooling Surface With A Compact Design

The TH V2 ARGB Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Less Cable, Less Mess

The new cable-integrated daisy-chain design allows the fans to be directly connected, so it minimizes demands of 4-pin PWM and 3-pin ARGB ports on your motherboard and shortens the cable length between the fans. We’ve also included one PWM cables and one ARGB cable for you to easily manage your cables while assembling your build.

Keeping Your Cables in Place

You might have experienced easily detached 5V ARGB cables when you assemble your builds. Worry not; this 5V ARGB Connector Clip can guarantee that the cables are correctly connected and won’t get loose in unexpected conditions.

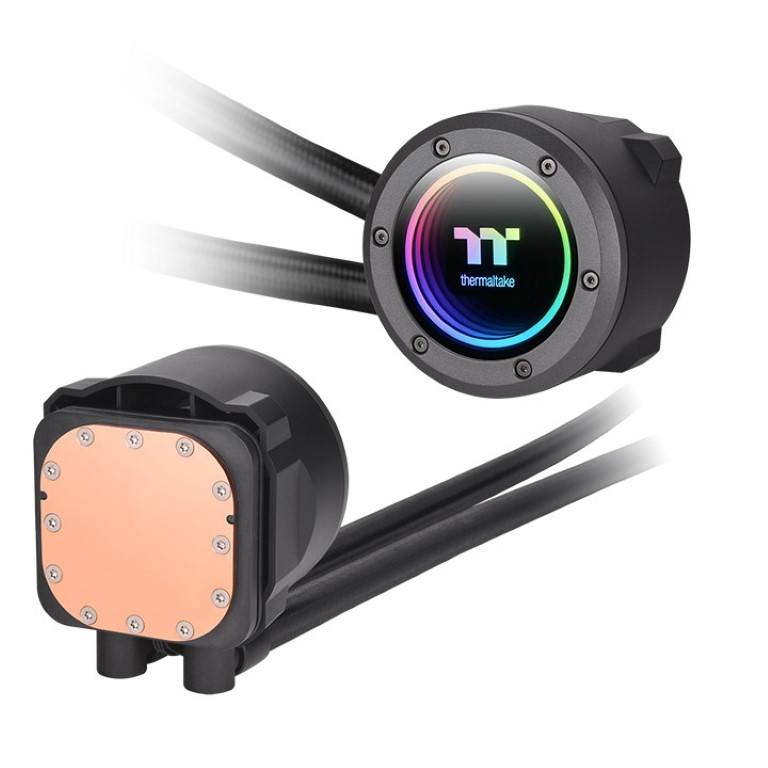

Keep it COLD with Copper

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers.

Specifications

PUMP:

• Speed: PWM 1500~3300 R.P.M
• Rated Voltage: 12 V & 5V
• Rated Current: 0.43 A & 0.32 A
• Power Input: 5.16 W & 1.6 W
• Connectors: 2510–4 Pin / 5V ARGB header–3 Pin

WATER BLOCK:

• Material: Copper

FAN:

• Dimensions: 140 x 140 x 25 mm
• Speed: PWM 500~1800 R.P.M
• Noise Level: 34.7 dB-A
• Rated Voltage: 12 V & 5V
• Rated Current: 0.32 A & 0.31 A (one fan)
• Power Input: 3.84 W & 1.55 W (one fan)
• Max. Air Flow: 84.32 CFM
• Max. Static Pressure: 3.02 mm-H2O
• Connectors: 2510 - 4 Pin PWM , 5V ARGB header - 3 Pin
• Bearing Type: Hydraulic Bearing
• Life expectation: 40,000 hrs @ 25℃

TUBE:

• Length: 460 mm
• Material: Rubber

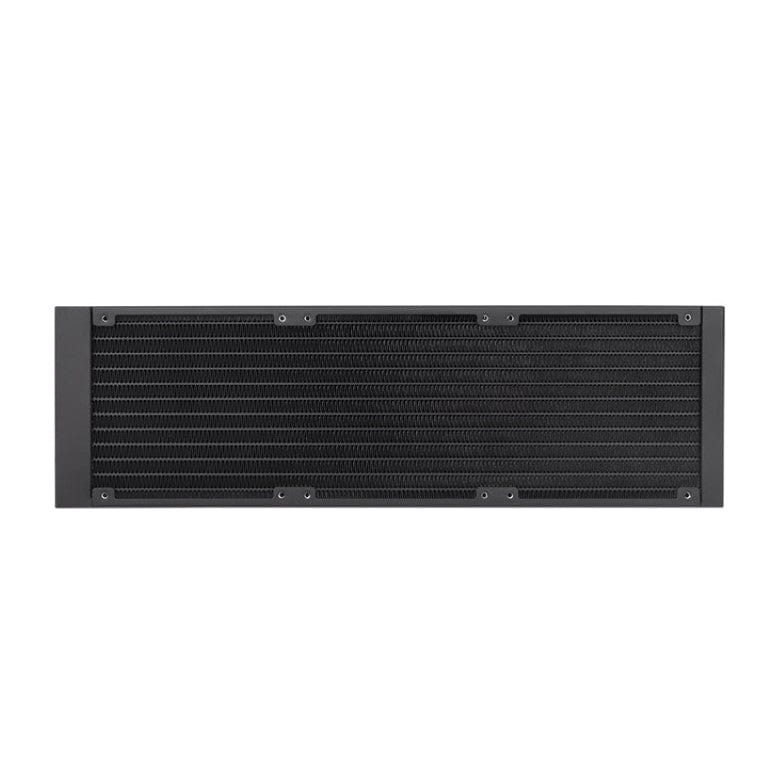

RADIATOR:

• Dimensions: 456 x 139 x 27 mm
• Material: Aluminum
