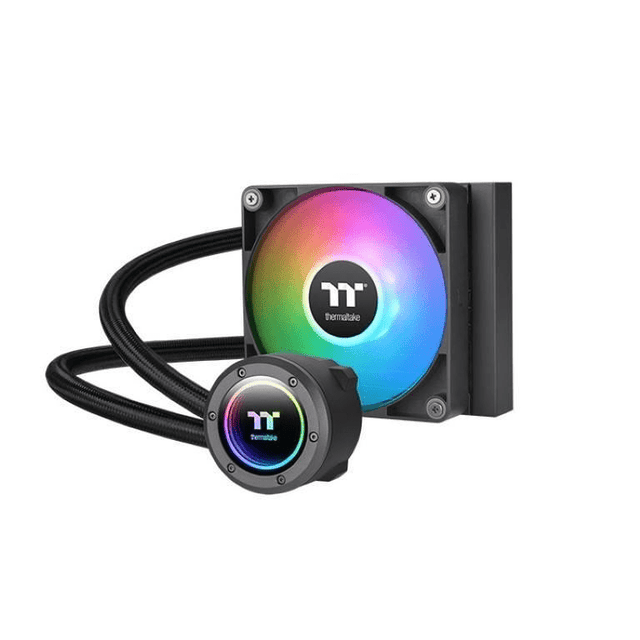

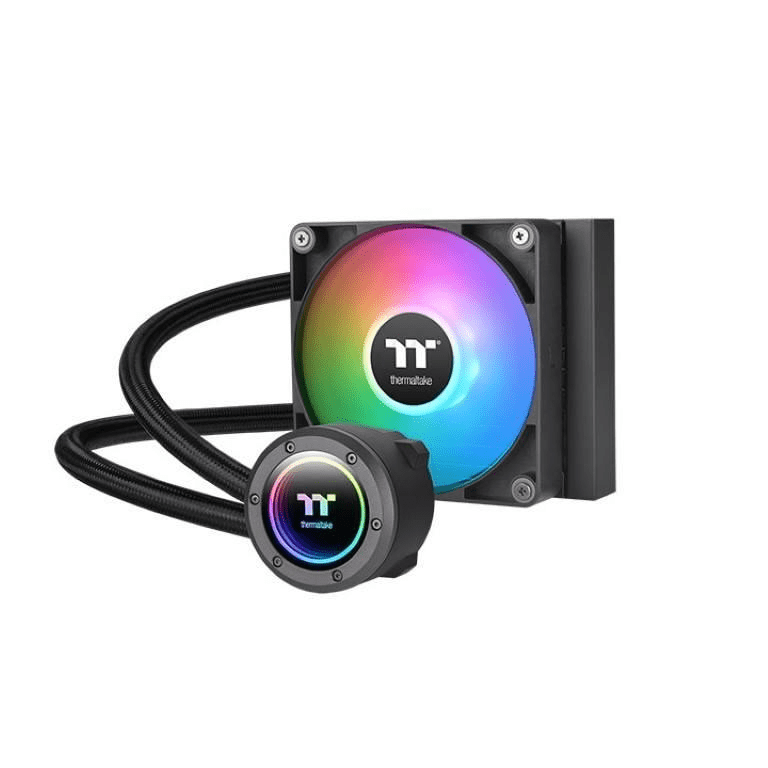

Thermaltake TH120 AIO 120mm Liquid Cooler Black CL-W360-PL12SW-A

Thermaltake TH120 AIO 120mm Liquid Cooler Black

TH120 V2 ARGB Sync All-In-One Liquid Cooler

TH120 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Equipped with one CT120 ARGB fan, the TH120 V2 ARGB is suitable for small chassis that can fit 120mm AIOs, and for those who seek to control lighting effects through 5V motherboard-controlled software.

No matter the build, We’ve got you covered

The TH V2 ARGB Series is now ready for all types of builds; the series has three 120mm fan models, including the TH 120/ 240/ 360 V2 ARGB, and two 140mm fan models, including TH 280/ 420 V2 ARGB.

New Version, New Design

TH V2 ARGB was given an industrial look to freshen up the 360-degree rotational cap. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks.

Enhanced Cooling Surface With A Compact Design

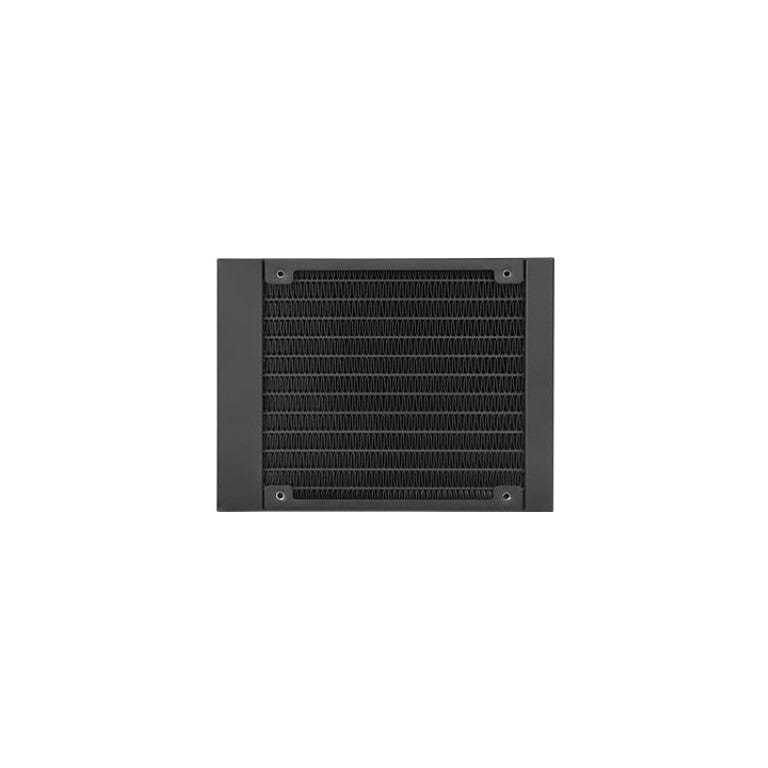

The TH V2 ARGB Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Keep it COLD with Copper

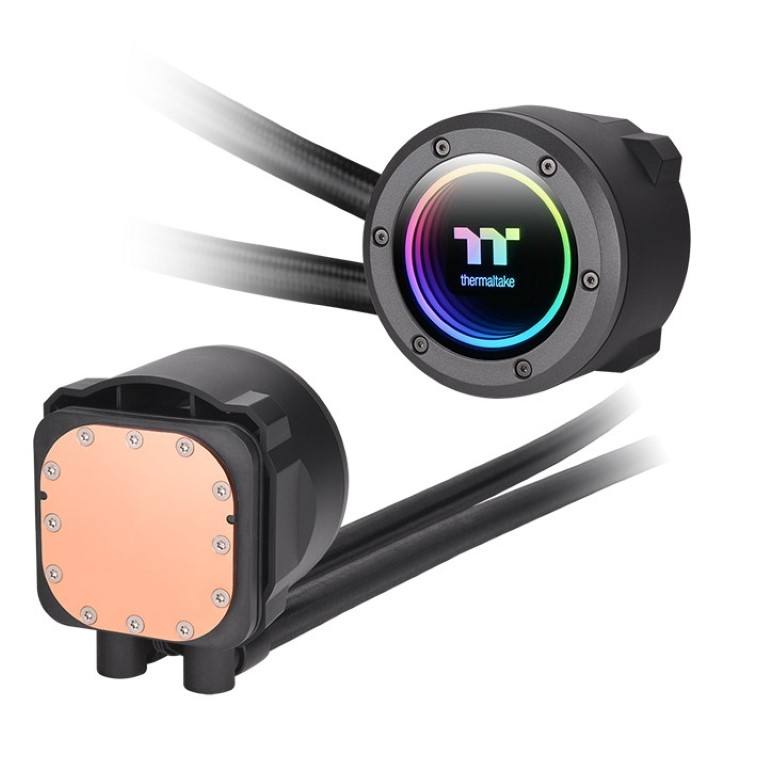

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required

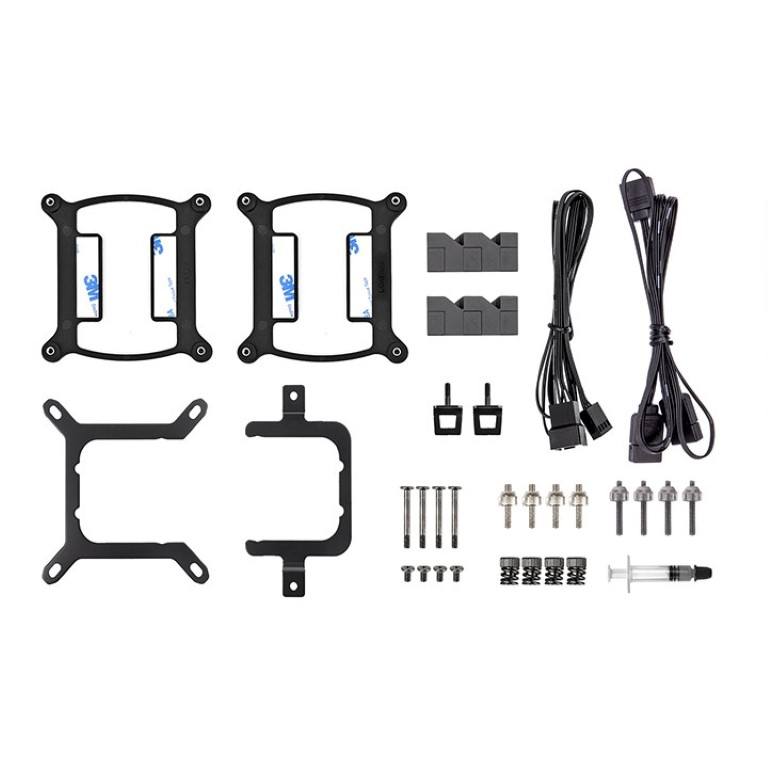

Any CPU Can Be the Right CPUThe package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms, including the latest Intel LGA1700 and AMD AM5 CPUs.

Specifications:

PUMP:

• Speed : PWM 1500~3300 R.P.M
• Rated Voltage : 12 V & 5V
• Rated Current : 0.43 A & 0.32 A
• Power Input : 5.16 W & 1.6 W
• Connector : 2510–4 Pin / 5V ARGB header–3 Pin

WATER BLOCK:

• Material : Copper

FAN:

• Dimension : 120 x 120 x 25 mm
• Speed : PWM 500~2000 R.P.M
• Noise Level : 25.8 dB-A
• Rated Voltage : 12 V & 5V
• Rated Current : 0.11 A & 0.31 A (one fan)
• Power Input : 1.32 W & 1.55 W (one fan)
• Max. Air Flow : 57.05 CFM
• Max. Static Pressure : 2.23 mm-H2O
• Connector : 2510 - 4 Pin PWM , 5V ARGB header - 3 Pin
• Bearing Type : Hydraulic Bearing
• Life expectation : 40,000 hrs,25℃

TUBE:

• Length : 460 mm
• Material : RubberRADIATORDimension : 157 x 120 x 27 mm
• Material : Aluminum

Compatibility list:

• Intel: LGA 2066/2011/1700/1200/1156/1155/1151/1150
• AMD: AM5/AM4/AM3+/AM3/AM2+/AM2
