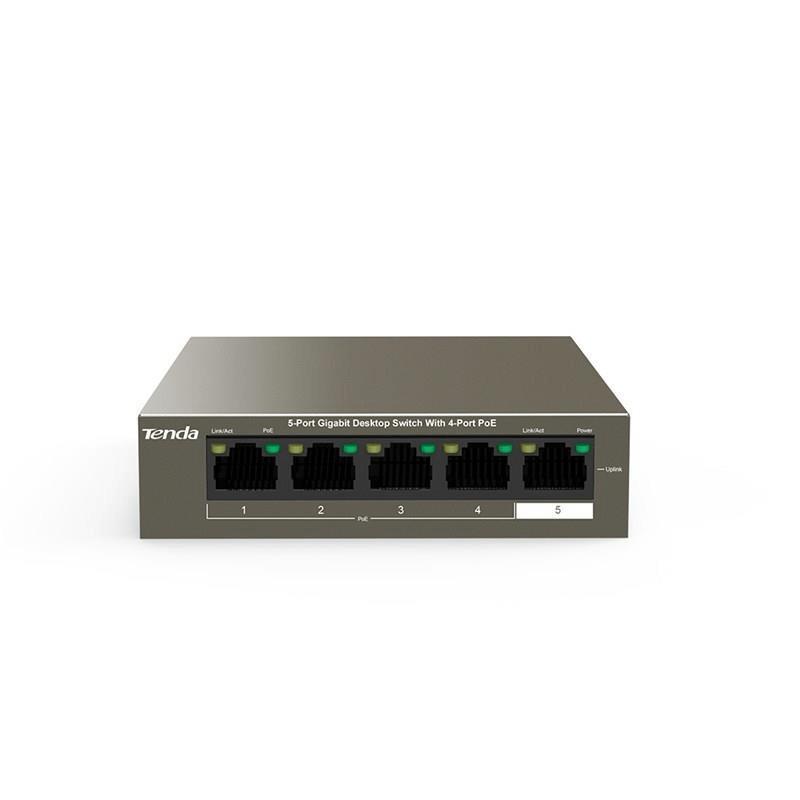

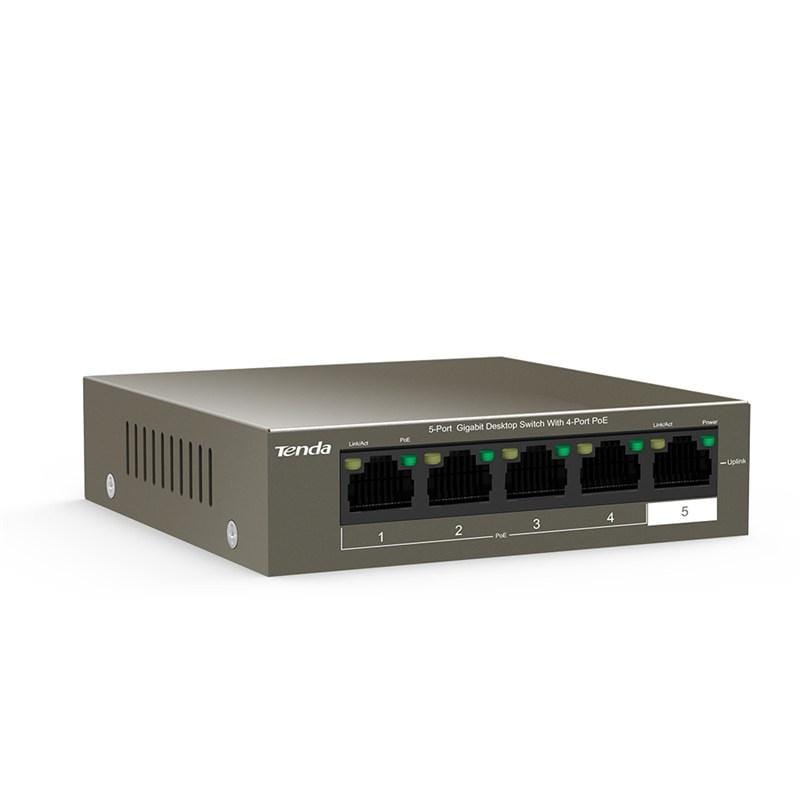

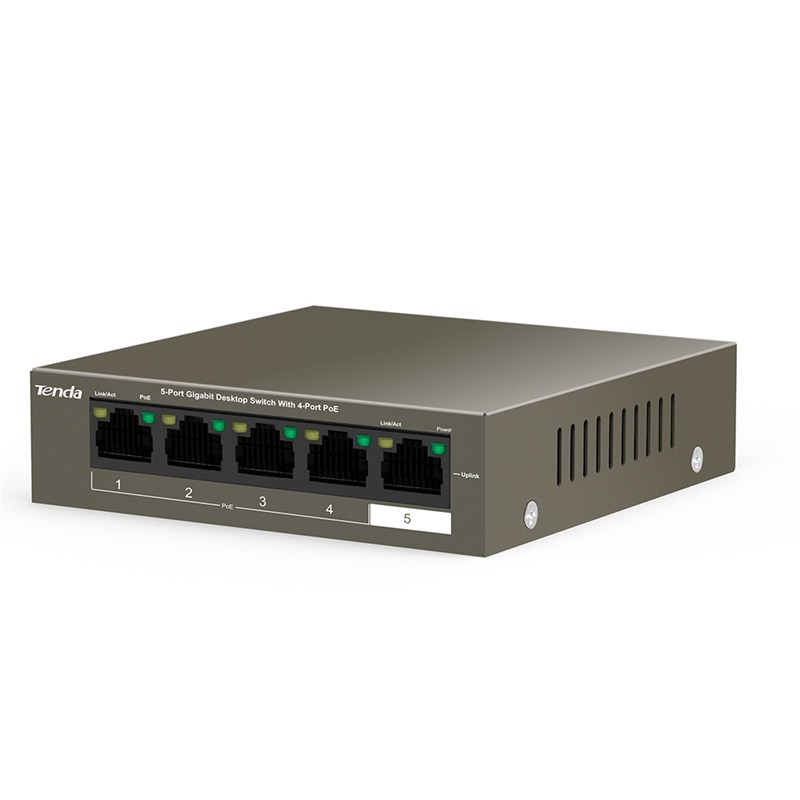

Tenda TEG1105P-4-63W 5-port Gigabit Desktop Switch with 4-port PoE

TEG1105P-4-63W is a Tenda PoE switch that offers 5*10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3 at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to APs, IP cameras, and IP phones and exchange data with them through CAT5 cables. It also provides simple management modes such as VLAN to help reduce cabling costs of IP terminals like APs and IP cameras. Lead security transmission power supply to a new height TEG1105P-4-63W 5-Port Gigabit Desktop Switch with 4-Port PoE 6KV Port Lightning Protection | Maximum PoE Output Power 58W PoE power up to 30W for each PoE port. One-Key VLAN If "VLAN mode" is enabled, Port 1-4 will be isolated respectively but can communicate with the port 5. Hardware DIP switch to isolate ports to prevent broadcast storm and defend against DHCP spoofing. 6KV lighting protection PoE switch is the real monitoring private switch In real project, APs or cameras are usually installed in outdoor or a higher position, which also increases the camera and PoE switches the probability of lightning shock. The result is the individual equipment damaged, or lead to the whole local area network (LAN) paralysis. Tenda TEF11 series switches have professional lightning protection design - up to 6KV port and power supply thunder prevents, with two levels of protection design respectively, effectively restrain the power of lightning from cable, which is equivalent to give the entire network monitoring system with a security fence, The test standard is much higher than the national CE request. In thunderstorms weather, it can also provide monitoring network stable and reliable services and protect the images transmission normally. 58W PoE power supply Ports 1-4 comply with the IEEE802.3af and IEEE802.3at power supply standards. The entire switch offers a maximum PoE power output of 58W, whereas each port offers a maximum PoE power output of 30 W. The ports can be used to supply power to and exchange data with APs and IP cameras.

Specification

Network standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at

LED Indicator

5* Link/Ack LED indicators
1 * Power LED indicator

Interfaces

5*10/100/1000 Base-T Ethernet
Ports(Data/Power)
1*10/100/1000 Base-T Ethernet Port(Data)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

100.0mmx100.0mmx27.0mm

Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

10 Gbps

Packet forwarding rate

7.44Mpps

Buffer

1M

MAC address table

2K

Jombo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 58W

Input voltage

100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

Software

Funtions

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

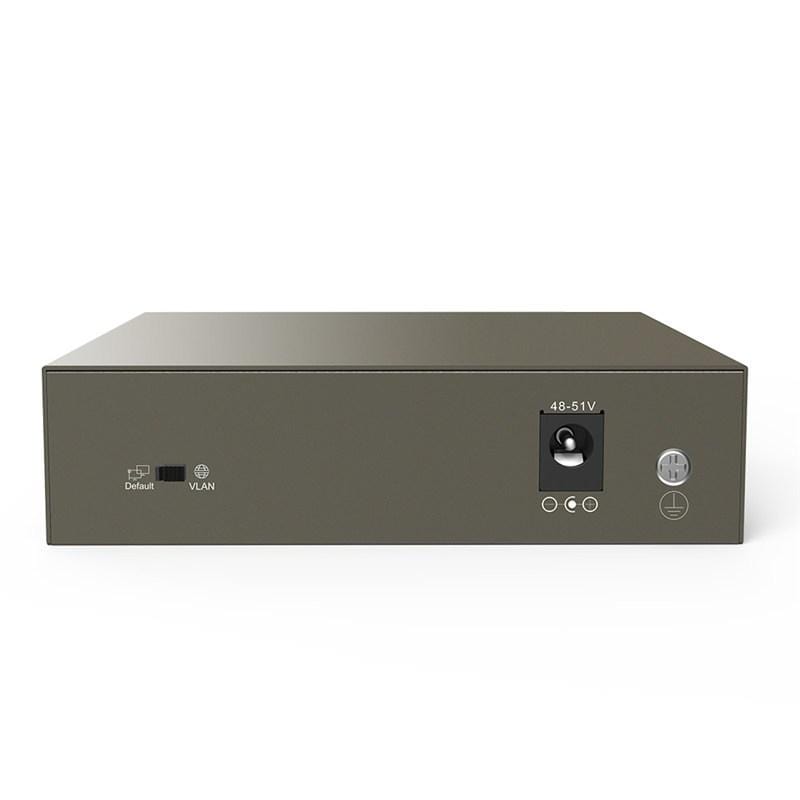

VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing。
