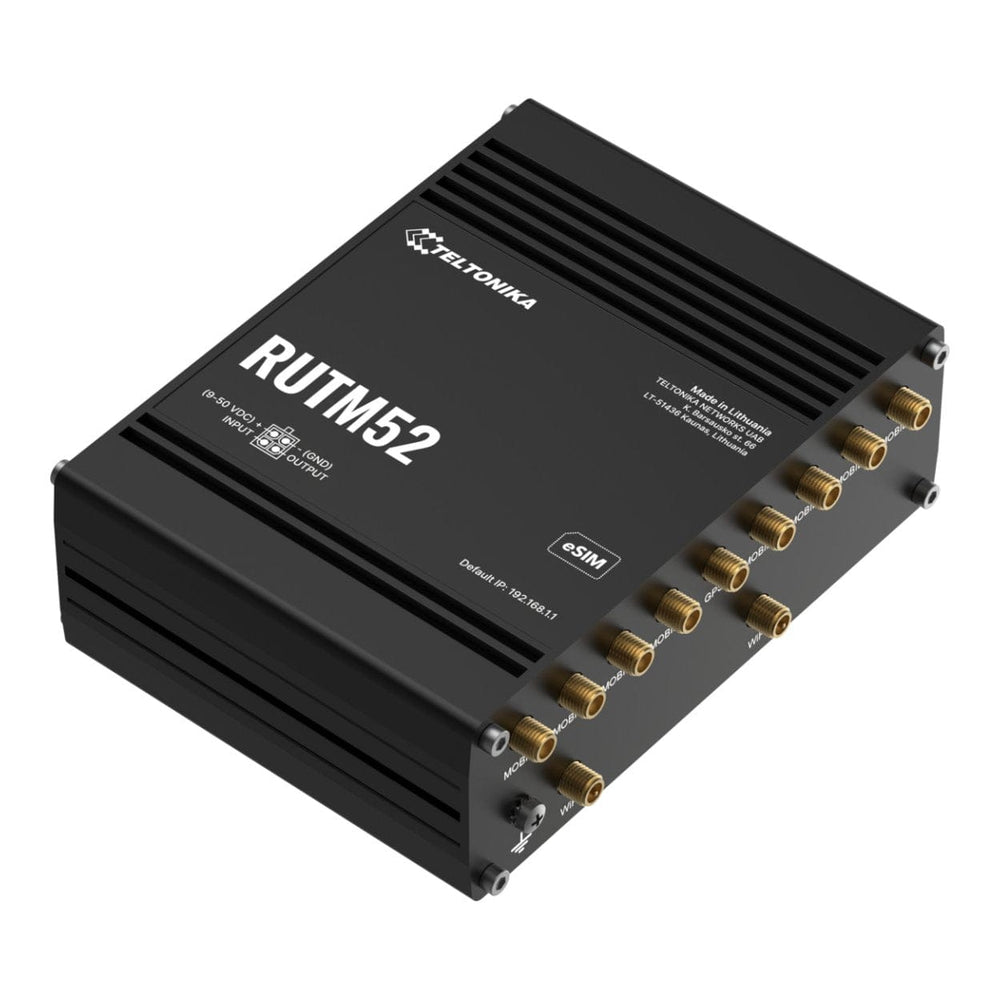

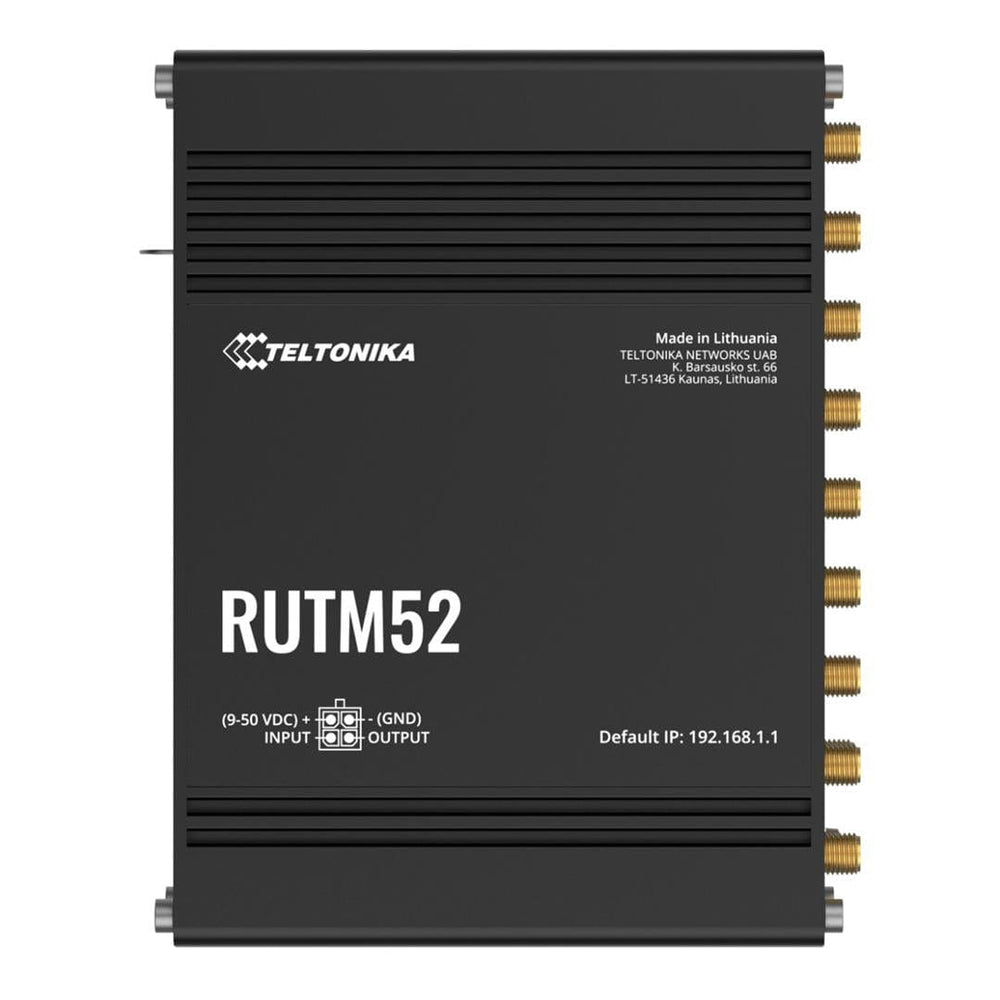

Teltonika RUTM52 Dual 5G Router

Teltonika RUTM52 Dual 5G Router

The RUTM52 is a future-proof 5G router designed for mission-critical applications, featuring dual 5G modems, multi-WAN capabilities, and 4G LTE Cat 20 fallback. With dual SIM slots, eSIM support, and compatibility with SA and NSA 5G architectures, it ensures high-speed, uninterrupted connectivity today and years ahead. Load balancing, Wi-Fi 5, and five Gigabit Ethernet ports enhance performance, while RutOS with industrial protocols and various VPNs make it versatile for complex setups. Compatible with RMS, the RUTM52 is ideal for secure and efficient remote management.

Features

• DUAL 5G MODEM: Up to double cellular speeds and always-on connection
• DUAL SIM & eSIM: With auto failover, backup WAN and other switching scenarios
• SA & NSA: Supports both architectures to leverage the 5G infrastructure
• FUTURE-PROOFING: Backward compatible with 4G (LTE Cat 20)

Technical Specification

Product: Teltonika RUTM52 Dual 5G Router

CPU: MediaTek, Dual-Core, 880 MHz, MIPS1004Kc

RAM: 256 MB, DDR3

FLASH storage: 16 MB serial NOR flash, 256 MB serial NAND flash

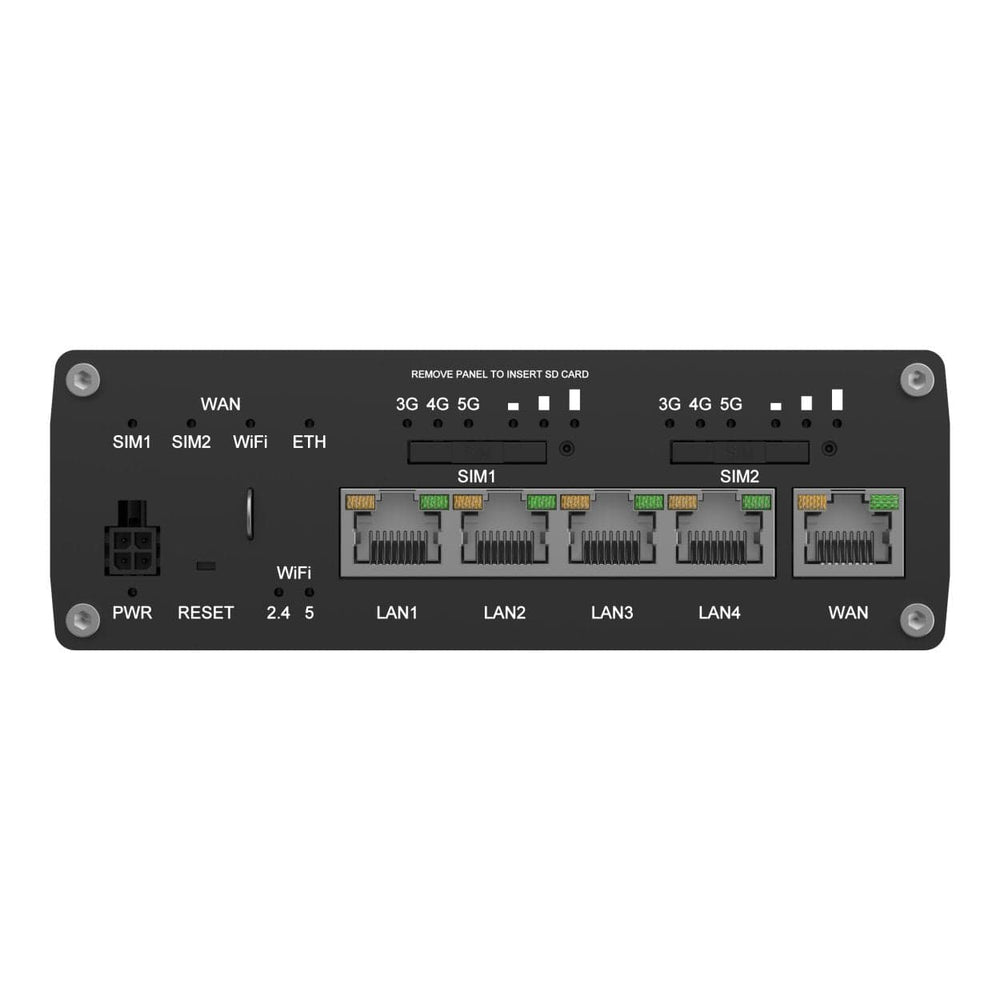

Ethernet ports

• 1x WAN port 10/100/1000 Mbps
• 4x LAN ports, 10/100/1000 Mbps
• Compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Input / Output

• Input: 1x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
• Output: 1x Configurable digital Output, Open collector output, max output 50 V, 300 mA
• Events: Email, RMS, SMS
• I/O juggler: Allows to set certain I/O conditions to initiate event

Power

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
• PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
• Power consumption: Idle: 5 W, Max: 13 W

Other Interfaces

• I/O’s: 1x Digital Input, 1x Digital Output on 4-pin power connector
• SIM: 2x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
• eSIM: up to 7 eSIM profiles (Consumer type eSIM)
• Antennas: 8x SMA for Mobile, 2x RP-SMA for Wi-Fi, 1x SMA for GNNS
• Other: 1x Grounding screw

Mobile module

• 2x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO) 900/600Mbps UL (2x2 MIMO)
• 4G (LTE): DL Cat 20 2.0Gbps (4x4 MIMO)/UL Cat 20 200Mbps
• 3G: 42 Mbps DL, 5.76Mbps UL

Wireless mode: Wi-Fi 5 (802.11b/g/n/ac Wave 2)

Operating system: RutOS (OpenWrt based Linux OS)

Weight: 560 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
