Teltonika RUT301 Industrial Ethernet Router

Teltonika RUT301 Industrial Ethernet Router

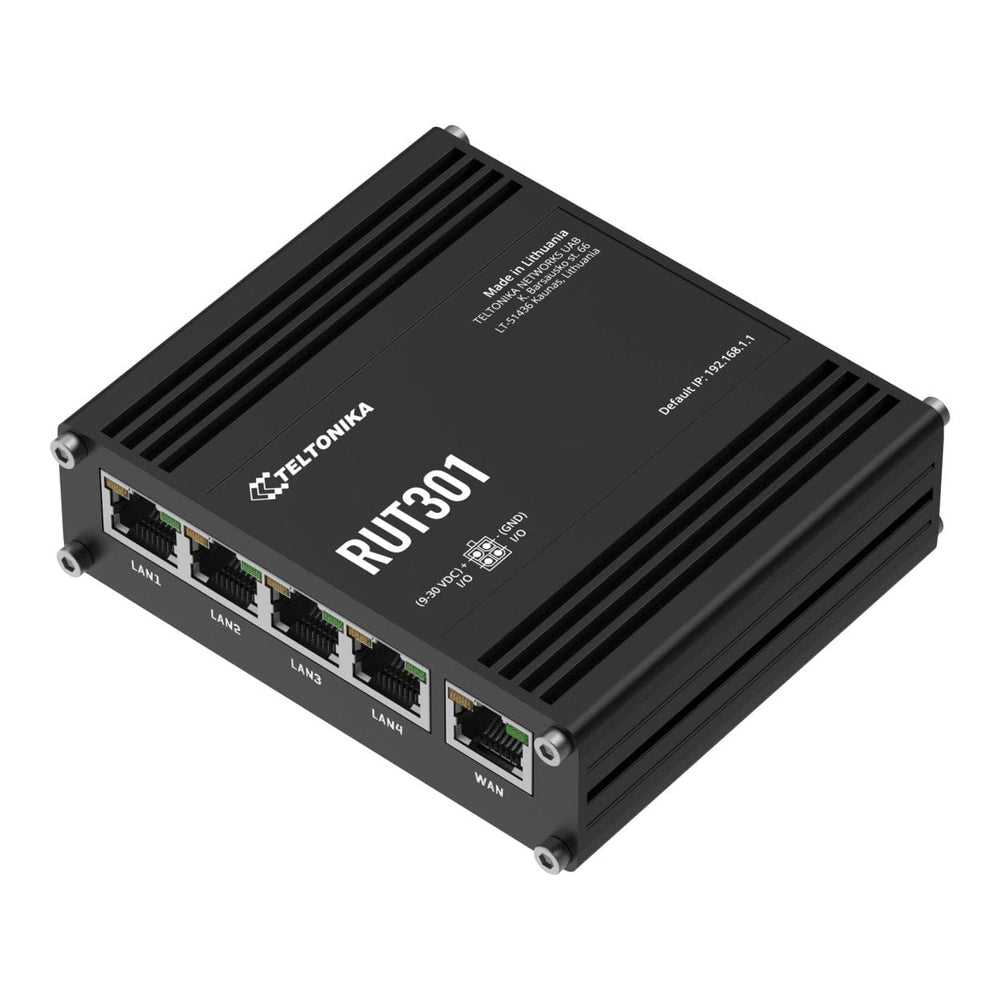

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.

Features

• INTERFACES: 5x Ethernet ports (10/100 Mbps), Digital I/Os, and USB 2.0
• RMS: For remote management, access & VPN services
• SECURITY SUITE: Pre-configured firewall and multiple VPN services
• DURABLE: Industrial-grade design for withstanding harsh environments

Technical Specification

Product: Teltonika RUT301 Industrial Ethernet Router

CPU: Mediatek, 580 MHz, MIPS 24KEc

RAM: 128 MB, DDR2

FLASH storage: Firmware / Configuration 16 MB serial NOR flash

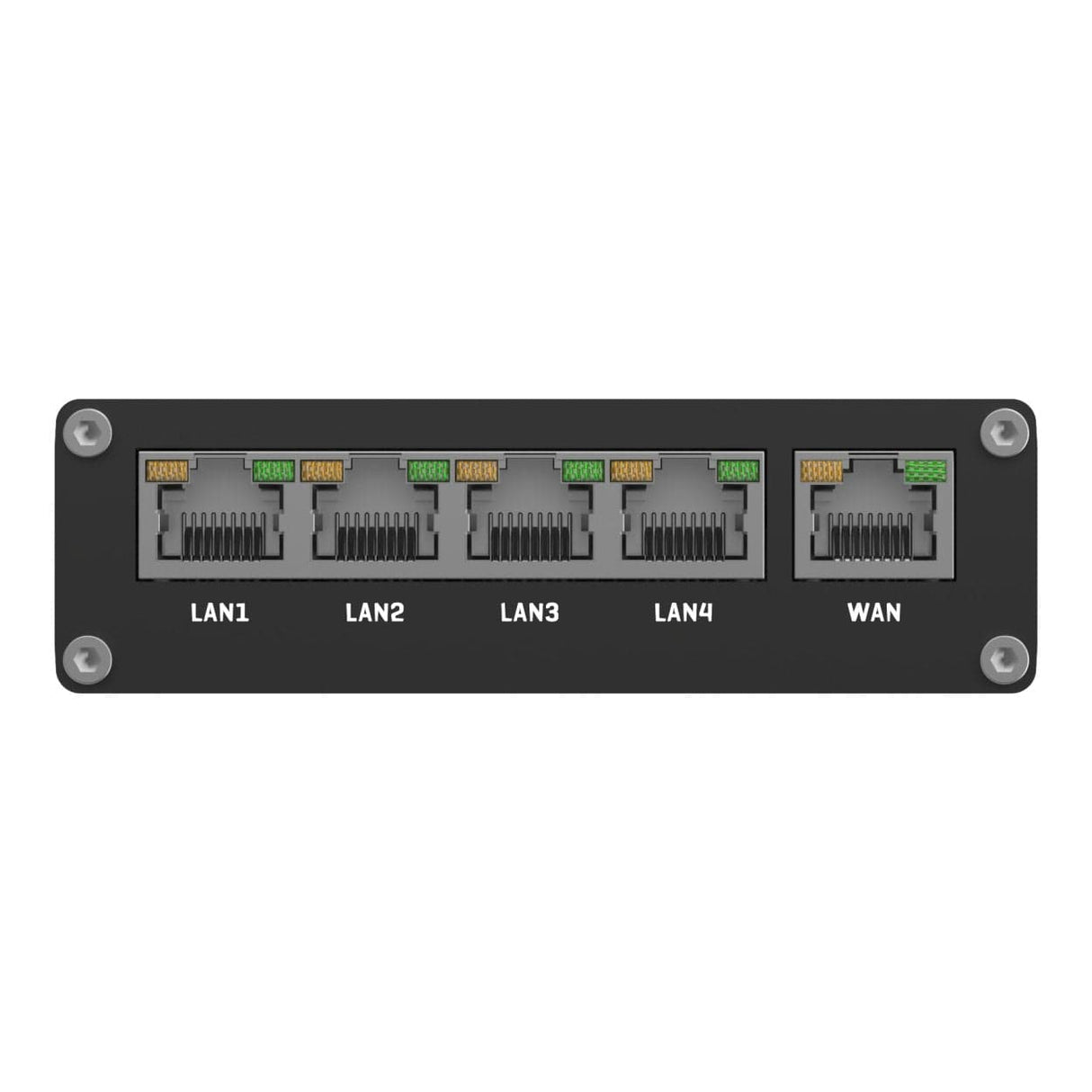

Ethernet ports

• 1x WAN port 10/100 Mbps
• 4x LAN ports, 10/100 Mbps
• Compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

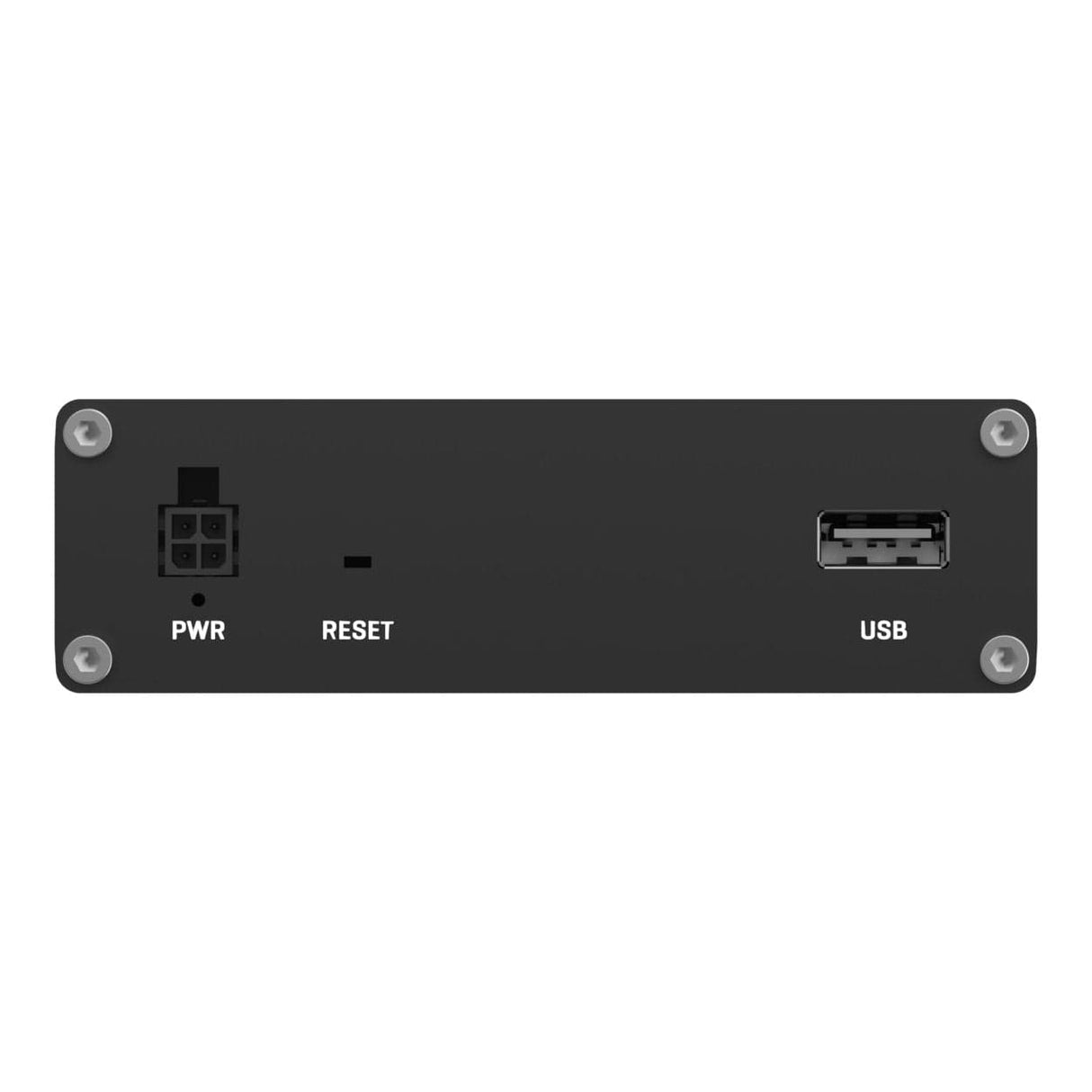

USB

• Data rate: USB 2.0
• Applications: Samba share, USB-to-serial
• External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
• Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

• Input: Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Output: Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
• Events: Email, RMS
• I/O juggler: Allows to set certain I/O conditions to initiate event

Power

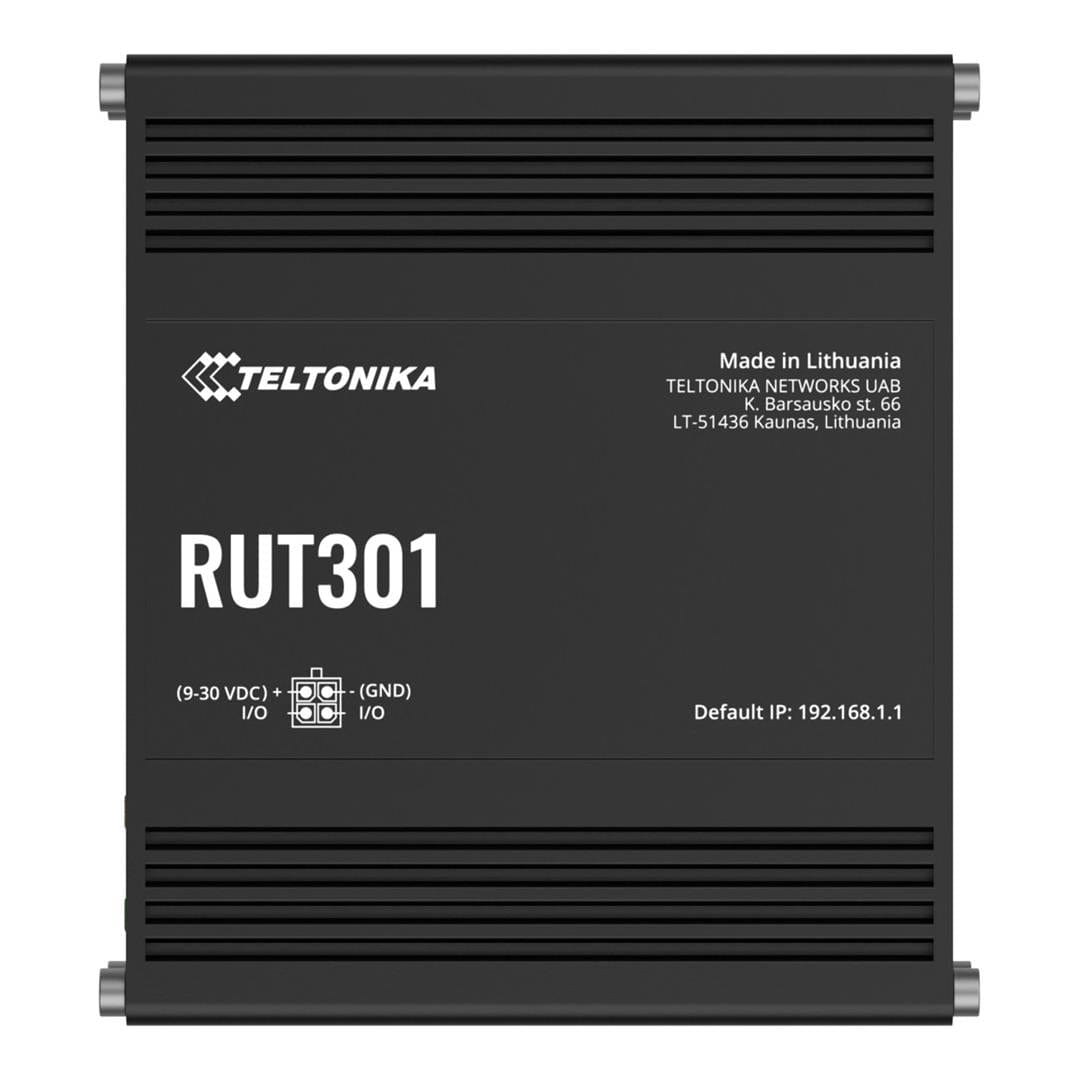

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
• PoE (passive): Passive PoE (Optional - different hardware required; contact your sales manager)
• Power consumption: Idle: 0.8 W, Max: 3.8 W

Operating system: RutOS (OpenWrt based Linux OS)

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Weight: 233 g
