Teltonika Industrial Flat Ethernet Switch TSF010

Teltonika Industrial Flat Ethernet Switch TSF010

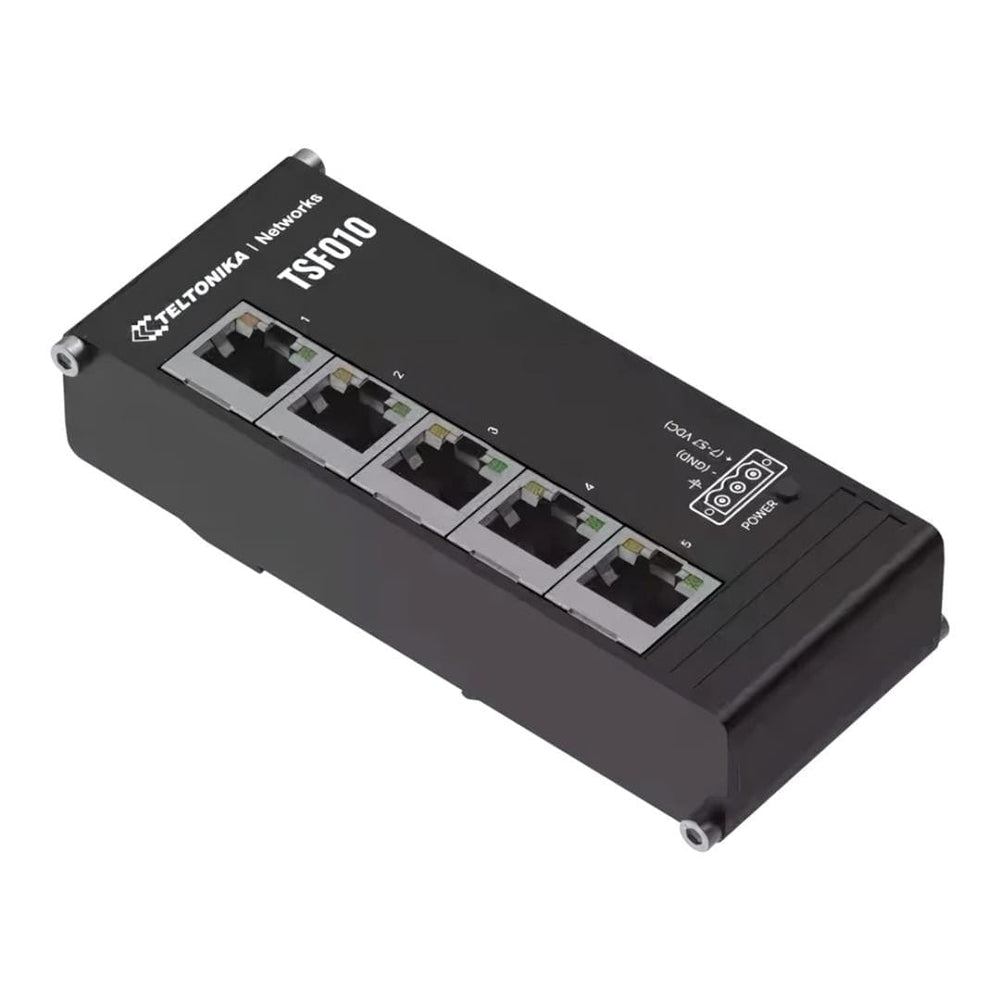

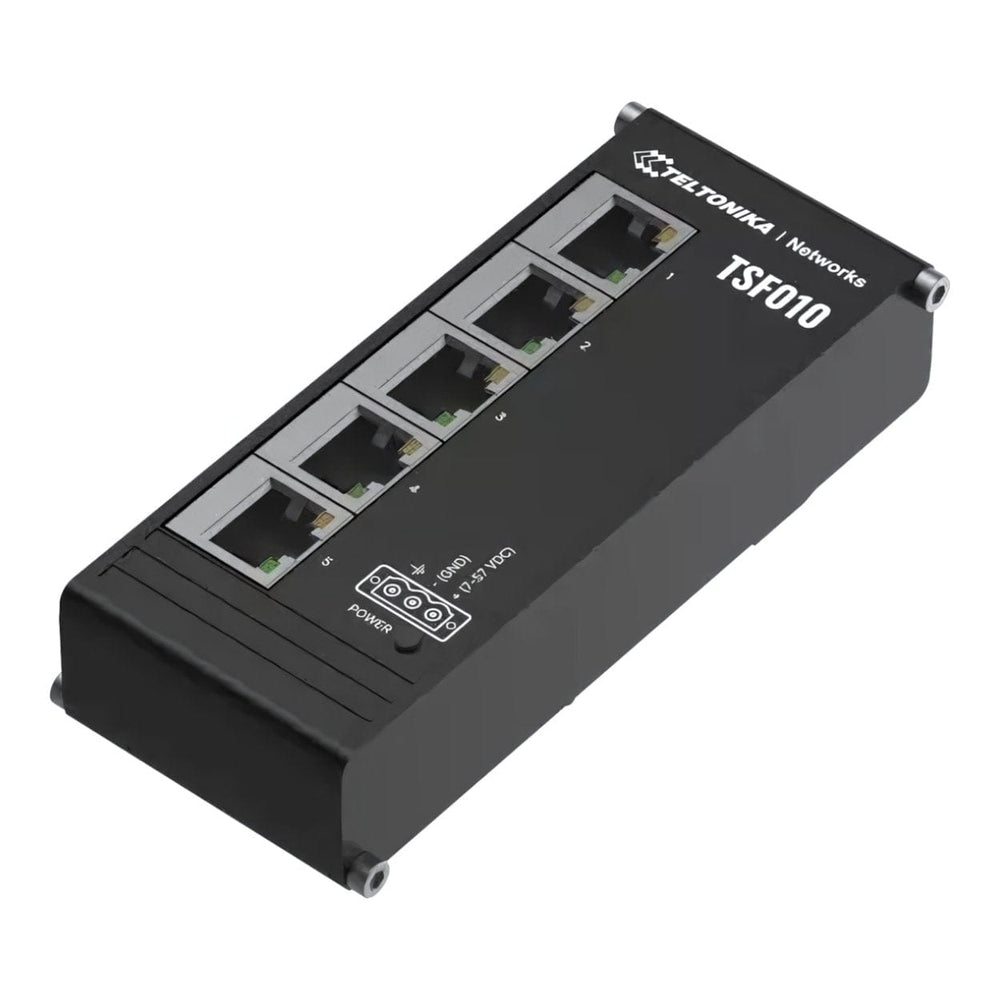

Teltonika TSF010 Flat Ethernet Switch is designed with an integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact, measuring 113mm x 28mm x 50mm, and lightweight, weighing only 142g. The TSF010 flat Ethernet switch is equipped with a 3-pin power input and supports a voltage range of 7V_DC to 57V_DC. This Ethernet switch comes with five 10/100Mbps RJ45 ports for reliable connectivity, offers IP30 protection, and operates within the -40°C to 75°C temperature range. The TSF010 unmanaged flat Ethernet switch features a 10Gbps bandwidth (non-blocking), 128KB packer buffer, and 9216B jumbo frame support. This Ethernet switch conforms to CE, UKCA, EAC, UCRF, RCM, FCC, IC, CB regulations, and IEC 62368-1:2018 safety standards.

Features

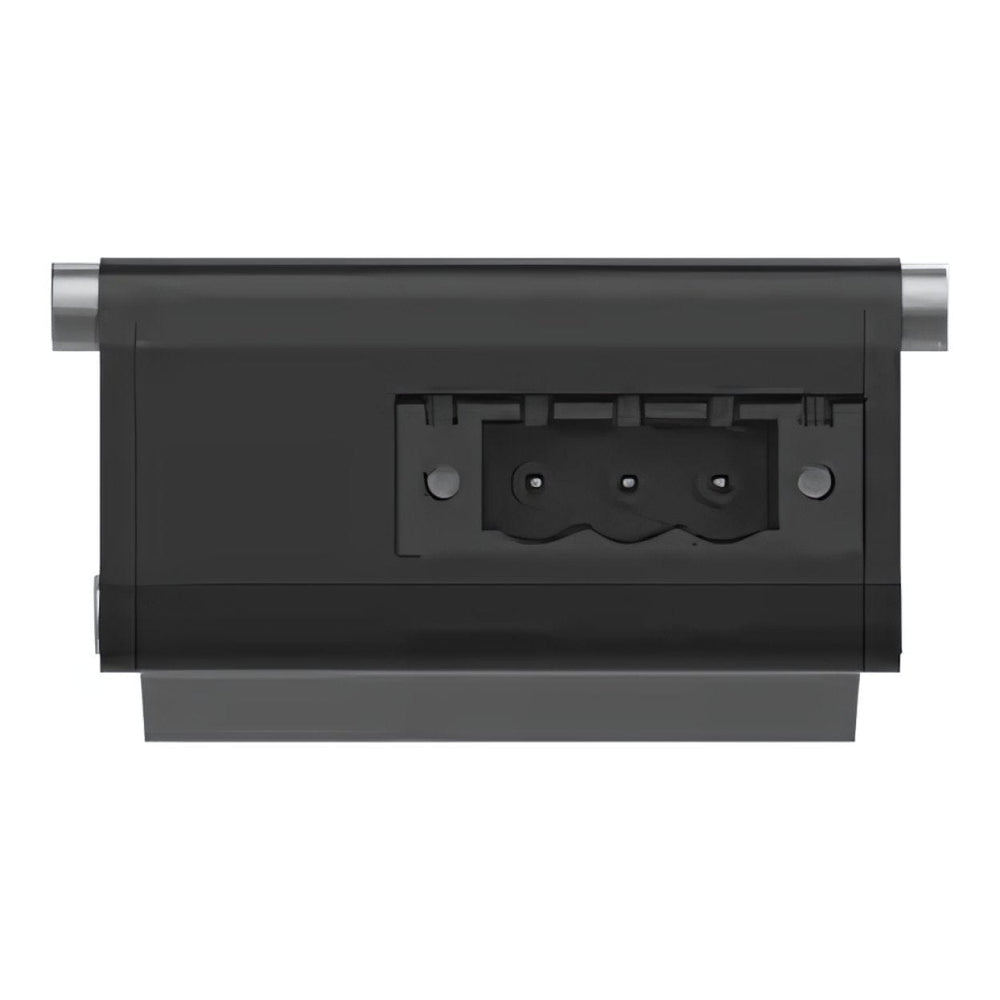

• 3-pin power input
• Flat and compact
• Integrated DIN rail bracket
• 7V_DC to 57V_DC voltage range

Specifications

• 10Gbps bandwidth (non-blocking)
• 128KB packer buffer
• 9216B jumbo frame support
• Five 10/100Mbps RJ45 ports
• 113mm x 28mm x 50mm dimensions
• 142g weight
• IP30 protection
• -40°C to 75°C operating temperature range
• IEC 62368-1:2018 safety standards
• CE, UKCA, EAC, UCRF, RCM, FCC, IC, and CB approved
