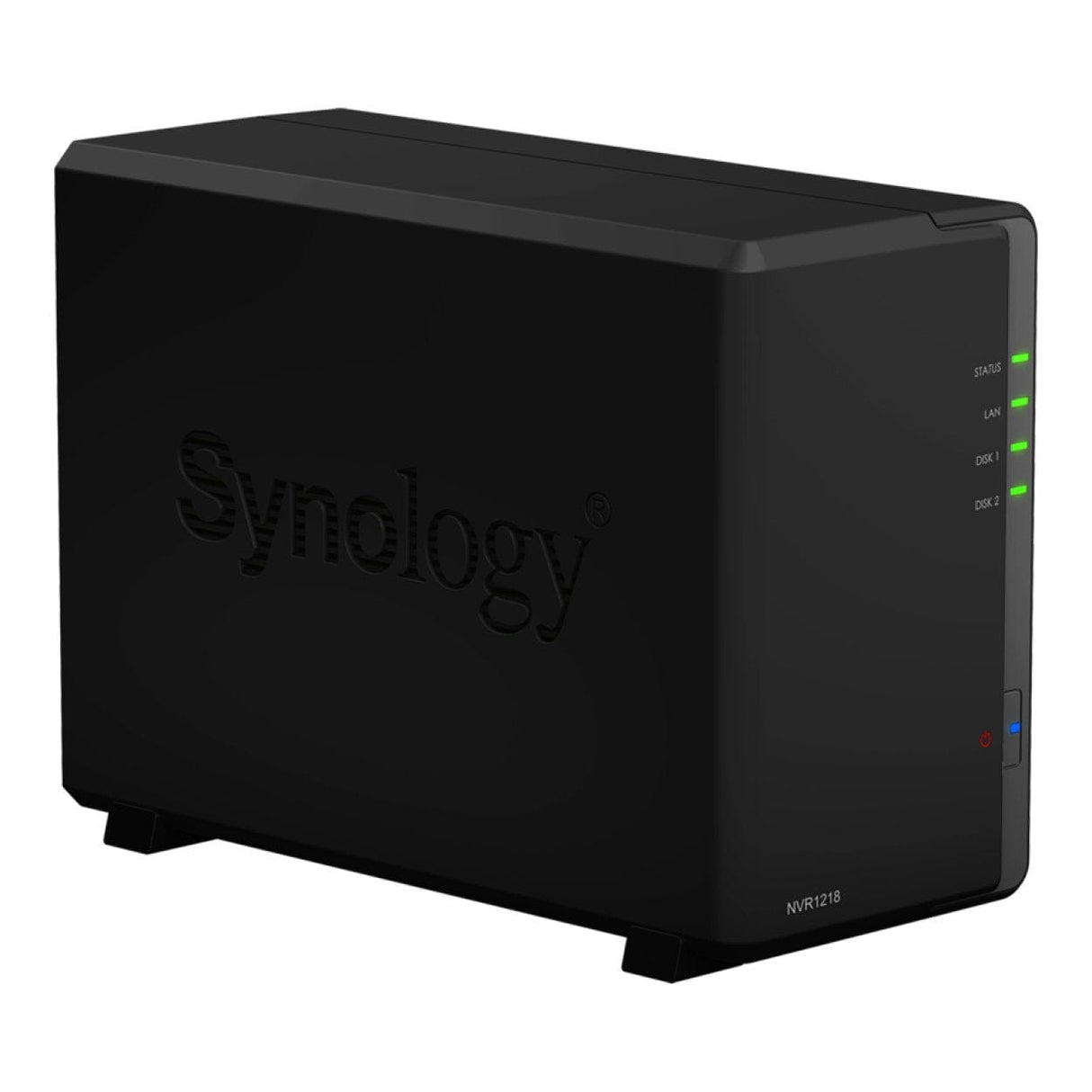

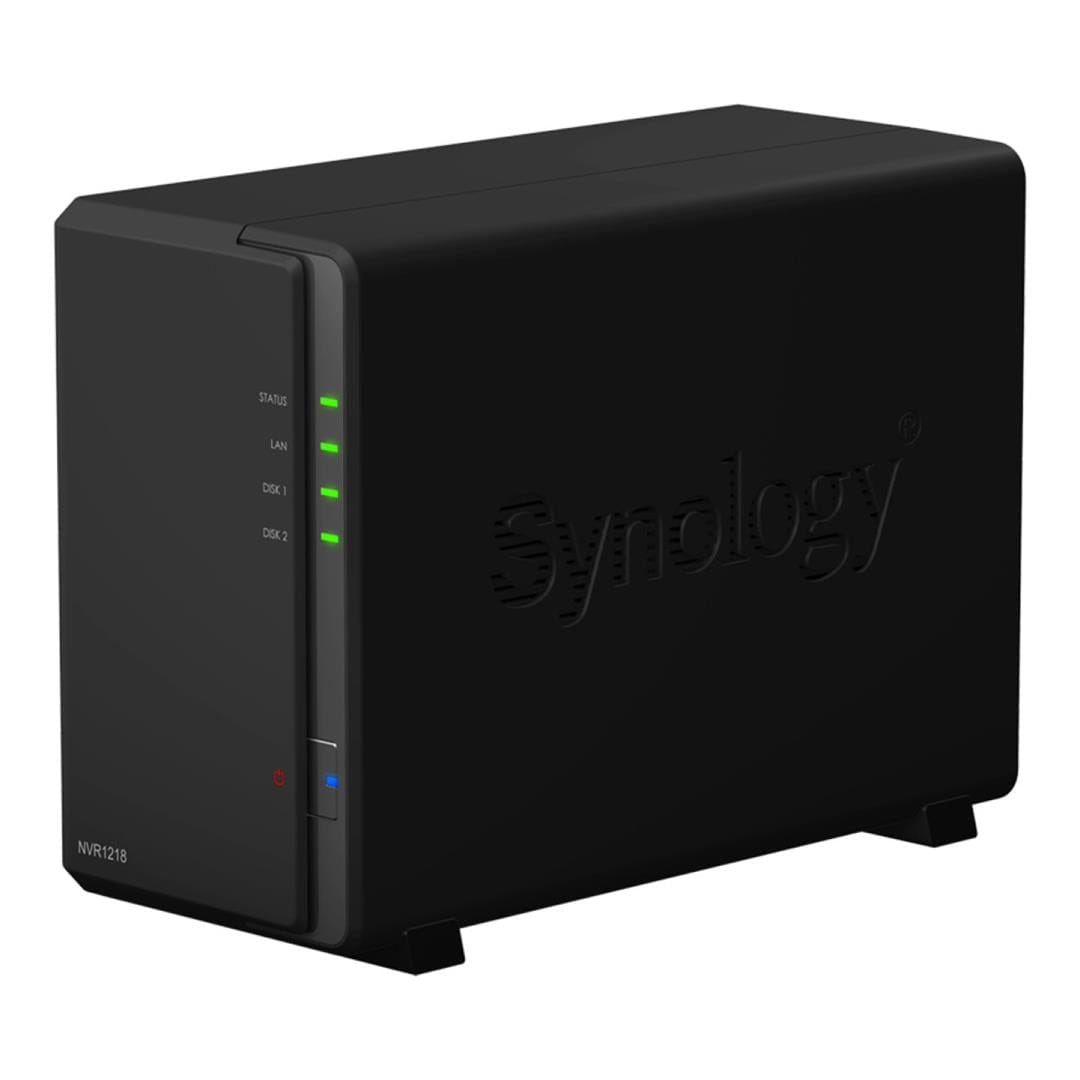

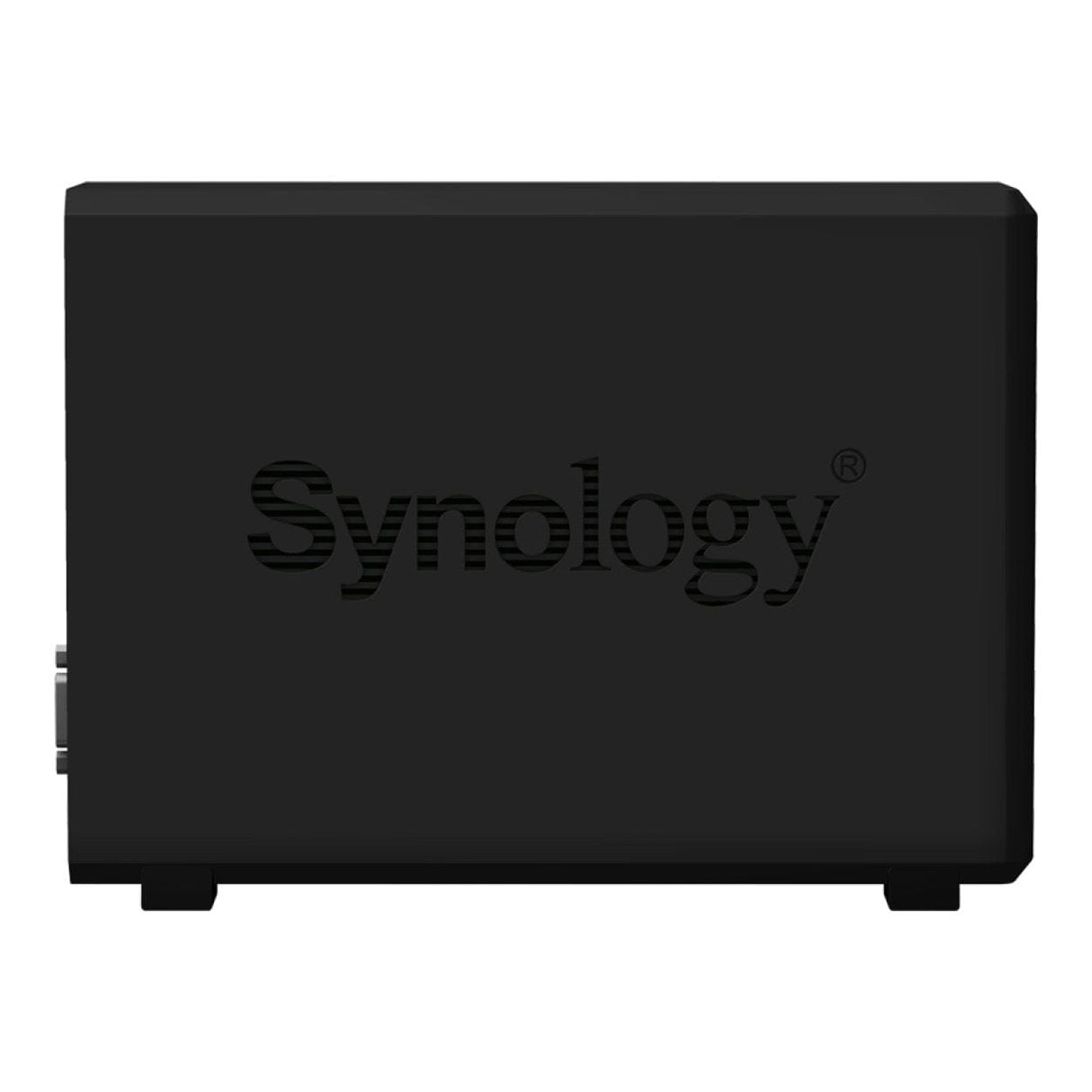

Synology NVR1218 2-Bay 1GB NVR

Synology NVR1218 2-Bay 1GB NVR

Synology NVR1218 | Network Video Recover with HDMI Out - Diskless

• Standalone surveillance solution with 1080p HDMI output
• Easy installation without a computer and internet connection
• Point of Sale (POS) system support combines business transaction records with surveillance recordings
• 4× Free camera licenses included, supports up to 12× cameras
• Mobile apps ready for on-the-go surveillance
• Power-saving NVR runs below 15W
• Expandable storage capacity up to 7× HDDs with DX517

Specifications:

Configuration: NVR1218 Supports up to 12× Cameras in Total and Comes with 4× Camera Licenses Pre-Installed

CPU: Embedded NVR SoC Dual-Core 1.0GHz

Memory: DDR3 1GB

Compatible Drive Type: 2× 3.5” SATA (Hard Drives Not Included)

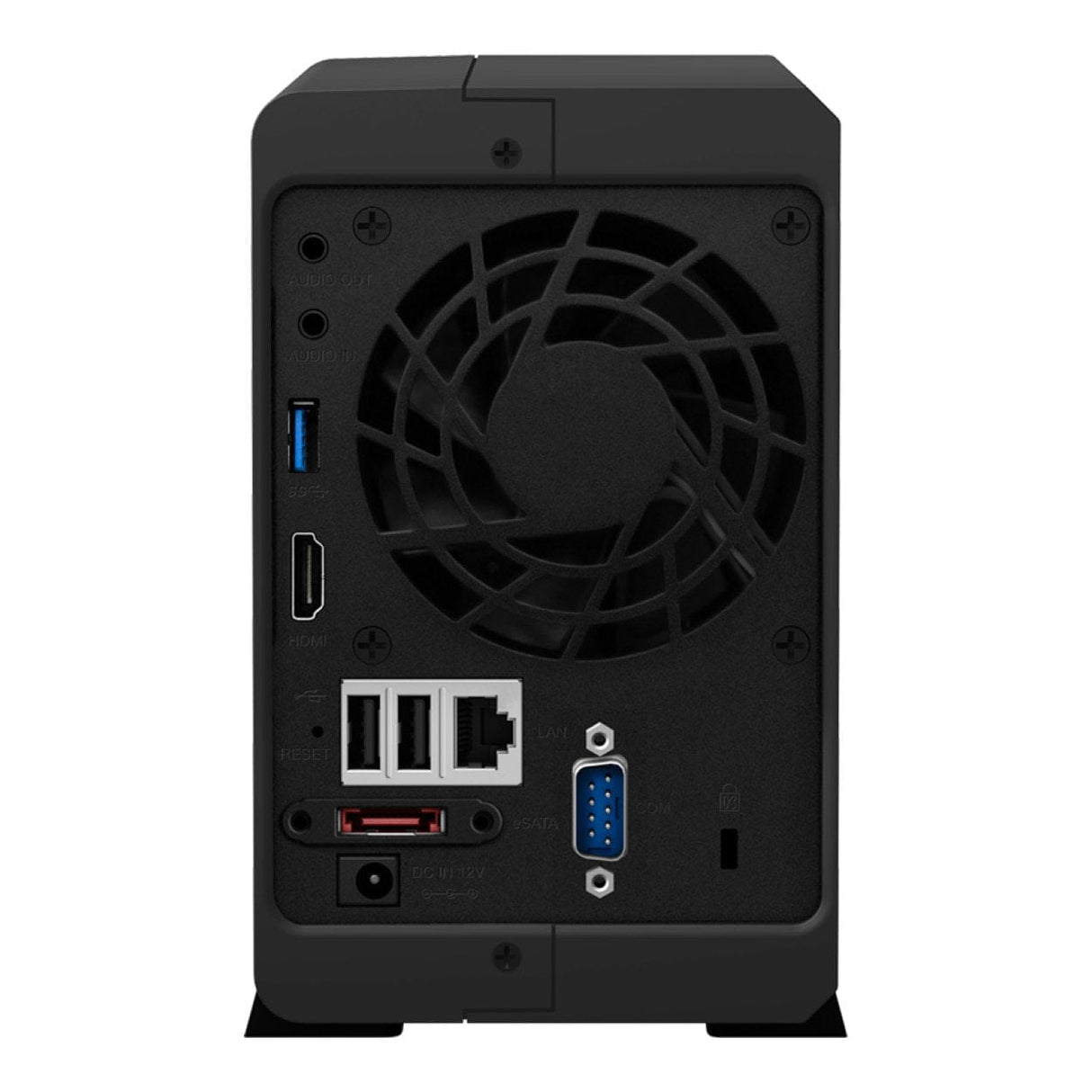

External Ports

• 1× USB3.0
• 2× USB2.0
• 1× eSATA
• 1× HDMI
• 2× 3.5mm Audio Jack (Input/Output)
• 1× COM (for POS System Connection)

Supported Video Output Resolution: 1920×1080 (1080p) @60Hz

Dimensions (H × W × D): 165 × 100 × 225.5mm

Weight: 0.9kg

LAN: 1× Gigabit (RJ45)

Supported USB Devices: USB Storage, Keyboard, Mouse, Joystick, Uninterruptible Power Supply (UPS)

AC Input Power Voltage: 100~240V

ACPower Frequency: 50~60Hz, Single Phase

File System: Internal: ext4, External: ext4, ext3, FAT, NTFS, HFS+ (Read Only)

Supported RAID Type:

• Synology Hybrid RAID (SHR)
• Basic
• JBOD
• RAID 0
• RAID 1
• RAID 5 (with Synology Expansion Unit DX517)
• RAID 6 (with Synology Expansion Unit DX517)

Storage Management:

• Maximum Single Volume Size: 16TB
• Maximum Internal Volume: 256×
• Maximum Shared Folder: 256×

Maximum IP Camera: 12-Channels (360fps @720p)

IP Camera Support

• Video Codec: MJPEG, MPEG-4, MxPEG, H.264 and H.265 (MxPEG and H.265 Do Not Support Local Display)
• Audio Codec: PCM, AAC, AMR, G.711 and G.726
• Camera Bit-Rate Fine-Tuning via Constant and Variable Bit-Rate Control
• ONVIF 2.6, Profile-S Certified, Profile-G for Edge Recording

Live View

• Pan Tilt Zoom (PTZ) Support with Configurable PTZ Speed
• On-Screen Camera Controls: Camera Zoom, Focus, Iris Adjustment, Auto Pan and Auto Object Tracking
• E-Map, Snapshot and Snapshot Editor Supported for Instant Editing After Taking a Snapshot
• Video Quality Settings: Bit-Rate Control, Image Quality, Resolution and fps
• Joystick Support for Easy Navigation
• Alert Panel for a Quick Display of the Most Recently Triggered Events
• Customisable Layout and Sequential Camera View Support

Recording

• Supported Recording Modes: Manual, Continuous, Motion Detection, I/O Alarm, Action Rule and Customised
• Recording Formats: MP4
• The Customised Recording Mode Can Be Configured as a Combination of Conditional Events, Including Motion Detection, Audio Detection, Tampering Detection and Alarm Input
• Edge Recording on the SD Card of Certain Supported Cameras
• Configurable Pre-Recording and Post-Recording Time

Playback

• Customisable Layouts for Playback in Timeline
• Playback Controls Include Pause, Stop, Previous Recording, Next Recording, Fast Forward, Slow Motion, Frame by Frame and Digital Zoom In/Out
• Embedded Watermark for Evidence Integrity
• Image Enhancements Including Brightness, Contrast, Saturation and Sharpness (Web-Client Only)

Management

• Create and Manage Different User Privileges
• Rotate Recorded Videos by Archived Days or Storage Size
• Event Notification Supported via SMS, E-mail and Mobile Devices via DS Cam
• Recordings Can Be Backed up to an External Storage or Remote Server
• Built-In NTP ServerSupported Tunnel: MPEG-4, H264 via RTSP over TCP, UDP and HTTP

iOS/Android Applications: DS File, DS Finder, DS Cam

Other Packages: File Station, VPN Server, Storage Analyser, Hyper Backup

Surveillance Desktop Client Support: Windows 7 and 10, Mac OS X 10.11 Onwards

Supported Browsers: Internet Explorer 11 (Excluding Microsoft Edge), Safari 10 Onwards

In the Box:

• NVR1218 Main Unit
• AC Power Adapter
• RJ45 LAN Cable
• USB Installation Dongle
• Quick Installation Guide
• Accessory Pack
