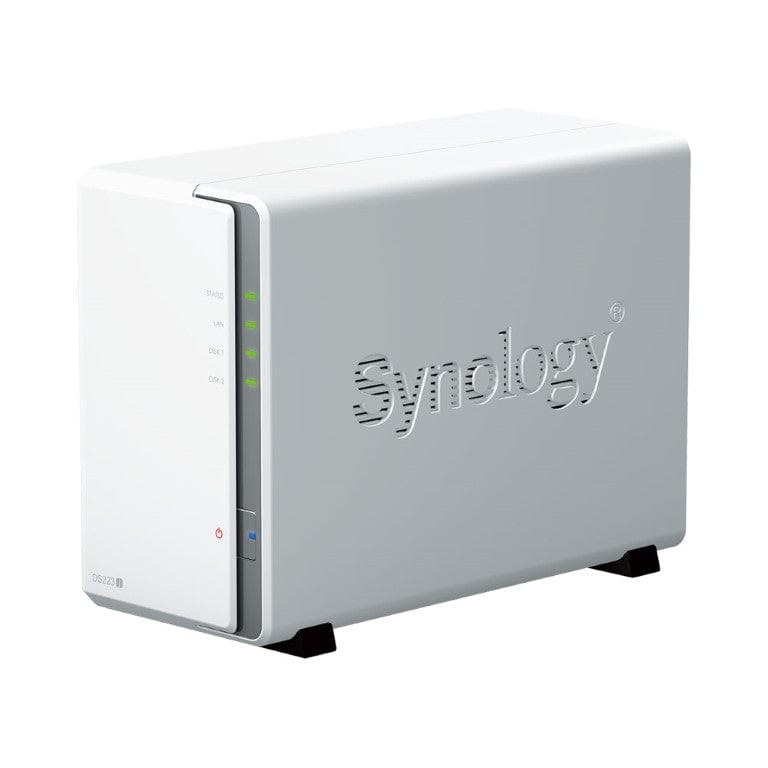

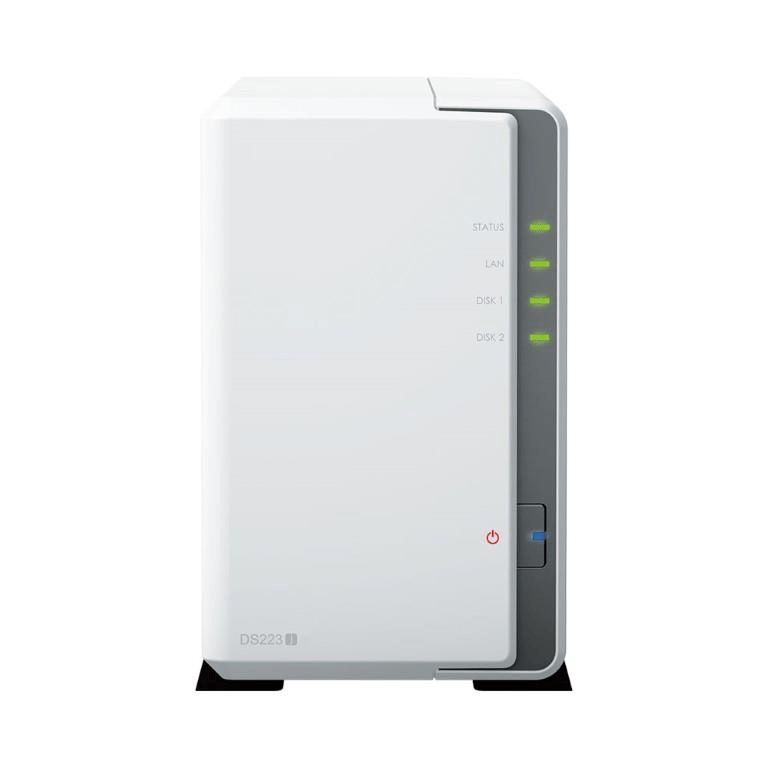

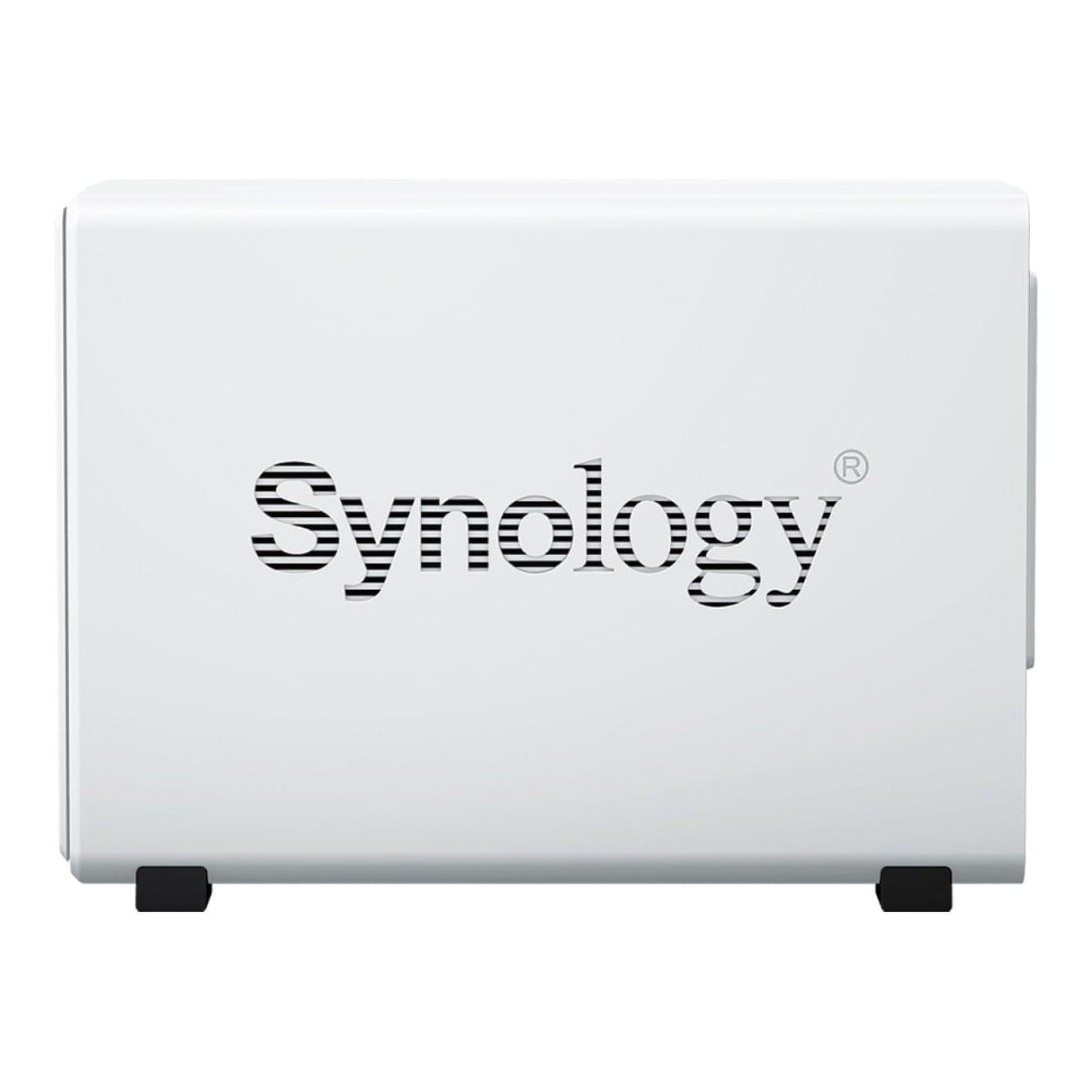

Synology DiskStation DS223J 2-bay Diskless Tower NAS

Synology DiskStation DS223J 2-bay Diskless Tower NAS

Compact, quiet, and energy-efficient storage

The DS223J is an efficient one-stop solution for all your data storage and sharing needs. With two bays of storage and Synology DiskStation Manager (DSM) on board, the DS223J allows you to create a private cloud to protect your files, share your data across several devices, store security footage with intelligent video surveillance tools and more.

Features:

• Centralized Data Storage: Consolidate all your data with complete data ownership and multi-platform access
• Next-Generation File System: Leverage file self-healing, lightning-fast data snapshots, and rapid data cloning
• Secure Sharing and Syncing: Safely access and share files and media from anywhere and keep clients, colleagues and collaborators on the same page
• Simple Data Protection: Back up your media library or document repository to a variety of destinations
• Versatile Camera Surveillance: Protect your premises with flexible monitoring tools

Multi-platform file access

Manage your files and media from anywhere with Synology Drive. Available on PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser.

Sync across sites

Keeping data synced between different sites has never been easier. Synology Drive ShareSync keeps files and folders synchronized across Synology systems.

Technical Specifications:

CPU
CPU Model: Realtek RTD1619B
CPU Quantity: 1
CPU Core: 4
CPU Architecture: 64-bit
CPU Frequency: 1.7 GHz
Hardware Encryption Engine: -

Memory
System Memory: 1 GB DDR4 non-ECC
Notes: Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage
Drive Bays: 2
Drive Type:

• 3.5" SATA HDD
• 2.5" SATA SSD (with optional 2.5" Disk Holder)
• Hot Swappable Drive: -

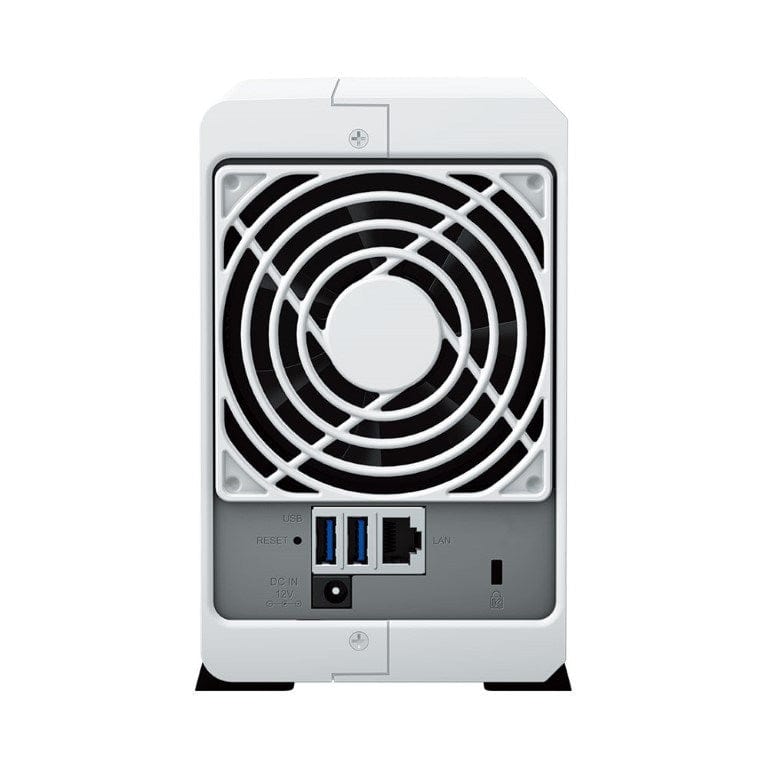

External Ports
RJ-45 1GbE LAN Port: 1
USB 3.2 Gen 1 Port: 2
Notes: This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.

Appearance
Size (H x W x D): 165 mm x 100 mm x 225.5 mm
Weight: 0.88 kg

Others
System Fan: 92 mm x 92 mm x 1 pcs
Fan Speed Mode: Full-Speed Mode, Cool Mode, Quiet Mode, Low-power Mode
Brightness Adjustable Front LED Indicators: Yes
Power Recovery: Yes
Noise Level: 18.2 dB(A)
Scheduled Power On / Off: Yes
Wake on LAN / WAN: Yes

Power Supply Unit / Adapter
Power: 60 watts
AC Input Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption: 16.31 watts (Access), 4 watts (HDD Hibernation)
British Thermal Unit: 55.62 BTU/hr (Access), 13.64 BTU/hr (HDD Hibernation)
Notes: Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75ËšC; Humidity: 58.2-61.8%

Temperature
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Operating Humidity: 8% to 80% RH
Storage Humidity: 5% to 95% RH

Certification
FCC, CE, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS

Warranty
Warranty: 2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Notes: The warranty period starts from the purchase date as stated on your receipt. Extended Warranty Plus availability varies by region: Europe & North America (EW201/EW202 in Asia, Africa, Oceania).

Environment
RoHS Compliant

What's in the Box:

• Main Unit x 1
• Accessory Pack x 1
• AC Power Adapter x 1
• AC Power Cord x 1
• RJ-45 LAN Cable x 1
• Quick Installation Guide x 1
