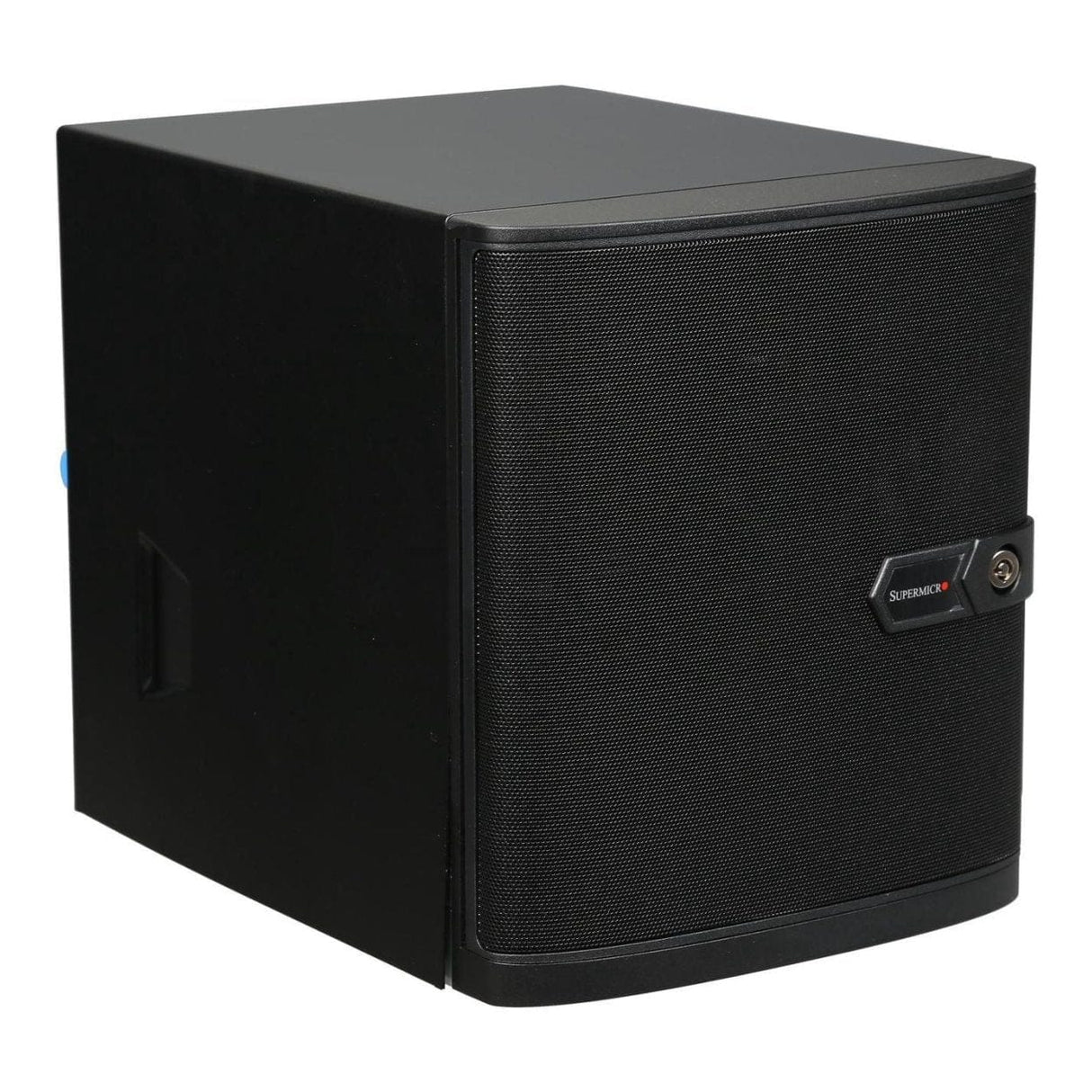

Supermicro Compact Mini Tower Chassis SM-CSE-721TQ-250B

Supermicro Compact Mini Tower Chassis SM-CSE-721TQ-250B

Features

• Compact Mini-Tower: D 11" x W 8.27" x H 9.45"
• Support wide range of Mini-ITX Motherboard, from ATOM to Core i7
• 4 x 3.5" Hot-Swap SATA HDD and 2x internal 2.5" SATA HDD
• One low profile expansion slot

Technical Specifications:

Form Factor
Compact Mini-Tower Chassis, supports motherboard size 6.75" × 6.75"

Processor Support
Single Intel® and AMD processors

Dimensions
Height: 9.45" (240.03 mm)
Width: 8.27" (210.06 mm)
Depth: 11" (279.4 mm)
Net Weight: 13.5 lbs (6.12 kg)
Gross Weight: 15 lbs (6.8 kg)
Packaging (W × H × L): 12.4" (315 mm) × 13.78" (350 mm) × 16.14" (410 mm)
Available Color: Black

Expansion Slots
Up to 1 low-profile expansion slot

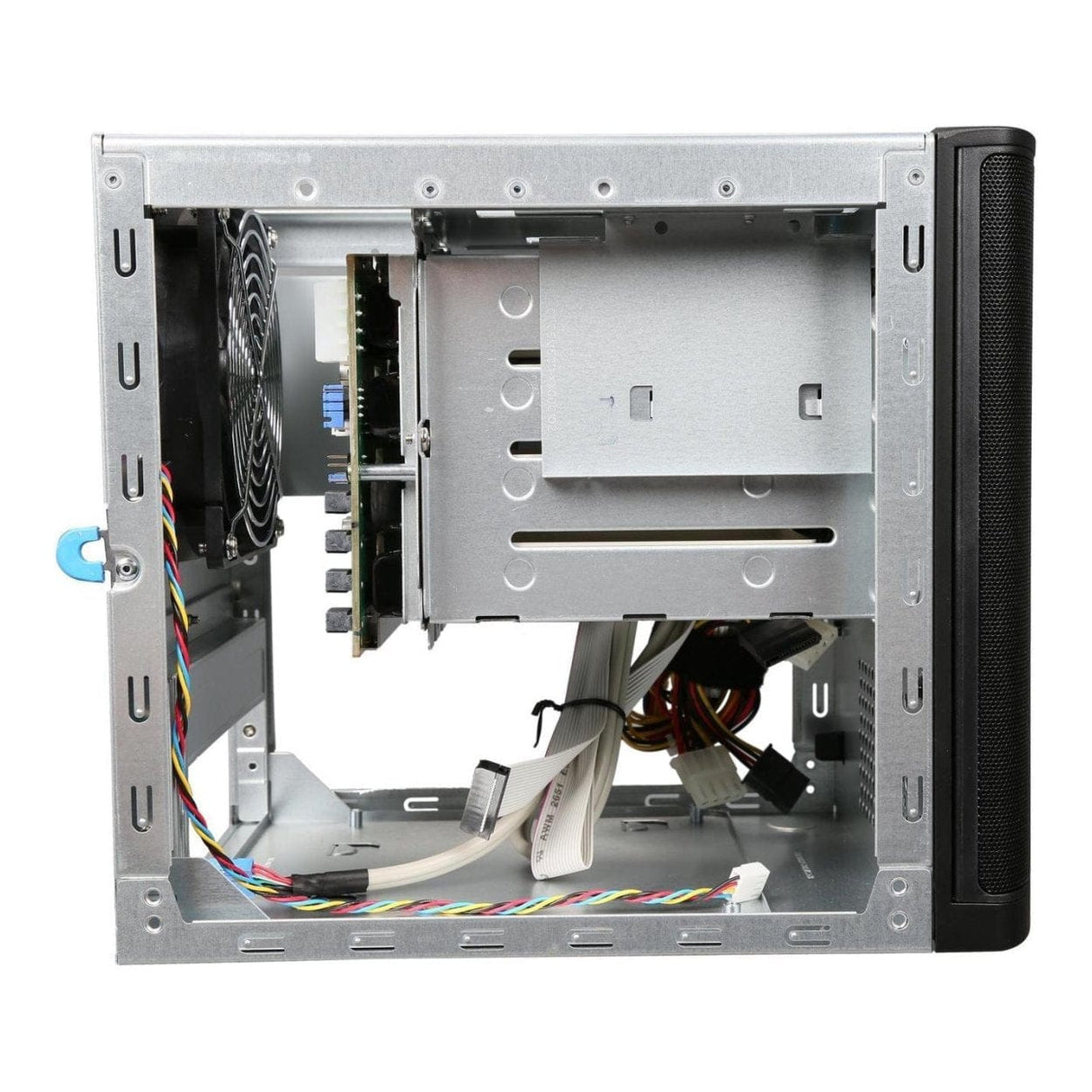

Drive Bays
4 × 3.5" hot-swap SAS/SATA
2 × 2.5" fixed drive bay
SAS or enterprise SATA HDD only recommended

Backplane
4 × 3.5" SAS2/SATA3 backplane with SES-II

Peripheral Drives
1 × Slim DVD-ROM drive bay

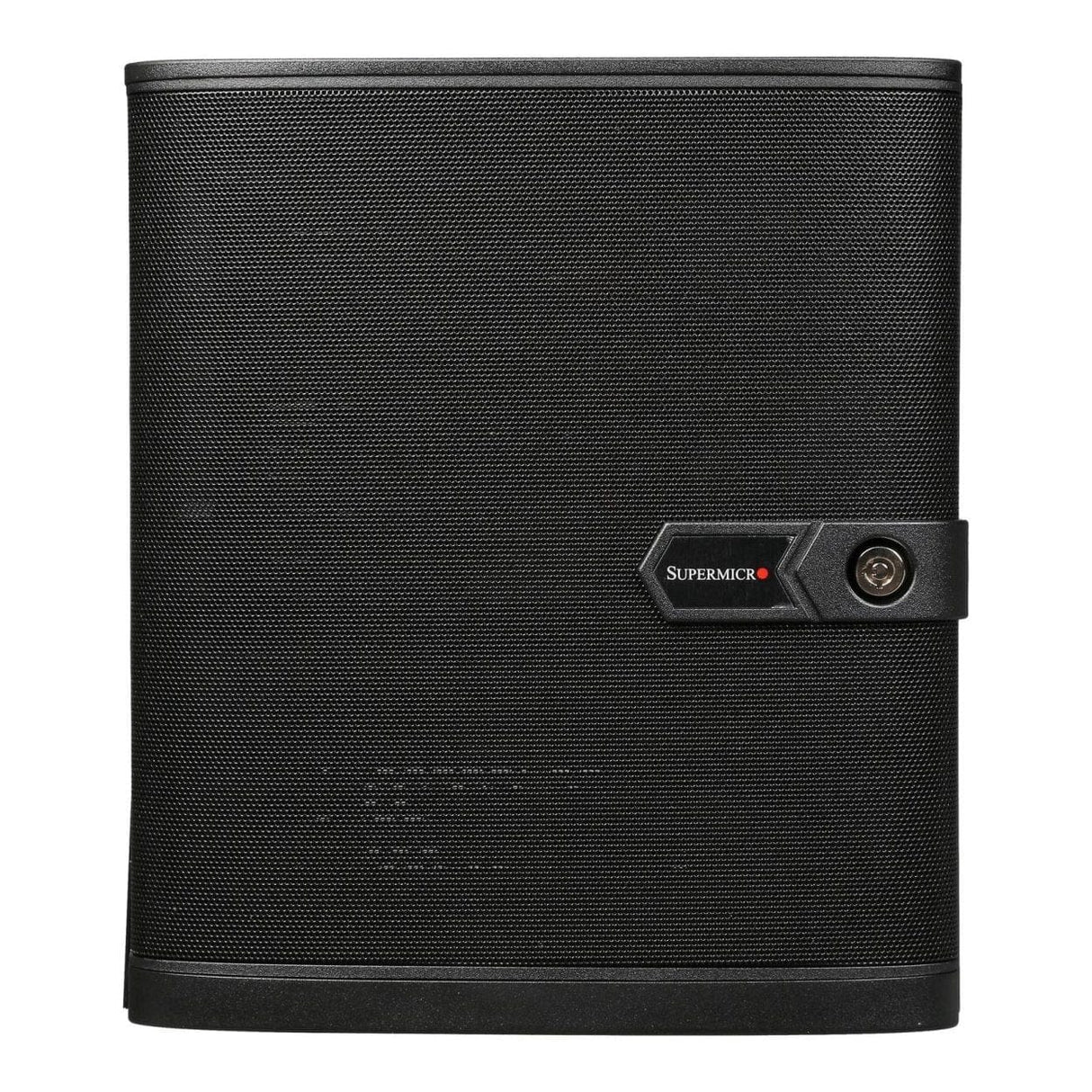

Front Panel
Buttons: Power On/Off button, System Reset button
LEDs: Network Activity LED, Fan Fail/System Overheat LED, HDD Activity LED, Power Status LED

System Cooling
Fans: 1 × 12 cm rear exhaust fan

Operating Environment (System)
Operating Temperature Range: 0°C – 40°C (32°F – 104°F)
Non-Operating Temperature Range: -20°C – 60°C (-4°F – 140°F)
Operating Relative Humidity Range: 10% – 85% (non-condensing)
Non-Operating Relative Humidity Range: 10% – 95% (non-condensing)

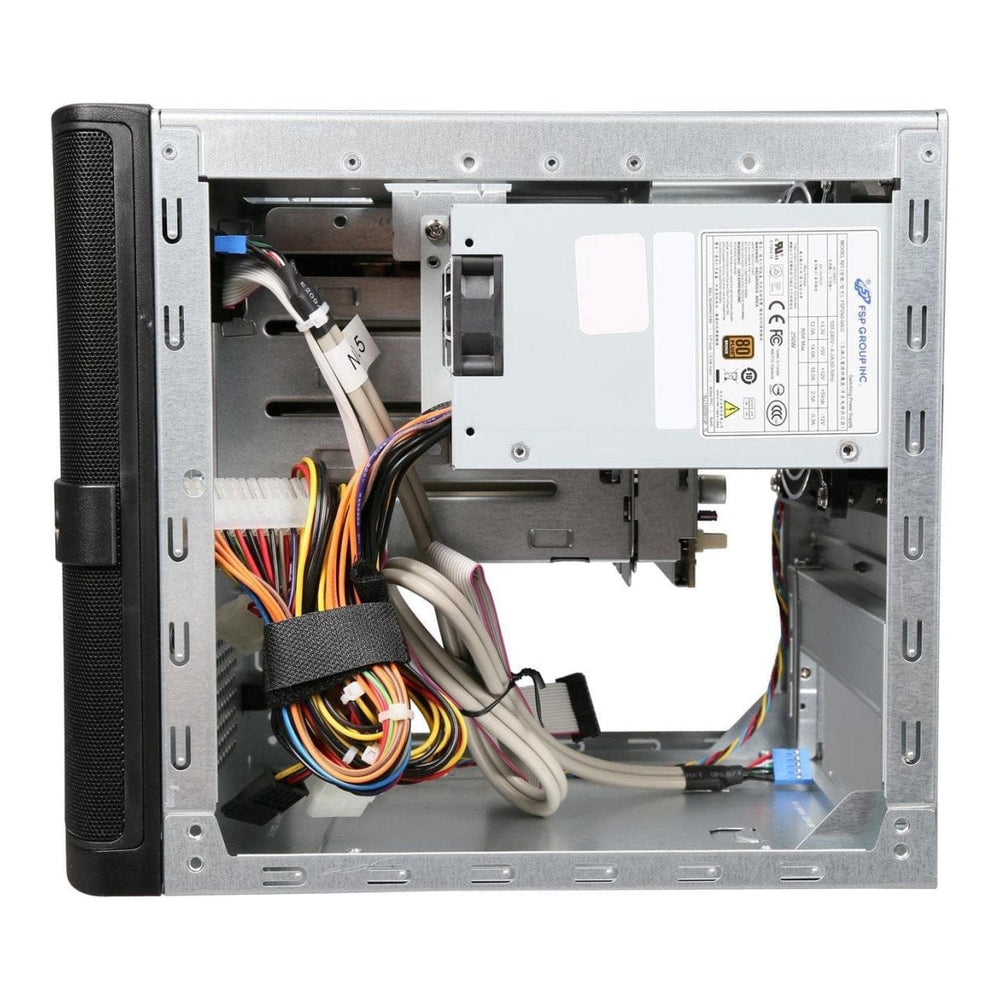

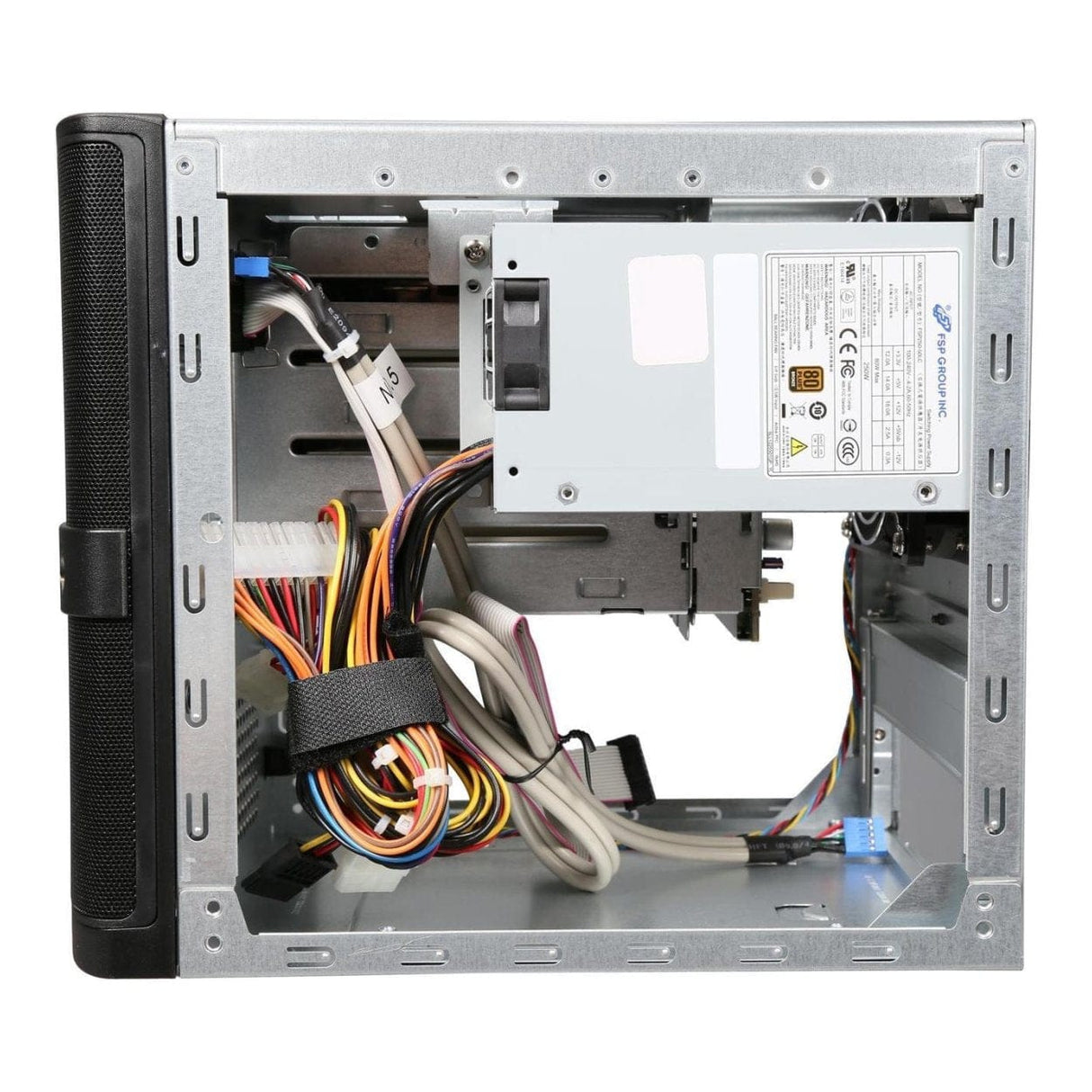

Power Supply
Model: 1U 250W Flex ATX Multi-output Bronze Power Supply, FSP FSP250-50LC
Power Efficiency: 85%
Total Output Power and Input: 250W with Input 100 – 240Vac
AC Input Frequency: 50–60Hz
Dimensions (L × W × H): 150 × 81.5 × 40.5 mm
Output Type: 24-pin ATX
-12V: Max 0.3A / Min 0A
+12V: Max 18A / Min 1A (100Vac – 240Vac)
+5V: Max 14A / Min 0.5A
+3.3V: Max 12A / Min 0.3A
+5Vsb: Max 2.5A / Min 0A
