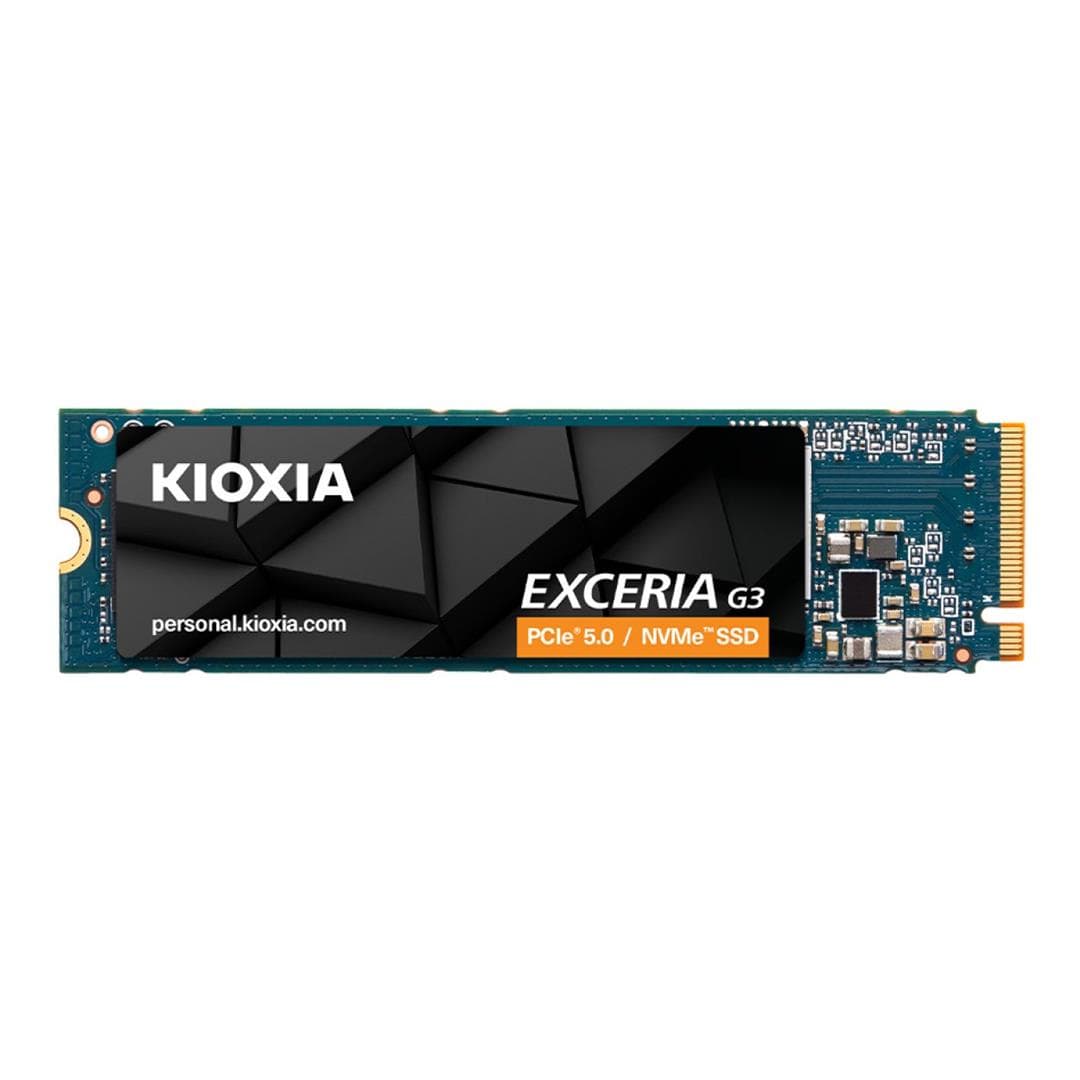

Kioxia Exceria G3 1TB M.2 PCIe 5.0 NVMe BiCS FLASH TLC Internal SSD LVC10Z001TG8

Kioxia Exceria G3 1TB M.2 PCIe 5.0 NVMe BiCS FLASH TLC Internal SSD LVC10Z001TG8

Take your first step into PCIe® 5.0 Performance. The KIOXIA EXCERIA G3 SSD Series, an entry-level model supporting PCIe® 5.0, takes performance to the next level with up to 10,000 MB/s of sequential read speed*1, not only accelerating everyday PC tasks, but also supporting AI applications and helping build a comfortable gaming environment. Leveraging BiCS FLASH™ 3D flash memory, this updated SSD series now offers up to 2TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.

Features:

• BiCS FLASH™
• NVMe™ 2.0c Technology
• M.2 2280 Form Factor
• PCIe^® Gen5 x4
• SSD Utility Management Software

First Step into PCIe® 5.0 Performance

Featuring the latest and greatest PCIe® 5.0 interface, the EXCERIA G3 SSD series delivers excellent transfer speeds of up to 10,000 MB/s for sequential reads and 9,600 MB/s for sequential writes. Whether you are loading the latest game or editing the video, this new series is the ideal choice for anyone looking to experience PCIe® 5.0 performance.

Advanced Heat Dissipation

EXCERIA G3 SSDs feature innovative product labels to enhance heat dissipation for advanced performance stability.

NVMe™ Technology

Utilizing the NVMe™ 2.0c technology, EXCERIA G3 SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.

Cutting-Edge 3D Flash Memory

Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.

SSD Utility Management Software

The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!

We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.

Technical Specifications:

Capacity
1TB

Form Factor
M.2 Type 2280-S3-M

Interface
PCI Express® Base Specification Revision 5.0 (PCIe®)

Interface Protocol
NVM Express™ Base Specification 2.0c

Flash Memory Type
BiCS FLASH™ QLC

Interface Maximum Speed
128 GT/s (PCIe® Gen5 x4)

Dimensions (Max. L x W x H)
80.15 x 22.15 x 2.38 mm

Weight
1TB: 5.7 g (typ.)

Performance

Max Sequential Read Speed
Up to 10,000 MB/s

Max Sequential Write Speed
1TB: Up to 8,900 MB/s

Max Random Read Speed
1TB: Up to 1,300,000 IOPS

Max Random Write Speed
Up to 1,450,000 IOPS

Endurance (TBW)
1TB: 600 TB

MTTF
1.5 million hours

Operating Environment & Protection

Operating Temperature
0 ℃ (Ta) to 85 ℃ (Tc)

Storage Temperature
-40 ℃ to 85 ℃

Shock Resistance
9.806 km/s² (1,000 G), 0.5 ms half sine wave

Vibration
25.4 mm peak-to-peak (10Hz to 20Hz)
20G peak (20Hz to 2000Hz)
(20 min/axis) x 3 axes

Supply Voltage
3.3 V ±5%

Power Consumption (Low Power States)
PS3: 50 mW (typ.)
PS4: 5 mW (typ.)

Power Consumption (Active)
1TB: 5.5 W (typ.)

Certification
RoHS compliant

Compatibility

Connector Type
M.2 M Key Socket

Target Applications
Client desktops and laptops

Additional Features

Performance Optimization
TRIM
Idle Time Garbage Collection
Host Memory Buffer

Warranty & Support
Up to 5-year manufacturer’s warranty
