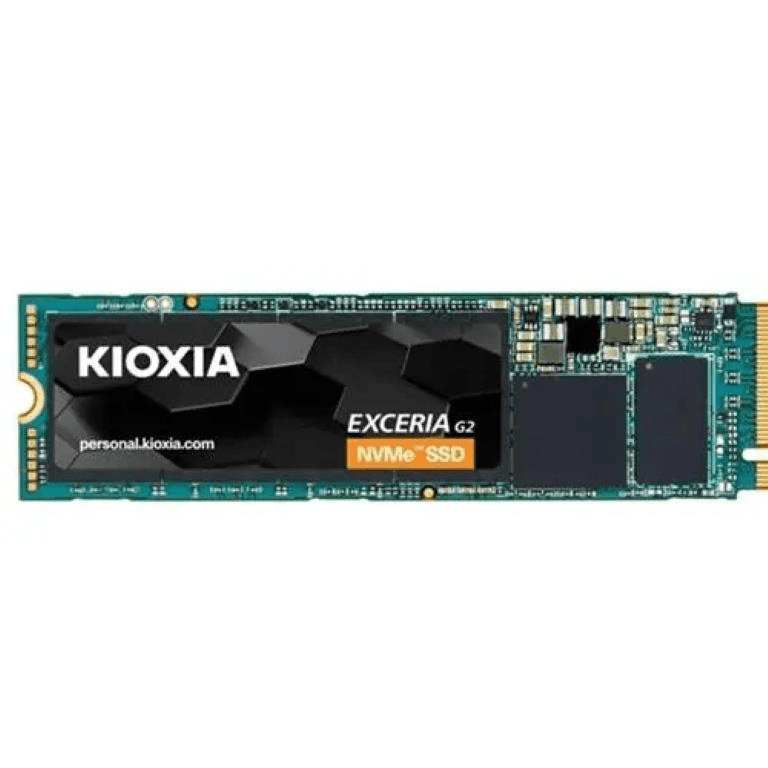

Kioxia Exceria G2 1TB M.2 PCIe NVMe Internal SSD LRC20Z001TG8

Kioxia Exceria G2 1TB M.2 PCIe NVMe Internal SSD

The new 2nd generation KIOXIA EXCERIA G2 SSD Series takes performance to the next level with up to 2, 100 MB/s of sequential read speed*1, enabling faster boot-ups, file transfers and system responsiveness. Leveraging BiCS FLASH™ 3D flash memory, this updated mainstream-class SSD series now offers up to 2TB of capacity in an M.2 2280 form factor suitable for both desktops and notebooks.

Small and Compact for an Easy Upgrade

The EXCERIA G2 SSD series offers a compact and hassle-free solution for system upgrades. With its slender, single-sided M.2 2280 form factor, these SSDs effortlessly plug directly into your motherboard. This design not only reduces additional cable clutter but also provides a sleek and streamlined look for your system. Whether you’re upgrading your desktop or laptop, the EXCERIA G2 SSD makes the process easy and efficient.

NVMe™ Technology

It’s time to leave behind the limitations of interfaces originally designed for hard drives. The EXCERIA G2 SSD series leverages the cutting-edge NVMe™ 1.3c technology. This technology significantly reduces latency in your system’s I/O path, creating a seamless and highly responsive computing experience. With this SSD, your data transfers and system performance will be smoother than ever, making multitasking and demanding tasks a breeze.

Cutting-Edge 3D Flash Memory

At the heart of every EXCERIA SSD lies the innovative BiCS FLASH™ and a vertically stacked cell structure. This combination delivers an unparalleled storage experience. The use of advanced flash memory technology ensures that your data is not only stored securely but also retrieved with lightning-fast speed. Whether you’re a gamer, creative professional, or everyday user, the EXCERIA SSD’s cutting-edge memory technology is here to enhance your computing journey.

Specifications:

Product code: LRC20Z001TG8

Description: Kioxia Exceria 1TB M.2 PCIe NVMe SSD

Capacity: 1TB

Form Factor: M.2 Type 2280-S2-M

Interface: PCI Express® Base Specification Revision 3.1a (PCIe®)

Flash Memory type: BiCS FLASH™ TLC

Interface Maximum Speed: 32 GT/s (PCIe® Gen3x4)

Dimension (Max: LxWxH): 80.15 x 22.15 x 2.23 mm

Interface Command: NVM Express™ Revision 1.3c command set

Weight: 1TB: 6.8 g (typ.)

Max Sequential Read Speed*1: 2, 100 MB/s

Max Sequential Write Speed*1: 1, 700 MB/s

Max Random Read Speed*2: 1TB: 400, 000 IOPS

Max Random Write Speed*2: 400, 000 IOPS

Endurance: TBW*3: 1TB: 400 TB

MTTF: 1.5 million hours

Operating Temperature: 0 ℃ (Ta) to 85 ℃ (Tc)

Storage Temperature: -40 ℃ to 85 ℃

Shock Resistance: 9.806 km/s2 {1, 000 G} 0.5 ms half-sine wave

Vibration: 196 m/s2 {20 G} Peak, 10~2, 000 Hz, (20 min / Axis) x 3 Axis

Supply Voltage: 3.3 V ±5 %

Power Consumption (Active): 1TB: 3.5 W (typ.)
