Step Up to 40Gbps Thunderbolt 3

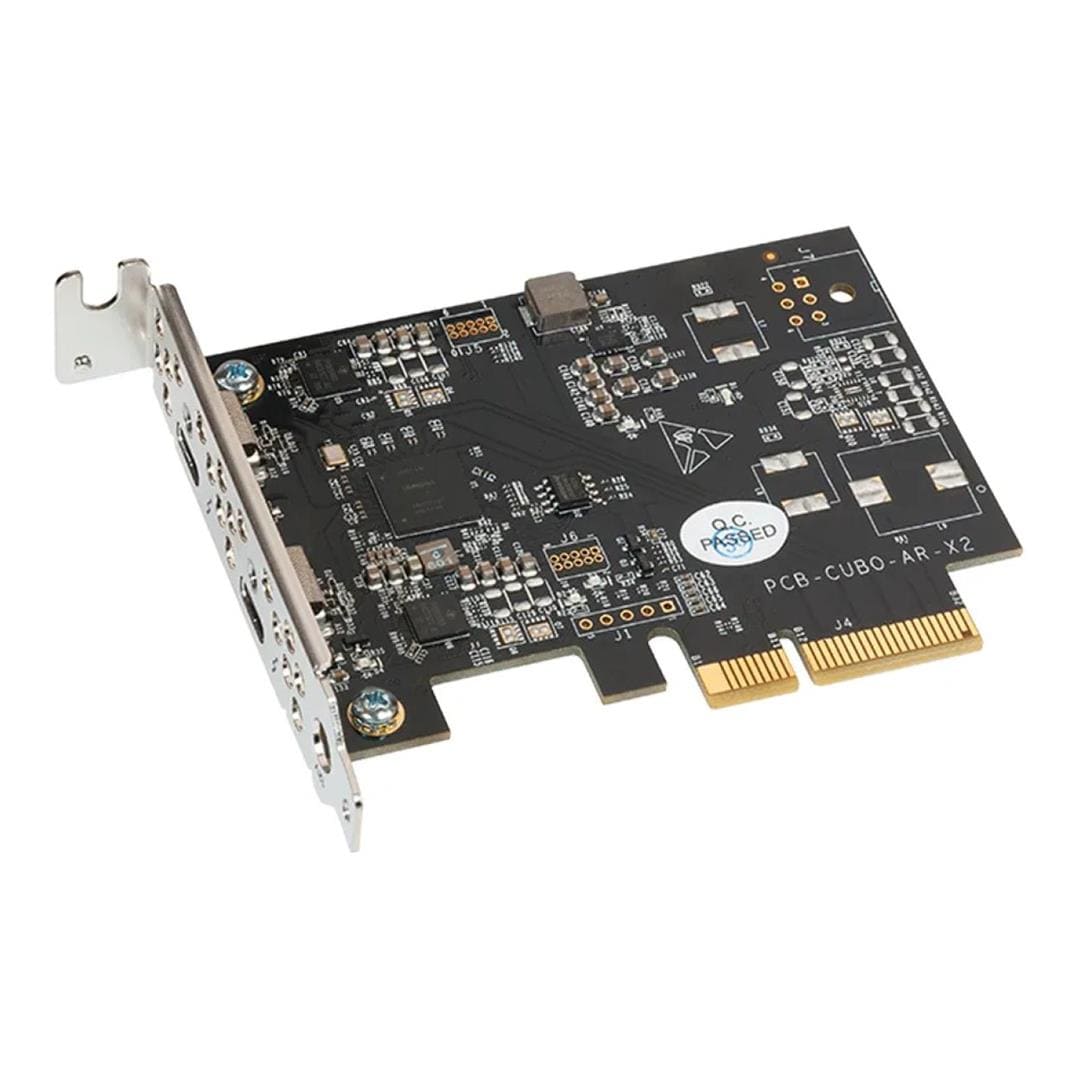

Thunderbolt 3 Upgrade Card for Echo Express SEL (Thunderbolt 2 Edition) and SEL-Based Thunderbolt 2 Adapters

Thunderbolt 3 Upgrade Card IconSonnet designed Echo™ Express and xMac™ mini Server Thunderbolt 2 to PCIe card expansion systems (plus select Thunderbolt 2 adapters) to be easily upgraded to 40Gbps Thunderbolt 3. Simply replace the existing Thunderbolt interface board with the upgrade board, and then your chassis will instantly support higher performance, and connect to your Thunderbolt 3 equipped computer without needing an adapter.

Increased Bandwidth, Better Performance
With a Thunderbolt 3 interface card installed, your upgraded Sonnet Thunderbolt 2 system gains from 30% to 100% more bandwidth for the installed PCIe cards over the original system (see performance Tab for details). Installed in an upgraded system, PCIe cards with high bandwidth requirements, such as 16Gb Fibre Channel and 4K Video I/O cards supporting high frame rates, will be able to perform even better than before

Upgrade Instead of Adapting
Why adapt when upgrading offers more? With the Sonnet Thunderbolt 3 upgrade installed you get:

Thunderbolt 3 Bandwidth IconIncreased Bandwidth
The Thunderbolt 3 upgrade card provides increased bandwidth of 40Gbps with an adapter you are limited to Thunderbolt 2’s 20Gbps bandwidth. Thunderbolt 3 Daisy Chaining IconOptimal Thunderbolt 3 Daisy Chaining The upgrade card supports additional Thunderbolt 3 peripheral devices in the Thunderbolt chain with 40Gbps bandwidth. When using an adapter, all downstream peripherals in the Thunderbolt chain can only be Thunderbolt or Thunderbolt 2 devices.

Connect USB Devices, or Displays
Sonnet's Thunderbolt 3 upgrade cards also provide 10Gbps USB 3.1 Gen 2 support, meaning you can connect a USB device to the second port using the proper cable or adapter; they also provide full support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz.

ThunderLok™ 3-Compatible
Sonnet’s Thunderbolt 3 upgrade cards support the ThunderLok 3 Thunderbolt connector retainer clip. The ThunderLok 3 (included with xMac mini Server kit; otherwise sold separately) secures the Thunderbolt cable (included with xMac mini Server Kit; otherwise sold separately) to the chassis, and is easy to install and use just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok 3 remains on the cable so it won’t get lost when not in use.

Easy to Install 40Gpbs Thunderbolt 3

Upgrade Card Replaces existing 20Gbps Thunderbolt interface board in your Thunderbolt 2 to PCIe card expansion system

Improved Performance with High-Bandwidth

PCIe Cards Your upgraded expansion system will provide from 30% to 100% more bandwidth for installed PCIe cards

Two Thunderbolt 3 Ports

One port reserved for connection to the computer; second port supports daisy-chaining of up to five additional Thunderbolt devices, attaching a single USB peripheral device, or connecting up to two 4K displays or one 5K display

ThunderLok 3-Compatible

Thunderbolt connector retainer clip secures cable from accidental disconnections

Specifications

Box Contents

• Thunderbolt 3 upgrade card
• Documentation
