Sonnet Echo 13 Triple 4K HDMI Ethernet Docking Station Black ECHO-DK3M-TB

Sonnet Echo 13 Triple 4K HDMI Ethernet Docking Station Black ECHO-DK3M-TB

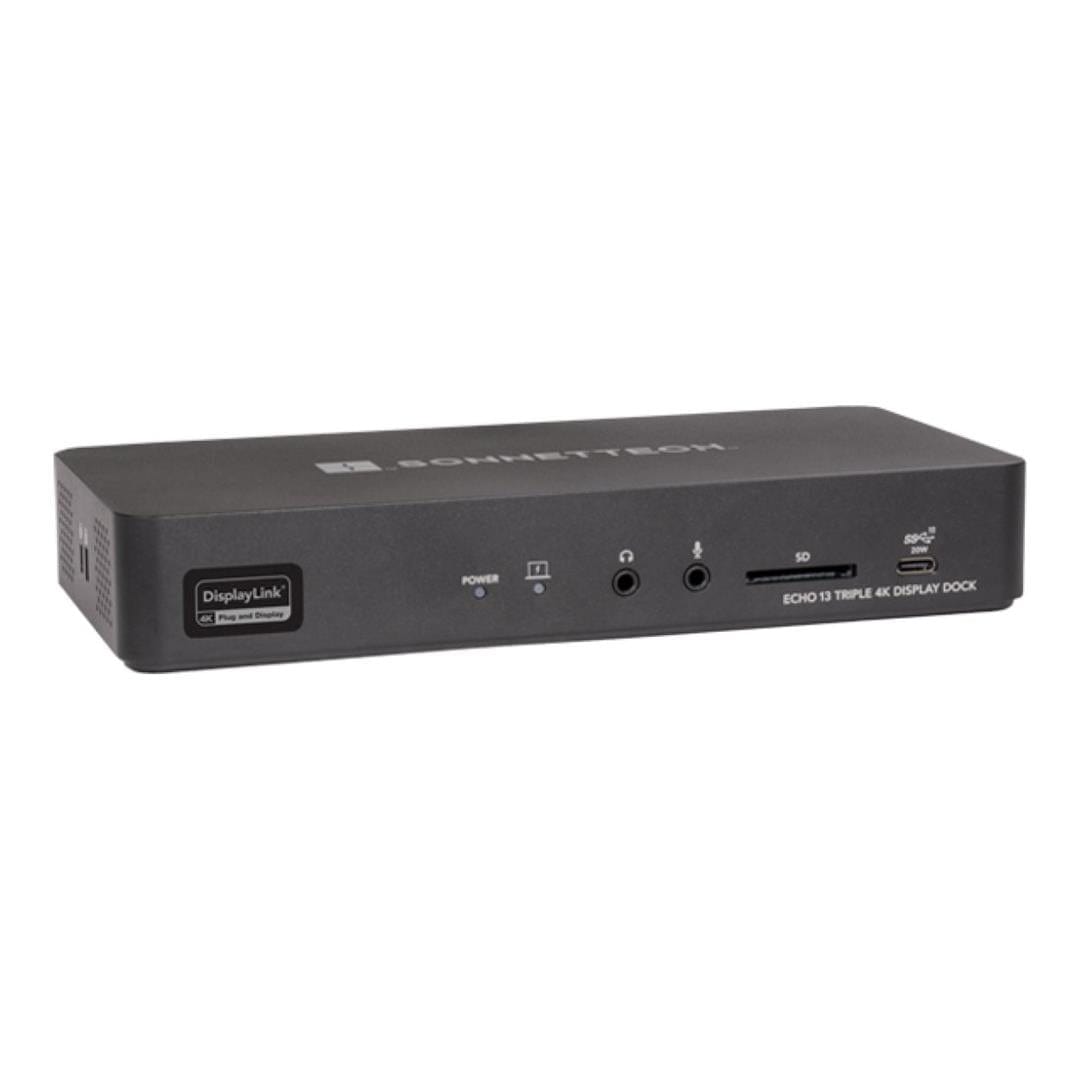

The Sonnet Echo 13 Triple 4K Display Dock is a powerful docking solution designed specifically for Thunderbolt-enabled computers. This compact and sleek device allows users to connect multiple peripherals and enjoy an exceptional display experience. With support for three 4K displays, it provides a stunning visual environment for multitasking, video editing, and graphic-intensive tasks. The dock features two Thunderbolt 4 ports for lightning-fast data transfer and charging capabilities. It also includes a variety of connectivity options, including USB-A and USB-C ports, audio in/out, and Gigabit Ethernet. The Sonnet Echo 13 Triple 4K Display Dock offers a seamless and efficient solution for Thunderbolt computer users seeking enhanced productivity and visual clarity.

One Cable Peripheral Connection
Instant access plug three displays and other peripherals into the Echo dock and connect your computer to the dock with the included 100W-rated USB-C cable.

Connect Three 4K @60Hz Displays
Supports three DP or HDMI displays (or a mix).

10Gbps USB Type-C 20W Charging Port
Front panel USB 3.2 Gen 2 USB-C port supports the USB Type-C Charging spec and can provide 20W of power, supporting super-fast device charging, bus-powered 10Gbps USB 3 hubs, and Gen 2 USB NVMe SSDs at full speed.

5Gbps USB Type A Ports
Four USB 3.2 Gen 1 USB-A ports support a wide variety of peripherals and can provide 7.5W of power each.

Charge Your Laptop
Can provide 100W of Power Delivery through the included USB-C cable to power and charge your laptop.

Fast UHS-II SD Card Slot
Compatible with SD™, SDHC™, and SDXC™ memory cards; supports 320 MB/s read speeds with UHS-II SDXC cards. Also supports microSD™ cards when used with adapter.

Apple M Series and Intel Compatible
Supports all M series and Thunderbolt 3 Intel Macs.

Windows Compatible
Supports Windows computers with Thunderbolt, USB-C (with Alt Mode DP), or USB4 ports.

Chromebook Compatible
Supports Chromebook computers with Thunderbolt, USB-C (with Alt Mode DP), or USB4 ports.

Specifications

External Connectors

• USB 3.2 Gen 2 (10Gbps) Type-C 100W computer interface/charging port
• USB 3.2 Gen 2 (10Gbps) Type-C 20W charging port
• Three HDMI 2.0 ports (two using DisplayLink software)
• Three DisplayPort 1.2 ports (two using DisplayLink software)
• Four USB 3.2 Gen1 (5Gbps) Type A ports
• RJ45 Gigabit Ethernet port
• 3.5 mm stereo headphones jack
• 3.5 mm mono microphone jack
• Fast UHS-II SD card slot
• Power connector

USB 3.2 Gen 2 Type C 20W Charging Port

Charging:

• Up to 20W
• 20W for operation or charging
• Supports simultaneous charging and syncing

USB 3.2 Gen 1 Type A Ports

RJ45 Ethernet Port

Display Connectivity

DisplayPort 1.4 Ports

• 4K @60Hz
• 1440p @60Hz
• 1080p @60Hz

HDMI 2.0 Ports

• 4K @60Hz
• 1440p @60Hz
• 1080p @60Hz

Box Contents

• 1x Echo 13 Triple 4K Display Dock
• 1x Power adaper
• 1x Power cord
• 1x 1-meter USB 3.2 Gen 2 100W USB-C cable
• Documentation
