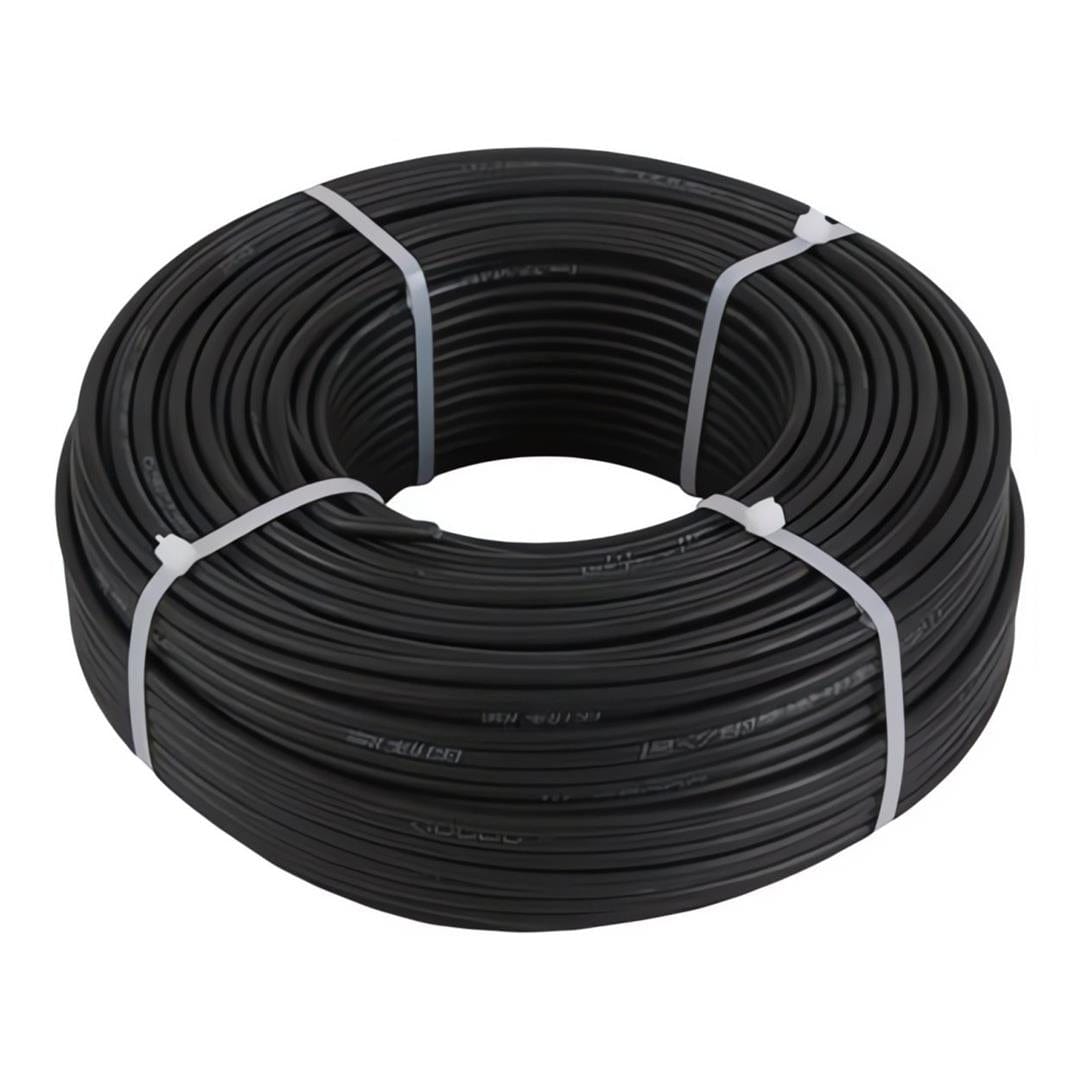

Solarix 6mm Single Core Solar Photovoltaic PV Cable Black 100m Roll SOLPV6MMBLACK

Solarix 6mm Single Core Solar Photovoltaic PV Cable Black 100m Roll SOLPV6MMBLACK

Solarix 6mm Single Core Solar Photovoltaic PV Cable Black 100 Metre Roll- Designed For Use To Provide Optimal Cable Connection Between Solar Panel Cells And AC/DC Inverter Or The Mains DC Cable, Flexible Tinned Copper Conductor With Halogen Free Cross-Linked Compound Insulation And Sheath, AC Voltage Rating 600/1000VAC ,DC Voltage Rating 800/1500VDC, TUV 2-fG-1169 Compliant, Sold As 100mtres Per Roll, Colour Black , Retail Box, No warranty

Product Overview

The Solarix 6mm Single Core Solar Photovoltaic PV Cable Black 100 Metre Roll is designed for the interconnection of various elements of photovoltaic systems and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800VDC. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems High resistance against ozone, U.V. rays, oils and moisture. and also for connection to the AC/DC inverter. Suitable for use at an ambient temperature up to 90°C (120°C overload) and tested according to TUV-Rheinland 2PFG 1169 Standard. The estimated lifetime of these cables is at least 15 years.

Specifications

Stock Code: SOLPV6MMBLACK

Description: Solarix 6mm Single Core Solar Photovoltaic PV Cable Black 100 Metre Roll

Inner Conductor: Flexible Tinned Copper Wire

Photovoltaic Power Cables, Halogen Free, Flame Retardant and High Temperature Resistance

Used As Photovoltaic Cable Between Solar Modules And AC/DC Inverters

Photovoltaic System With A Rated Value: U0 = 1.5k VDC

Maximum Permitted Voltage: U0 = 1800VDC

Test Voltage: 6.5 kV AC 50 Hz

Cross Sectional Area: 6mm²

Rated Current: 70 A

Dielectric: LSZH Halogen Free Copolymer

Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)

Max Voltage: 1.2kV AC (1.8kV DC)

Bending Radius: 4x Diameter Of Cable

Storage/Operating Temperature: -40°C to +90°C*

Minimum Installation Temperature: -5°C

TUV-Rheinland 2PfG 1169 Standard

Colour: Black
