Shuttle XPC X50V8 15.6-inch HD Intel Celeron 5205U All-in-One Barebone PC

Shuttle XPC X50V8 15.6-inch HD Intel Celeron 5205U All-in-One Barebone PC

Key Features

• Intel Celeron 5205U processor
• Resistive 15.6" (39.6 cm) touch screen (1366×768)
• IP54 Compliant Front Panel
• Up to 64GB of DDR4 memory
• HDMI 1.4b and VGA for two external displays
• Space for 2.5" drive and M.2 SSD (NVMe)
• Internal USB socket for add-ons (dongle, 4G module not included)
• Gigabit Ethernet, WLAN (ac) and Bluetooth
• 6× USB external, 1× USB internal, COM/LPT/DIO ports (optional, not included)
• Integrated speaker, 2MP camera and microphone
• Fanless Passive Heatpipe Cooling
• SD Card Reader
• Flexible stand and VESA mounting option

The Shuttle XPC all-in-one X50V8 is powered by an Intel ULV processor of the 10th generation "Comet Lake". The modern processor architecture helps improve on power consumption and computing power. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 non-stop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

Features

Internal USB port

Licence dongles, 4G modems or any USB sticks can be plugged into an internal USB type A slot inside this model. In this way, they are protected against theft and manipulation.

Space for a 2.5" drive

As a complement to an NVMe SSD, this model also offers a home to classic data storage devices in 2.5" format*. Hard disks and SSDs in this format offer many terabytes of storage space.
(*Up to a height of 12.5 mm)

Flexible stand

The elegant yet solid stand can be adjusted continuously to achieve the ideal viewing angle and an ergonomic operating position. It can also be used as a carrying handle.

Add-ons via M.2 module

Two M.2 slots make it possible to add data mediums and additional modules, for example for wireless LAN or cellular modem. Thanks to the PCI Express connection, large quantities of data can be transported in a short time via the M.2 slot.

Up to 64 GB of RAM

Modern professional applications consume a particularly large amount of memory. With two slots and therefore 64 GB of RAM in total, this PC can handle any demanding task.

Two connections for external screens

Thanks to an HDMI and VGA connection, the screen area of this model can be easily expanded. A total of three screens are available; for example, for customer information and for advertising content.

• HDMI 1.4b

• VGA

100% fanless

Energy-saving technology combined with an ingenious cooling system mean no fans are required. No operating noise at all, fewer moving parts and therefore lower maintenance costs too.

How does this work?

Thanks to a simple physical principle, known as convection. Warm air rises while entraining colder air at the same time. This permanent flow passes through machines or travels along surfaces. This prevents a build-up of heat and ensures reliable cooling.

Prepared for VESA mounts

A VESA 100×100 mounting surface is hidden behind the cover of the stand. Wall mounts, movable arms and appropriately standardised mountings of all kinds can be mounted as an alternative to the stand, secured with four screws.

Reading and writing memory cards

Discreetly hidden in the front panel is an SD card reader that allows convenient handling of memory cards, such as those often found in smartphones, cameras, microcomputers or drones.

Integrated HD camera

A camera module with full HD resolution and microphone sits behind protective glass in the upper edge of the screen. It is suitable, for example, for scans, object recognition or video calls.





Anti-theft protection

The Kensington security slot on the side of the case (also called K-Slot or Kensington Lock) serves as an anti-theft device. Suitable security solutions in various designs are available from specialist dealers.

Technical Specification

Product: Shuttle XPC X50V8 All-in-One Barebone PC

Product type: All-in-One PC

Processor family: 10th Generation Intel Celeron

Processor model: 5205U

Processor frequency: 1.90 GHz (2MB Cache, 2 Cores)

NPU: Not supported

Display diagonal: 39.6 cm (15.6")

HD type: HD

Display resolution: 1366 x 768 pixels

Display: Touchscreen, Resistive

Internal memory: Not Included

Internal memory type supported: Up to 2× DDR4. Max. 64GB

Total storage capacity: Not Included

Storage media supported: 1× 2.5” Hard Drive Bay, 1× M.2-2280 M-Key

On-board graphics card model: Intel UHD Graphics

Camera: 2MP

Connectivity: Wi-Fi 5 (802.11ac) + Bluetooth 4.2

Speakers: 2× 2W

Power: 19V 3.42A, 65W AC Adapter

OS Support: Optional, Not Included

Dimensions: 391 × 327 × 42mm

Weight: 4.93 kg

Warranty: 1-year Carry-in

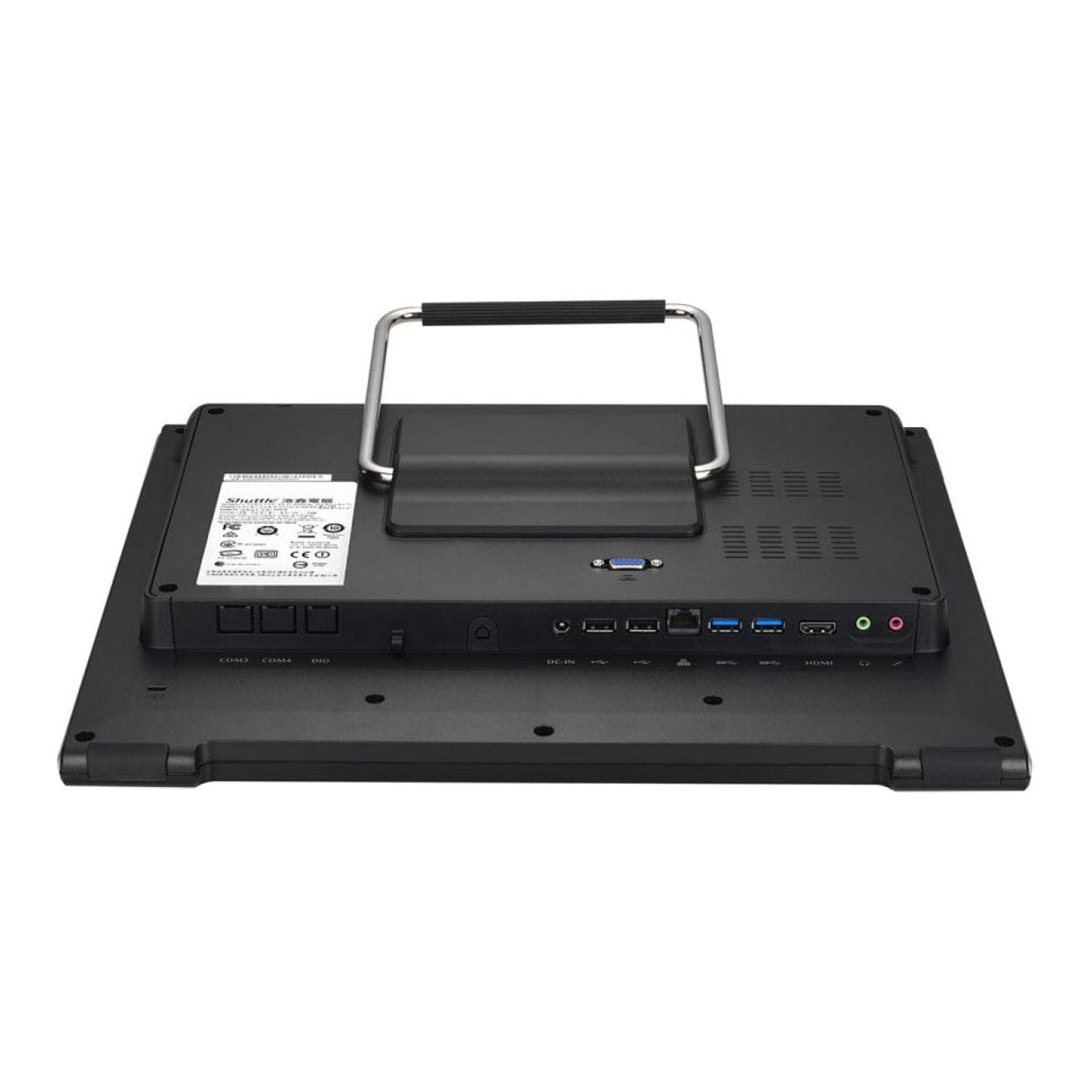

Ports and Slots

• 1x HDMI 1.4b
• 1x VGA
• 1x Gigabit LAN
• 4x USB 3.2
• 2x USB 2.0
• 1x SD Card Reader
• 1x Line-Out
• 1x Mic-In
• 1x Kensington slot
