Shuttle XPC NT10H5 Intel Core Ultra 5 125H Nano Barebone AI PC

Shuttle XPC NT10H5 Intel Core Ultra 5 125H Nano Barebone AI PC

Key Features

• Intel Core Ultra 5 Processor 125H
• Intel Arc graphics engine
• Up to 96 GB of DDR5 SO-DIMM memory
• 1× M.2-2280, 1× M.2-2230
• 2× HDMI 2.0, 2× USB4 with DisplayPort 1.4
• 5× USB 3.2 Gen 2 (10 Gbit), 1× USB 2.0
• 2× 2.5 Gbit Ethernet
• SD Card Reader
• Wall/VESA mount included

The Shuttle nano Barebone NT10H Series is designed as a compact, 1-litre nano-style mini-PC with enhanced features and efficiency for multitasking and AI workloads. Equipped with Intel® Core™ Ultra processors with integrated Intel® Arc™ graphics and AI Boost NPU, it effortlessly handles demanding graphics processing. It supports output to four 4K/UHD displays and offering comprehensive connectivity including dual USB4, dual 2.5G Intel® LAN, and PCIe 4.0 SSD slot. This powerhouse is ideal for gaming, AI inference, image processing, and multimedia content creation tasks, delivering powerful performance at an affordable price point, empowering both everyday tasks and professional projects with outstanding results.

Features

Blazing-Fast USB4 Connectivity

This Mini-PC is equipped with two USB4 ports, delivering an impressive 40 Gbit/s bandwidth for ultra-fast data transfers. These versatile ports also support UHD displays and enable fast charging for mobile devices, making them ideal for both high-performance computing and everyday convenience.

Up to 96 GB of DDR5 RAM

Modern professional applications require substantial memory resources. With two SO-DIMM slots supporting up to 96 GB of high-speed DDR5 RAM, this Mini-PC is well-equipped to handle even the most demanding tasks efficiently.

Quad 4K Display Support

This Mini-PC supports up to four high-resolution displays, offering maximum flexibility for multi-monitor setups. It features:

• 2x HDMI 2.0

• 2x USB4 Type-C with DisplayPort output

Integrated SD Card Reader for Easy Access

This Mini-PC features a conveniently positioned SD card reader on the side of the chassis, allowing quick and effortless access to external storage. Ideal for transferring media, backups, or expanding storage capacity with ease.

Dual M.2 Expansion

This Mini-PC features two M.2 slots, offering flexible expansion options for storage and connectivity. The high-speed PCIe interface ensures rapid data transfer, making it ideal for demanding applications.

• 1× M.2-2280 - Supports NVMe SSDs for ultra-fast storage
• 1× M.2-2230 - Accommodates a Wi-Fi module or other expansion cards

Two extra fast network connections

This feature is particularly interesting for vital network applications – this is because two 2.5 Gigabit Ethernet interfaces with RJ45 connectors allow physically separate networks with impressive bandwidth.

Built-in Anti-Theft Protection

This Mini-PC features a Kensington security slot (K-Slot), providing an effective anti-theft solution. Compatible security locks are widely available from specialist retailers, ensuring enhanced protection in various environments.

Technical Specification

Product: Shuttle XPC NT10H5 Nano Barebone AI PC

Product type: Barebone PC

Processor family: Series 1 Intel Core Ultra 5

Processor model: 125H

Processor frequency: 0.70 / 4.50 GHz (18MB Cache, 14 Cores)

NPU: Intel AI Boost, up to 11 TOPS

Internal memory: Optional, Not Included

Internal memory type supported: Up to 2× DDR5 Max. 96GB

Total storage capacity: Optional, Not Included

Storage media supported

• M.2-2280M slot for SSD cards in M.2 form factor
• Supports PCIe Gen4 x4 with NVMe (no SATA)
• Supports M.2 cards with a width of 22 mm and a length of 80 mm
• Supports M.2 cards with M key or B+M key

On-board graphics card model: Intel Arc Graphics

Connectivity: Optional, Not Included

Connectivity supported: M.2-2230E slot supports WLAN expansion cards

VESA mount:  75 x 75mm and 100 x 100mm standard

Power: 19V 6.32A, 120W AC Adapter

OS Support: Optional, Not Included

• Windows 11 64-bit
• Linux 64-bit

Dimensions: 132 × 143 × 55mm (57.8mm Including Rubber Feet)

Chassis: Black Plastic

Weight: 0.80 kg

Warranty: 1-year Carry-in

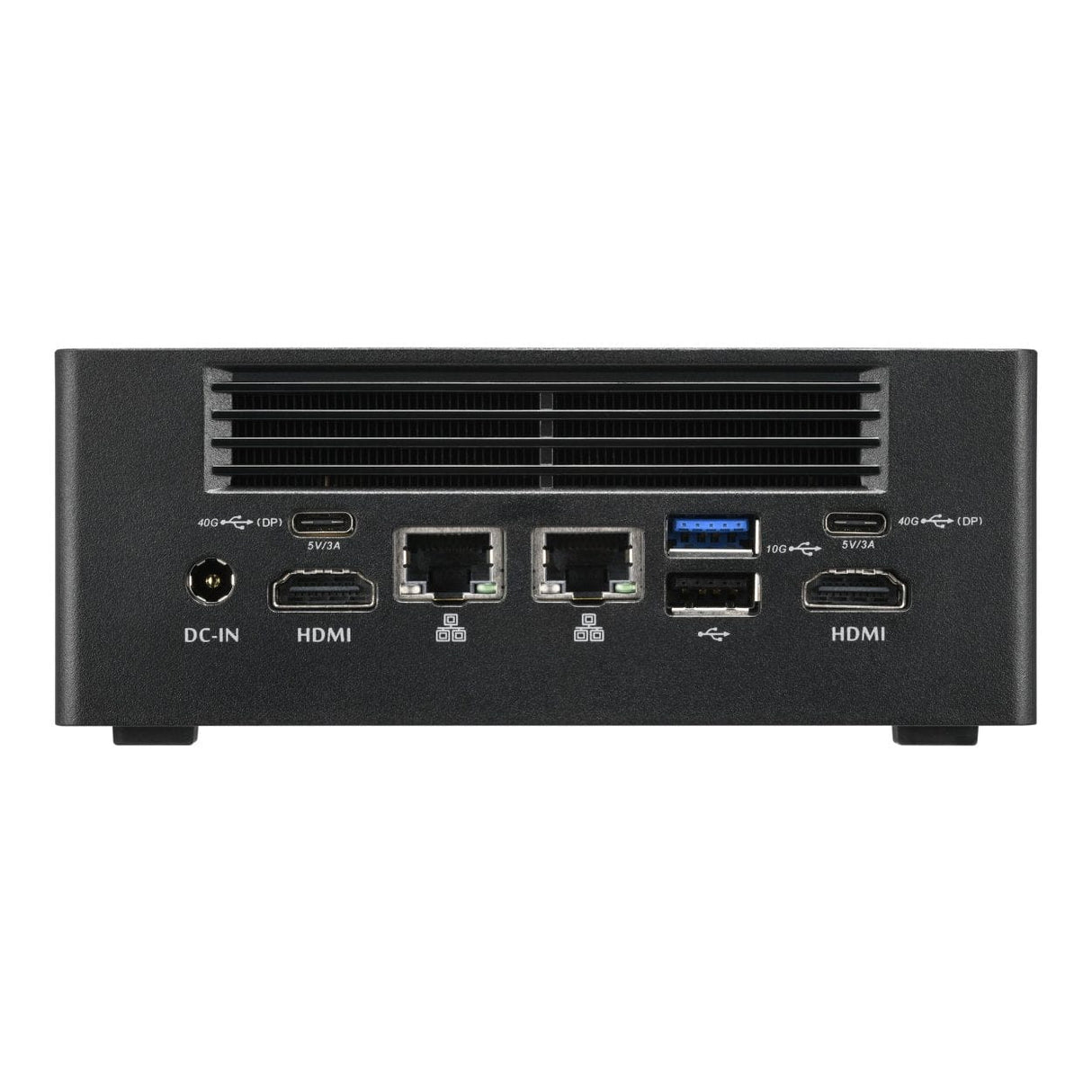

Ports and Slots

• 1x 3.5 mm / 4-pole Combo Audio port
• 1x Power button with Power LED (blue)
• 4x USB 3.2 Gen 2 Type-A (max. 10 Gbps)
• SD Card Reader
• 2x HDMI 2.0
• 2x USB4 Type-C (max. 40 Gbps) with DisplayPort function (DP 1.4) and Power Delivery (PD max. 5V / 3A)
• 1x USB 3.2 Gen 2 Type A (max. 10 GBit/s)
• 1x USB 2.0
• 2x 2.5G LAN
• 1x Kensington Lock slot
