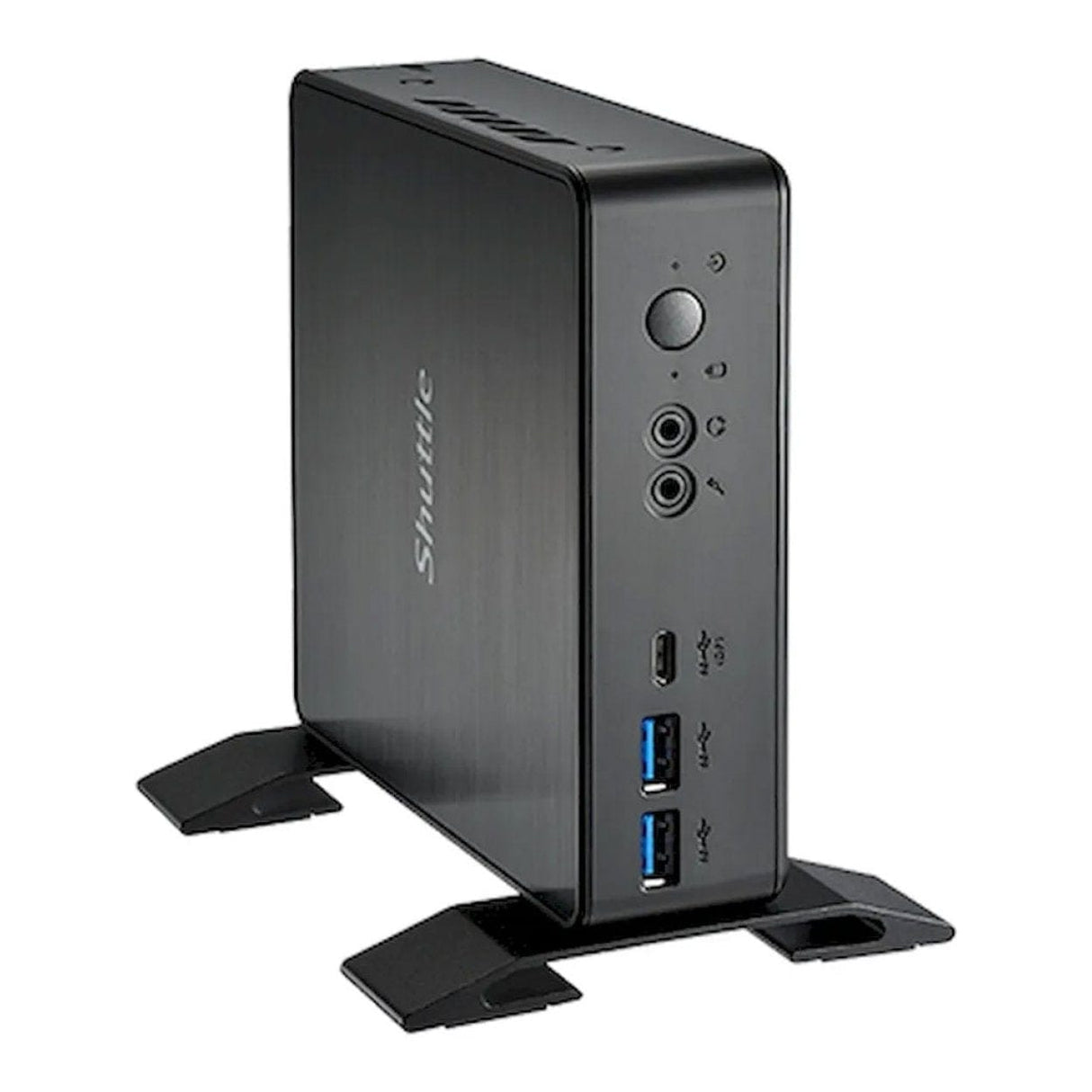

Shuttle XPC NC40U7 Intel Core i7-1255U Nano Barebone PC

Shuttle XPC NC40U7 Intel Core i7-1255U Nano Barebone PC

Key Features

• Intel UHD Graphics for 12th Gen Intel Processors
• Up to 64GB of DDR4 SO-DIMM memory
• 2× NVMe (RAID support), 1× SATA 2.5"
• 1× HDMI 2.0b, 1× DisplayPort 1.4a
• 2× M.2-2280, 1× M.2-2230
• Gigabit Ethernet
• 2× USB3.2 Gen2 (10Gbps), 4× USB3.2 Gen1 (5Gbps), 1× USB3.2 Gen1 (5Gbps) Type-C
• Always-On Jumper
• Wall/VESA Mount Included

Multi-Tasking and Superior Performance for Your Business Needs

Shuttle’s XPC nano NC40U series houses the performance hybrid architecture of Intel 12th Gen Alder Lake-U platform, capable of multi-tasking and parallelism and with Intel Iris Xe graphics for powering AI workloads, including taking the graphics and multimedia processing to a new level. Despite its 0.85l palm-size design, it can accommodate one 2.5" hard disk (up to 15mm) and enable additional M.2 SSDs or NVMe SSD installation for flexible storage capacity. Combined with rich I/Os such as USB3.2 Gen2, USB3.2 Gen1 and Intel Gigabit LAN, supporting triple display by the HDMI, DisplayPort and Type-C that increase the functionality to adapt to various business computing to suit digital signage, kiosk, edge computing and video conferencing.

Features

Three expansion options via M.2 module

Three M.2 slots enable expansion with several data carriers and additional modules, for example for WLAN or mobile radio. Thanks to the fast PCI Express connection, high data volumes can be transported in a short time via the M.2 slot.

• 2× M.2-2280 for two NVMe SSDs
• M.2-2230 for a Wi-Fi module or similar

Three 4K-capable monitor connections

Various graphics outputs with ultra-high resolution digital signals, offer flexibility in the choice of displays and enable multi-monitoring. This model has one HDMI 2.0, one DisplayPort and one USB-C port that can be used simultaneously.

• USB Type-C

• HDMI 2.0

• DisplayPort

Up to 64 GB of RAM

Modern professional applications consume a particularly large amount of memory. With two slots and therefore 64 GB of RAM in total, this Mini-PC can handle any demanding task.

Space for a 2.5" drive

As a complement to an NVMe SSD, this model also offers a home to classic data storage devices in 2.5" format*. Hard disks and SSDs in this format offer many terabytes of storage space.
(*Up to a height of 12.5 mm)

Technical Specification

Product: Shuttle XPC NC40U7 Nano Barebone PC

Product type: Barebone PC

Processor family: 12th Generation Intel Core i7

Processor model: i7-1255U

Processor frequency: 3.50 / 4.70 GHz (12MB Cache, 10 Cores)

NPU: Not Supported

Internal memory: Optional, Not Included

Internal memory type supported: Up to 2× DDR4 SO-DIMM Max. 64GB

Total storage capacity: Optional, Not Included

Storage media supported

• 1× 2.5" HDD/SSD (max. 15 mm)
• 2x M.2-2280M slot for SSD cards in M.2 form factor:
  1) M.2-2280M slot supports PCIe Gen4 x4 (from the top)
  2) M.2-2280M slot supports PCIe Gen3 x4 and SATA v3.0 (from the bottom)
  It supports M.2 cards with a width of 22 mm and a length of 80 mm.
  Supports M.2 cards with M key or B+M key.

On-board graphics card model: Intel UHD Graphics

Connectivity: Optional, Not Included

Connectivity supported: M.2-2230E slot supports WLAN expansion cards

Power: 19V 3.42A 65W External Adapter

Cooling System: Smart Fan

OS Support: Optional, Not Included

• Windows 10 / 11 64bit, Linux

VESA Mount: Bracket included

Stand: Bracket included

Dimension (L × W × H): 142 × 142 × 42mm

Weight: 0.40 kg

Warranty: 1-year Carry-in

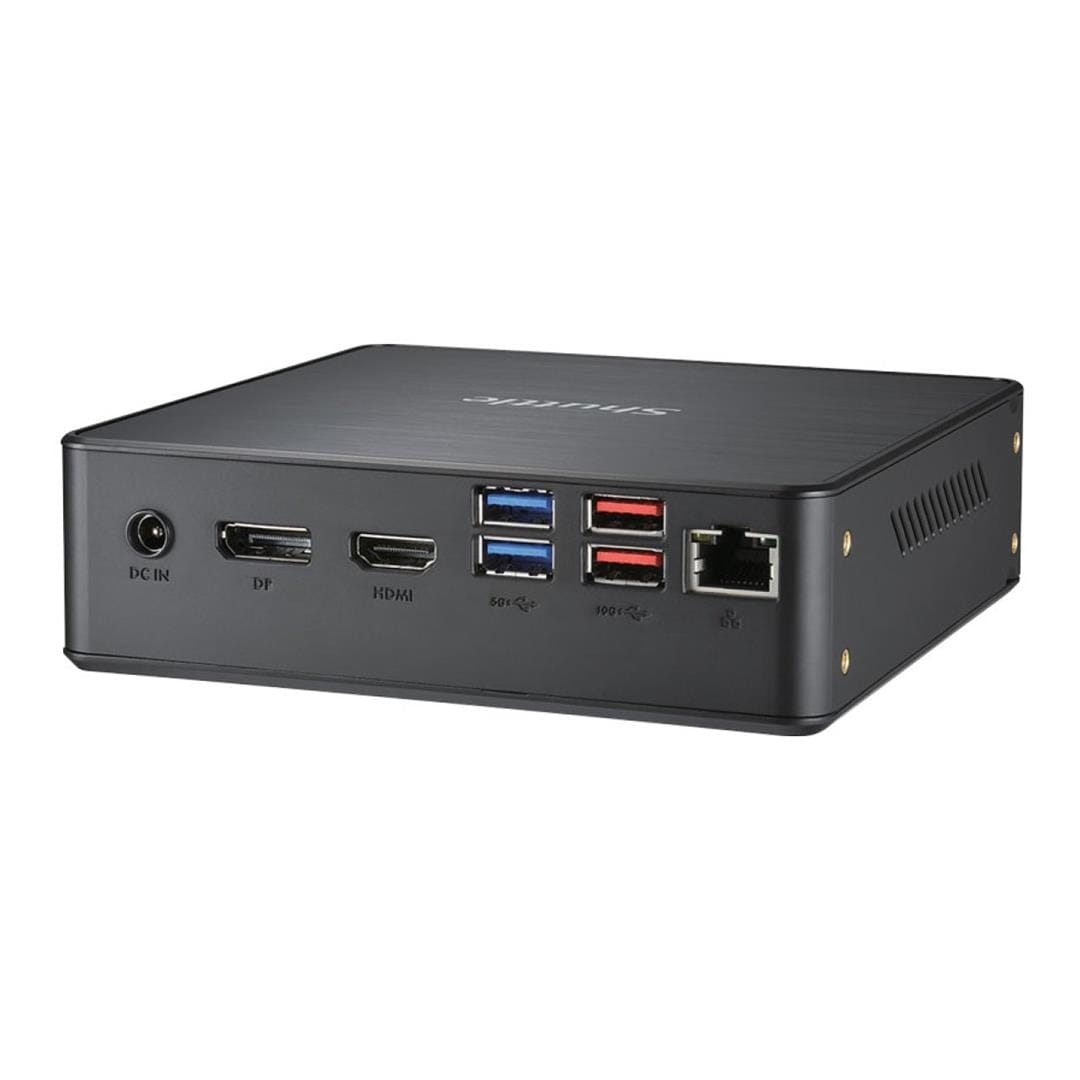

Ports and Slots

• 1x DisplayPort 1.4a
• 1x HDMI 2.0b
• 2x USB 3.2 Gen 2 Type A (max. 10 GBps, red)
• 2x USB 3.2 Gen 1 Type A (max. 5 GBps, blue)
• 1x Gigabit LAN
• 1x USB-C (supports DisplayPort 1.4a and USB 3.2 Gen 1 at max. 5 GBit/s)
• 2x USB 3.2 Gen 1 Type A (max. 5 GBit/s, blue)
• 1x Audio line-out / headphones (3.5 mm jack plug)
• 1x Microphone input (3.5 mm jack plug)
• 1x Kensington Lock slot
