Shuttle XPC DS50U3 Intel Core i3-1315U Fanless Slim Barebone PC

Shuttle XPC DS50U3 Intel Core i3-1315U Fanless Slim Barebone PC

Key Features

• Equipped with Intel Core i3-1315U Processor (Gen 13)
• Up to 96 GB DDR5 memory
• 1× 2.5 Gbit + 1× Gigabit Ethernet
• Three M.2 slots (2× M.2-2280, 1× M.2-2230)
• 2× USB 3.2 (10 Gbit), 4× USB 3.2 (5 Gbit), 2× USB 2.0, 1× COM
• 1× HDMI 2.0b, 1× DisplayPort 1.4, 1× VGA
• Space for 1× 2.5" HDD/SSD and 2× M.2 SSD
• External antenna connections for optimum Wi-Fi reception
• Suitable for 12 or 19 V DC

The DS50U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel Gen 12/13 processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two DDR5 memory modules, one 2.5" drive and two M.2-2280 SSD cards.

Optionally, an 4G/5G module can be fitted in the second M.2 slot using the optional WWN04 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS50U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Features

100% fanless

Energy-saving technology combined with an ingenious cooling system mean no fans are required. No operating noise at all, fewer moving parts and therefore lower maintenance costs too.

Wired remote starting

This model features a remote power-on connection. Any two-pin cable can be used to connect dedicated buttons via pins on the back and they then allow the machine to be started remotely.

Two network connections

This feature is particularly beneficial for vital network applications. It includes a 2.5 Gbit/s Ethernet connection and an additional gigabit connection, enabling physically separate networks and providing ample bandwidth overall.

Space for a 2.5" drive

As a complement to an NVMe SSD, this model also offers a home to classic data storage devices in 2.5" format*. Hard disks and SSDs in this format offer many terabytes of storage space.

• (Up to a height of 9.5 mm*)

Up to 96 GB of DDR5 RAM

Modern professional applications consume a particularly large amount of memory. With up to 96 GB of RAM, this mini PC can handle any demanding task.

Add-ons via M.2 module

Three M.2 slots enable expansion with storage media and additional modules, such as for Wi-Fi or 5G. Thanks to the PCI Express connection, large amounts of data can be transported quickly via the M.2 slot.

• 2× M.2-2280 for M.2-SSDs
• 1× M.2-2230 for a Wi-Fi module or similar

Serial port

The classic among the interfaces. COM ports are still needed for professional applications, for example in cash register systems and in products from the fields of science and industry.

Great flexibility in the choice of screens

Three different graphics outputs, with both digital and analogue signals, offer great flexibility in the choice of display. This model has an HDMI 2.0, DisplayPort and VGA connection.

• HDMI 2.0b

• DisplayPort 1.4

• VGA

Anti-theft protection

The Kensington security slot on the side of the case (also called K-Slot or Kensington Lock) serves as an anti-theft device. Suitable security solutions in various designs are available from specialist dealers.

External antenna connections

Two RP-SMA antenna connections are pre-installed on the rear of the device. Internal WLAN modules can be connected quickly thanks to the MHF IV cables already in the housing.

Technical Specification

Product: Shuttle XPC DS50U3 Fanless Slim PC

Product type: Barebone PC

Processor family: 13th Generation Intel Core i3

Processor model: i3-1315U

Processor frequency: 3.30 / 4.50 GHz (10MB Cache, 6 Cores)

NPU: Not Supported

Internal memory: Optional, Not Included

Internal memory type supported: Up to 2× DDR5 SO-DIMM Max. 96GB

Total storage capacity: Optional, Not Included

Storage media supported

• 1× 2.5" HDD/SSD (max. 9.5 mm)
• 2x M.2-2280M Key-M slot for SSD cards in M.2 form factor:
  - it supports M.2 cards with a width of 22 mm and a length of 80 mm (type 2280)
  - one M.2 SSD card with PCIe/NVMe interface is supported
  - the second M.2 SSD card must have SATA interface
  - the second slot can also be used for the optional WWN04 kit to support a 4G/5G wireless network card

On-board graphics card model: Intel UHD Graphics

Connectivity: Optional, Not Included

Connectivity supported: M.2-2230E slot supports WLAN expansion cards

Power: 19V 4.74A 90W External Adapter

Cooling System: Passive cooling, no fan noise at all

OS Support: Optional, Not Included

• Windows 10 / 11 (64bit), Linux

VESA Mount: Bracket included

Stand: Usual operating position with the supplied feet

Dimension (L × W × H): 200 x 165 x 39.5 mm

Chassis: Black Steel

Weight: 1.60 kg

Warranty: 1-year Carry-in

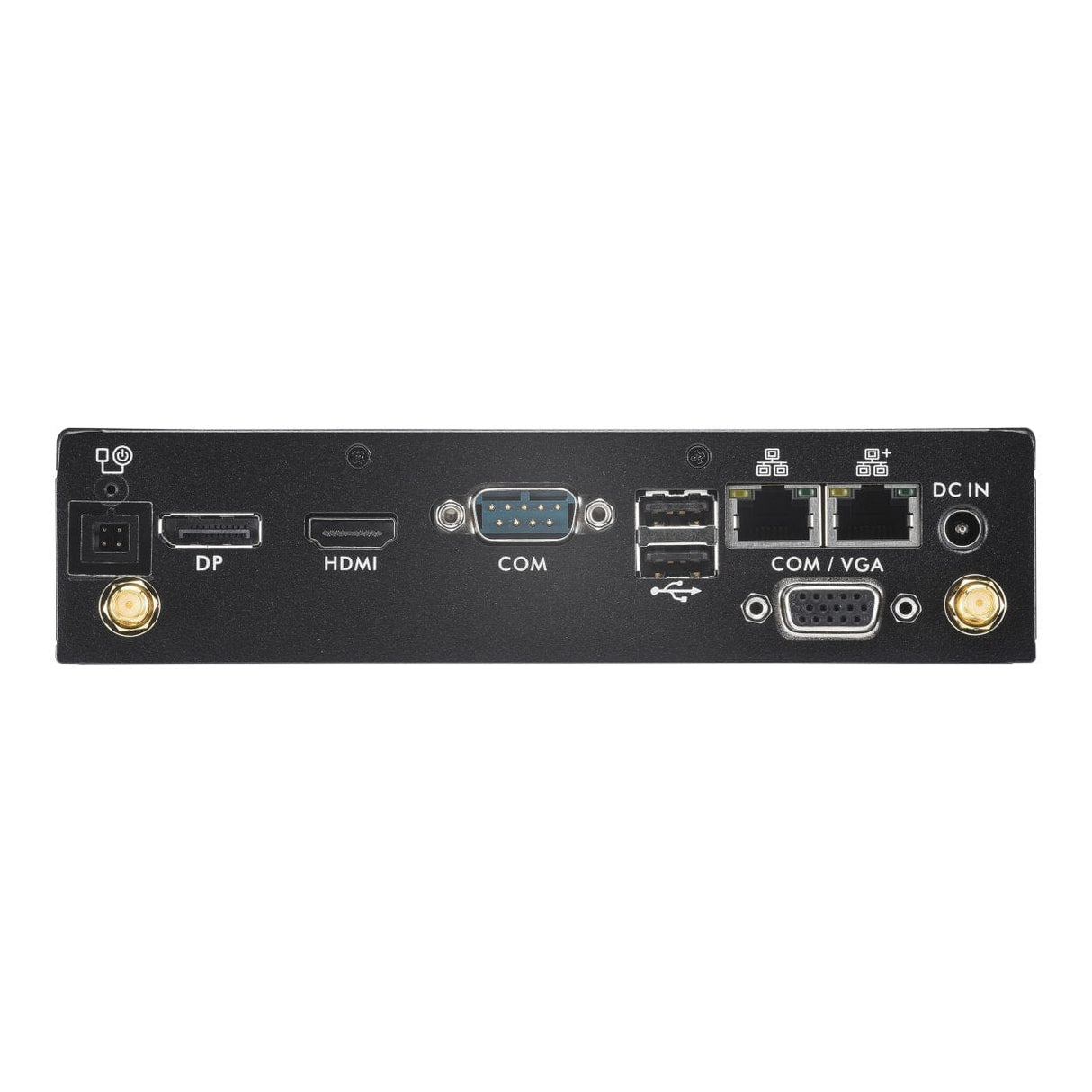

Ports and Slots

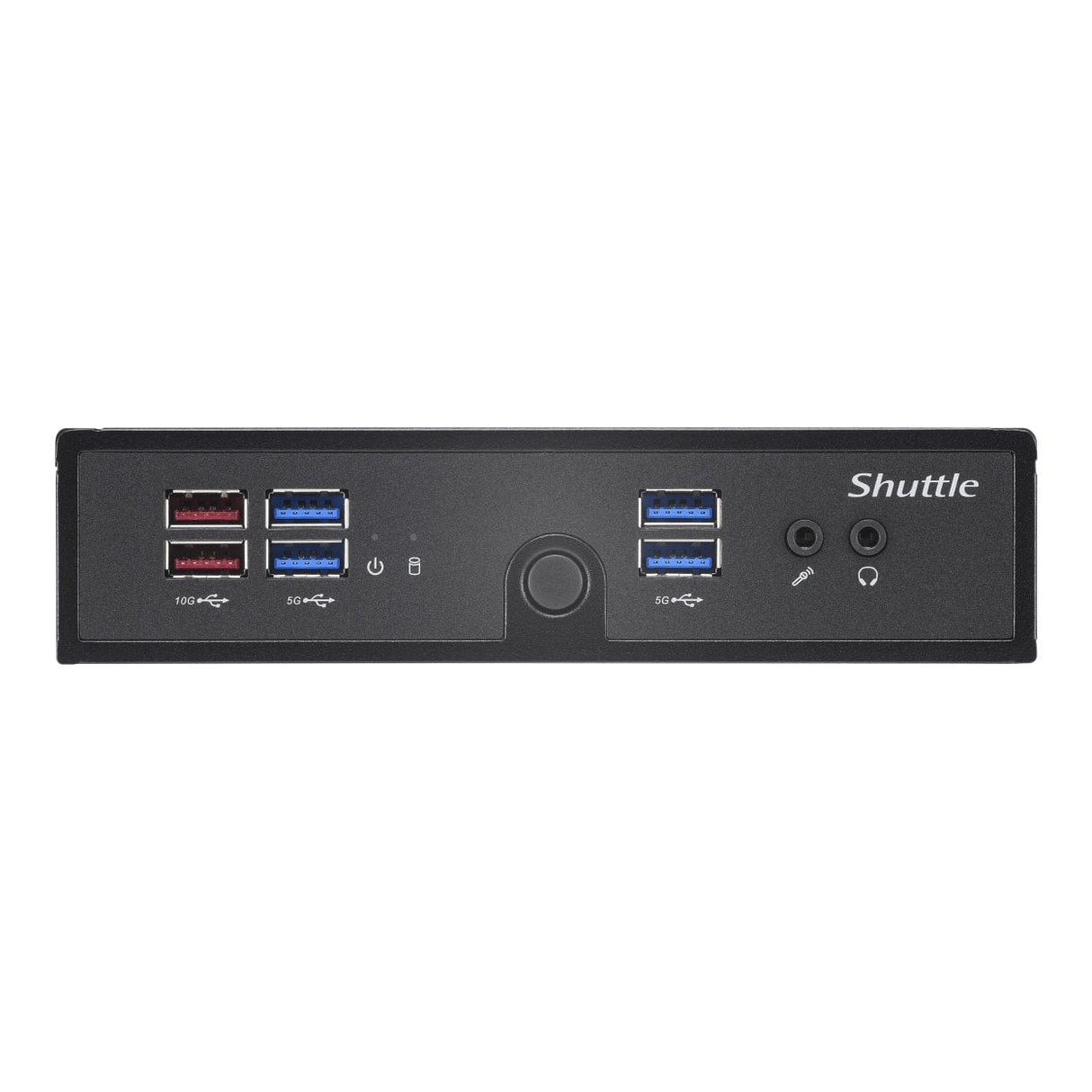

• 4x USB 3.2 Gen 1 (max. 5 Gbps, blue)
• 2x USB 3.2 Gen 2 (max. 10 Gbps, red)
• 1x Audio Line out
• 1x Microphone input
• 1x DisplayPort 1.4
• 1x HDMI 2.0b
• 1x D-Sub/VGA
• 2x USB 2.0 (black)
• 2x LAN (2.5G + 1G)
• 1x Serial COM port (5V / 12V, switchable to RS232 / RS422 / RS485)
• 2x Connector for external WLAN antennas
• 1x Kensington Lock slot
