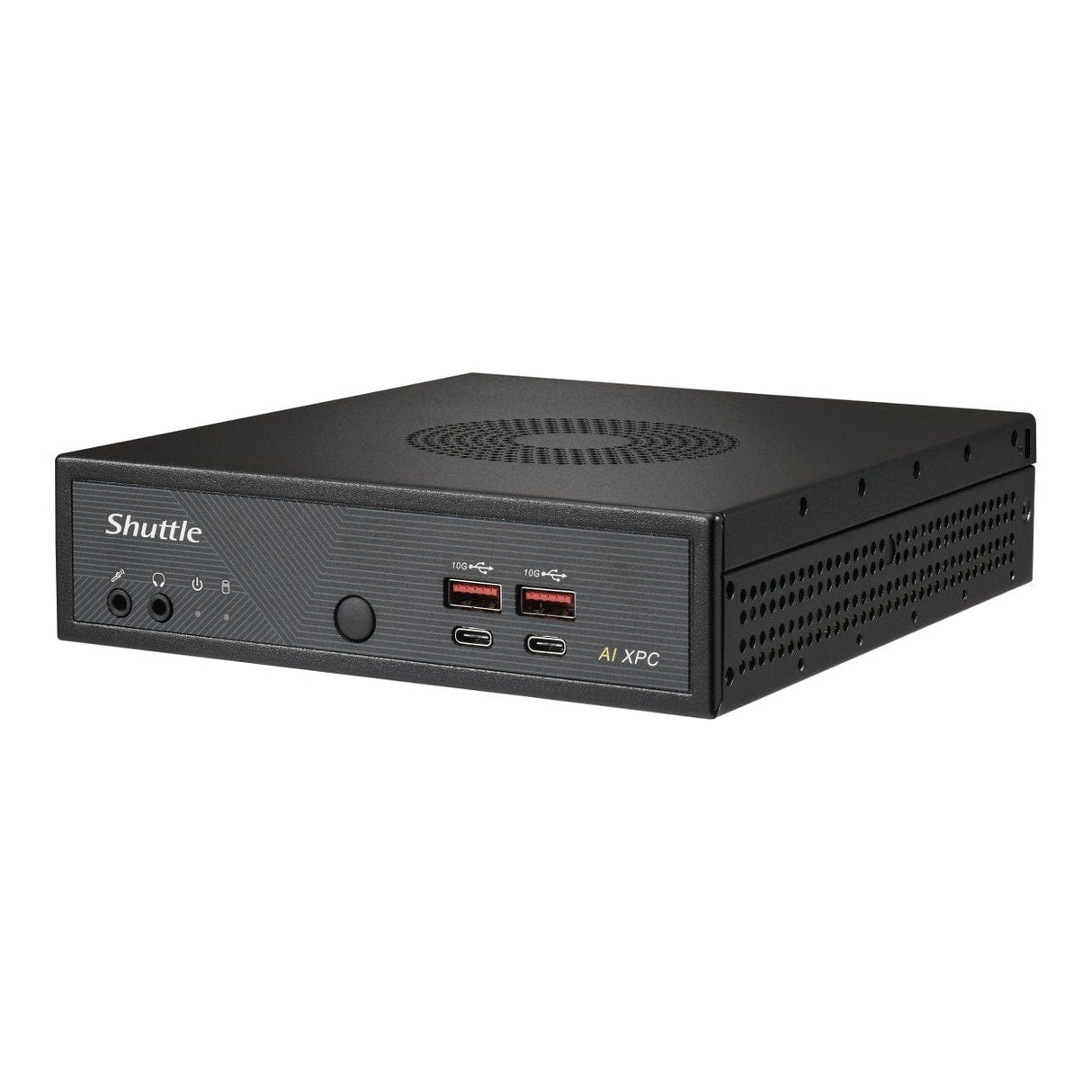

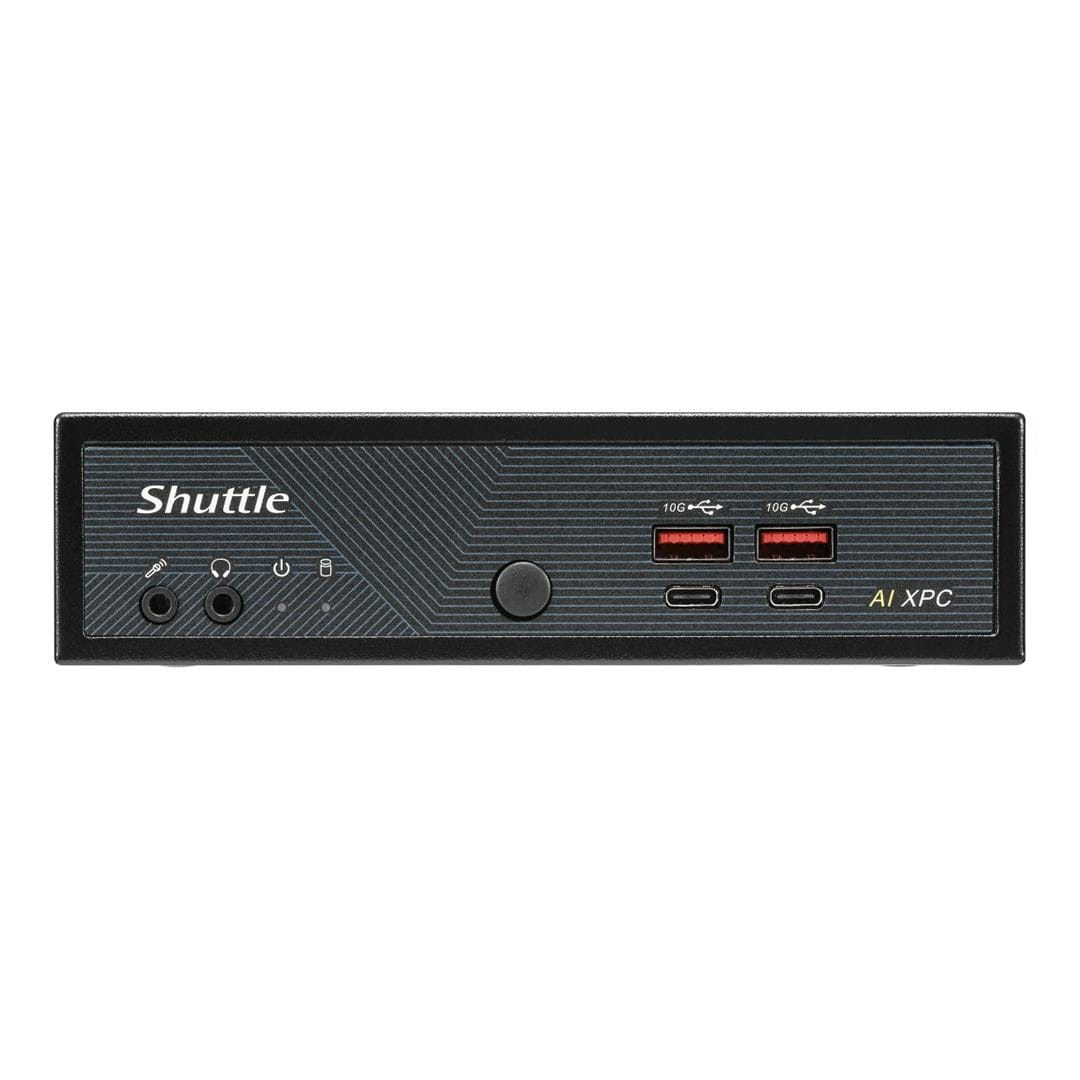

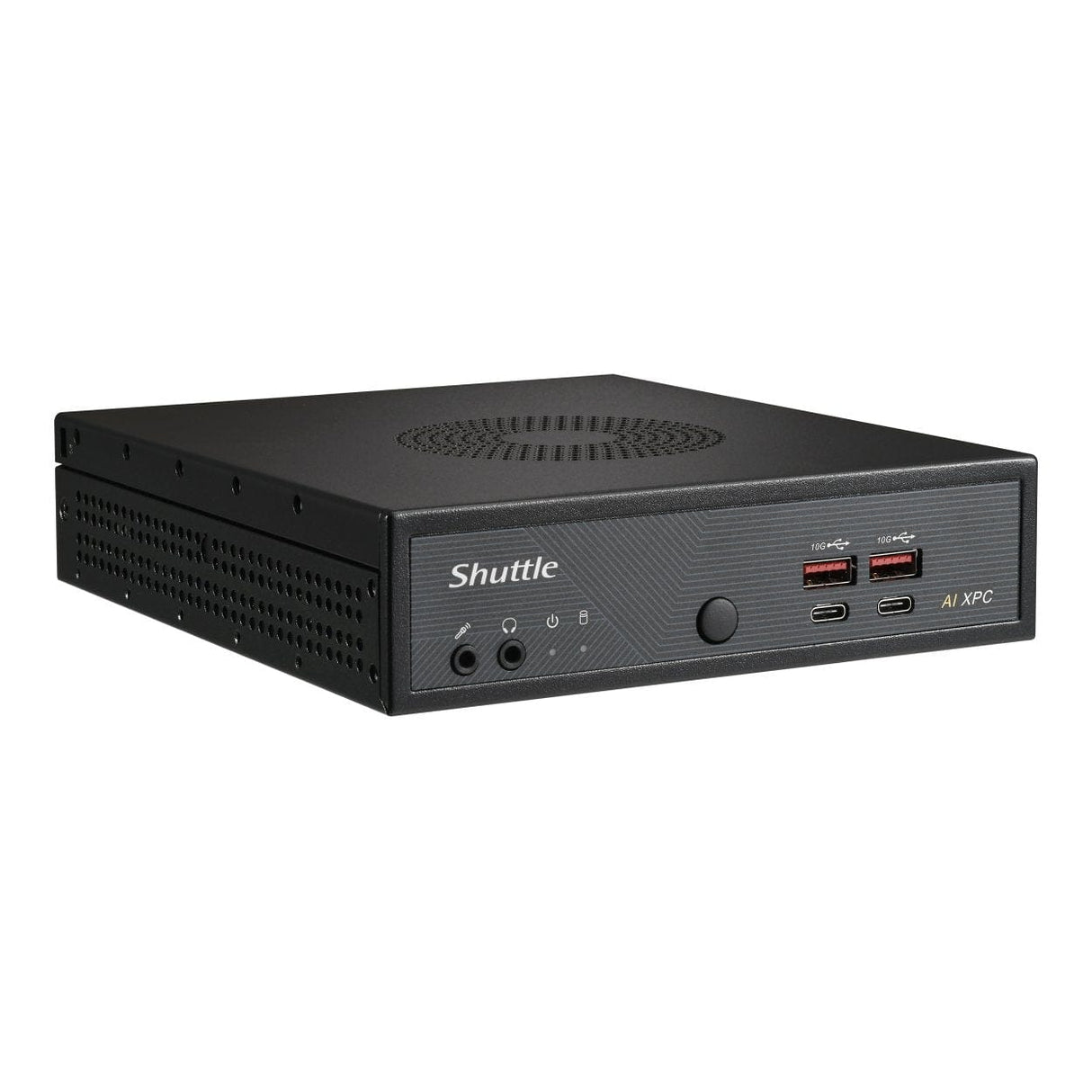

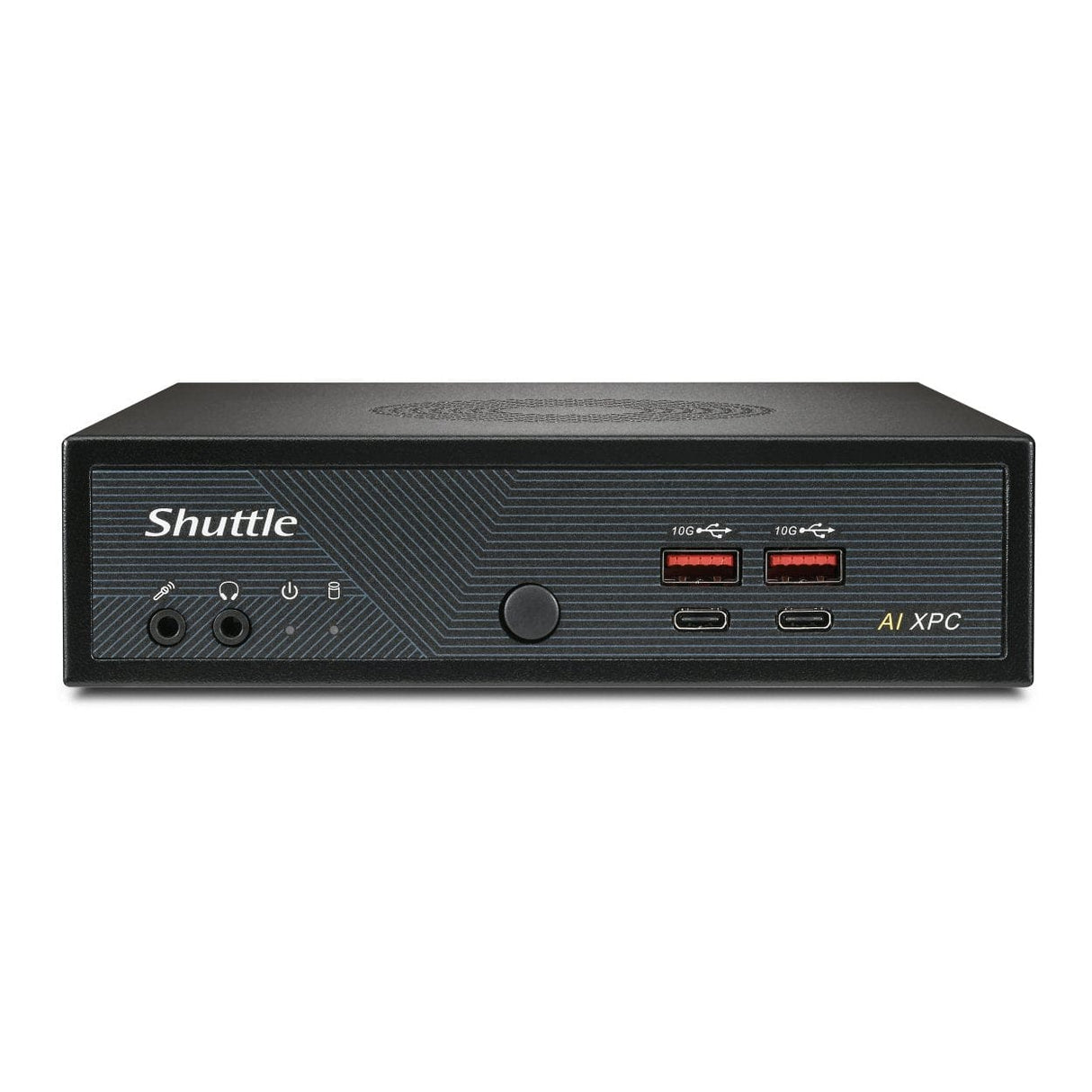

Shuttle XPC DN11H5 Intel Core Ultra 5 125H Slim Barebone AI PC

Shuttle XPC DN11H5 Intel Core Ultra 5 125H Slim Barebone AI PC

Key Features

• Intel Core Ultra 5 Processor 125H
• Intel Arc Graphics
• Up to 96 GB of DDR5 SO-DIMM memory
• 3× M.2-2280, 1× M.2-2230
• 2× HDMI 2.0b, 2× DisplayPort 1.4
• 6× USB 3.2 Gen 2 (10 Gbit) type A, 2× USB 3.2 Gen 2 (10 Gbit) type C
• 4× 2.5 Gbit Ethernet
• Wall/VESA mount included

The Shuttle DN11H-series AI-PC is a 1.3-liter barebone PC powered by an Intel® Core™ Ultra series processor, delivering significantly upgraded performance from everyday tasks to business applications. This AI-focused platform integrates CPU, GPU, and a specialized NPU designed to accelerate neural network computations, offering up to 34 TOPS of total system performance to support complex AI workloads. The DN11H stands out with its exceptional connectivity, including four 2.5G LAN ports for high-bandwidth networking, eight high-speed USB-C/USB-A ports, four ports for UHD-displays and three M.2-2280 slots for SSD cards, making it ideal for data-intensive environments. The DN11H excels in diverse modern business and industrial scenarios, such as network video recorders, image processing and data visualization, virtual reality simulations, multimedia production, industrial process control, and more.

Features

Four extra fast network connections

This feature is particularly interesting for vital network applications – this is because four 2.5 Gigabit Ethernet interfaces with RJ45 connectors allow physically separate networks with impressive bandwidth.

Quad 4K Display Support

This Mini-PC supports up to four high-resolution displays, offering maximum flexibility for multi-monitor setups. It features:

• 2x HDMI 2.0b

• 2x DisplayPort 1.4

Quad M.2 Expansion

This Mini-PC features four M.2 slots, offering flexible expansion options for storage and connectivity. The high-speed PCIe interface ensures rapid data transfer, making it ideal for demanding applications.

• 1× M.2-2280 - Supports NVMe SSDs for ultra-fast storage
• 2× M.2-2280 - Supports SATA/NVMe SSDs for ultra-fast storage
• 1× M.2-2230 - Accommodates a Wi-Fi module or other expansion cards

Up to 96 GB of DDR5 RAM

Modern professional applications require substantial memory resources. With two SO-DIMM slots supporting up to 96 GB of high-speed DDR5 RAM, this Mini-PC is well-equipped to handle even the most demanding tasks efficiently.

Abundant USB Connectivity

With a total of eight USB ports offering 10 Gbit/s speed, this Mini-PC ensures seamless connectivity. The ports are evenly distributed between the front and rear, including two versatile USB Type-C connectors.

Wired Remote Power-On

This Mini-PC supports remote startup via a dedicated power-on connector. By using any standard two-pin cable, external buttons can be connected via the rear panel pins, enabling convenient remote operation.

Enhanced Cooling with Larger Fan

This Mini-PC features an upgraded cooling system with a larger 80 mm fan, designed to move more air efficiently while operating at significantly lower noise levels. The improved airflow enhances thermal performance, ensuring stable and quiet operation even under heavy workloads.

Built-in Anti-Theft Protection

This Mini-PC features a Kensington security slot (K-Slot), providing an effective anti-theft solution. Compatible security locks are widely available from specialist retailers, ensuring enhanced protection in various environments.

Technical Specification

Product: Shuttle XPC DN11H5 Slim Barebone AI PC

Product type: Barebone PC

Processor family: Series 1 Intel Core Ultra 5

Processor model: 125H

Processor frequency: 0.70 / 4.50 GHz (18MB Cache, 14 Cores)

NPU: Intel AI Boost, up to 11 TOPS

Internal memory: Optional, Not Included

Internal memory type supported: Up to 2× DDR5 Max. 96GB

Total storage capacity: Optional, Not Included

Storage media supported

• Three slots for SSD cards in M.2-2280 form factor (length: 80 mm)
• Supports M.2 cards with M key or B+M key

On-board graphics card model: Intel Arc Graphics

Connectivity: Optional, Not Included

Connectivity supported: M.2-2230E slot supports WLAN expansion cards

VESA mount:  75 x 75mm and 100 x 100mm standard

Power: 19V 6.32A, 120W AC Adapter

OS Support: Optional, Not Included

• Windows 11 64-bit
• Linux 64-bit

Dimensions (L x W x H): 190 x 165 x 43mm

Chassis: Black Metal

Weight: 1.23 kg

Warranty: 1-year Carry-in

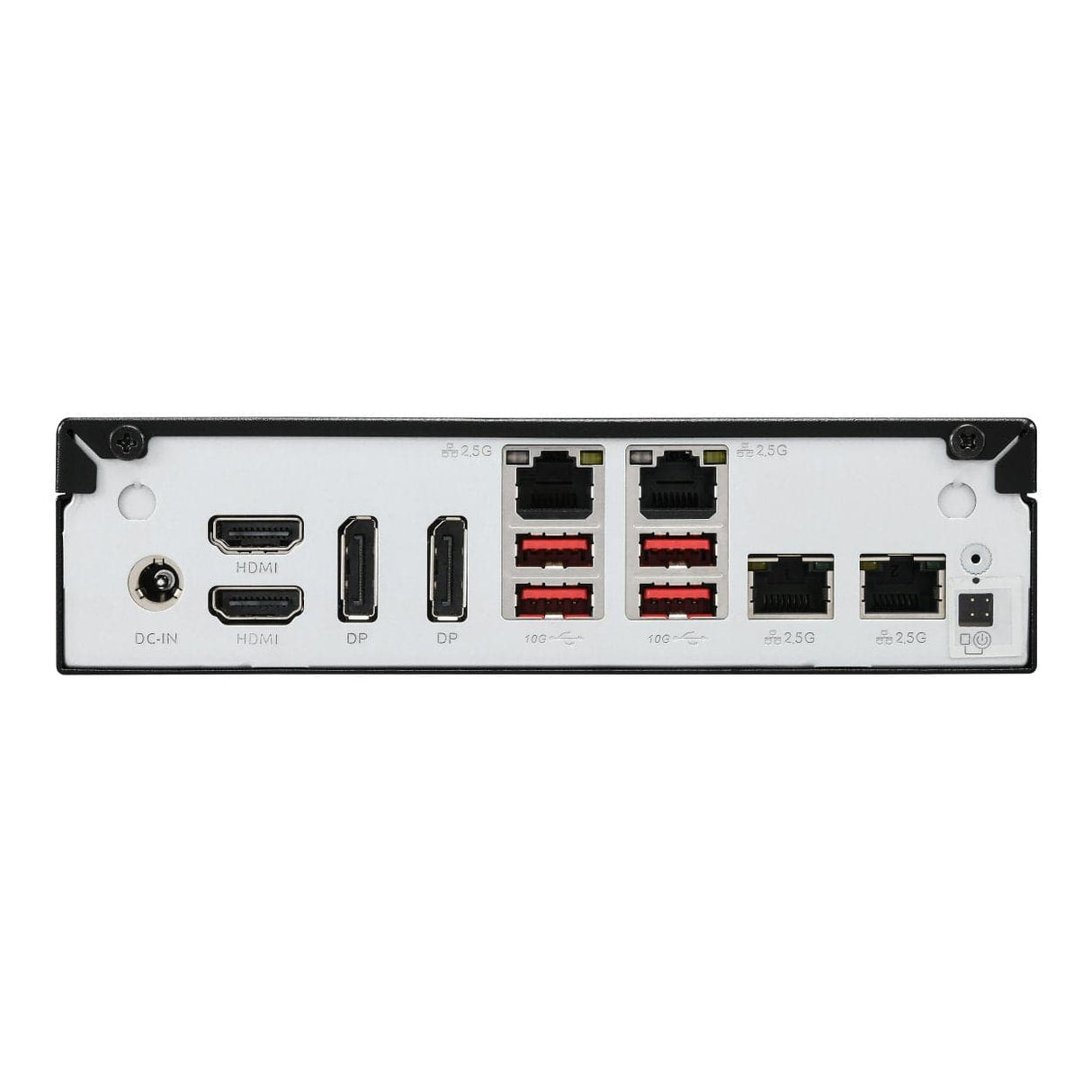

Ports and Slots

• Microphone input
• Audio Line-out (headphones)
• 2x USB 3.2 Gen 2 Type A (red), max. 10 Gbps, connected with hub
• 2x USB 3.2 Gen 2x2 Type C, max. 20 Gbps, supports 3A Power Delivery (PD)
• 2x HDMI 2.1
• 2x DisplayPort 1.4
• 4x USB 3.2 Gen 2 Type A (red), max. 10 Gbps, connected with hub
• 4x 2.5G Ethernet LAN
• 1x 4-pin connector (2.54 mm pitch) supports:
• - external power on button
  - Clear CMOS function
  - +5V DC voltage for external components
• 2x Hole for Kensington Lock slots
