Universal WLAN-ac / Bluetooth Combo Kit with M.2 card

The Shuttle accessory WLN-M is a wireless LAN kit consisting of an M.2-2230 card, two antennas and appropriate cables. The WLN-M is intended for certain Shuttle barebones of the XPC cube and XPC slim series to equip them with the wireless LAN standard according to IEEE 802.11n/ac at 2.4 / 5 GHz. At the same time, his combo device also supports Bluetooth 4.0.

Note: What are the advantages of WLN-M over a conventional WLAN USB stick?

1. The M.2 card sits in the case and is better protected from tampering and theft.
2. The integrated solution is more appealing.
3. For the best possible efficiency the antenna should be at least 6cm long (half a wavelength at 2.4 GHz) which is a big advantage over the USB stick.
4. This WLAN card is a Combo card which supports both WLAN and Bluetooth.
5. The transmission protocol of the PCI-Express interface is less complex as compared to USB which helps keep processor load lower.

Technical Specification

Product: Shuttle Universal WLAN-ac / Bluetooth Combo Kit with M.2 card

AN Standard

• Supports WiFi IEEE 802.11b/g/n/ac in the 2.4 / 5 GHz band, 1T1R
• PCI-Express V1.1 host interface

Encryption technology: Supports WPA2 (IEEE 802.11i with AES), WPA and WAPI

Bluetooth Standard: Supports Bluetooth 4.2 in the 2.4 GHz band, USB 2.0 host interface

Maximum PHY data rate

• 72.2 / 150 Mbps using 20 / 40 MHz bandwidth in n-mode
• 433.3 Mbps using 80 MHz bandwidth in ac-mode

Adapter card

• Model: AzureWave AW-CB304NF
• Chipset: Realtek RTL8821CE
• M.2-2230 (NGFF) extension card
• Dimensions: 26.65 x 29.85 x 2.35 mm (LWH)

Antenna cables

• Four WLAN cables with diverse lengths: 21, 29, 53, 53 cm
• Connectors
  1) RP-SMA Pigtail male
  2) MHF IV (I-PEX4), HSC MXHP32 (Murata) compatible

Antennas: two external dipole antennas

• Frequency range: 2.4 / 5 GHz band, omnidirectional
• Total length: 108 mm, diameter: 7.8~10.0 mm

Supported operating systems

• Windows 7, Windows 8.1, Windows 10, Windows 11, Linux (32- / 64-bit)

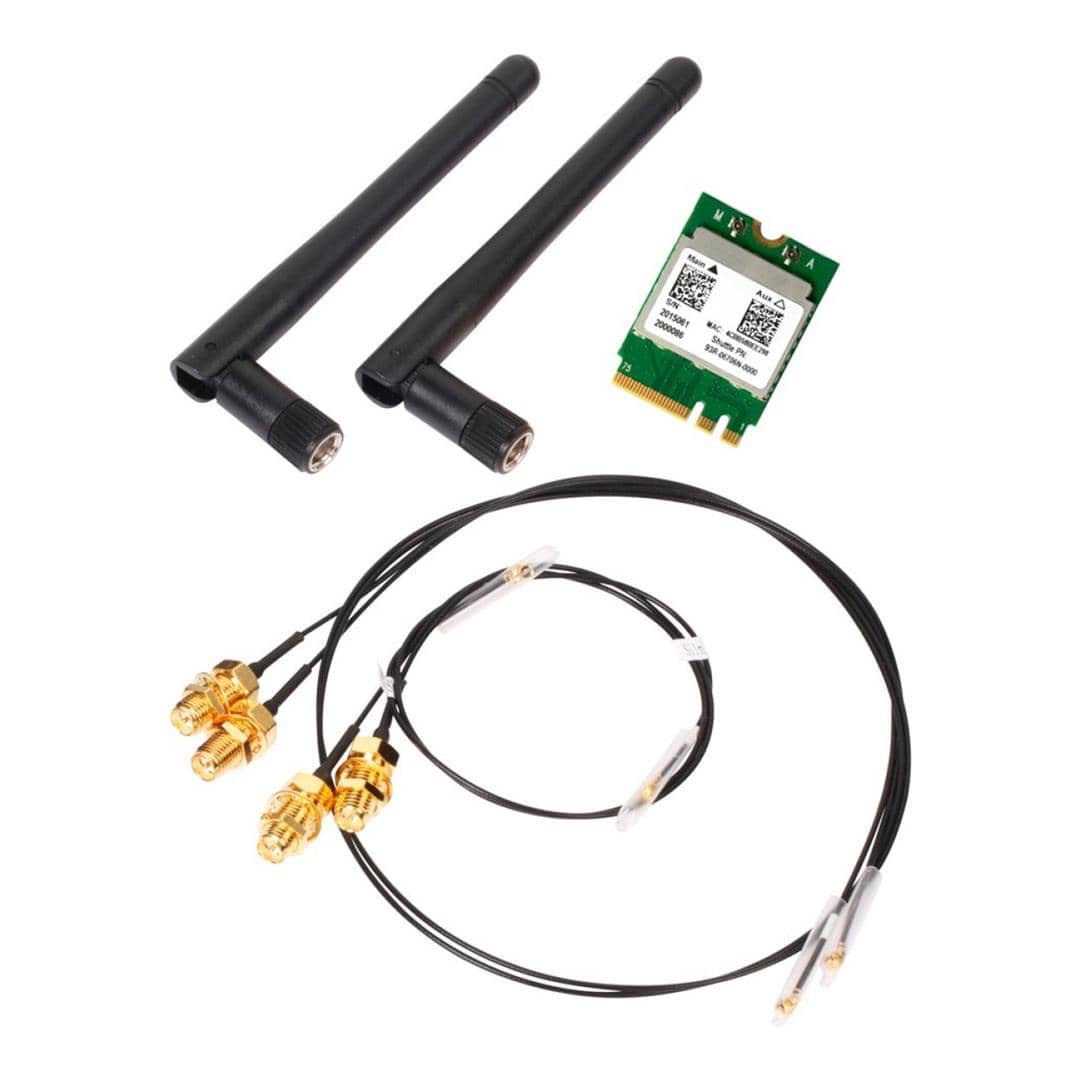

Contents

• 1x M.2-2230 (NGFF) WLAN card
• 2x antenna cables for XPCs slim, length: 21 and 29 cm
• 2x antenna cables for XPCs cube, length: 53 cm
• 2x dipole antennas
• Quick Guide (English, German, French)
• Windows driver DVD

Compatible with the following Shuttle products

• Shuttle XPC nano Barebone PCs: NC02Ux series, NC03Ux series, NC10Ux series
• Shuttle XPC slim Barebone PCs: DH110(SE), DH270, DH310(S), DH310V2, DH370, DH410(S), DH470, DH610(S), DH670, XH110(V), XH110G, XH270, XH310(V), XH310R(V), XH410G, XH510G(2), XH610(V), XC60J, DX30, DL10J, DL20N(6), DH02Ux
• Shuttle XPC cube Barebone PCs: SH110R4, SZ170R8V2, SZ270R8, SZ270R9, SH310R4(V2), SH370R6(V2)(Plus), SH370R8, SH510R4, SH570R6 (Plus), SH570R8, SW580R8
• Shuttle XPC All-in-One Barebone PCs: P20U, P22U, P51U(3), P52U(3), X50V7xx, X50V8xx
• Shuttle Edge: EN01J3, EN01J4, EN01E, EN01B (in combination with Shuttle Accessory LN007)
