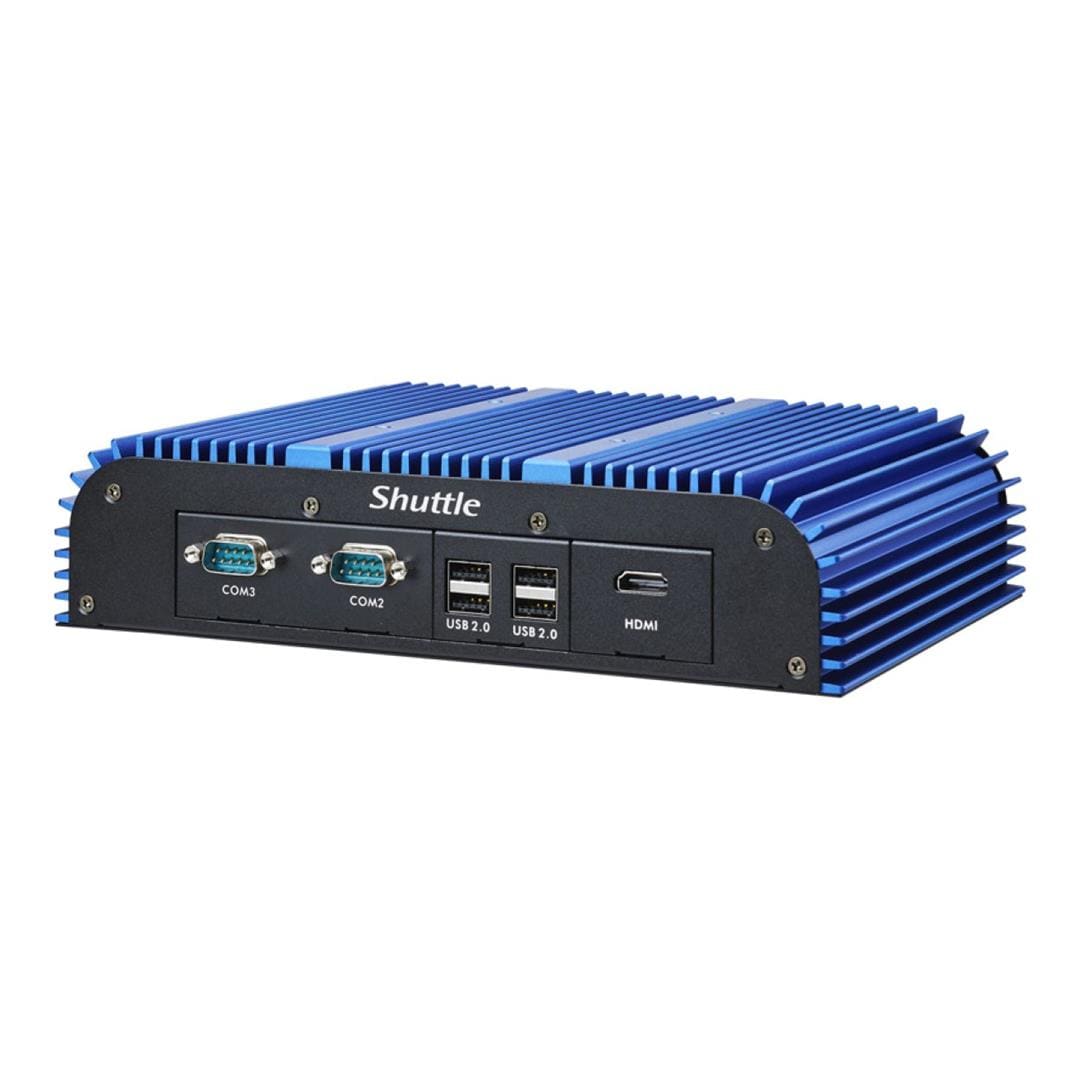

Shuttle BPCAL02 Intel Core i5-1235U Fanless Barebone Box-PC

Shuttle BPCAL02 Intel Core i5-1235U Fanless Barebone Box-PC

Key Features

• Dual 2.5 Gigabit Ethernet
• Mounting Options: VESA, Ear mount and DIN rail
• Fanless cooling system
• 24/7 Operation
• Robust aluminium/steel chassis
• Up to 64GB RAM

Shuttle's BPCAL02 fanless Box-PC Series is fuelled by Intel’s 12th Generation (Alder Lake) Core processors in a ruggedised box designed for high durability. It comes with modular I/O expansion capabilities and various mounting options. With advanced technology and highly flexible design, this industrial PC offers a reliable solution for a wide range of customised requirements in industrial environments.

Technical Specification

Product: Shuttle BPCAL02-i5 Fanless Barebone PC

Product type: Barebone Box-PC

Processor family: 12th Generation Intel Core i5

Processor model: i5-1235U

Processor frequency: 3.30 / 4.40 GHz (12MB Cache, 10 Cores)

NPU: Not Supported

Internal memory: Optional, Not Included

Internal memory type supported: Up to 2× DDR5 SO-DIMM Max. 64GB

Total storage capacity: Optional, Not Included

Storage media supported

• The M.2 2280 M slot provides the following interfaces:
  - PCI-Express Gen. 4.0 X4
  - SATA v3.0 (max. 6 Gbps)
• It supports M.2 cards with a width of 22 mm and a length of 42 or 80 mm (type 2242, 2280).
• Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe NVMe SSDs (with M key) with auto detect

On-board graphics card model: Intel UHD Graphics

Connectivity: Optional, Not Included

Connectivity supported: M.2-2230 slot supports WLAN expansion cards

Power: 19V 4.74A 90W External Adapter

Cooling System: Smart Fan

OS Support: Optional, Not Included

• Windows 10 / 11 IoT 64bit
• Linux 64bit

VESA Mount: 75 × 75mm

Ear Mount: 256 × 100mm

Din Rail Mount: 35mm

Dimension (W × H × D): 245 × 57 × 169mm

Weight: 2.85 kg

Warranty: 1-year Carry-in

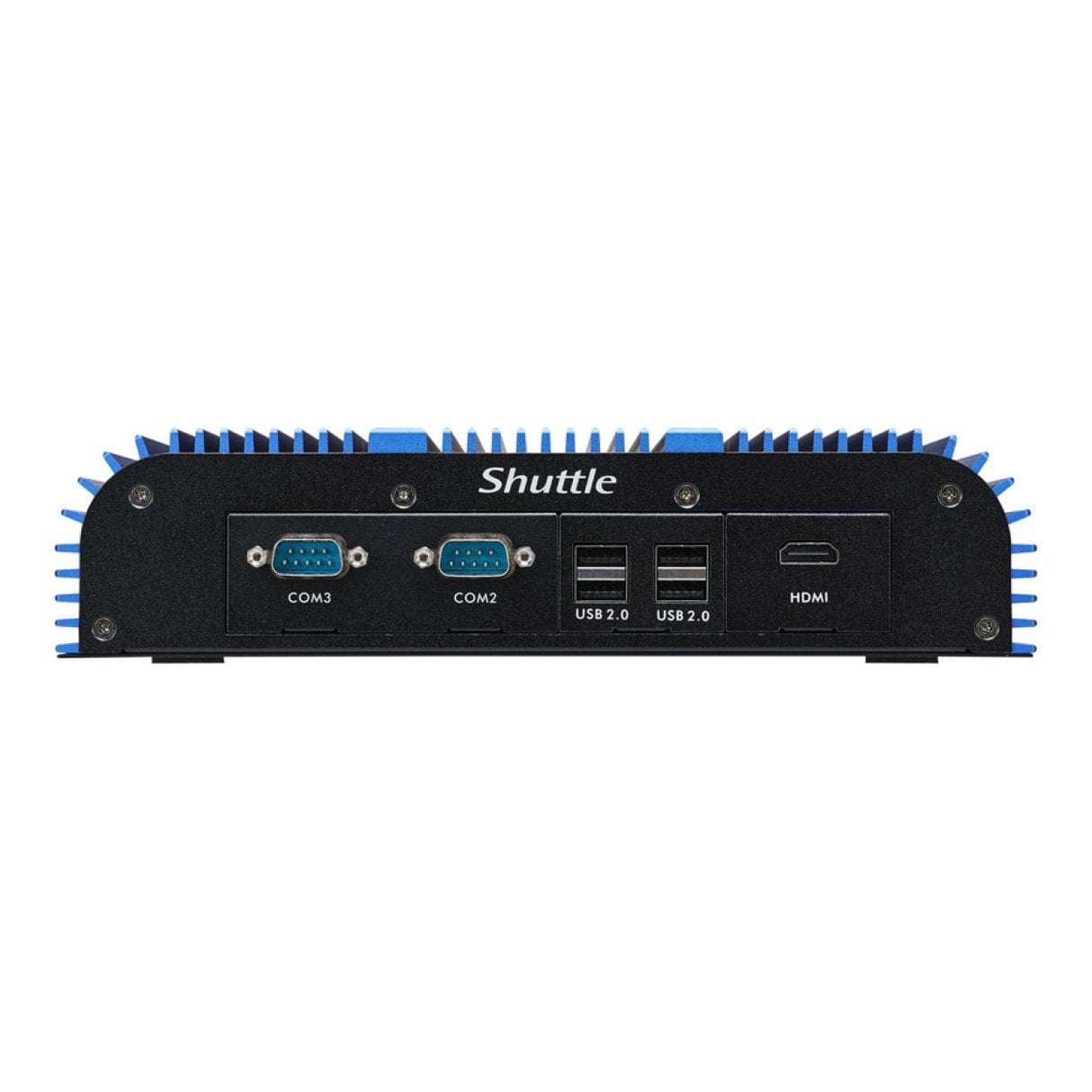

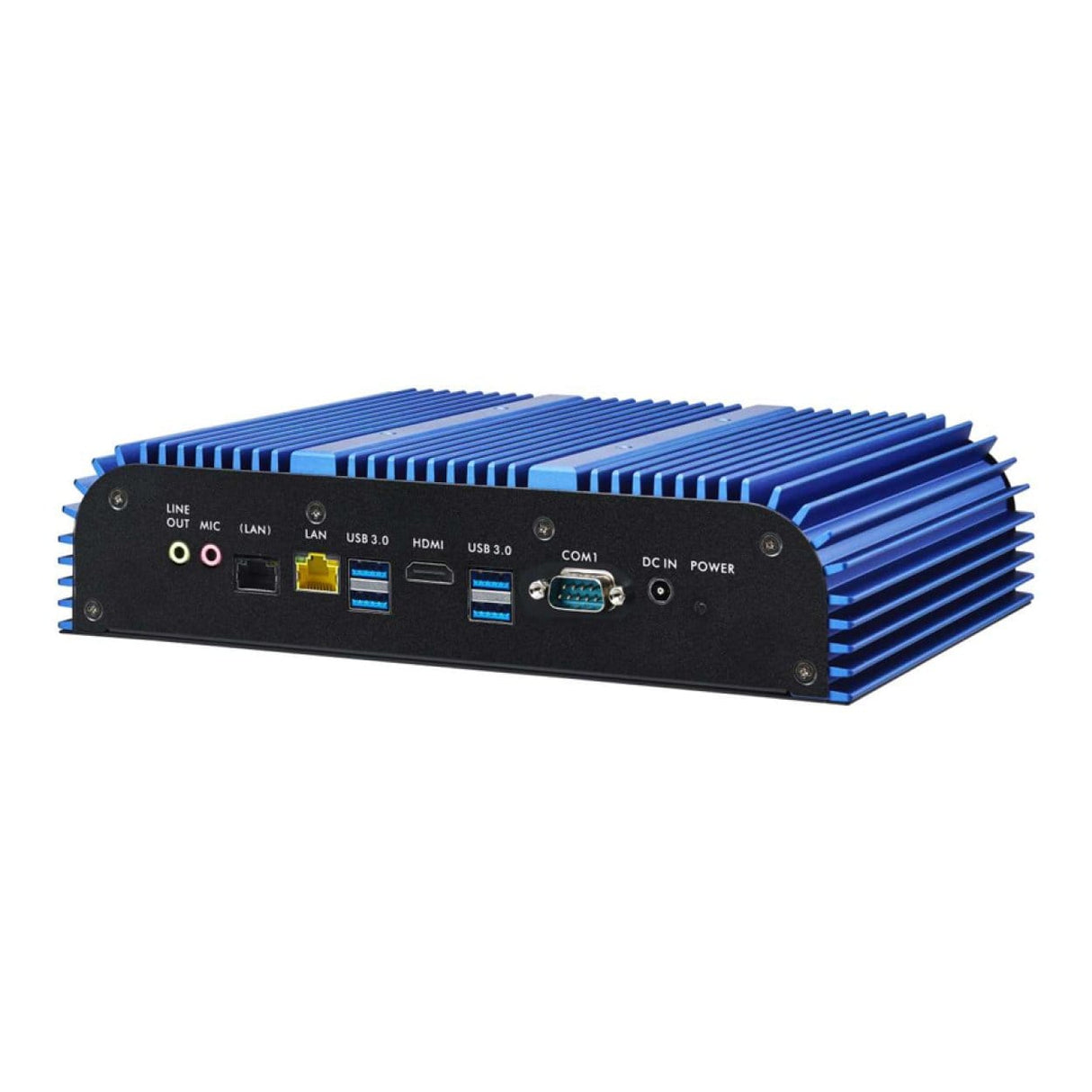

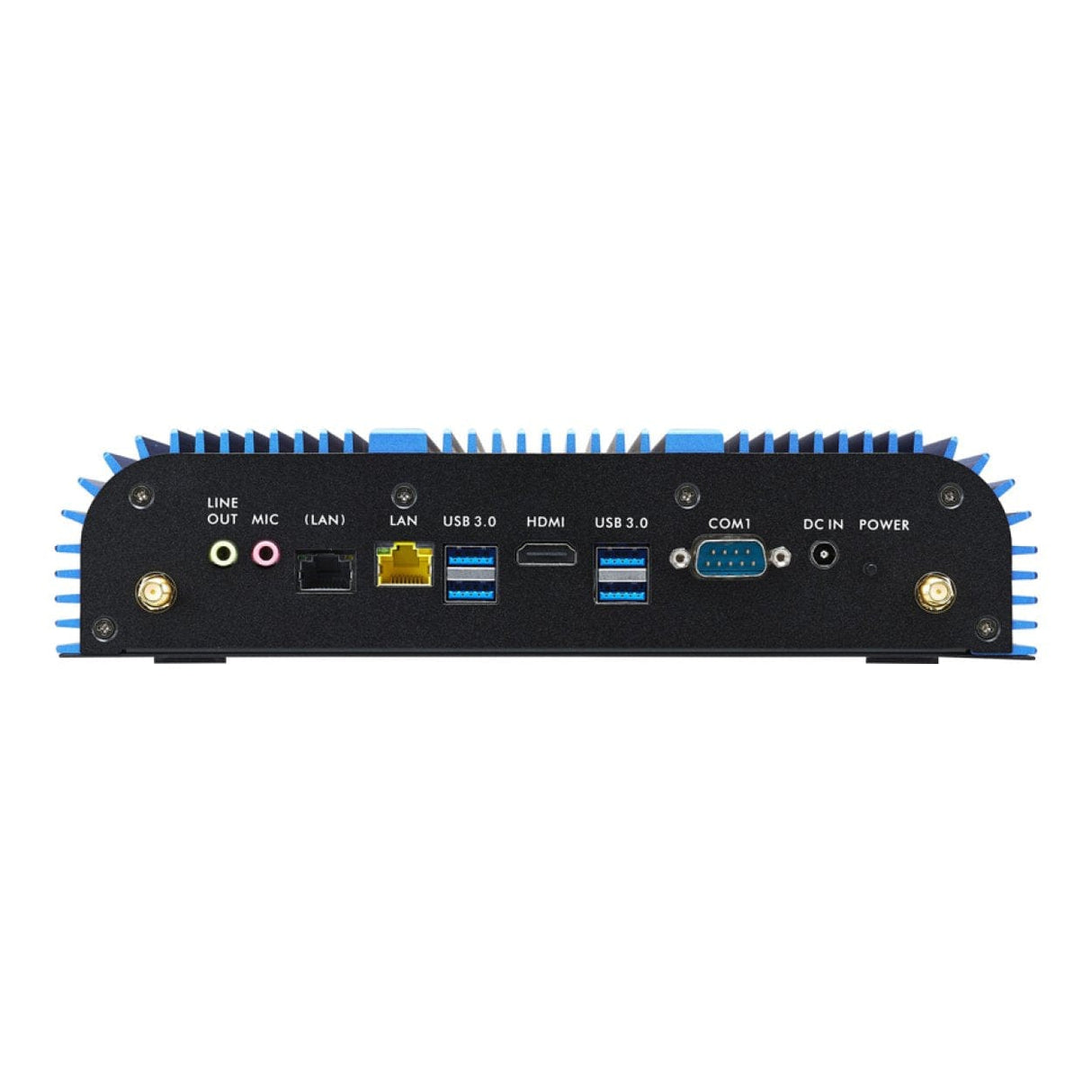

Ports and Slots

• 2x HDMI 2.0b
• 2x RJ45 (10/100/1000Mbps / 2.5GB)
• 1x RS232 (DB9)
• 2x RS232 / 422 / 485 (DB9)
• 4x USB3.2 Gen 2 (Type-A)4× USB2.0 (Type-A)
• 1x Line-Out
• 1x Mic-In
• 2x External Antenna (Dipole) (Optional, not included)
