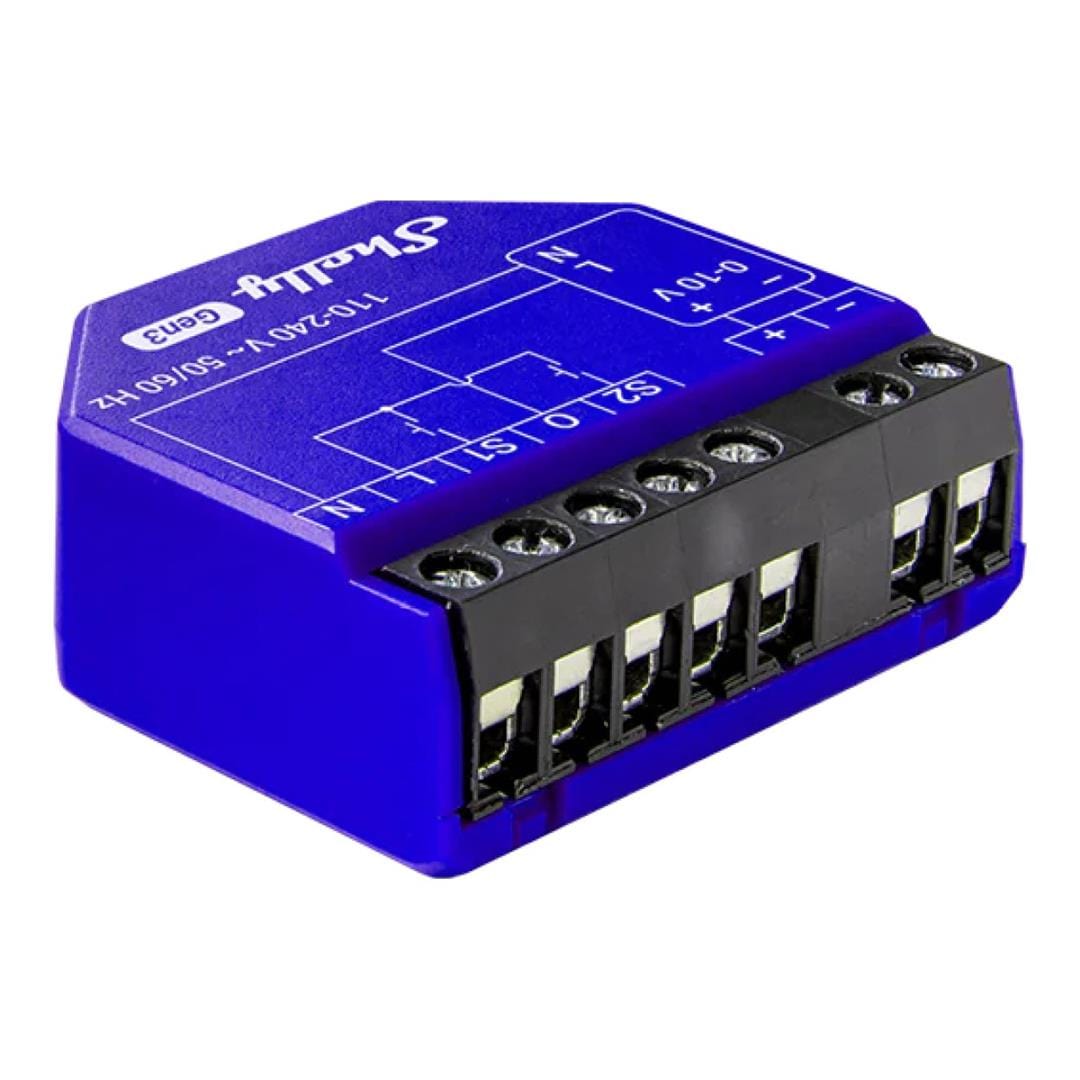

Shelly Smart Dimming Controller with Power Measurement

Shelly Smart Dimming Controller with Power Measurement

Smart dimming controller with power measurement. Provides support for 0-10V and 1-10V types of drivers.

• Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.)
• Wi-Fi and Bluetooth-operated
• Shelly Plus Add-On compatible: Supports connection with the sensor interface to measure different data (humidity, temperature, etc.)
• One/dual button dimming mode (use with physical switches)
• Customizable thresholds and offsets for temperature, humidity and light if used with Plus Add-on
• Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed.
• Safety: Оver current/voltage/power protections
• Supports “Night mode”: Automatically sets the lights’ brightness at a low level during the night hours
• Wi-Fi Range Extender & BLE Gateway
• Equipped with a new processor & increased flash memory – ESP Shelly
• No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
• Supports KNXnet / IP communication

Wi-Fi Operated

Connect Shelly Dimmer 0/1-10V PM Gen3 to your Wi-Fi network. No HUB required!

Bluetooth

Quick inclusion via Bluetooth or use it as a Bluetooth gateway.

Power Monitoring

Provides precise monitoring of power consumption and free data storage.

Flexible input control

Use it with your existing switches, no matter if they're single or dual button.

Smart Scenes

Set custom scenes by combining Shelly Dimmer 0/1-10V PM Gen3 with your other Shelly devices.

Smart schedules

Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.

On the Road to Matter

Each Gen3 device is engineered to be upgradable to Matter. The doubled memory, compared to Plus series, guarantees a smooth update process, paving the way for new smart capabilities and integrations. *Dependent on the extent of Matter's functionalities support.

More Memory, More Power

The Gen3 series ensures the quality and reliability of our devices by using our own powerful Shelly chip. Boasting 8MB of memory, this dramatically improves device performance and efficiency. This significant increase in memory not only guarantees smoother and faster operation but also equips the Gen3 series for the introduction of new capabilities.

Unified Control with Virtual Components

The Gen3 Series introduces “virtual components, transforming how you manage and control 3rd party devices. Within the Shelly Smart Control app, you can now create virtual devices, integrating non-Shelly products into a unified control system. This feature provides streamlined control of all your smart devices, regardless of brand, from a single interface.

Specifications

Size (HxWxD): 38.5x43.5x17mm / 1.52x1.71x0.67in

Weight: 28.5 g / 0.99 oz

Screw terminals max torque: 0.4 Nm / 3.5 lbin

Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in

Mounting: Wall console/behind wall/ceiling construction

Shell material: Plastic

Shell color: Shell: Pantone 2736C (blue) / Print: White
