FirstShop  |  SKU: SHELLY 1PM GEN3

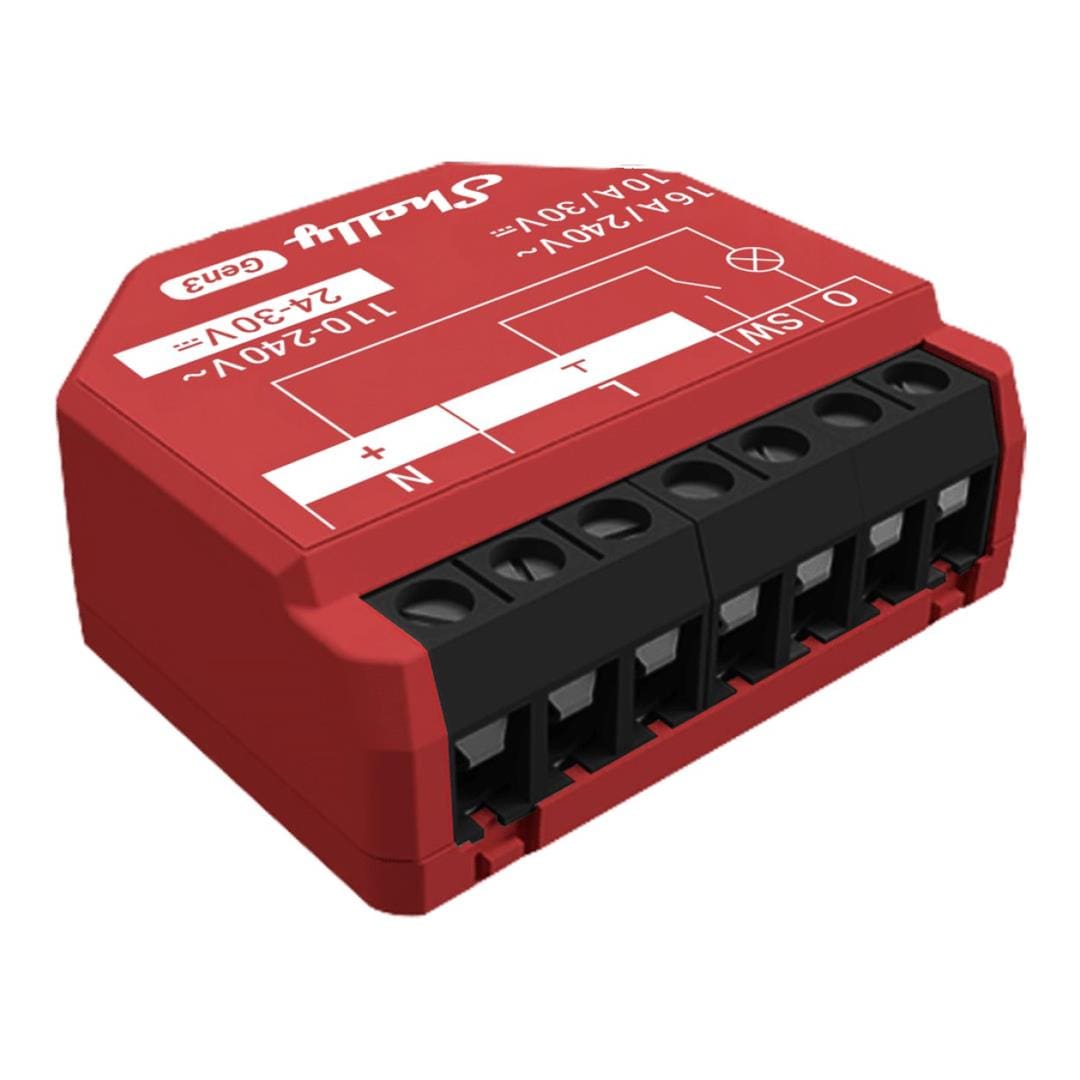

Shelly 1PM Gen3 Wi-Fi Operated Smart Switch

R 54000
  • Brand:Shelly

Delivery and Shipping

* Next Business Day Shipping Available - Learn more

Easy Returns

Buy With Confidence. 14 Day Returns. Online. Learn More

Price Match Gurantee

Found a Better Price? We'll Match It - Guaranteed - Learn More

Description

Shelly 1PM Gen3 Wi-Fi Operated Smart Switch

Wi-Fi-operated smart switch, with power monitoring​

For remote control of a wide range of home appliances and office equipment.

  • Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization
  • New processor – ESP-Shelly-C38F chip with an increased memory of 8 MB
  • Improved durability of terminals
  • High security
  • Wi-Fi range extender & Bluetooth gateway
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
  • No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants
  • Supports KNXnet / IP communication

Wi-Fi Operated

Connect Shelly 1PM Gen3 to your Wi-Fi network. No HUB required!

Bluetooth

Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.

Power Monitoring

Shelly 1PM Gen3 provides precise monitoring of power consumption.

Wide range of voltage support

Use it to control a wide range of devices and appliances.

Smart Schedules

Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.

Smart Scenes

Set custom scenes by combining Shelly 1PM Gen3 with your other Shelly devices.

Specifications

Size (HxWxD): 37x42x16
Weight: 27g
Screw terminals max torque: 0.4 Nm
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 to 7 mm
Mounting: Wall console
Shell material: Plastic
Shell color: Red
Terminal Color: Black
Ambient working temperature: -20 °C to 40 °C
Humidity: 30 % to 70 % RH
Max. altitude: 2000m


Electrical

Power supply: 110-240 V~ / 24-30 V⎓
Power consumption: < 1.2 W
External protection: Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)
Output circuits ratings
Max. switching voltage: 240 V~ / 30 V⎓
Max. switching current: 16A (240 V~) / 10A (30 V⎓)


Sensors, meters

Internal-temperature sensor: Yes
Voltmeter (AC): Yes
Ammeter (AC): Yes


Radio

Wi-Fi
Protocol: 802.11 b/g/n
RF band: 2401 - 2483 ÐœHz
Max. RF power: < 20 dBm
Range:Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)


Bluetooth

Protocol: 4.2 with BLE
RF band: 2400 - 2483.5 MHz
Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)


Microcontroller unit

CPU: ESP-Shelly-C38F
Flash: 8MB
