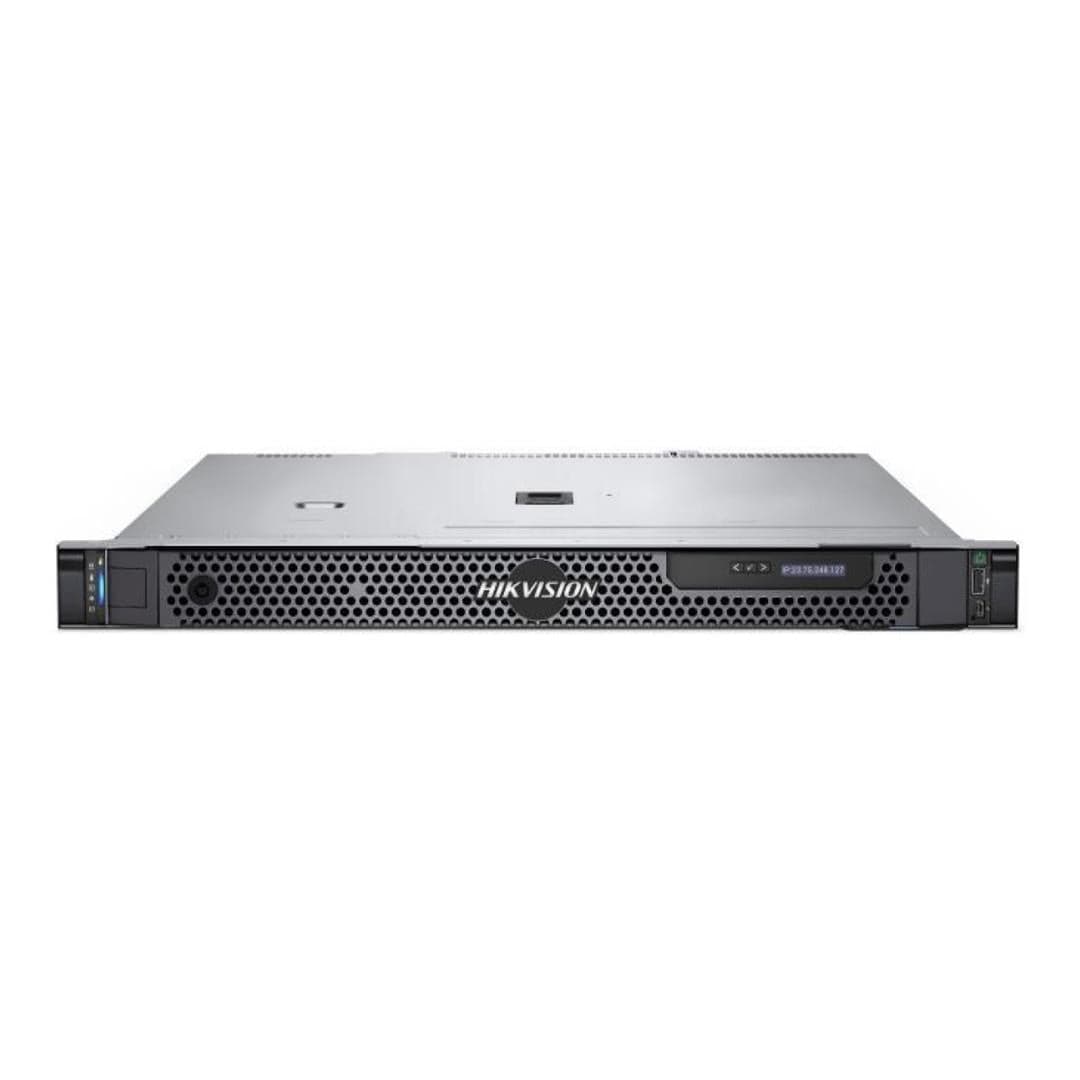

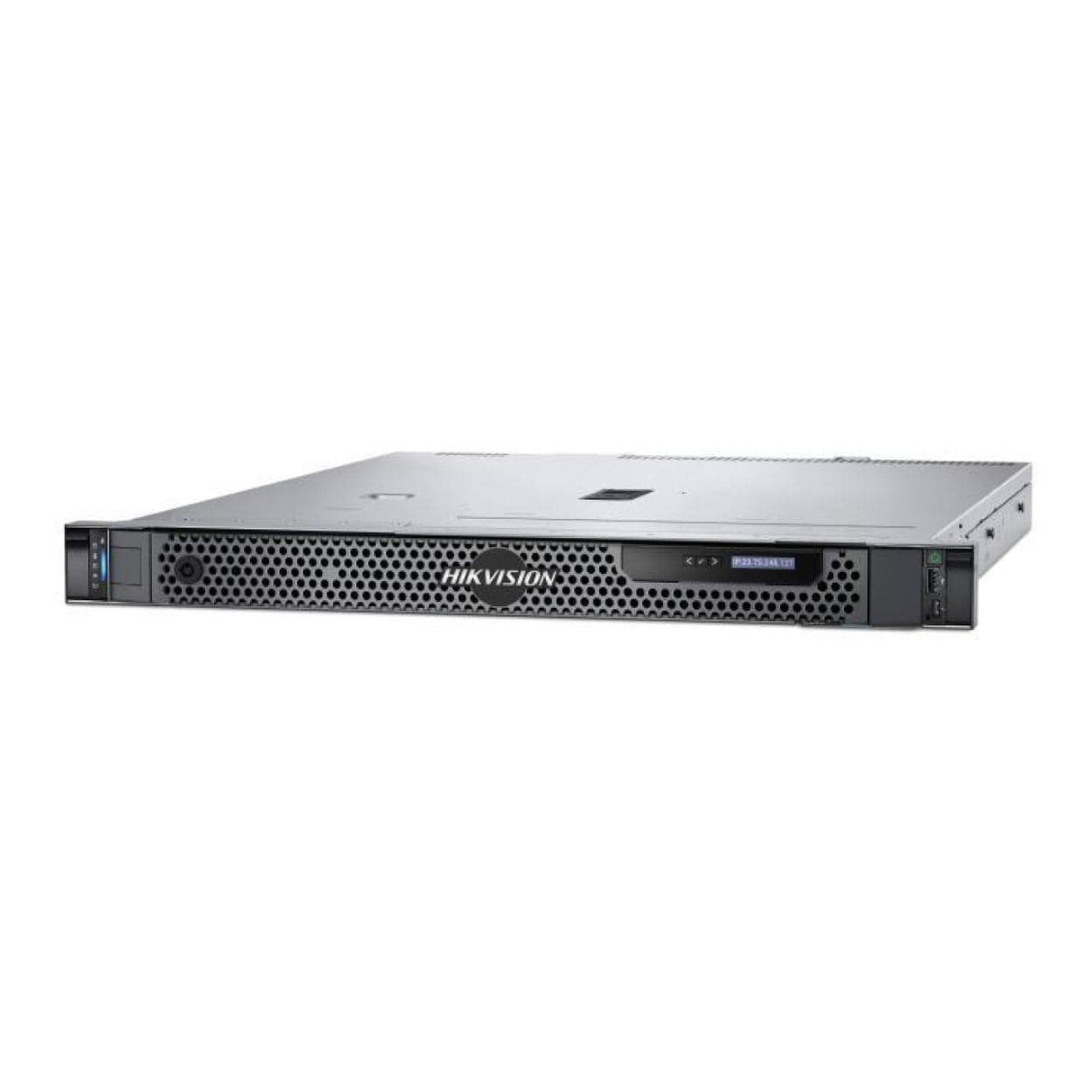

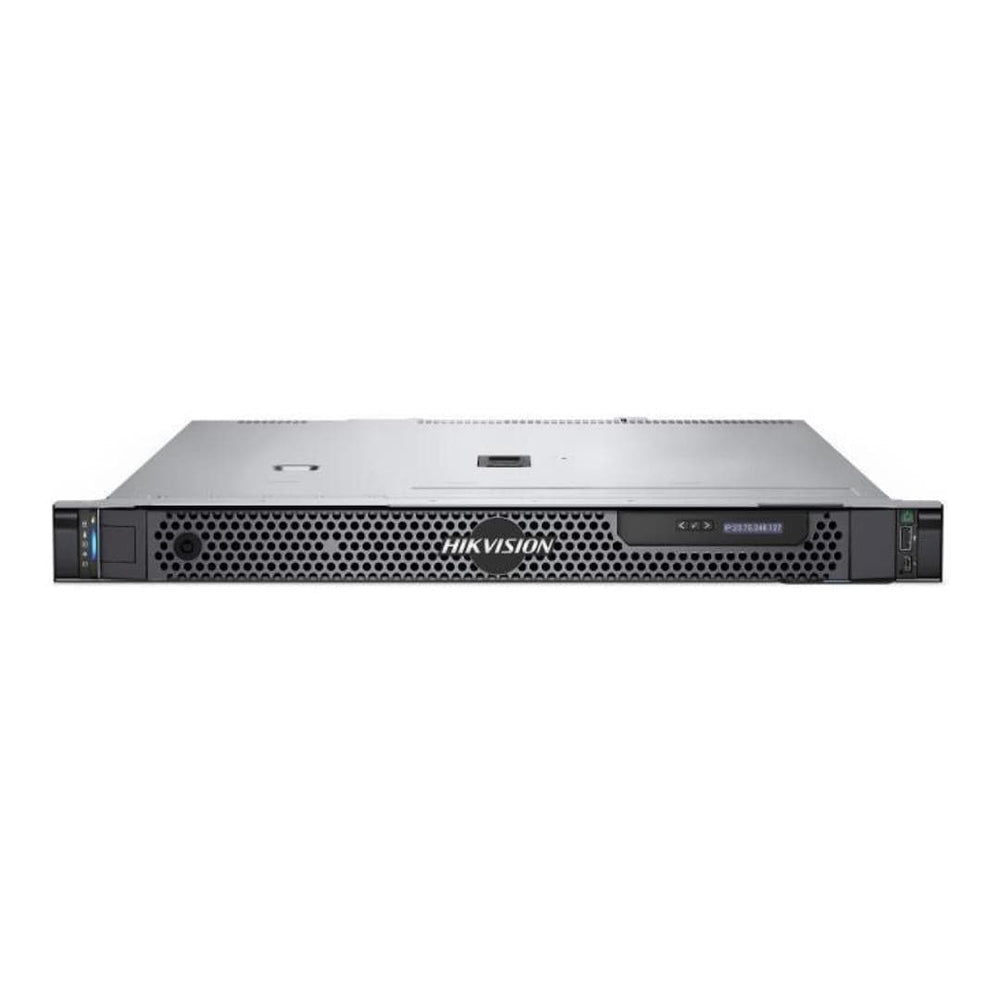

Hikvision HikCentral 300ch VMS Rack Server - Intel Xeon E-2434 16GB RAM 4TB HDD 600W

Hikvision HikCentral 300ch VMS Rack Server - Intel Xeon E-2434 16GB RAM 4TB HDD 600W

Rackmount VMS Server

• HikCentral VMS servers combine hardware and software products to give customers a cost-effective and comprehensive solution
• Plug and play: No additional activation is required, and it is ready to use right out of the box
• Easy to use: Pre-installed operating system, easy to operate and deploy
• All-in-one software and hardware, no activation required, easy delivery and reliable service
• Guaranteed compatibility: Tested by professional testing team to ensure stable operation
• Reliable after-sales service: 24/7 platinum after-sales service

Specifications:

Devices and Resources

Video Management: 300ch by default, can be expanded into 3000ch (Including ANPR Cameras and Cameras with Face Capture Function)

Access Controls: Not included; can be expanded into 1024 (Including Doors and Outdoor Station)

Indoor Station: Not included; can be expanded into 5000

ANPR Cameras: Not included; can be expanded into 1024ch

Lanes of Entrance & Exit: Not included, can be expanded into 40

Cameras with Face Capture Function: Not included; can be expanded into 3000ch

Alarm Panel: Not included; can be expanded into 1024

Smart Walls: Not included; can be expanded into: Smart Walls: 32; Decoding devices: 32

Attendance: Not included, can be expanded by extra license

Hardware Specifications

CPU: E-2434 (3.4 GHz-5.0 GHz, 12 MB Cache, 4 Cores, 8 Threads )

Memory: Standard Config: 1 x 16GB UDIMM，4400MT/s, Scalability: 4 x 128GB UDIMM

Hard DisksStandard Config: 2x 2TB 7.2K SATA Hot-plug HDD (RAID_1)

Slots: 4 x 3.5-inch SAS/SATA (HDD/SSD) slots (Empty slots do not include hard drive bays by default)

Storage Controller: S160 with OS software Raid (support RAID 0/1)

Supported Operating Systems: WinSvr2019 multilingual version pre-installed

PCIe Slots: Up to 2 PCIe Gen4 slots on the Gen4 Riser: Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile

Management

Remote Manage: iDrac9 Enterprise

OpenManage™ Software: Support OpenManage Enterprise and Plugins (PowerManager, SupportAssist, and Update Manager)

Integrations and Connections

Integrations: Microsoft® System Center, VMware® vCenter™, BMC Truesight (available from BMC), Red Hat Ansible;

Connections: Nagios Core & Nagios XI, Micro Focus Operations Manager i (OMi), IBM Tivoli Netcool / OMNIbus

Security: Support Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise or Datacenter)

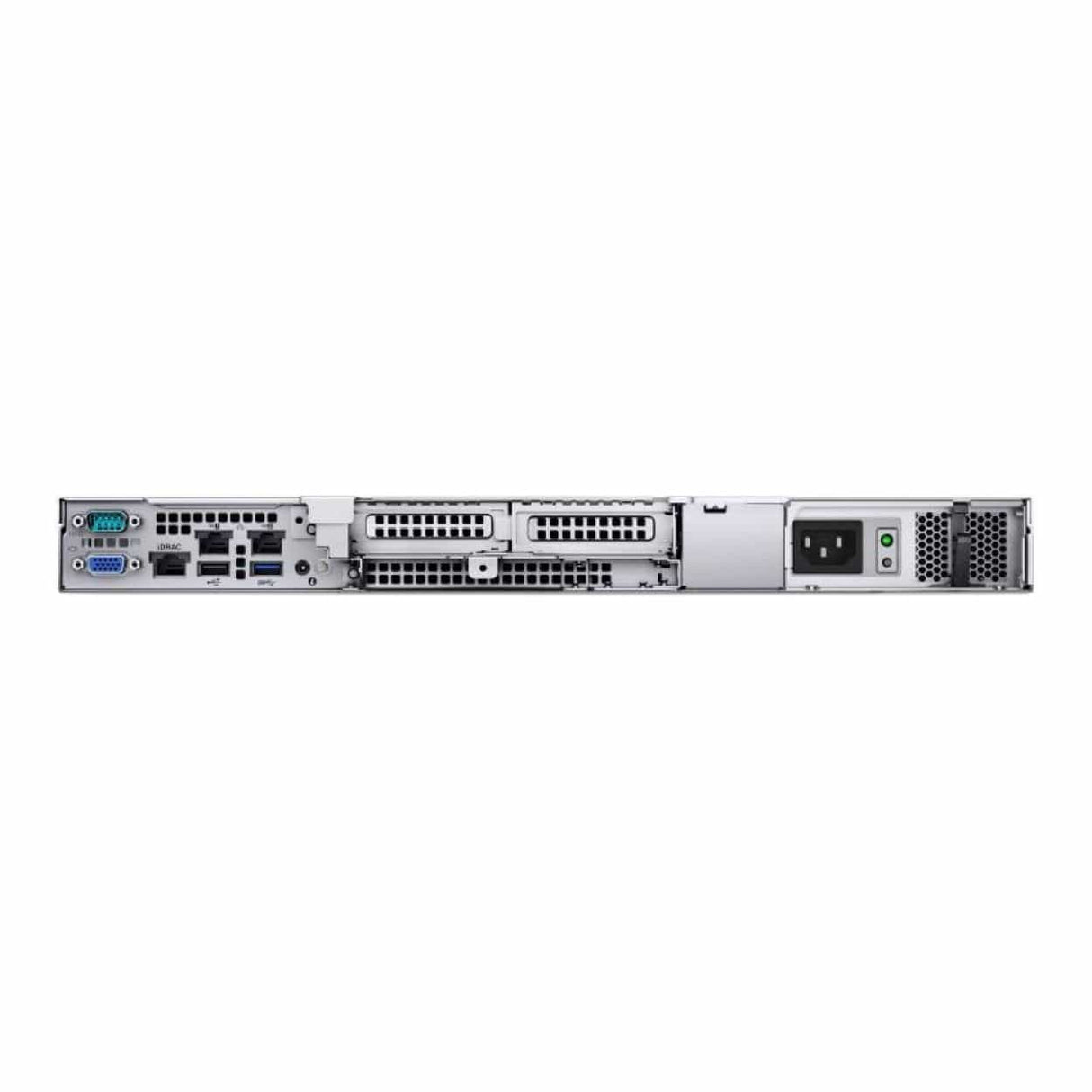

Ports

USB 3.0: 0 (Front) +1 (Rear)

USB 2.0: 1 (Front) +1 (Rear)

Ethernet Port: 2 x LAN 10/100/1000

VGA: 1

iDRAC Direct (Micro-AB USB) Port: 1

iDRAC Ethernet Port: 1

Manager Port: 1

General

Weight: 13.23 kg

Dimension (W × H × D): 42.8 mm × 482.00 mm × 598.9 mm

Operating Temperature: 10 °C to 35 °C

Storage Temperature: -40 °C to 65 °C

Operating Humidity: 8% to 80% (no condensation)

Storage Humidity: 5% to 95% (no condensation)

Power Supply: 600 W, 50/60 Hz, 100-240 VAC (Auto adjustment), 7.1-3.6 A

Form Factor: 1U Rack
