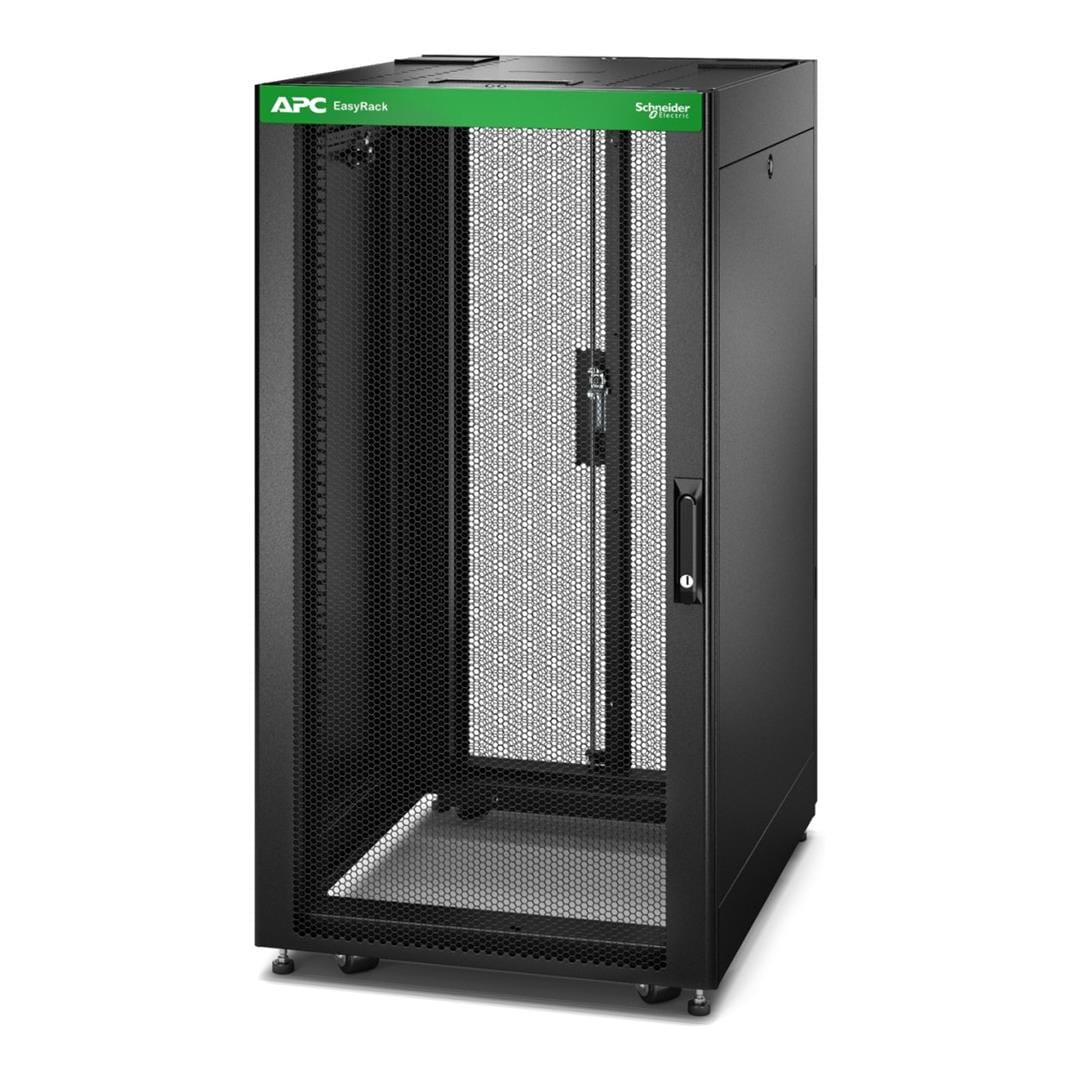

APC Easy Rack ER6482 24U Server Rack

APC Easy Rack ER6482 24U Server Rack

Easy Rack ER6482 is EIA-310 standard pre-assembled IT enclosure with essential features for fast and easy deployment in low to medium density edge computing applications. ER6422 is an ideal choice for remote and networking applications with its 24U height to easily fit underneath counter tops or even into corner of an office rooms. This rack is developed in compact 600mm width & shallow depth 800mm deep to minimize floor space. This rack comes with Roof, keys, levelling feet, casters, side panels, mounting hardware, PDU mounting brackets and without bottom. With UL 2146 certification, this enclosure features integrated electrical grounding, ensuring the roof, front and rear doors are grounded to the frame. This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite. ER6482 has quick release doors with spring pin design so that front doors are easily removed and can be moved to the opposite side or interchanged with rear doors. Solid roof of this rack prevents items from falling inside. Roof & rear door allow some cabling to pass through with tie-off points on frame for secured cable management. Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series.

Features:

• Easy to choose, install and accessorize
• APC quality, reliability and solution compatibility
• suitable for small spaces in edge environment
• UL 2146 Certified Integrated electrical grounding
• Standard 5 year factory warranty for peace of mind

Technical Specifications:

Main

Product Or Component Type
Rack Enclosure

Number Of Rack Units
24U

Physical Specifications

Colour
Black

Height
1198 mm

Width
600 mm

Depth
800 mm

Product Weight
68.4 kg

Rack Width
19"

Maximum Mounting Depth
641.4 mm

Minimum Mounting Depth
190.5 mm

Material Thickness

• 18 Gauge Front Door
• 19 Gauge Rear Door
• 16 Gauge Post
• 14 Gauge EIA Mounting Rail

Load Capacity

• Static Load: 1199.8 kg
• Dynamic Load: 599.6 kg

Compliance And Standards

Standards

• UL 2416
• UL 60950-1
• EIA-310E

Packaging Information

Package Type
PCE

Units Per Package
1

Package Dimensions (H × W × L)
133 × 65 × 85 cm

Package Weight
74 kg

Warranty

Warranty Period
60 Months

What's In The Box:

• Baying Hardware
• Key(s)
• Keyed-Alike Doors And Side Panels
• Leveling Feet
• Mounting Hardware
• Pre-Installed Casters
• Side Panels
