Ubiquiti UniFi Access G3 Starter Kit UA-G3-SK

Ubiquiti UniFi Access G3 Starter Kit UA-G3-SK

A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Touch Pass for modern, secure access control.

Technical Specifications:

Supported Doors: 1
Maximum User Count: 3,000
Input Terminals: Door Exit Request, Door Position
Power Method: PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant: Yes
UL 294 Level: Destructive attack I, Line security I, Endurance I, Standby power I
Weight: 190 g (6.7 oz)
Enclosure Material: Polycarbonate, metal
Mounting: DIN-rail (Included)
Operating Temperature: 0–40 °C (32–104 °F)
Operating Humidity: 5–90% noncondensing
Networking Interface: 3 x GbE RJ45 ports
PoE Interface: 1 x PoE++ input 50 V DC 1 A, 2 x PoE outputs 50 V DC 30 W per port (max 45 W aggregated)
Max. Power Consumption: 19 W (without PoE output), 50 W (with PoE output)
Digital Inputs: Request to exit, door position sensor
Relay Outputs: Dry 30 V DC 1 A, Wet 12 V DC 1 A
LEDs: B/W
Buttons: Factory-reset, Dry/Wet switch
Recommended Max. Cable Lengths: Various depending on lock type and wire gauge
PoE Cabling: Cat 5e minimum; 26 AWG patch, 24 AWG horizontal/riser
UL 294 Statement: Compliance with IEEE 802.3 not verified; follows NEC Art. 725.121
Grade: CAN/ULC-60839-11-1 Grade I
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Software Info: Check version at https://unifi.ui.com

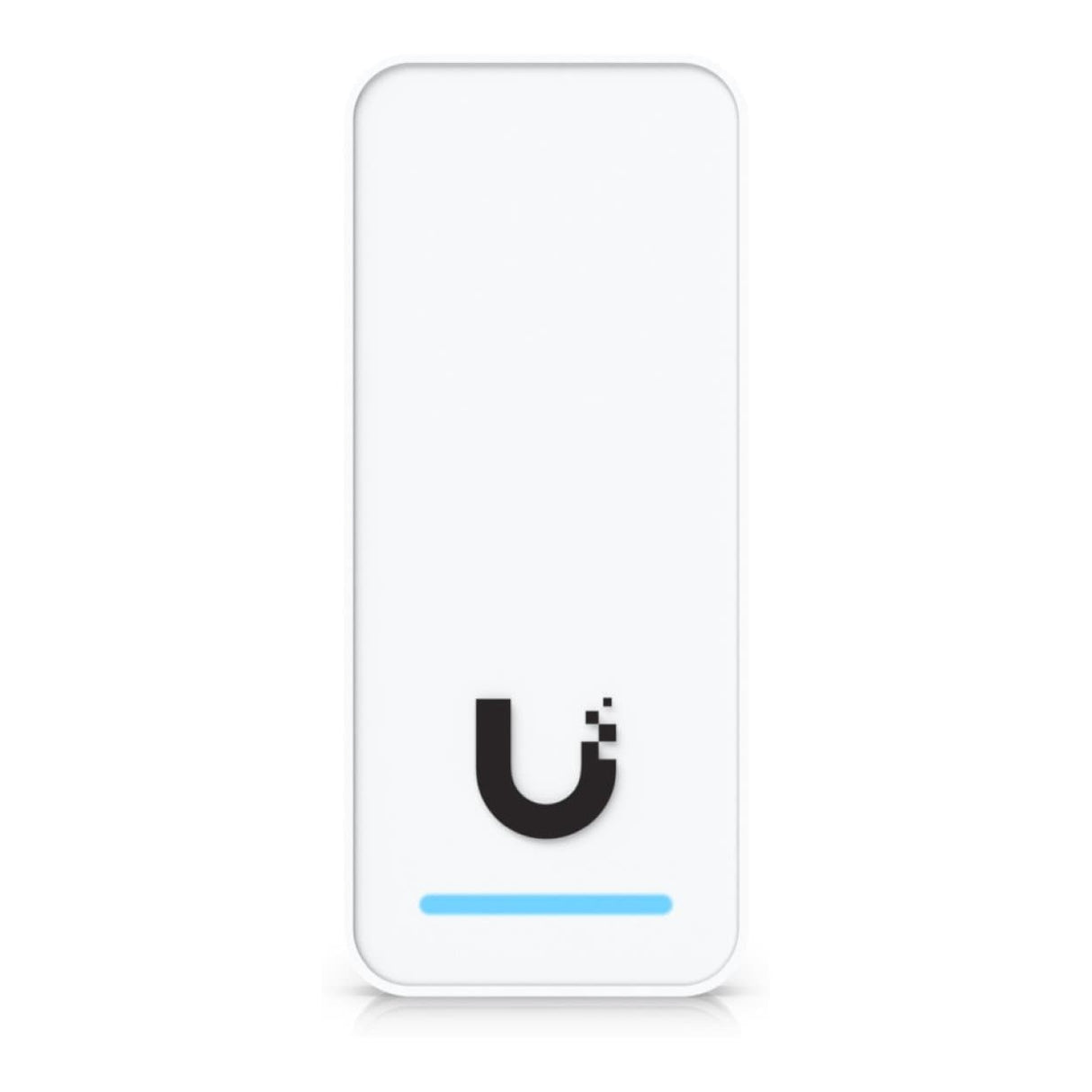

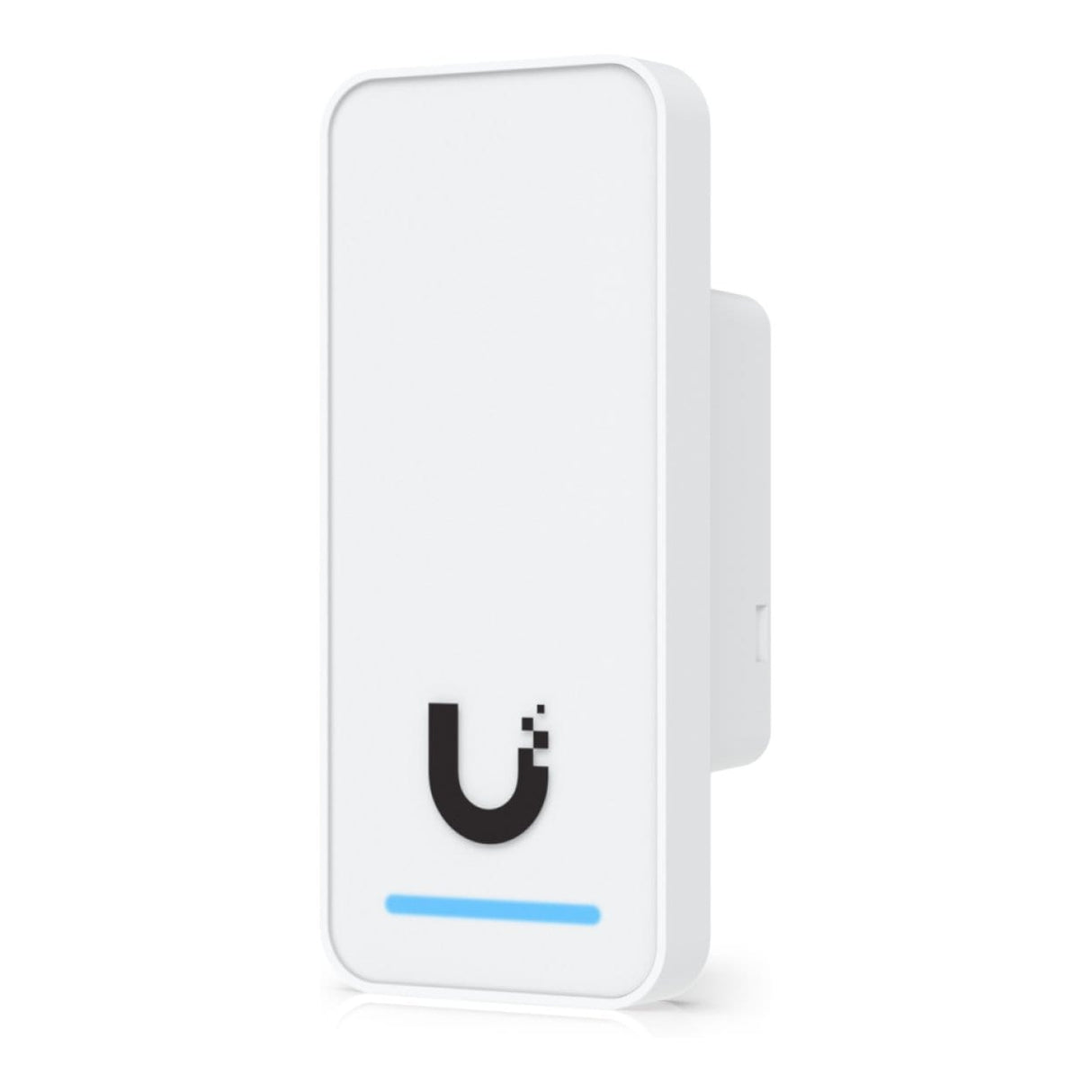

G3 Reader
Dimensions: 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Access: NFC Card & Keyfob, Apple/Google Wallet, Mobile Unlock, Handwave Request to Exit
Weatherproofing: IP55
NDAA Compliant: Yes
UL 294 Level: Destructive attack I, Line security I, Endurance I, Standby power I
Weight: 82 g (2.9 oz)
Enclosure Material: Polycarbonate, glass
Mount Material: Aluminum alloy
Mounting: In-wall/gang box (Included), Junction box (Optional)
Indoor/Outdoor Use: Yes
Operating Temperature: -30 to 45 °C (-22 to 113 °F)
Operating Humidity: 5–90% noncondensing
Networking Interface: 1 x 10/100 MbE RJ45
Connectivity: BLE 4.1, NFC
Power Method: PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
Max Power Consumption: 5 W
Supported Voltage Range: 48 V DC
ESD/EMP Protection: Air ±15 kV, Contact ±8 kV
Sensors: Proximity sensor, Speaker 0.7 W
LEDs: R/G/B/W
Button: Factory-reset
NFC Frequency: 13.56 MHz
NFC Read Range: <30 mm (1.18")
NFC Technology: ISO/IEC 14443A/B, 15693, 18092 (Ecma 340), MIFARE Classic/DESFire, Sony FeliCa™ (ID only), NFC Forum T1T-T5T
PoE Cabling: Cat 5e minimum; 26 AWG patch, 24 AWG horizontal/riser
UL 294 Statement & Grade: Same as Door Hub Mini
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Software Info: Check version at https://unifi.ui.com

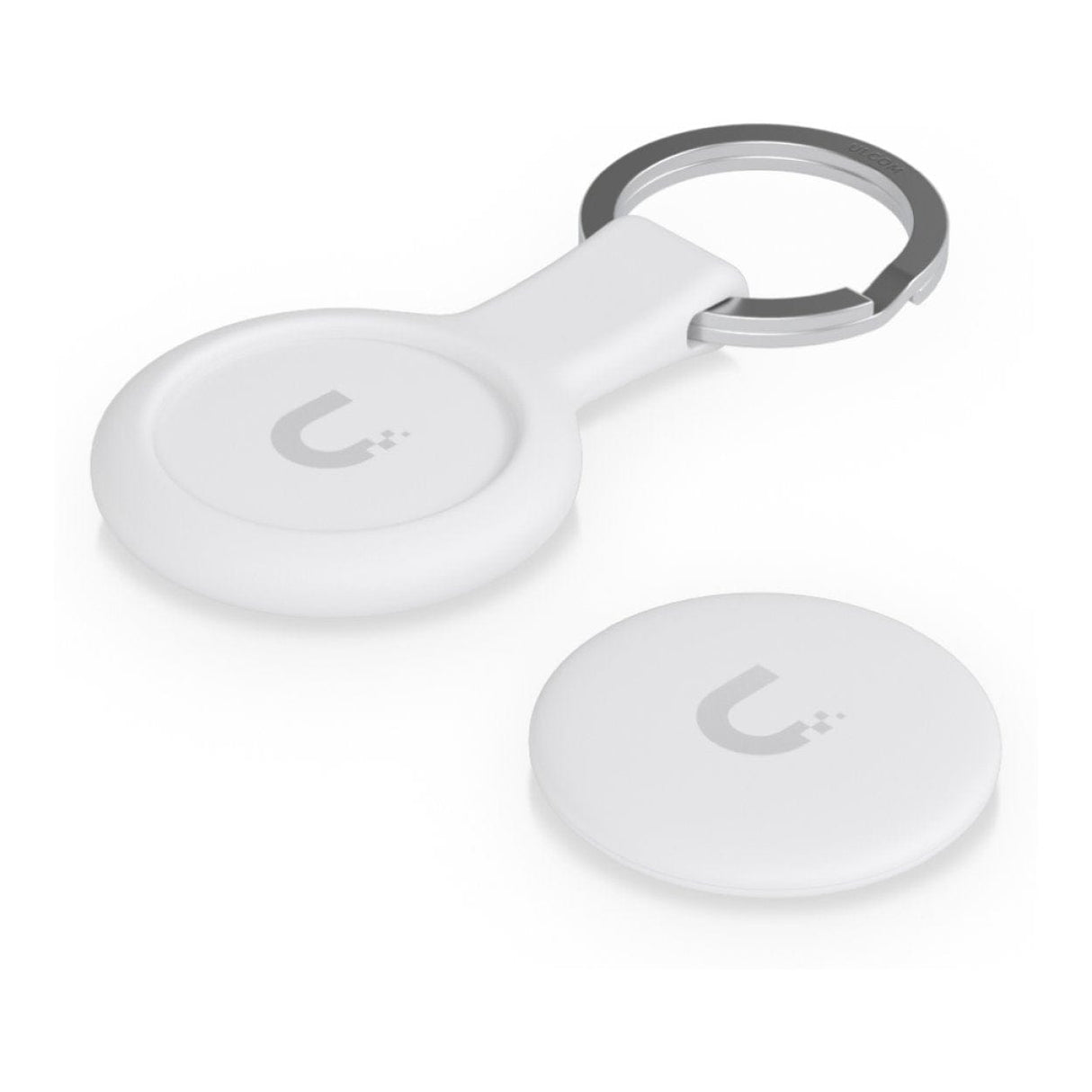

Pocket Keyfob
Dimensions: 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight: 16 g (0.56 oz)
Enclosure Material: Polycarbonate, stainless steel, silicone rubber
Weatherproofing: IP54
NDAA Compliant: Yes
Operating Humidity: 10–90% noncondensing
Operating Temperature: -10 to 45 °C (14 to 113 °F)
NFC Frequency: 13.56 MHz
NFC Technology: ISO/IEC 14443 Type A, MIFARE DESFire EV3 4K
Security: UniFi Access Proprietary Security Protocol
Certification: CE

Dimensions: 113 × 66 × 27.6 mm (4.4 × 2.6 × 1.1")

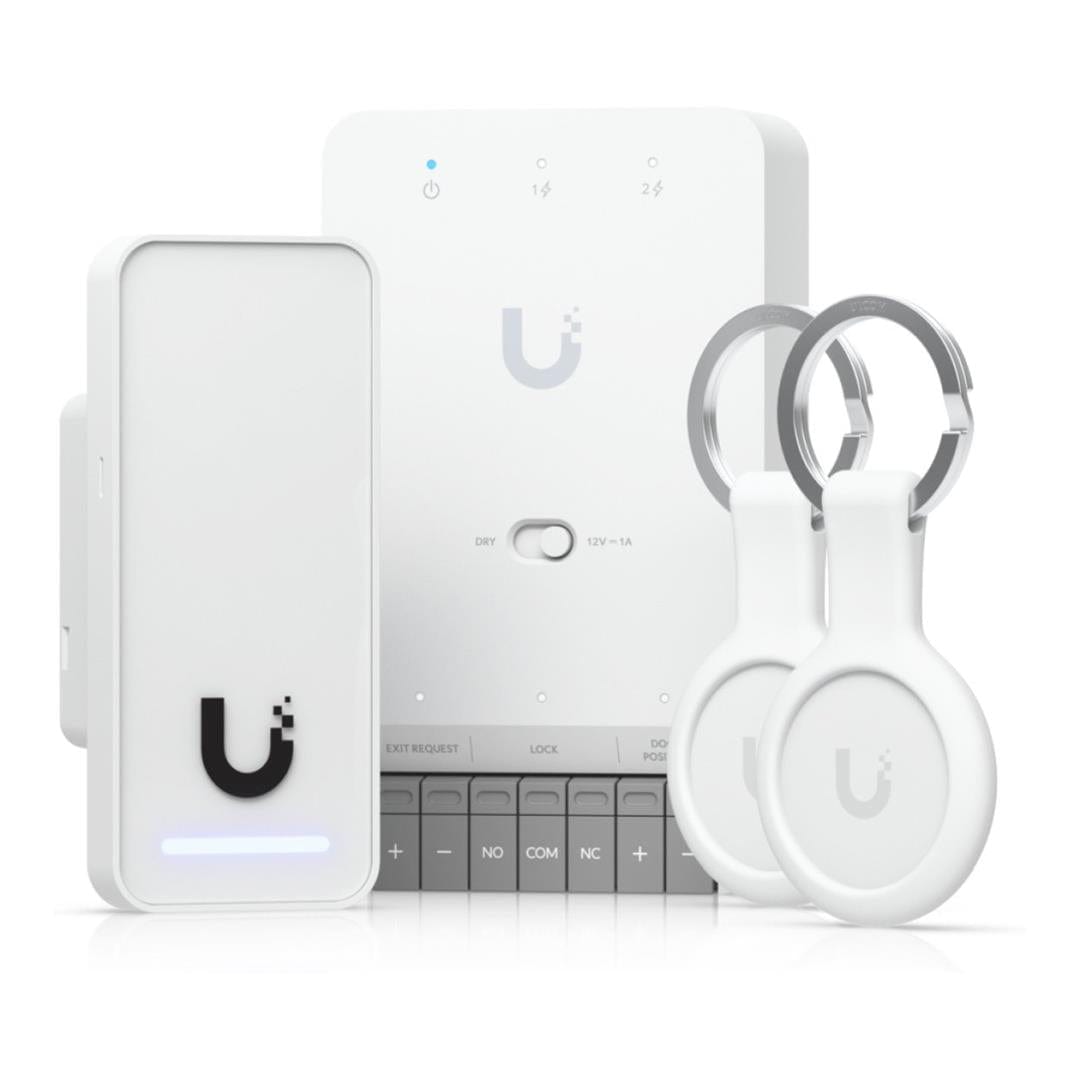

What’s in the Box:

• 1 x Door Hub Mini
• 1 x G3 Reader
• 2 x Pocket Keyfobs
• 10 free 1-year Touch Passes included
