Hikvision Villa Analog Kit DS-KIS203T

Hikvision Villa Analog Kit DS-KIS203T

Features:

• Water Proof Analog Kit for villa or house, only one call button
• Built-in omnidirectional microphone for Indoor station
• Built-in loudspeaker for Indoor station
• Noise suppression and echo cancellation for Indoor station
• Door station: 1920 x 1080
• Door station: 1/2.7" CMOS Lens
• Door station FOV: H: 66.2°, V: 37.2°
• Indoor station: 7-inch, colorful, TFT LCD, 800 x 480
• Door station: IP65 Protective level

Technical Specifications:

Door Station / Video Parameters
Resolution: 1920 × 1080
Stream Resolution: 960 × 576
Lens: 1/2.7" CMOS
FOV: Horizontal: 66.2°, Vertical: 37.2°

Door Station / Audio Parameters
Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in loudspeaker

Door Station / Device Interfaces
I/O Output: 1 relay output
Four-wire: 1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding

Door Station / General
Power Supply: 12 VDC
Power Consumption: Max. 5 W
Working Temperature: -10° C to +55° C (14° F to 131° F)
Working Humidity: 10% to 90%
Dimensions: 128 mm × 42 mm × 24.8 mm
Protective Level: IP65

Indoor Station / Display Parameters
Operation Method: Physical button
Type: 7-inch colorful TFT LCD
Resolution: 800 × 480

Indoor Station / Audio Parameters
Audio Input: Built-in omnidirectional microphone
Audio Output: Built-in loudspeaker
Audio Quality: Noise suppression and echo cancellation

Indoor Station / General
Power Supply: 12 VDC
Power Consumption: ≤ 5 W
Working Temperature: -10° C to +55° C (14° F to 131° F)
Working Humidity: 10% to 90%
Dimensions (W × H × D): 195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" × 0.7")

Kit includes:

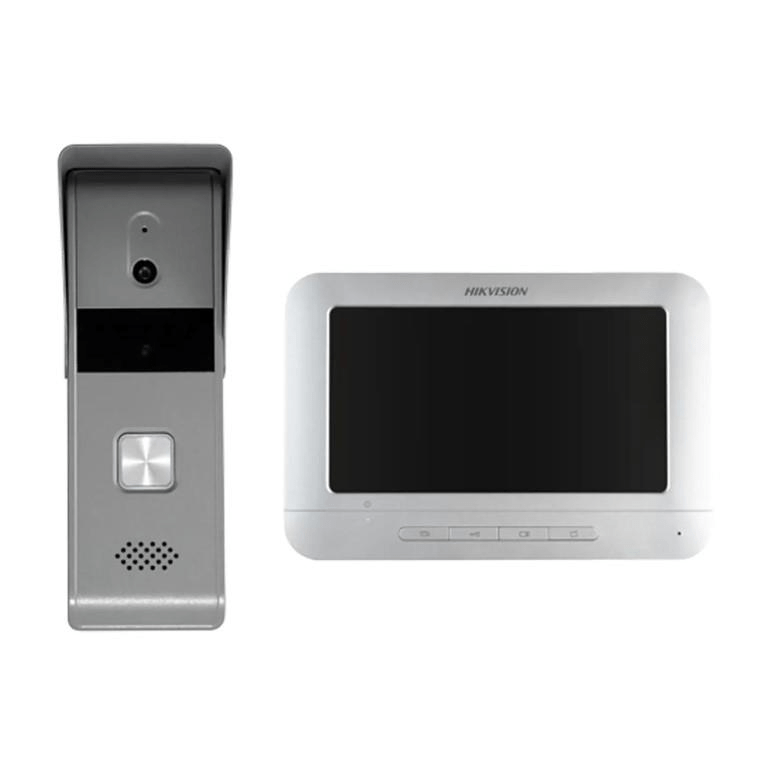

• DS-KB2421T-IM and DS-KH2220
• 5-meter 4-wire cable
• and other accessories
