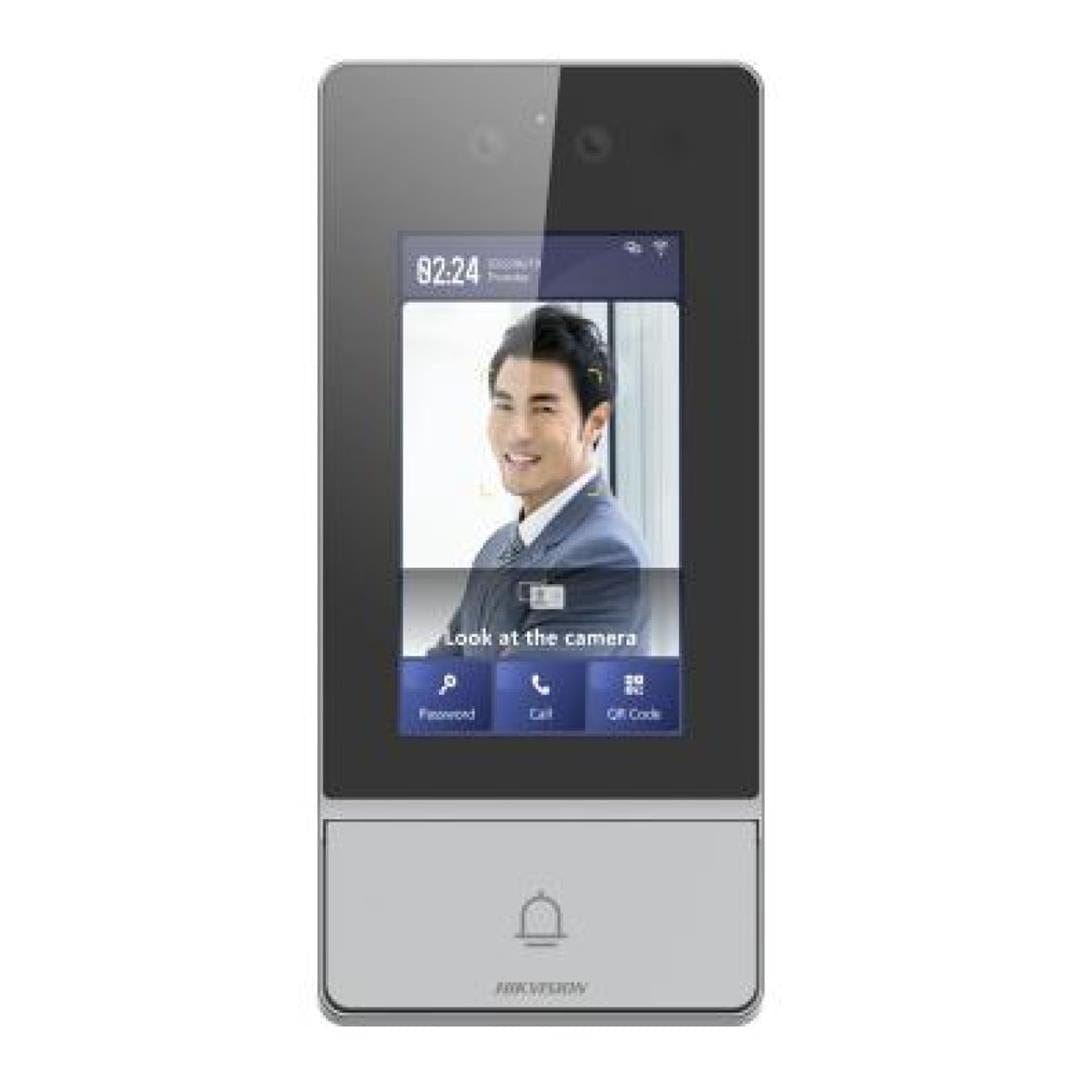

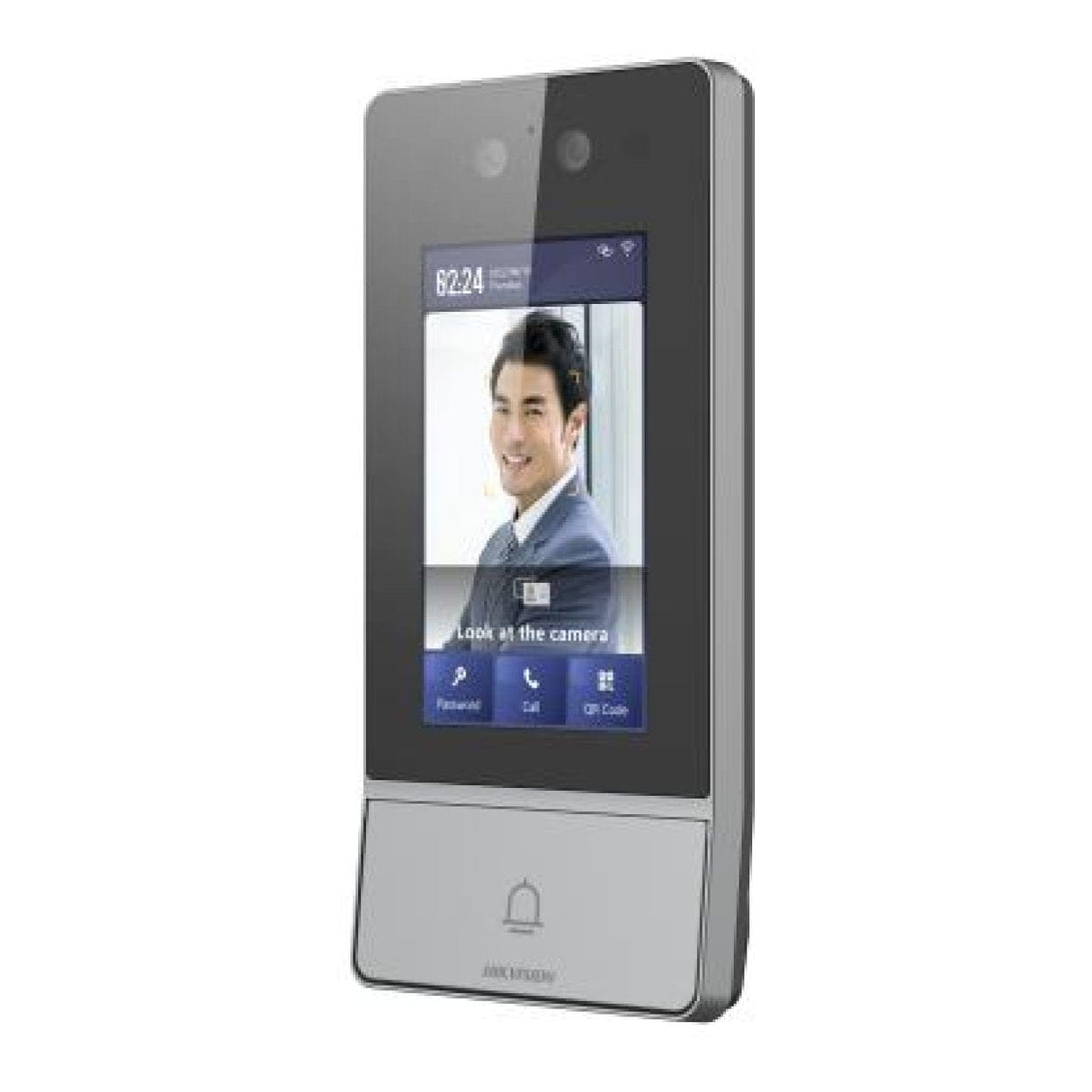

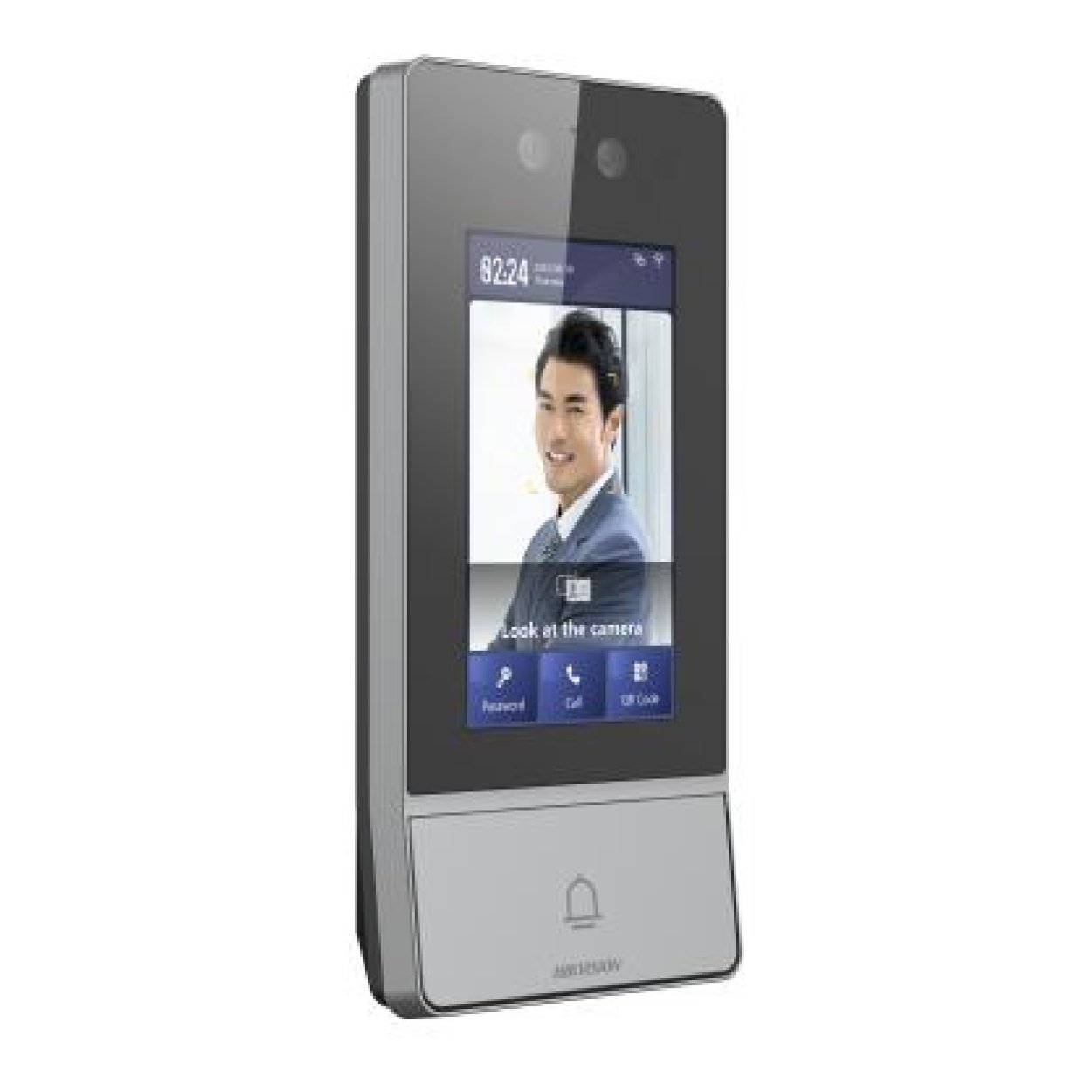

Hikvision Metal Vandal-resistant Facial Recognition IP Villa Door Station DS-KV9503-WBE1

Hikvision Metal Vandal-resistant Facial Recognition IP Villa Door Station DS-KV9503-WBE1

Features:

• 4.3-inch colorful LCD screen with 800 × 480 resolution
• 2 × 2 MP camera with IR supplement
• One-touch physical button for easier calls
• Standard PoE power supply
• IK08 & IP65 higher protection level
• Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth
• Call directly to Hik-Connect APP without indoor station

Technical Specifications:

System parameters
Operation system: Linux
ROM: 4 GB
RAM: 1 GB
Processor: Embedded high-performance processor

Display parameters
Screen size: 4.3-inch
Operation method: Capacitive touch screen
Type: IPS
Resolution: 800 × 480
Luminance: 425 cd/m²

Video parameters
Lens: 2
Resolution: 2 × 2 MP
FOV: Horizontal: 88°, Vertical: 44°
Wide dynamic range (WDR): Support 120 dB
Supplement light: IR light, up to 3 m
Video compression standard: Main stream and sub stream: H.264; Third stream: H.265

Audio parameters
Audio input: 1 built-in omnidirectional microphone
Audio compression standard: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio output: 1 built-in loudspeaker
Audio compression bitrate: G.711u, G.711a, Opus: 64 kbps; G.722.1, G.726: 32 kbps; AAC-LD, AAC-LC: 16 kbps
Audio quality: Noise suppression and echo cancellation
Volume adjustment: Adjustable

Capacity
User capacity: 20,000
Face capacity: 10,000
Fingerprint capacity: No
Card capacity: 100,000
Message capacity: No
Linked indoor station capacity: 500
Sub door station capacity: 16

Network parameters
Network protocol: TCP/IP, RTSP
Wi-Fi: IEEE802.11b/g/n
Bluetooth: 2.0
3G/4G: No

Authentication
Card reading frequency: 13.56 MHz
Face recognition distance: 0.3 to 2 m
Face recognition accuracy rate: ≥ 99%
Face recognition duration: < 0.2 s per person

Device interfaces
Alarm input: 4 (2 exit buttons, 2 door contacts by default)
Network interface: 1 RJ-45, 10/100 Mbps self-adaptive
TAMPER: 1
Exit button: 2
RS-485: 1
USB: No
Wiegand: No
TF card: Reserved
Lock control: 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module
Door contact input: 2

General
Button: 1 physical button
Installation: Surface mounting
Indicator: No
Net weight: 0.405 kg
Gross weight: 0.752 kg
Protective level: IP65, IK08
Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Working humidity: 10% to 90% (non-condensing)
Dimension (W × H × D): 182 × 85 × 26 mm (7.16" × 3.34" × 1.01")
Battery: No
Power supply: 12 VDC, 1.5 A, IEEE802.3af Standard PoE
Application environment: Outdoor
Power consumption: ≤ 6 W
Language: English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
