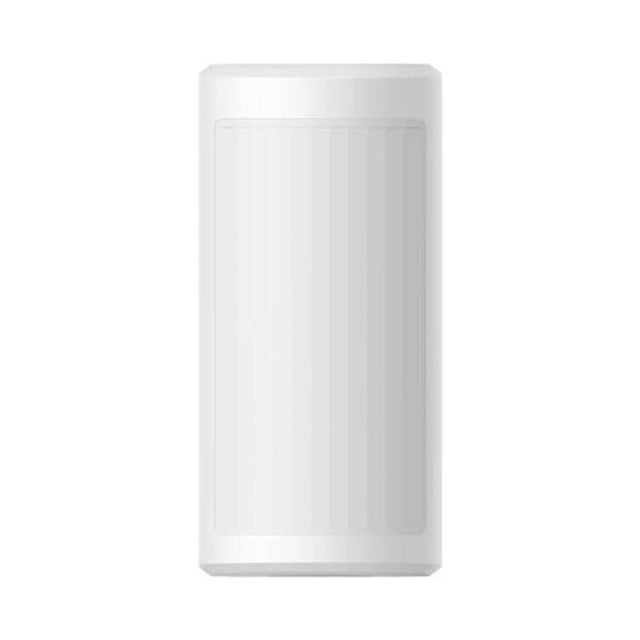

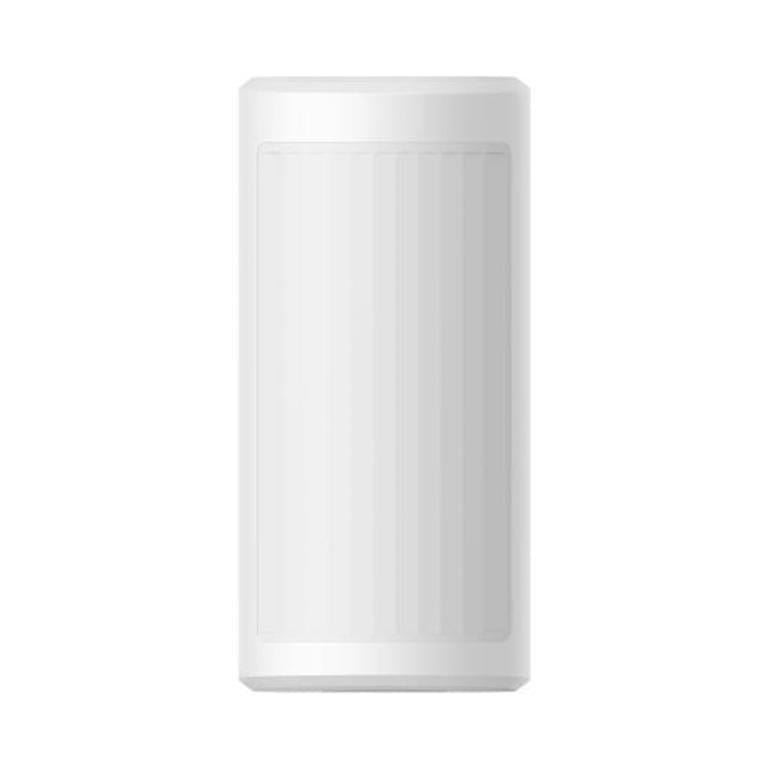

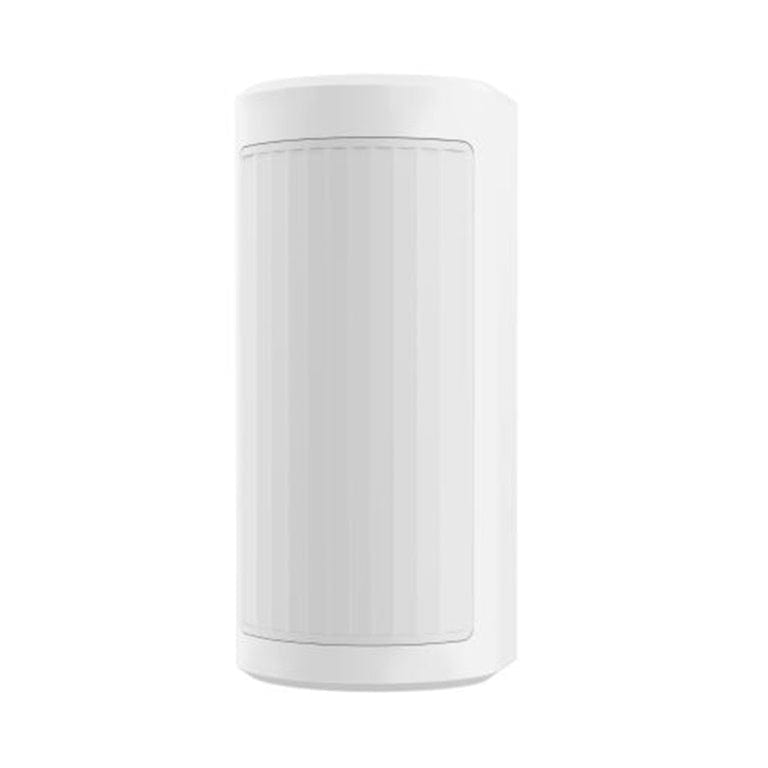

Hikvision AX Pro Series Wireless Double PIR Motion Detector DS-PDP18-HM-WE

Hikvision AX Pro Series Wireless Double PIR Motion Detector DS-PDP18-HM-WE

When you are away from your home or business, see what’s happening around immediately with your own eyes can bring real assurance. That’s why you need AX PRO – a flexible and easy-to-use system with no wires.

Featuring precise detections and comprehensive protection, it is an ideal choice for villas, offices, shops and more.

Features

• High/Low mount adjustment
• IP65 weather resistance for outdoor application
• Multiple enrollment methods and easy installation
• Frequency hopping against jamming for reliable transmission

Technical Specification

Product: Hikvision DS-PDP18-HM-WE

Mounting type: Wall

Placement: Indoor, Outdoor

Detection Performance

Detection Method: Passive Infrared

Detection Range: 18 m

Detection Angle: 90°

Detection Zones: 118

Detectable Speed: 0.3～2m/s

Sensitivity: Auto; Pet

White Light Filter: 20000lux

Pet Immunity: Up to 24 kg

Digital Temperature Compensation: Support

Feature

Digital Processing: Support

Sealed Optics: Support

Tamper Protection: Front;Rear

Environment Temperature Indicator: Support

Signal Strength Indicator: Support

Interface

Power Switch: Power up enrolling

LED Indicator: Blue (alarm)

Transmission

Transmission Technology: Tri-X Wireless

Transmission Method: Two-Way RF Wireless

Transmission Frequency: 868MHz

Transmission Security: AES-128 Encryption

Transmission Range(Free Space): 1.6km

Frequency Hopping: Support

Enrolling Method: Power up;Remote ID;QR Code

Electrical Characteristics

Standard Battery Life: Up to 5 years (standby time)

Power Supply: Battery powered

Battery Type: CR123A × 2

Typical Voltage: 3V

General

IP Rate: IP65

Dimension(WxHxD): 67.3 mm x 141.6 mm x 60 mm

Weight: 301 g

Mounting Height: 2.5 to 3m high mount / 0.8 to 1.2m low mount

Bracket: Adjustment bracket included
