Hikvision AX Pro 868MHz Wireless Alarm Kit DS-PWA96-KIT-WE

Hikvision AX Pro 868MHz Wireless Alarm Kit DS-PWA96-KIT-WE

AX PRO supports Wi-Fi, TCP/IP, and GPRS/3G/4G communication methods. It also supports Hik-ProConnect, Hik-Connect, Hik IP Receiver, Hik IP Receiver Pro and Hik-Central, which is applicable to the scenarios of market, store, house, factory, warehouse, office, etc.

Features

• TCP/IP, Wi-Fi, and GPRS/3G/4G network
• New generation wireless protocol: Tri-X/Cam-X
• Long RF transmission distance
• Two-way communication with AES-128 encryption
• Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 16 wired zones, 2 wired outputs, 48 wireless keyfobs, 4 repeaters, 6 sounders, 8 tag readers & keypads. The capability varies according to the model of device.
• Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
• Voice prompt
• Configuration via Web client, mobile client, and Convergence Cloud
• Hik-Connect and Hik-ProConnect configuration depends on the user access level
• Pushes alarm notification via messages or phone calls
• Views live videos from Hik-Connect
• Alarm video clips via emails and APP
• Uploads alarm reports to ARC
• Supports LED indicator to indicates system status
• 4520 mAh lithium backup battery or 12v 7Ah storage battery depends on model of device
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

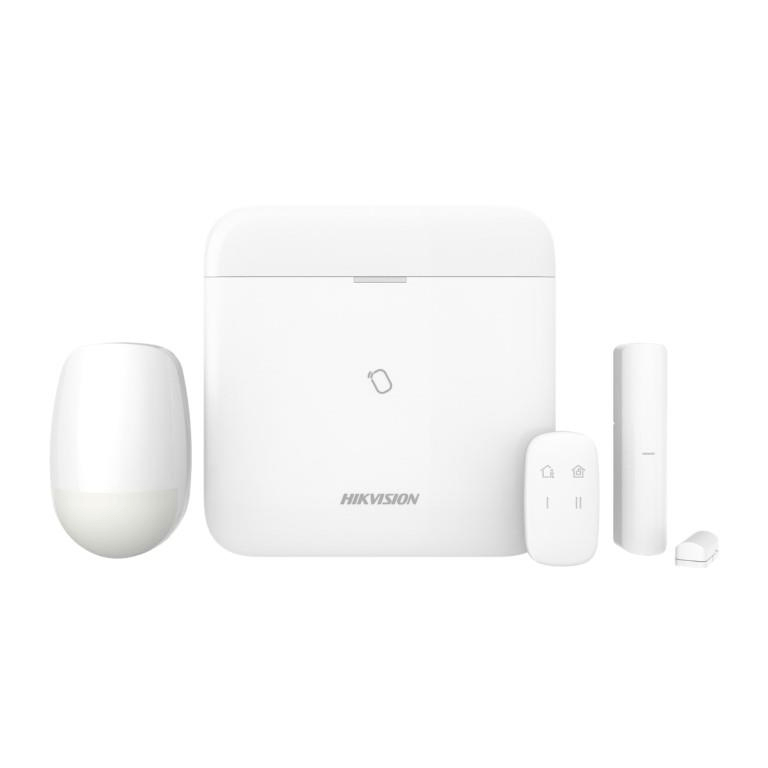

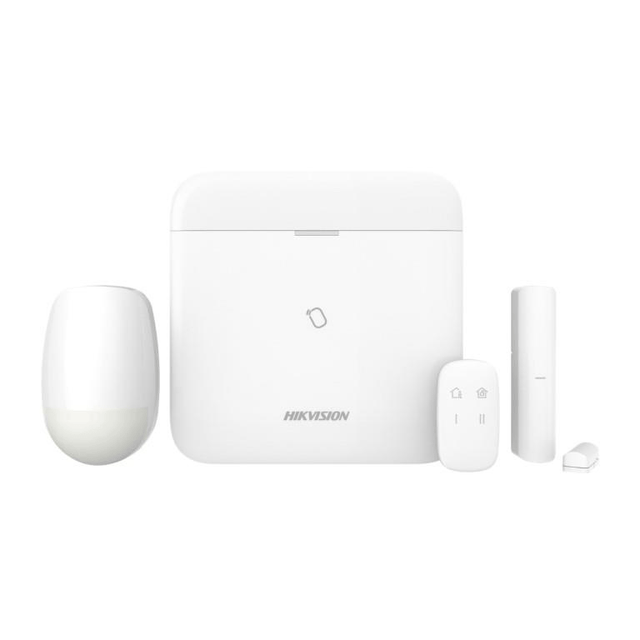

Kit Includes

• 1x DS-PWA96-M-WE
• 1x DS-PKF1-WE
• 1x DS-PDP15P-EG2-WE
• 1x DS-PDMC-EG2-WE



Technical Specification

Software features

Tag: 48

Area: 32

Zones: 96 (up to 48 PIRCAMs)

Onboard video clips: 4

Installer: 1

User: 46

Admin: 1

Voice Prompt: Supported

Loudspeaker built in: Supported

Tag reader built in: Supported

Memory Log stored: 5000

Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud

Firmware upgrade: APP/Web Portal

Arm modes: Away/Stay

Automatic Arm/Disarm Timers: Supported

Forced Arming with Open Zones: Supported

Diagnostics via the APP or Web: Supported

ARC protocol: SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)

Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685): Supports video verification and remote control

User APP for operating: Supported

Installer APP for programming: Supported

Web server for maintenance (offline configuration)Supported

Hardware features

RS232 output: Supported

SIM slot: Dual

RF transmission

Two-way Wireless Communication: Support

RF Frequency: 868Mhz

Wireless Security: Frequency Hoping 128 AES Encryption

3/4G on board: Supported

Electrical characteristics

Power supply: Built in power supply

Battery type: Built in on board Battery Li

Battery life span: Up to 16 hours

Wireless transmission

Wired network: Supported

Wi-Fi Standard: Supported

Display

LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

Operation temperature: -10 °C to +55 °C

Shell material: Plastic

Dimension(WxHxD): 170.0 mm x 170.0 mm x 38.6 mm

Weight: 557.5 g

Color: White

Device management

Keyfob: 48

Wireless sounder: 6 (3 internal+3 External)

Keypad: 8 (Including Tag reader)

Wireless Repeater: 4

Multi Transmitter: 6

PIR Cam: Supported
