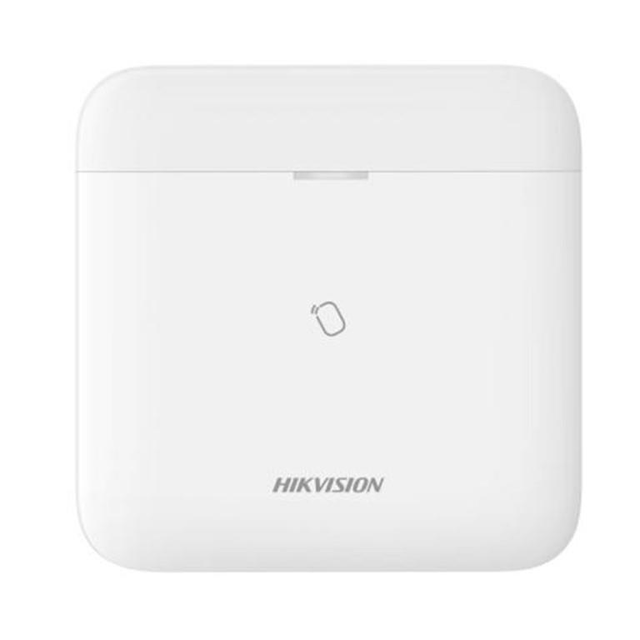

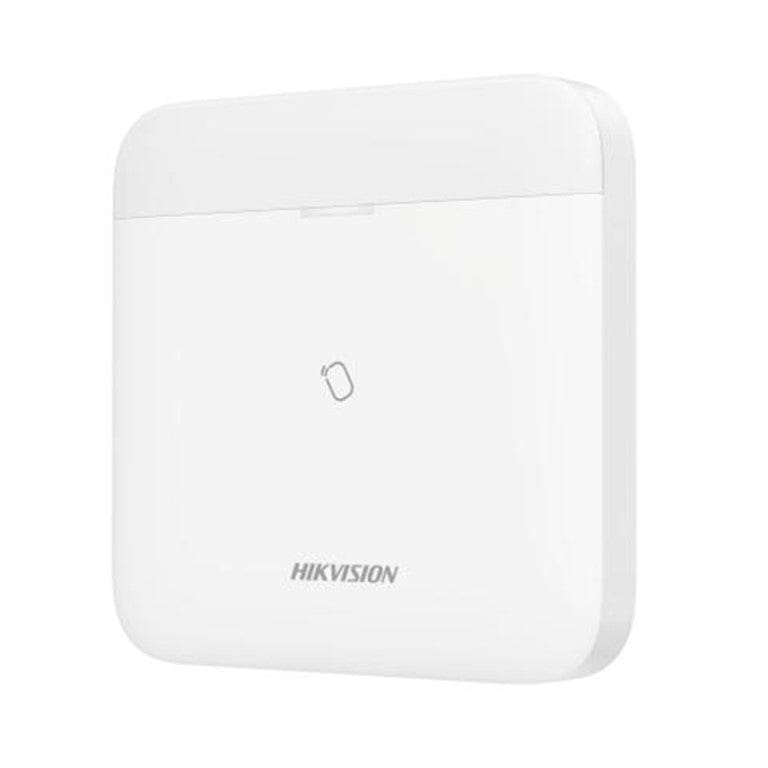

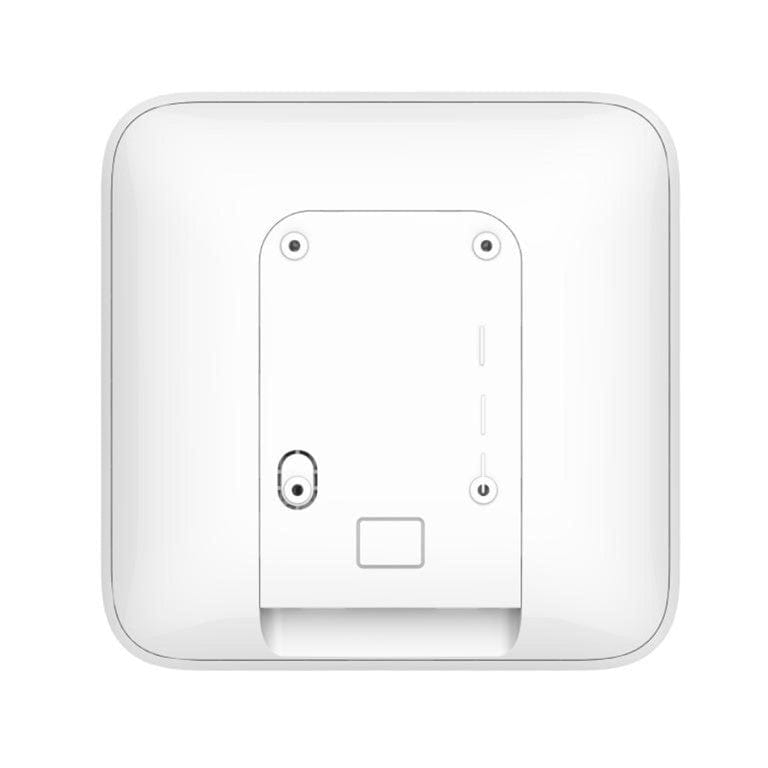

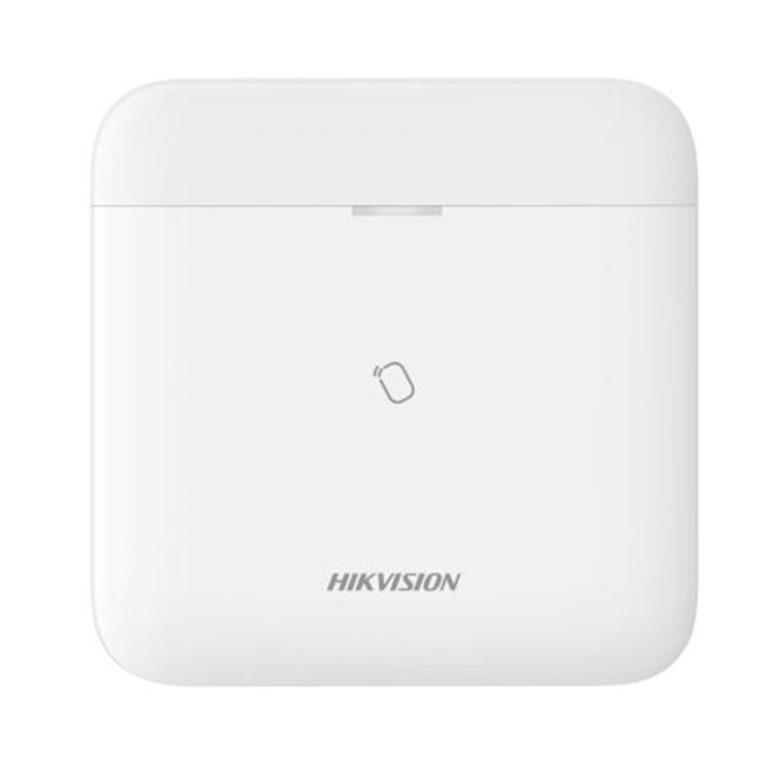

Hikvision AX Pro 868MHz Wireless Alarm Control Panel with IP, Wi-Fi, 3G and 4G Network DS-PWA96-M-WE

Hikvision AX Pro 868MHz Wireless Alarm Control Panel with IP, Wi-Fi, 3G and 4G Network DS-PWA96-M-WE

Features

• TCP/IP, Wi-Fi, and 3/4G network
• New generation wireless protocol: Tri-X/Cam-X
• Long RF transmission distance
• Two-way communication with AES-128 encryption
• Connects up to 96 wireless zones/outputs (including 48 PIRCAMs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 external), 8 tag readers and keypads
• Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users
• Voice prompt
• Configuration via Web client, mobile client, and Convergence Cloud
• Hik-Connect and Hik-ProConnect configuration depends on the user access level
• Pushes alarm notification via messages or phone calls
• Views live videos from Hik-Connect
• Alarm video clips via emails and APP
• Supports LED indicator to indicates system status
• 4520 mAh lithium backup battery
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Technical Specification

• Diagnostics via the APP or Web: Supported
• Installer: 1
• Installer APP for programming: Supported
• Onboard video clips: 4
• Web server for maintenance (offline configuration): Supported
• Wi-Fi standard: Supported
• Arm modes: Away/Stay
• Firmware upgrade: APP/Web Portal
• Admin: 1
• Wired network: Supported
• Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
• Forced arming with open zones: Supported
• Memory log stored: 5000
• User: 46
• User APP for operating: Supported
• Voice prompt: Supported
• Area: 32
• Automatic arm/disarm timers: Supported

• RS232 output: Supported
• SIM slot: Dual
• 3/4G on board: Supported
• Tag reader built in: Supported
• Loudspeaker built in: Supported

• Battery type: Built in on board Battery Li
• Power supply: Built in power supply
• Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

• RF frequency: 868 Mhz
• RF method: Support
• Wireless security: Frequency Hoping 128 AES Encryption

• LEDs status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

• Dimension(WxHxD): 170.0 mm x 170.0 mm x 38.6 mm
• Shell material: Plastic
• Colour: White
• Weight: 557.5 g

• Tag: 48
• PIR cam: Supported
• Zones: 96 (up to 48 PIRCAMs)
• Keypad: 8 (including tag reader)
• Wireless sounder: 6 (3 internal+3 external)
• Wireless repeater: 4
• Keyfob: 48
• Multi Transmitter: 6
