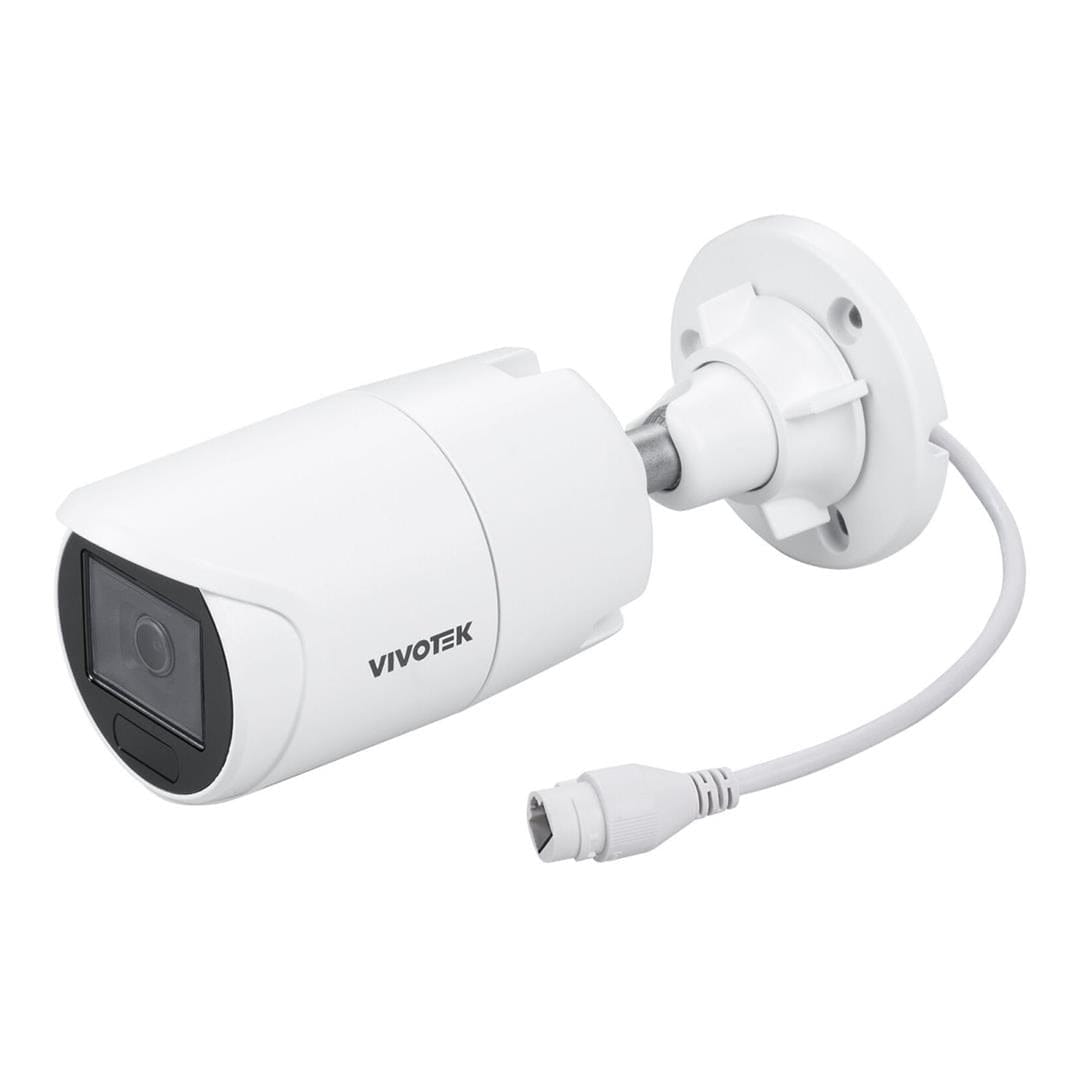

Vivotek IB9383-HTV 5MP Outdoor Bullet AI Camera

Vivotek IB9383-HTV 5MP Outdoor Bullet AI Camera

Imaging Performance

Experience class-leading image performance with the 9383. Its advanced Sony image sensor, combined with STARVIS 2 technology, delivers exceptional clarity and precision. Enjoy a 2.5x increase in dynamic range and light sensitivity, ensuring superior visibility in all lighting conditions. From bright daylight to low-light environments, rest assured that every detail is captured with remarkable clarity.

Features:

• WDR Pro for Unparalleled Visibility
• Built-in IRs up to 30M with Smart IR III
• AI-powered Smart Motion Detection and Smart VCA
• Cyber Protection via Trend Micro IoT Security
• Signed Firmware and Secure Boot

Daylight Clarity

Stunning daytime imagery with vibrant colors and balanced exposure. The 83 series delivers crisp, clear visuals that capture every detail with vivid accuracy, ensuring optimal surveillance performance in any lighting condition.

Enhanced Visibility in Harsh Lighting

Superior image quality with WDR technology. Even in challenging scenarios like an office setting with sunlight streaming through the window, the 83 series maintains clear visibility, minimizing glare and shadowing for enhanced detail and accuracy in surveillance footage.

Nighttime Vision

Exceptional low-light color performance with sharper, non-overblown imagery around light sources. The 83 series ensures balanced exposure between dark and bright regions, delivering evenly-lit, well-exposed footage with balanced contrast. Enjoy clear and visible images, even within LED backlit displays, for enhanced surveillance effectiveness.

AI Powerhouse

Class-leading AI features in our entry-tier series, providing you with advanced analytics and vision object analytics capabilities for unmatched security solutions.

Enhance your investigative efficiency with potent data revealed by the 83 series, identifying people and vehicles by their distinctive attributes such as color, gender, and type. Simplify searches and minimize redundant results with precise object tracing.

Object Detection Performance

Class-leading AI Processor effortlessly manages over 25 detection objects for advanced AI analytics.

Smart VCA: AI-Powered Video Analytics on Edge

Empowers the 83 series to collect more valuable scene awareness data than traditional frame-difference-based video motion detection. Operating as edge-based applications, Smart VCA also minimizes bandwidth and storage usage. Smart VCA is designed to improve efficiency and reduce operators' workloads.

Vision Object Analytics: AI-Driven Solution

While AI adoption has presented challenges in installation and configuration for many, the 83 series with VIVOTEK vision object analytics revolutionizes the process, simplifying user judgment through automated investigation.

Design

The 83 series is a comprehensive package, meticulously designed with fundamental principles spanning from hardware to software.

Vari-Focal Model

Unlock versatility with 4.3x zoom capability for adaptive surveillance needs.

IP66 + IK10

Weather-resistant and vandal-proof, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment.

Technical Specifications:

System Information

CPU
Multimedia SoC (System-on-Chip)

Flash
8GB

RAM
2GB

Camera Specifications

Image Sensor
1/2.8" Progressive CMOS

Maximum Resolution
2560 × 1920 (5MP)

Lens Type
Motorized, Vari-Focal, Remote Focus

Focal Length
f = 2.8–12 mm

Aperture
F1.6–F3.3

Iris Type
DC-Iris

Field of View

• 95.4°–28.7° (Horizontal)
• 68.8°–21.5° (Vertical)
• 129.6°–35.9° (Diagonal)

Shutter Time
1/5 sec. to 1/32,000 sec.

WDR Technology
WDR Pro

Day/Night
Yes

Removable IR-Cut Filter
Yes

Illuminators

• Built-In IR Illuminator up to 30 m With Smart IR
• IR LED × 2

Minimum Illumination

• 0.04 lux @ F1.6 (Color)
• 0.005 lux @ F1.6 (B/W)
• 0 lux With IR Illumination On

Tilt Range
90°

Rotation Range
180°

Pan/Tilt/Zoom Functionalities
ePTZ: 48× Digital Zoom (4× on IE Plug-In, 12× Built-In)

Storage

• Seamless Recording to MicroSD/SDHC/SDXC Card (1TB Capacity Supported)
• Recording to Network-Attached Storage (NAS)

Built-In Installation Aids

• Remote Focus
• Remote Zoom
• Pixel Calculator

Video

Compression
H.265, H.264, MJPEG

Maximum Frame Rate
30 fps @ 2560 × 1920

Maximum Streams

• 3 Video Streams (Up to 8 Configurable Profiles)

Main Stream

• 30 fps @ 2560 × 1920, 2048 × 1536, 1920 × 1440, 1600 × 1200, 1280 × 960, 800 × 600, 640 × 480 (4:3)
• 30 fps @ 2560 × 1440, 1920 × 1080, 1600 × 904, 1360 × 768, 1280 × 720, 640 × 360 (16:9)
• 60 fps @ 1920 × 1080, 1600 × 904, 1360 × 768, 1280 × 720, 640 × 360 (16:9)

2nd Stream

• 30 fps @ 1920 × 1440, 1600 × 1200, 1280 × 960, 640 × 480 (4:3)
• 30 fps @ 1920 × 1080, 1600 × 904, 1360 × 768, 1280 × 720, 640 × 360 (16:9)
• 60 fps @ 1920 × 1080, 1600 × 904, 1360 × 768, 1280 × 720, 640 × 360 (16:9)

3rd Stream

• 30 fps @ 1280 × 960, 800 × 600, 640 × 480 (4:3)
• 30 fps @ 1280 × 720, 640 × 360 (16:9)
• 60 fps @ 1280 × 720, 640 × 360 (16:9)

S/N Ratio
59 dB

Dynamic Range
120 dB

Video Streaming
Adjustable Resolution, Quality and Constant Bit Rate Control, Smart Stream III

Image Settings

• Video Title and Time Stamp Overlay
• Video Orientation (Flip, Mirror, Rotation)
• Day/Night Settings
• Illuminators Control and Smart IR
• White Balance
• Image Adjustment (Brightness, Contrast, Saturation, Sharpness, Gamma Curve)
• Defog
• 3DNR
• BLC
• HLC
• Exposure Control (Exposure Level, Exposure Time, Gain Control)
• Image Sharpener for Motion Blur
• AE Speed Adjustment
• WDR
• Zoom and Focus
• Privacy Mask
• Pixel Calculator
• Scheduled Profile Settings

Audio

Audio Capability
One-Way Audio

Compression
MPEG-2 AAC-LC, G.711, G.726

Interface
Built-In Microphone

Effective Range
5 m

Network

Users
Live Viewing for up to 10 Clients

Security

• Access List
• CSRF Protection
• Digest Authentication
• HTTPS
• IEEE 802.1x
• Password Protection
• Secure Boot
• Signed Firmware
• Trend Micro IoT Security
• User Access Log
• User Account Management

Protocols

• 802.1X
• ARP
• Bonjour
• CIFS/SMB
• DDNS
• DHCP
• DNS
• FTP/SFTP
• HTTP
• HTTPS
• ICMP
• IGMPv3
• IPv4
• IPv6
• NTP
• PPPoE
• QoS (CoS/DSCP)
• RTSP/RTP/RTCP
• SMTP
• SNMP
• SSL
• TCP/IP
• TLS 1.2 / 1.3
• UDP
• UPnP

Interface
10 Base-T / 100 Base-TX Ethernet (RJ-45)

ONVIF Support
Profile G, S, T, M Supported

AI Analytics

Compute Capability
SoC With Built-In Hardware Deep Learning Accelerator

Vision Object Analytics

• Object Detection
• People Detection
• Vehicle Detection
• Human / Vehicle Bestshot
• Path Extraction

Attribute Extraction

• People (Gender, Clothing Color, Bag, Hat)
• Vehicle (Bike, Bus, Car, Motorcycle, Truck, Color)

Applications
Deep Learning VCA (Smart Motion Detection, Smart VCA)

Smart VCA - Group 1

• Intrusion Detection
• Loitering Detection
• Line Crossing Detection
• Face Detection

Smart VCA - Group 2

• Unattended Object Detection
• Missing Object Detection
• Crowd Detection

Licensed Applications
Smart VCA - Group 3

• Running Detection
• Parking Violation Detection
• Restricted Zone Detection

RealSight Engine
Smart IR III, Deblur, WDR, White Balance, Exposure Control

Solution Integration

VADP Package
Trend Micro (Default, 3-Year Free Trial)

Video Motion Detection
Motion Detection (Five-Window Video Motion Detection)

Alarm and Event

Event Trigger

• Audio Detection
• Camera Tampering Detection
• Cybersecurity Events
• Manual Trigger
• Motion Detection
• Periodical Trigger
• Recording Notification
• SD Card Life Expectancy
• Shock Detection
• System Boot

Event Action

• Event Notification via Camera Link, Email, HTTP, FTP/SFTP, NAS Server, SD Card
• File Upload via Email, HTTP, FTP/SFTP, NAS Server, SD Card

General

Connectors
RJ-45 Cable Connector for 10/100 Mbps Network/PoE Connection

LED Indicator
System Power and Status Indicator

Power Input
IEEE 802.3af PoE Class 3

Power Consumption
Max. 12.4 W / 8.0 W (IR On/Off)

Dimensions
Ø91.0 × 226.6 mm

Weight
940 g

Certifications

EMC Certifications

• CE (EN 55032 / EN 55035 Class A)
• UKCA (BS EN 55032 / BS EN 55035 Class A)
• FCC (FCC Part 15 Subpart B Class A)
• RCM (AS/NZS CISPR 32 Class A)
• VCCI (VCCI-CISPR 32 Class A)
• IC (ICES-003 Issue 7, Class A)

Safety Certifications

• UL (UL 62368-1)
• CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
• LVD (IEC/EN 62368-1)
• UKCA (BS EN 62368-1)

Environmental Ratings

• IK10 (IEC 62262)
• IP66 (IEC 60529)

IA Certifications

• BIS (IS 13252)
• BSMI (EMC: CNS 15936, Safety: CNS 15598-1)

Environmental

Operating Temperature

• Starting Temperature: -10°C to 50°C (14°F to 122°F)
• Working Temperature (IR Off): -30°C to 55°C (-22°F to 131°F)
• Working Temperature (IR On): -30°C to 50°C (-22°F to 122°F)

Humidity
90%

System Requirements

Operating System Support

• Microsoft Windows 10 / 8 / 7
• Mac 10.12 (Chrome Only)

Web Browser Support

• Chrome 58.0 or Above
• Internet Explorer 11

Other Players
VLC 1.1.11 or Above

DORI (EN 62676-4 Standard)

Detection (25PPM / 8PPF)

• Wide: 67.0 m (219.9 ft)
• Tele: 205.7 m (674.8 ft)

Observation (63PPM / 19PPF)

• Wide: 26.7 m (87.5 ft)
• Tele: 81.6 m (267.8 ft)

Recognition (125PPM / 38PPF)

• Wide: 13.3 m (43.7 ft)
• Tele: 41.0 m (134.4 ft)

Identification (250PPM / 76PPF)

• Wide: 6.6 m (21.7 ft)
• Tele: 20.5 m (67.1 ft)

What's in the Box:

• Quick Installation Guide
• Alignment Sticker
• Screw Pack
• Cable Gland
